Introduction to VSFF Connectors
What are VSFF Connectors?

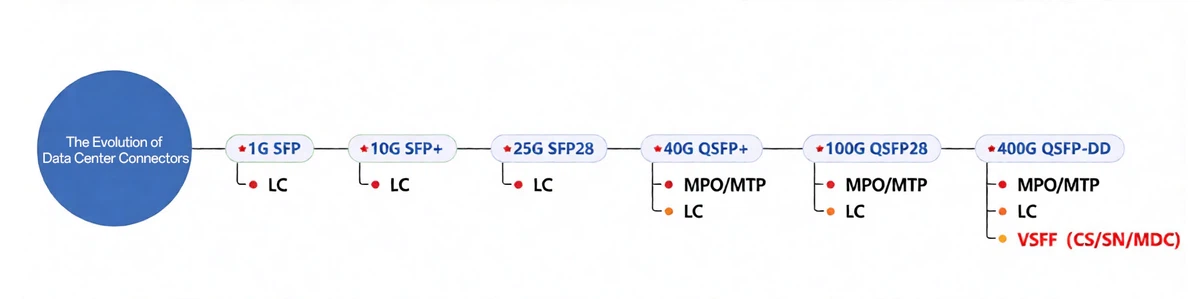

As data centers rapidly scale to 400G, 800G, and emerging 1.6T networks, traditional LC duplex connectors are hitting physical limits in port density and airflow. VSFF (Very Small Form Factor) fiber connectors were specifically engineered to address these challenges by delivering:
Ultra-high port density
Simplified cabling and polarity management
Superior airflow in high-density racks
VSFF connectors shrink ferrule pitch from 6.25 mm (LC duplex) to as little as 3.1 mm while supporting both single-mode (OS2) and multimode (OM3/OM4/OM5) fibers. They are fully compatible with QSFP-DD, OSFP, and SFP-DD transceivers, making them the preferred choice for hyperscale, AI, and enterprise data centers.
Key Advantages in High-Density Racks
Maximized Port Density: Up to 3× more ports than LC duplex in the same rack space
Tool-Free Installation: Push-pull or pull-tab designs enable fast insertion, removal, and polarity changes
Improved Airflow: Compact footprint reduces cable congestion and supports optimal cooling
Versatile Fiber Support: Single-mode and multimode compatible
Future-Ready: Optimized for 400G, 800G, and next-generation 1.6T deployments
Overview of MDC, SN, and CS Connectors

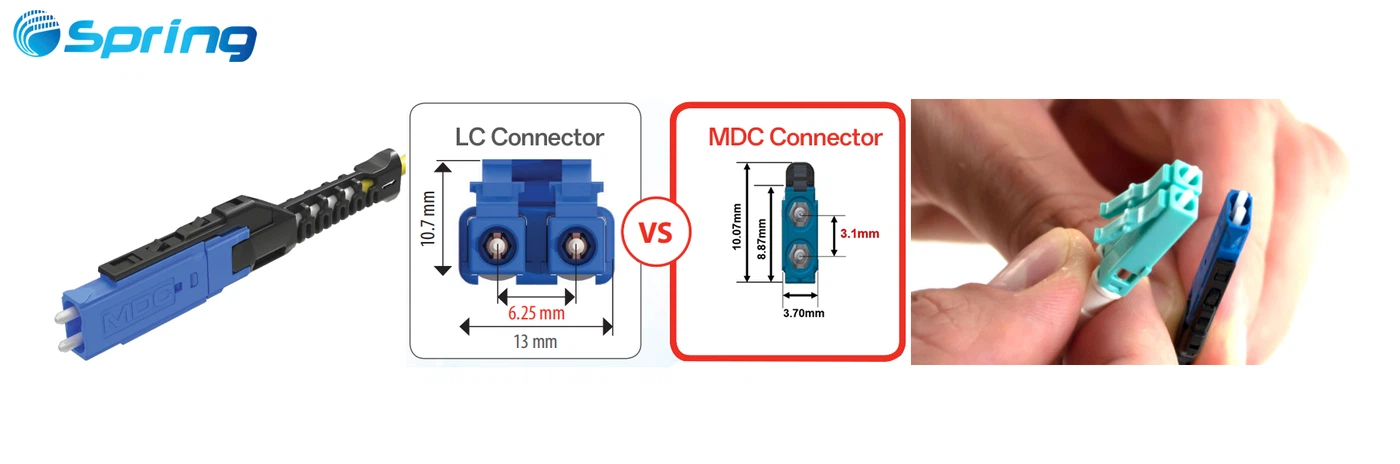

MDC Connector – US Conec Innovation
Pioneered by US Conec, the MDC (Mini Duplex Connector) was the first commercial VSFF solution. With a 4.5 mm pitch, front-access push-pull boot, and LC-compatible 1.25 mm ferrules, it excels in retrofitting existing LC infrastructure while offering excellent modularity.
Applications:
400G/800G transceiver patching
AI/HPC cluster interconnects
Multi-vendor data center deployments
Product link: MDC Fiber Optic Patch Cable

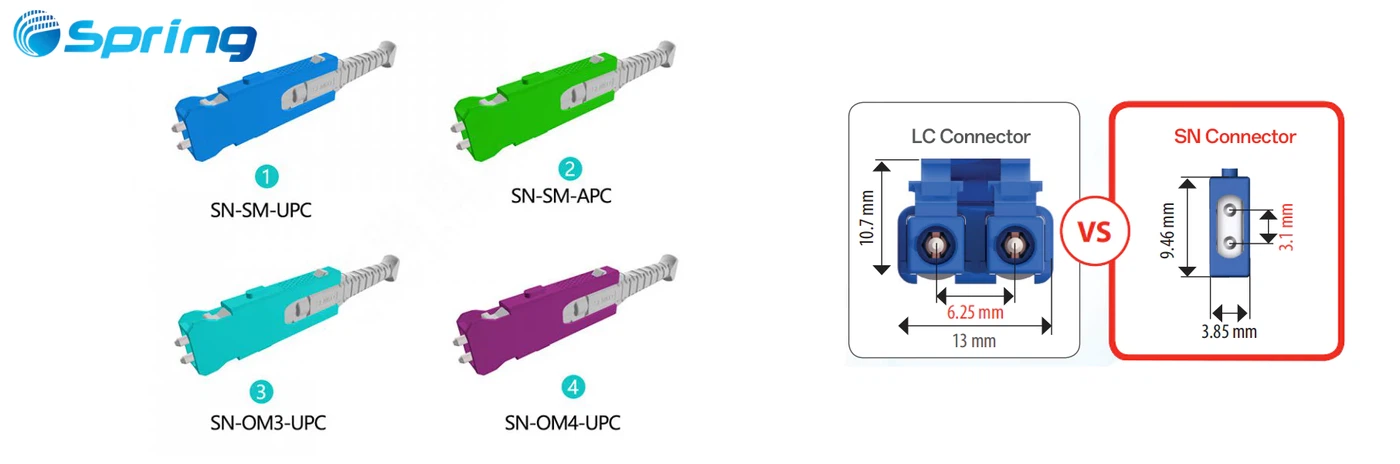

SN Connector – High-Density Modular Solution
Developed by Senko, the SN (Senko Nano) connector prioritizes maximum density and independent duplex ports with a 3.1 mm pitch. It is ideal for front-panel breakout applications.
Applications:
AI cluster backplanes (e.g., NVIDIA DGX)
800G breakout in cloud hyperscale networks
Leaf-spine switch interconnections
Product link: SN Fiber Optic Patch Cords

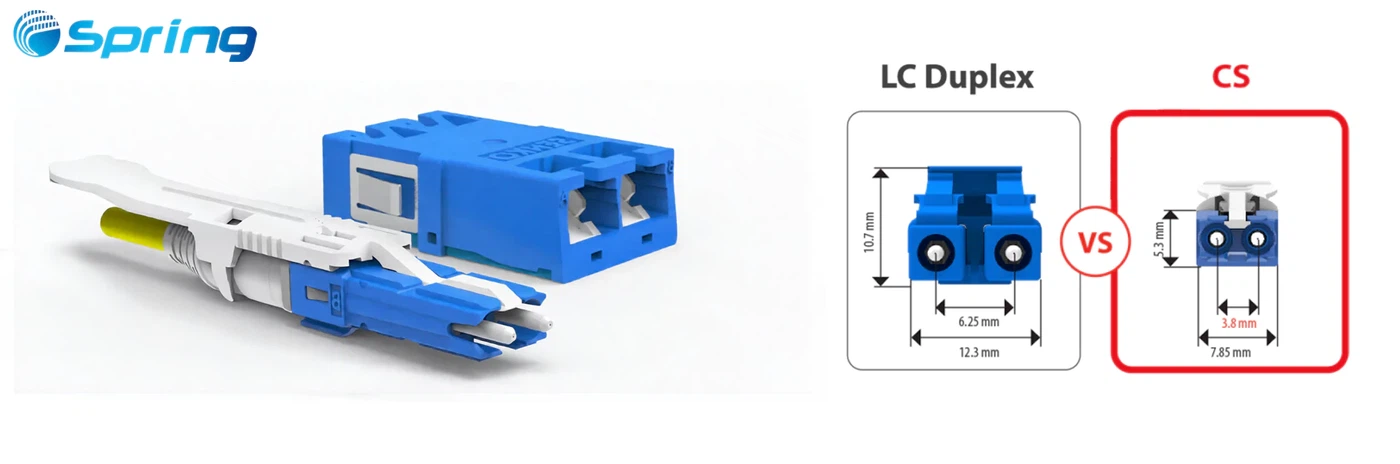

CS Connector – Simplified Transition for LC Users
Co-developed by Senko and Sumitomo, the CS connector provides an easy upgrade path for LC-based enterprise networks. Its 3.8 mm pitch and familiar push-pull tab minimize training requirements.
Applications:
Enterprise and campus network upgrades
Optical test equipment
Smooth transition from LC duplex to 400G/800G
Product link: CS Fiber Patch Cord

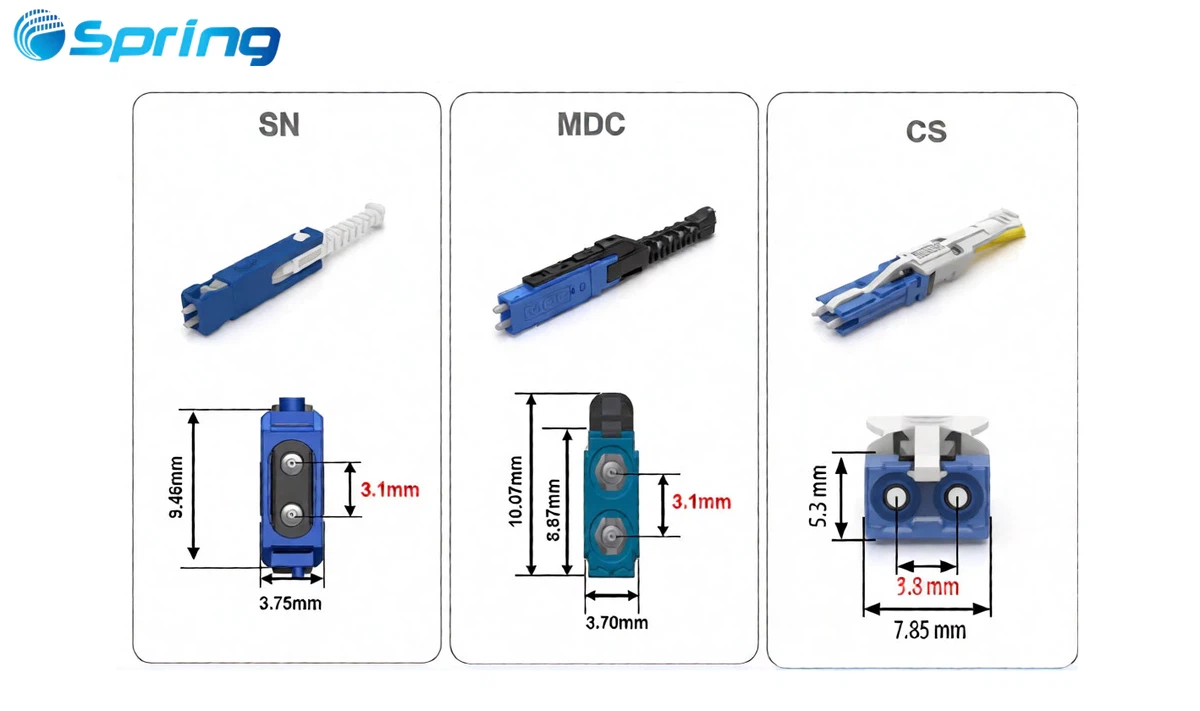

Technical Comparison Table
| Parameter | MDC (US Conec) | SN (Senko) | CS (Senko & Sumitomo) |
|---|---|---|---|
| Pitch (mm) | 4.5 | 3.1 | 3.8 |
| Density vs LC | ~2.5–3× | ~3× (highest in 1U panels) | ~2× |
| Approx. 1U Duplex Ports | Up to 216 | Up to 192–256 | Up to 168 |
| Polarity Change | Tool-less (DirectConec™ boot) | Tool-less (EZ-Flip option) | Semi-manual (push-pull tab) |
| Ferrule Type | 1.25 mm (LC compatible) | 1.25 mm | 1.25 mm |
| Max Cable OD | 2.0 mm | 1.6 mm | 2.0–3.0 mm |
| Mating Cycles | >1,000 | >2,000 | >1,000 |
| Transceiver Compatibility | QSFP-DD, OSFP, SFP-DD | QSFP-DD, OSFP | QSFP-DD, OSFP |
| Best Use Case | Retrofit / modular panels | 800G breakout / AI racks | LC migration / enterprise |
Applications and Real-World Deployment
AI/HPC Clusters (NVIDIA DGX, Meta, Google)
SN and MDC connectors are the go-to solutions for ultra-dense GPU clusters, enabling thousands of duplex links in 1U–2U racks with effortless polarity management.
Cloud Hyperscale (Alibaba, ByteDance)
CS and SN connectors streamline breakout configurations (e.g., 1×800G → 4×200G), reducing field swaps and network downtime during re-topology.
Enterprise Data Centers
CS connectors deliver the most economical and low-training LC migration path, ideal for campus or mixed-environment upgrades to 400G/800G.
Cost, ROI, and Maintenance Considerations
| Factor | MDC | SN | CS |
|---|---|---|---|
| Connector Cost | Moderate | High | Moderate |
| Adapter / Cassette Cost | Medium | High | Low |
| Field Cleaning & Inspection | Easy | Moderate | Easy (LC-style) |
| Polarity Change Time | <1 min | <1 min | 2–3 min |
| Durability (Mating Cycles) | >1,000 | >2,000 | >1,000 |
| Replacement Frequency (5 yrs) | Low | Very Low | Moderate |
Insights:
SN offers the longest service life and highest long-term ROI in hyperscale AI deployments.
MDC provides the best balance of cost, ecosystem support, and ease of maintenance.
CS remains the most economical choice for LC migration.
Switching from LC to VSFF can reduce total rack cost by up to 25% through higher density and lower cabling overhead.
Future Trends: 1.6T, OSFP-XD, and Co-Packaged Optics (CPO)
1.6T and OSFP-XD: Demand ultra-compact duplex ports; dual MDC or SN-mini connectors can double optical density.
CPO (Co-Packaged Optics): Places optical engines next to ASICs; VSFF jumpers with ultra-low bend-radius fiber and polarity-agnostic boots are essential.
Next-Gen Assemblies: Flexible jacket options (OFNP/LSZH), lengths 0.3–100 m, and hybrid fan-out configurations will dominate.
CTA: Explore Custom VSFF Patch Cord Options
Contact Spring Optical engineering team for tailored high-performance VSFF solutions.
FAQ
Q: What is VSFF?
A: Very Small Form Factor connectors designed for ultra-high-density 400G/800G/1.6T data centers.
Q: Which connector has the highest port density?
A: SN connectors (up to 3× LC density in real-world 1U panels).
Q: Can VSFF connectors directly replace LC?
A: Not always; compatible adapter panels or transceivers are usually required.
Q: Are MDC, SN, and CS interchangeable?
A: No. Each uses unique latch and adapter designs, though all support duplex transmission.
Q: Recommended fiber types?
A: Single-mode OS2 (G.657.A1/A2) or multimode OM3/OM4/OM5.
Q: How to future-proof for 1.6T and CPO?
A: Choose dual MDC/SN-mini connectors and hybrid fan-out assemblies with ultra-low bend-radius fiber.
Conclusion
MDC: Best balance of cost, modularity, and multi-vendor ecosystems.
SN: Maximum density and durability - ideal for hyperscale AI clusters with the highest long-term ROI.
CS: Easiest and most economical LC migration path for enterprise and campus networks.
Future deployments of 1.6T, OSFP-XD, and CPO will continue to rely heavily on VSFF connectors. Ensure your network is ready by exploring custom VSFF patch cord options or contacting our engineering team for tailored solutions.
