Laboratory & Testing Center: Ensuring Telecom-Grade Reliability

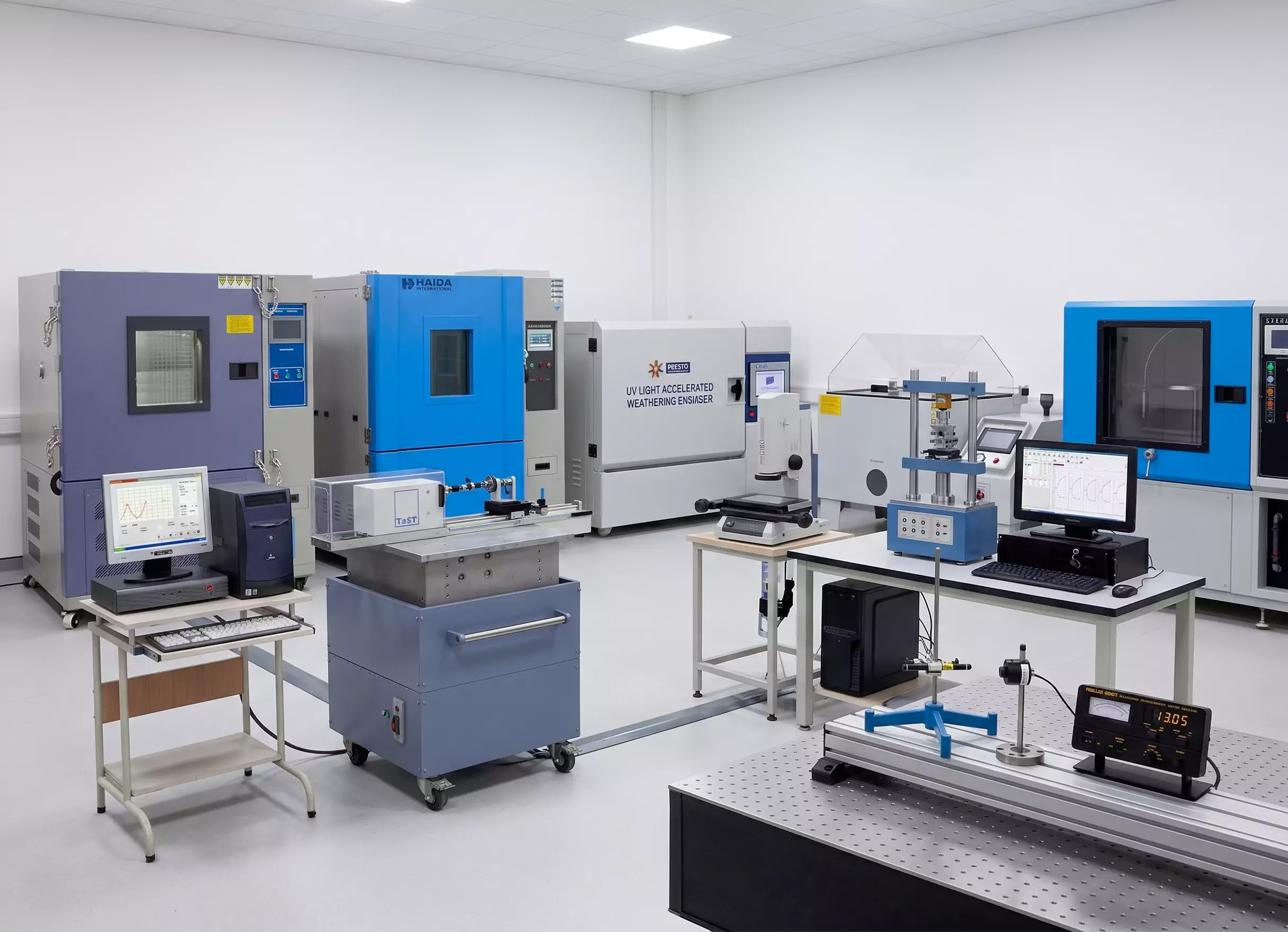

Spring Optical operates a fully integrated Laboratory & Testing Center, combining environmental reliability testing, mechanical durability validation, precision dimensional inspection, and advanced optical performance testing.
Our laboratory is designed not only for standard environmental testing but also for validating the real-world performance of pre-connectorized fiber systems, MPO/MTP high-density solutions, FTTH drop assemblies, and outdoor connectivity products.
Unlike conventional component-level labs, our testing center is structured around application-driven validation scenarios, simulating how products behave in real telecom networks-from central offices and data centers to outdoor FTTH deployment environments.
Our Core Mission: Every product must survive real deployment conditions before it leaves the factory.
Reliability Standards Framework
Telcordia Reliability Standards
Our laboratory follows internationally recognized telecom standards to ensure compatibility with global carrier and data center requirements.
GR-326: Fiber optic connector & jumper reliability
GR-1435: Multifiber connector performance
GR-1209: Passive optical component performance
GR-1221: Long-term reliability assurance
GR-910: System-level optical requirements
GR-1073: Fiber interconnection reliability
IEC Fiber Optic Testing Standards
These standards define long-term mechanical stability, optical performance, and environmental endurance for telecom-grade networks.
IEC 61753-1: Performance qualification of interconnecting devices
IEC 61300-3-34: Endface geometry inspection
IEC 61300-2-7: Mechanical durability
IEC 61300-2-6: Mating durability
IEC 61300-2-22: Temperature cycling
IEC 61300-3-16: Optical measurement methods
Application-Oriented Testing Philosophy
At Spring Optical, testing is not performed as isolated laboratory procedures, but as an application simulation of real-world deployment environments:
Data center high-density cabling stress
Outdoor FTTH sealing and waterproof reliability
MPO/MTP multi-fiber alignment stability
Multiport Service Terminal (MST) field installation durability
Long-term passive network stability
This ensures each product is validated under system-level conditions, not only component-level specifications.
Comprehensive Environmental & Mechanical Reliability Testing

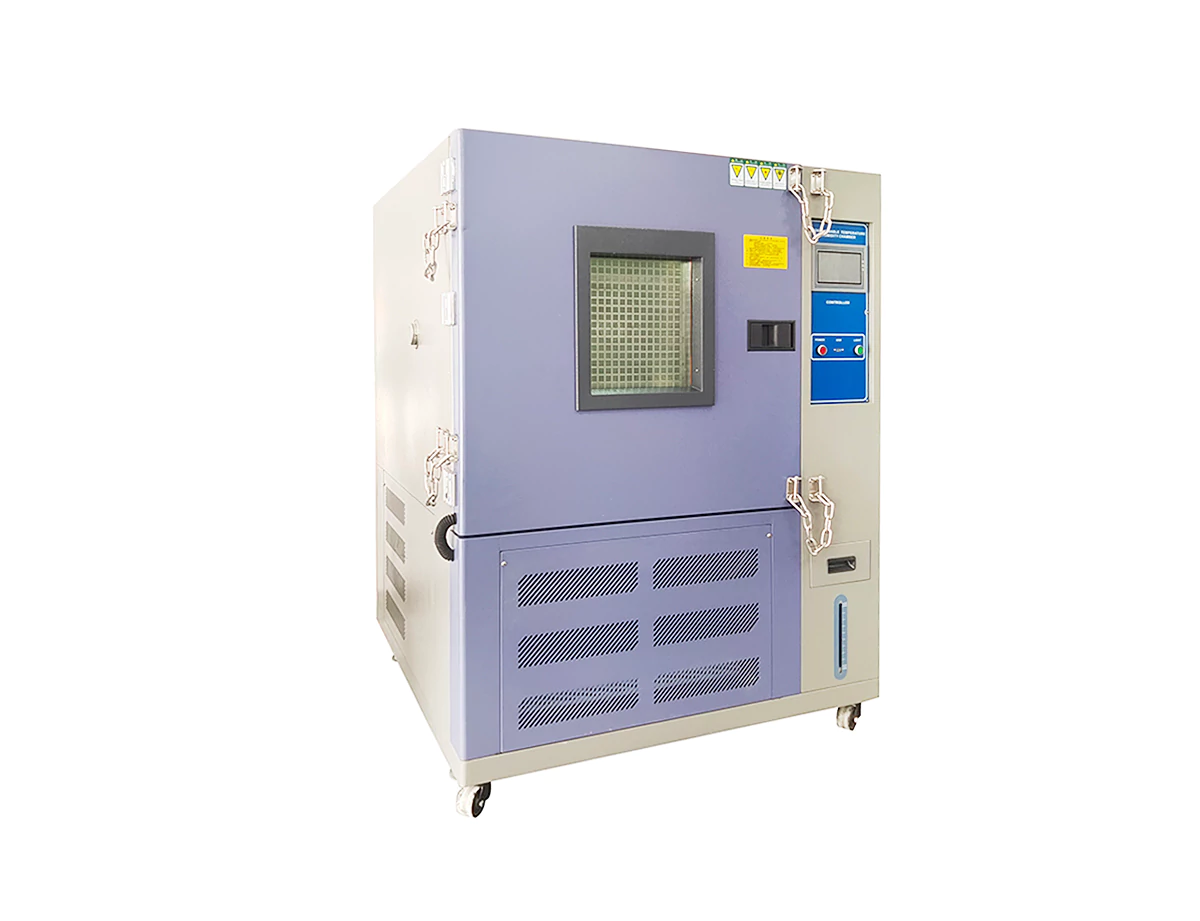

Temperature & Thermal Stress Validation: Products undergo repeated temperature cycling from -40°C to +85°C, simulating seasonal and geographical variations in real telecom networks. Key Focus: Material expansion stability, optical alignment shift, and long-term attenuation drift.
High Humidity & Moisture Aging: Under 85°C / 85% RH long-term exposure, products are evaluated for:
Moisture ingress resistance
Adhesive and sealing stability
Fiber transmission consistency
Outdoor Exposure & Harsh Environment Simulation: We push products beyond normal operating limits to ensure field robustness in extreme environments:

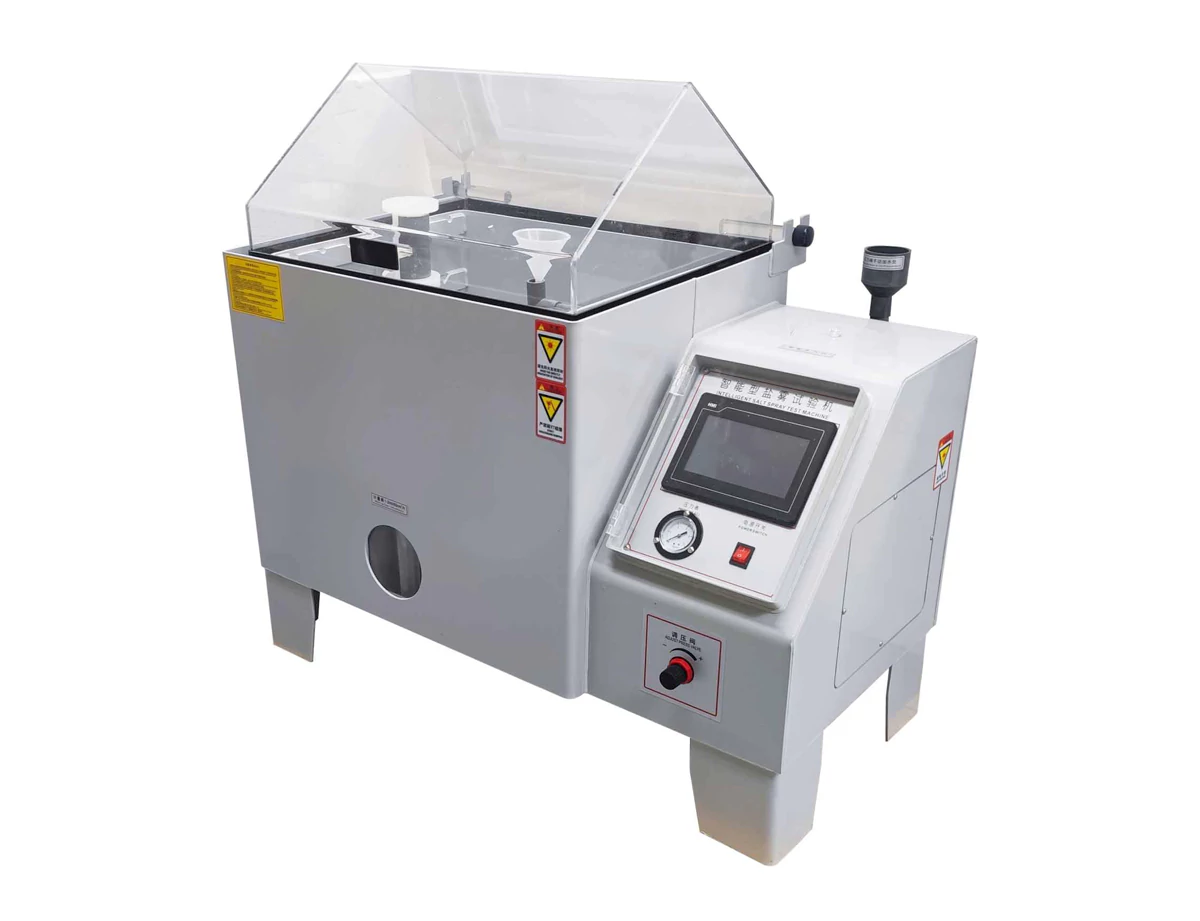

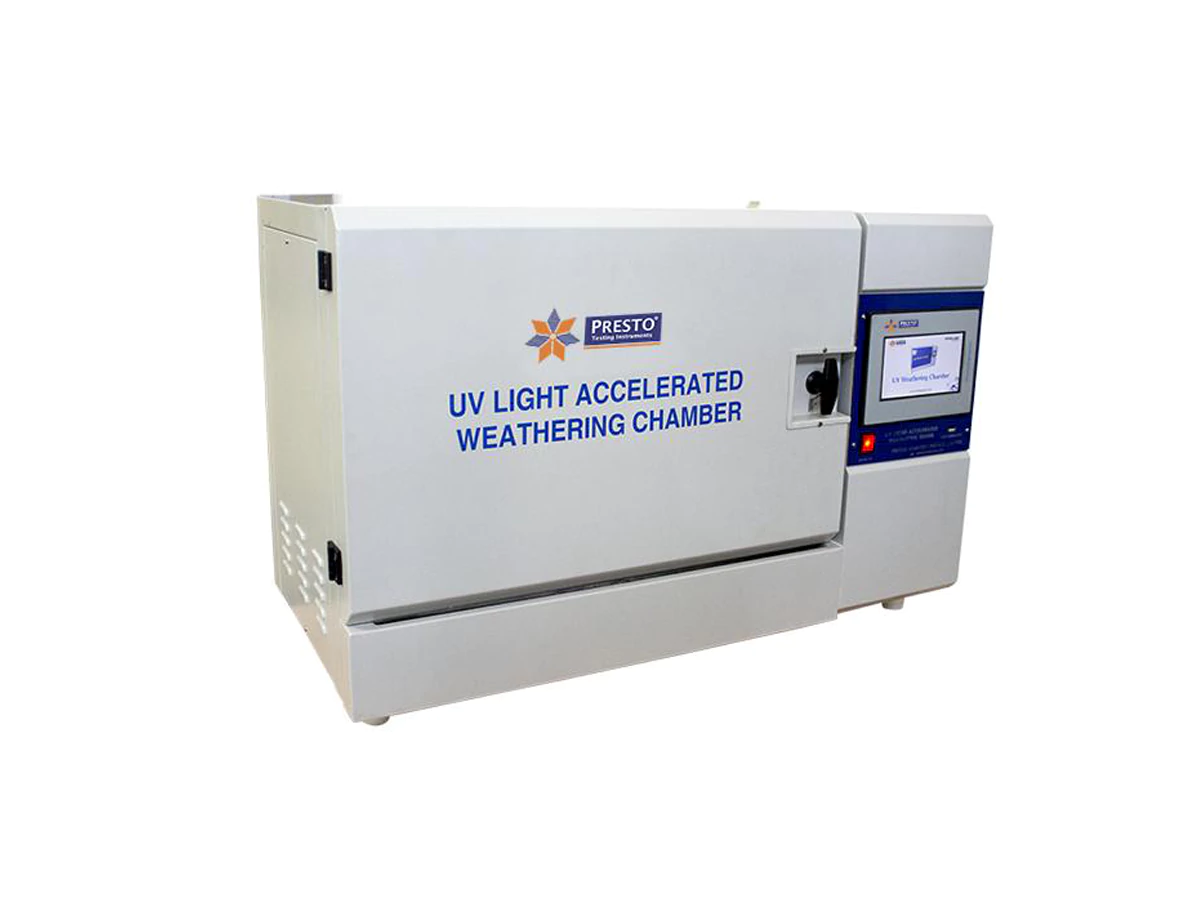

UV aging simulation & salt fog corrosion resistance.

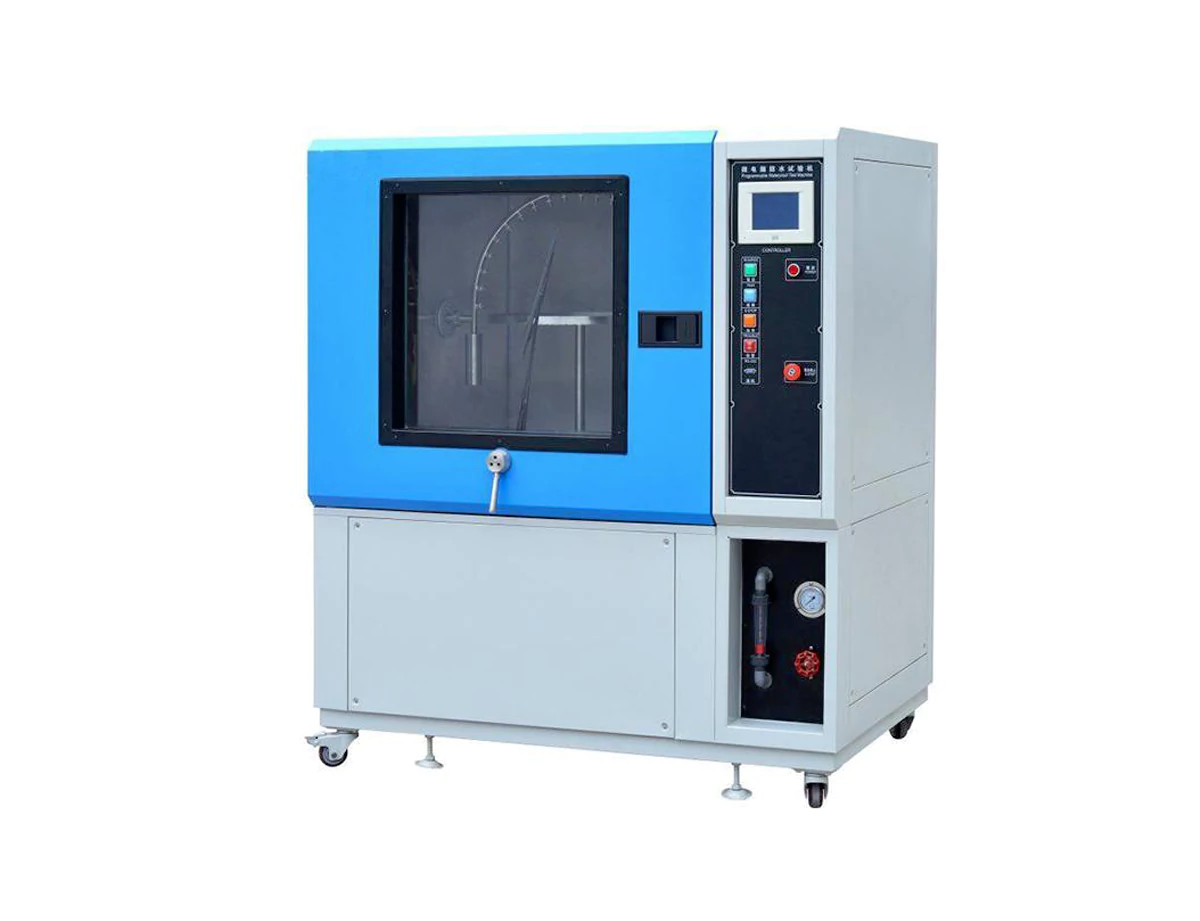

Rain & water ingress testing with high-pressure water sealing verification (up to 10 MPa).
Critical for: FTTH outdoor drop systems, MST terminals (Hardened Terminals), and fiber distribution closures.
Mechanical Stress & Transport Simulation: Products are tested under real logistics and installation conditions to ensure stable performance from factory delivery to field installation:

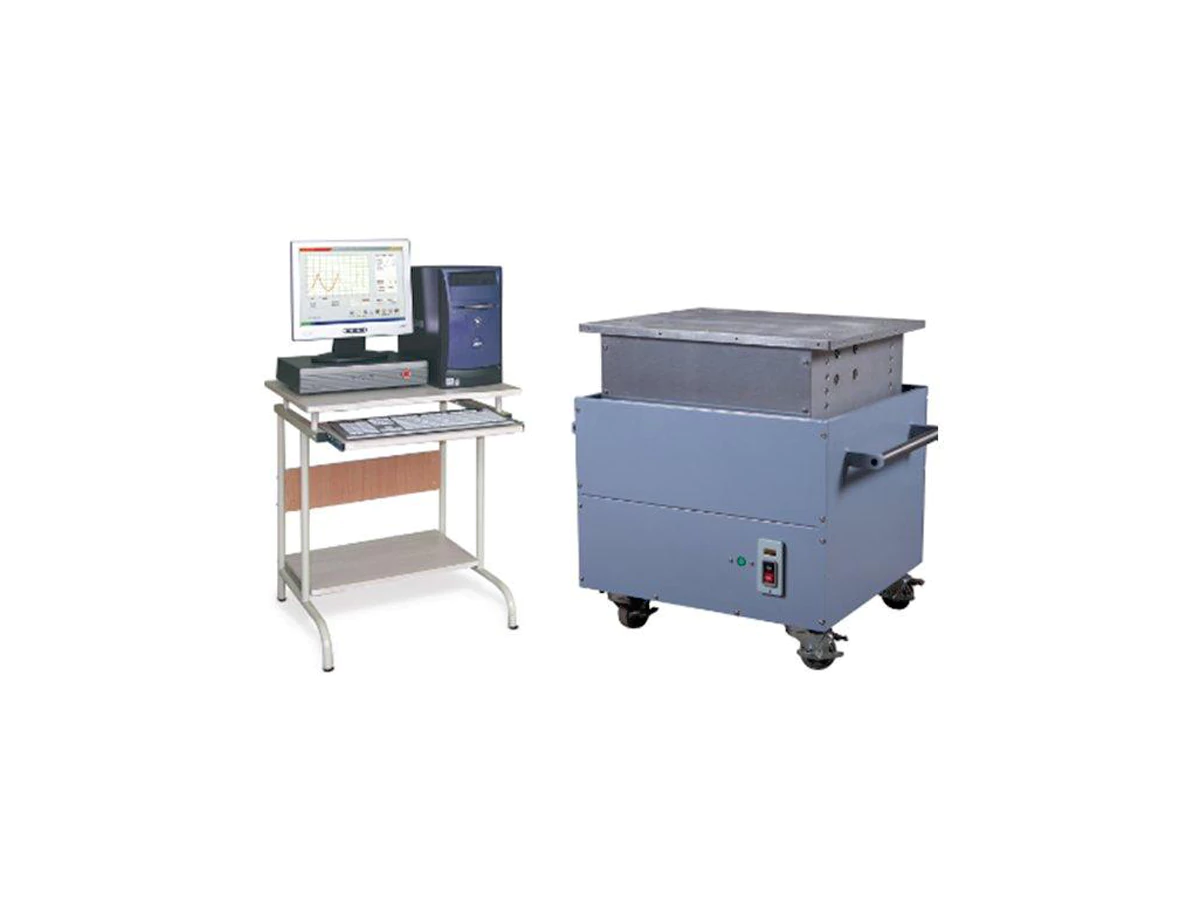

Vibration during transportation & mechanical shock

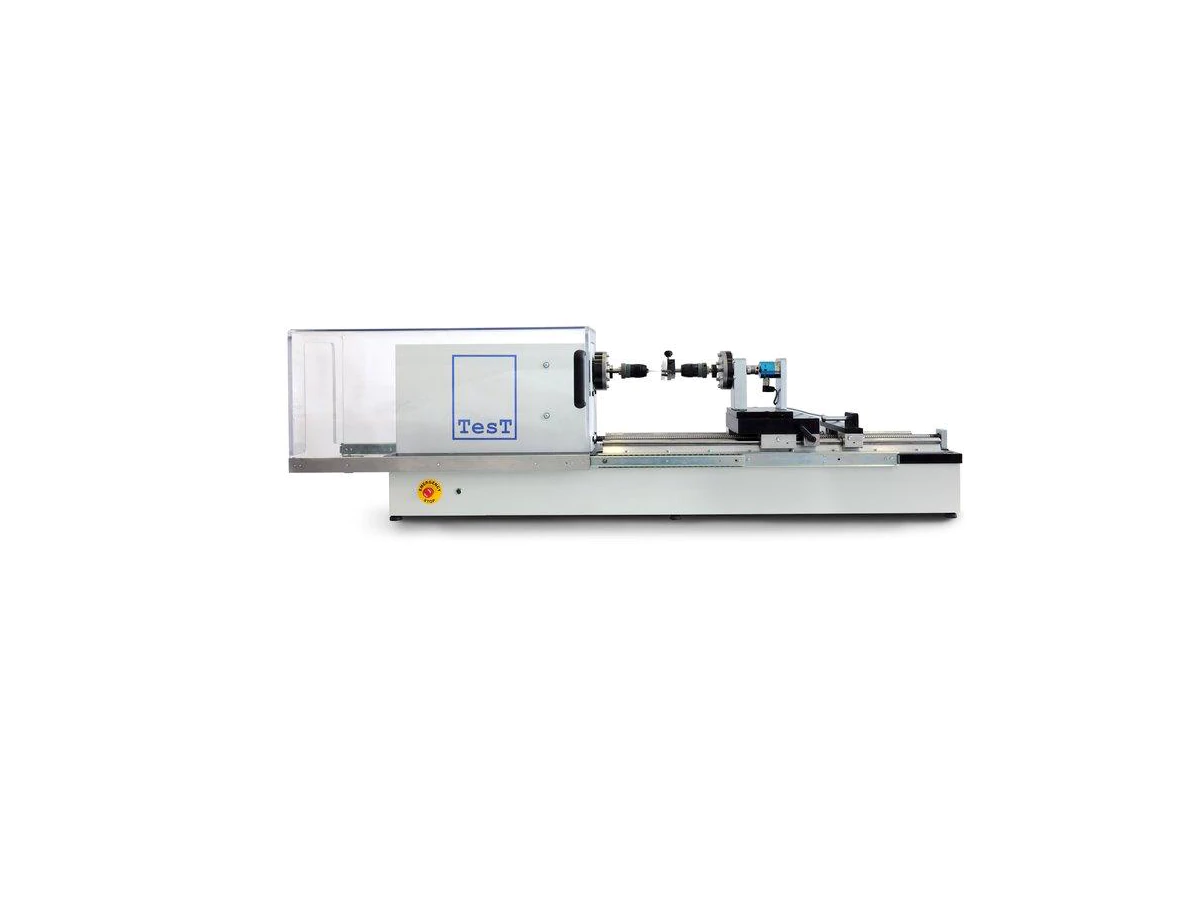

Cable bending and torsion cycles

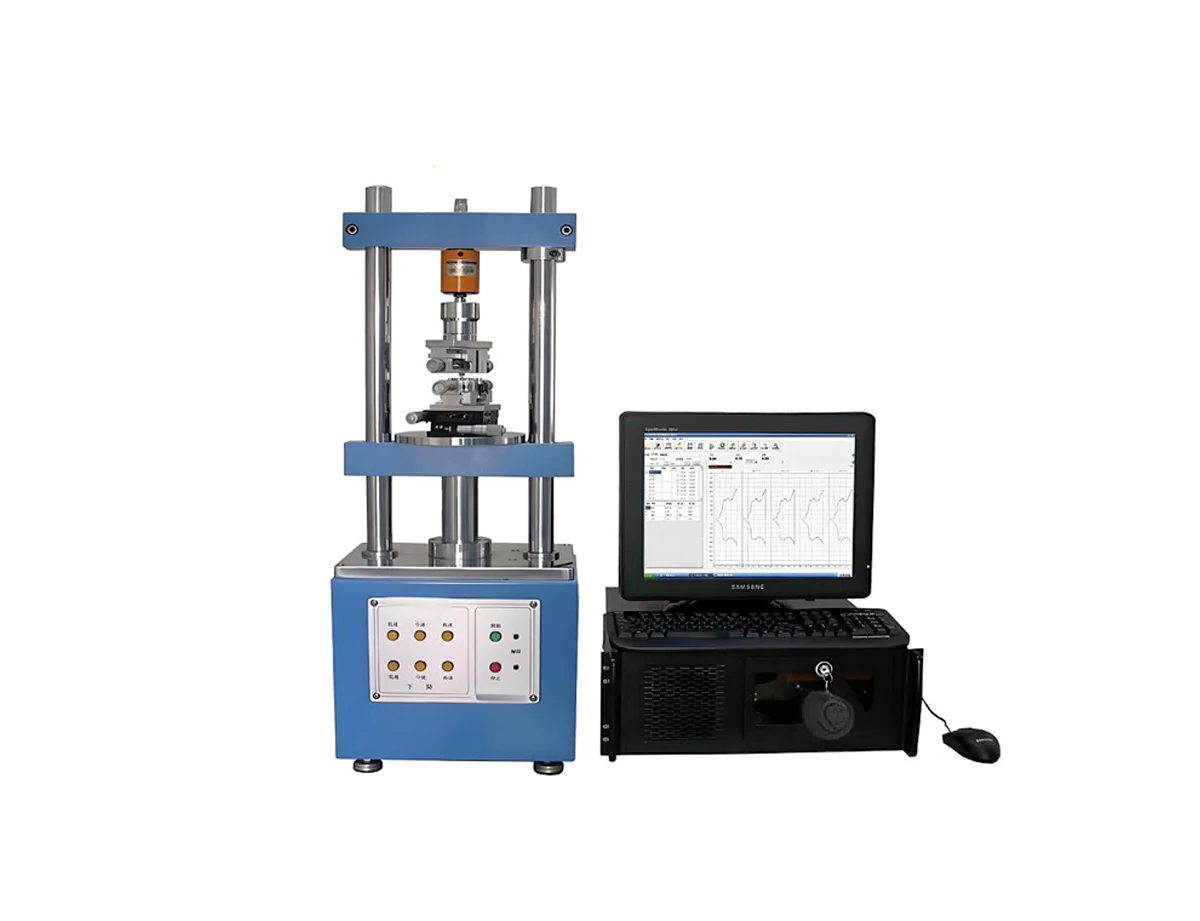

Connector lifecycle reliability (repeated mating cycles with continuous IL/RL monitoring)
Optical Power Stability: High-power transmission conditions (equal to or greater than 10W) are used to verify thermal stability, optical safety margins, and long-term insertion loss consistency.
Optical Performance Testing Laboratory
Spring Optical operates a fully equipped Optical Performance Testing Laboratory to ensure precise qualification of MPO/MTP assemblies, connectors, and passive optical components.
Advanced Testing Equipment Portfolio:

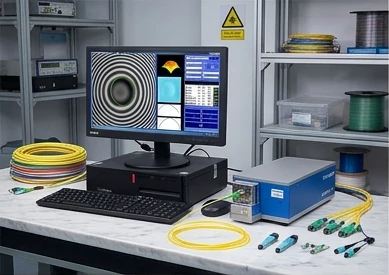

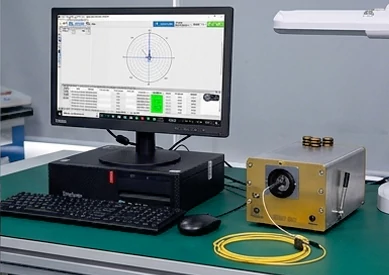

Equipment Name: MPO/MTP 3D Interferometer
Primary Function: 3D analysis of MPO/MTP endface geometry (Radius of curvature, apex offset, fiber height, polish quality) per IEC 61300-3-34.

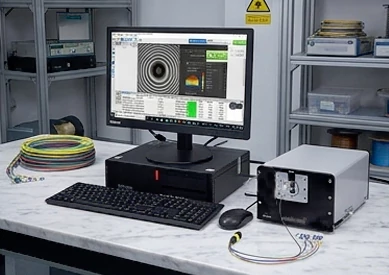

Equipment Name: Single-core 3D Interferometer
Primary Function: Single-fiber connector geometry inspection (LC/SC/FC) for high-precision ferrule alignment.

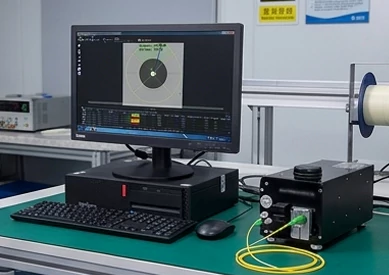

Equipment Name: Concentricity Tester
Primary Function: Measures ferrule-to-core concentricity accuracy to ensure low insertion loss.
Equipment Name: MPO/MTP Polarity Tester
Primary Function: Ensures correct MPO/MTP polarity configuration (Type A/B/C) for data center high-density cabling.

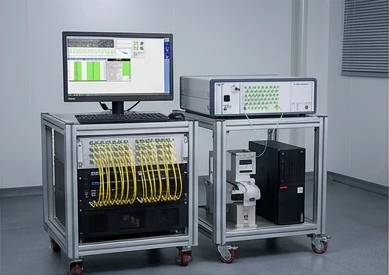

Equipment Name: JGR Multichannel IL & RL Tester
Primary Function: Simultaneous multi-channel insertion loss and return loss testing for MPO/MTP assemblies.
Equipment Name: AI IL & RL Tester
Primary Function: Automated high-throughput testing of insertion loss and return loss in mass production.
Equipment Name: Endface Inspector
Primary Function: Detects scratches, contamination, cracks, and defects on fiber endfaces.
Equipment Name: PM Angle Tester
Primary Function: Polarization Maintaining Angle measurement for specialized, high-stability optical systems.

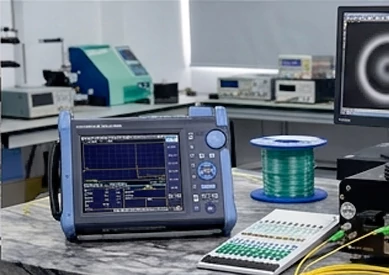

Equipment Name: OTDR (Optical Time Domain Reflectometer)
Primary Function: Fiber link characterization, attenuation measurement, and fault location for FTTH/backbone networks.
From Component Testing to System Reliability
Our laboratory is structured around complete product ecosystems rather than isolated parts. We ensure full qualification for:
MPO/MTP High-Density Cabling Systems
FTTH Pre-terminated Drop Solutions
Multiport Service Terminals (MST / Hardened Terminals)
PLC Splitters & WDM Components
Our Quality Philosophy
"A product is only qualified when it performs reliably in real network conditions."
Through integrated environmental, mechanical, and optical validation, Spring Optical ensures every shipment delivers stable field performance, reduced maintenance risk, a long service life, and consistent optical quality.
Partner with a Certified Fiber Optic Manufacturer
Are you looking for a reliable OEM/ODM partner for your next telecom deployment? Contact the Spring Optical technical team today to request comprehensive test reports or to schedule a virtual tour of our Laboratory & Testing Center.
Contact Our Engineers / Get a Quote
