FTTA Fiber Outdoor Patch Cable Manufacturer & Supplier

FTTA Fiber and Outdoor Patch Cable Manufacturer

Spring Optic manufactures industrial-grade FTTA fiber patch cables and outdoor patch cables, engineered to deliver reliable connectivity in the harshest environments. Our products ensure robust, low-loss links between Baseband Units (BBUs) and Remote Radio Heads (RRHs) on cellular towers, designed to withstand extreme temperatures, vibration, UV exposure, and moisture. Every outdoor patch cable is 100% factory tested for optical performance and mechanical durability.

ODC Fiber Cable With ODC-2 / ODC-4 Connector – IP68 Waterproof FTTA Solution For 5G Bas...
ODC Fiber Cable (ODC Patch Cord) is a rugged outdoor fiber optic cable assembly terminated with ODC-2 or ODC-4 connectors. Engineered with IP68-rated sealed construction, screwed locking mechanism
FTTA PDLC To LC Duplex Waterproof Fiber Optic Patch Cord
· High-performance FTTA LC duplex waterproof fiber optic patch cord.· Ideal for outdoor 4G and 5G base station connections.· Compact and durable design with corrosion-resistant metal housing.·
Waterproof FTTA Fiber Optic Patch Cord – Armored FullAXS To ODVA LC 2 Core
· High-performance waterproof FTTA fiber optic patch cord.· Armored design ensures mechanical protection and durability.· FullAXS to ODVA LC connectors for reliable optical alignment.· 2-core
Outdoor Armored PDLC 4F LC To 4F LC Fiber Patch Cord
· High-performance armored PDLC 4F LC fiber patch cord for outdoor use.· Stainless steel spiral armor protects against rodents and crushing.· Supports single-mode and multi-mode networks with low
FTTA 5mm Single Mode DLC To FullAXS Fiber Patch Cord – Outdoor Base Station & Tower-Top...
· Ruggedized FTTA 5mm single-mode fiber patch cord for outdoor base stations and tower-top networks.· Pre-terminated with DLC/UPC duplex LC connectors and FullAXS rugged interface.· LSZH 5mm cable
Armoured ODC Male-FullAXS LC SM 5mm Outdoor CPRI Fiber Patch Cord
ODC Male-FULLAXS Fiber patch cord is a type of fiber optic cable that uses the ODC connector, which is a rugged, waterproof connector commonly used in harsh outdoor environments. The FULLAXS part
Hybrid Fiber/Power Cable Singlemode Outdoor Jumpers
2F+2x12 AWG fiber/power hybrid Patch cable, connects MST to radio.Hybrid Fiber/Power Cable Singlemode Outdoor Jumpers.
NSN DLC Uniboot Flexible Boot OFNR UL-1666 Fiber Patch Cords
FPM for quick assembling cable from indoor to outdoor within 30seconds. It avoids making the assembly with the crimping, striping, gluing and polishing.Just inserting them directly into this outer
5G FTTA IP67 FPM Waterproof Case Useable For Duplex LC Compatible Fullaxs Connector RRU...
FPM for quick assembling cable from indoor to outdoor within 30seconds. It avoids making the assembly with the crimping, striping, gluing and polishing.Just inserting them directly into this outer
ODVA-MPO Female To Male Fiber Patch Cables
Sealed Circular IP67 ODVA-MPO fiber optic patch cable assemblies provides low cost ideal solution for CATV, RRH remote radio heads, FTTX harsh environment connectivity. This ODVA-LCDX, ODVA-SC and
Customized Fullaxs-LC Duplex FTTA Fiber Patch Cable
FullAXS is a compact outdoor connector that is designed to provice IP67 water and dust seal over LC Duplex, MTP/MPO and other connector type. Applications include connection to Remote Radio Units
FULLAXS Compatible CPRI Fiber Patch Cord, Waterproof Fiber Optic Cable
FullAXS is a compact outdoor connector that is designed to provice IP67 water and dust seal over LC Duplex, MTP/MPO and other connector type. Applications include connection to Remote Radio Units

First 12 Last

Custom FTTA Fiber and Outdoor Patch Cable Solutions

FTTA-fiber-outdoor-patch-cable-Testing

We specialize in making available custom-designed FTTA outdoor patch cables to meet your particular needs, both in technical and logistical respects.

Custom Lengths: Available for ranges from 01 meters to 200 meters.

Hybrid Fiber & Power Cables: These ruggedized cables provide the opportunity to incorporate single-mode or multimode fibers with copper power conductors in a single jacket.

Armored Versions: The products are protected with stainless steel armored sheathing to provide great protection against crushes as well as protection against rodents.

Connector Customization: Connector types and polishing styles available on request.

Key Advantages of FTTA Fiber and Outdoor Patch Cable

Built for Extreme Conditions: Our FTTA fiber optic jumpers feature a wide operating temperature range (-40°C to +85°C) and IP68 certification for superior waterproof and dustproof performance.

Plug-and-Play Installation: Pre-terminated with hardened connectors, our outdoor fiber optic cables enable rapid, error-free deployment, significantly reducing labor time and costs.

Guaranteed Signal Integrity: We perform 100% insertion loss and return loss testing on every FTTA fiber patch cable, ensuring optimal performance with typical IL < 0.3 dB.

Proven Mechanical Durability: Designed to resist tensile load, repeated bending, vibration, and UV degradation for maximum service life and reduced network downtime.

Total Customization: Get tailored solutions with custom lengths, connector mixes, hybrid power-fiber options, and jacket materials (LSZH/PE) to fit your exact project requirements.

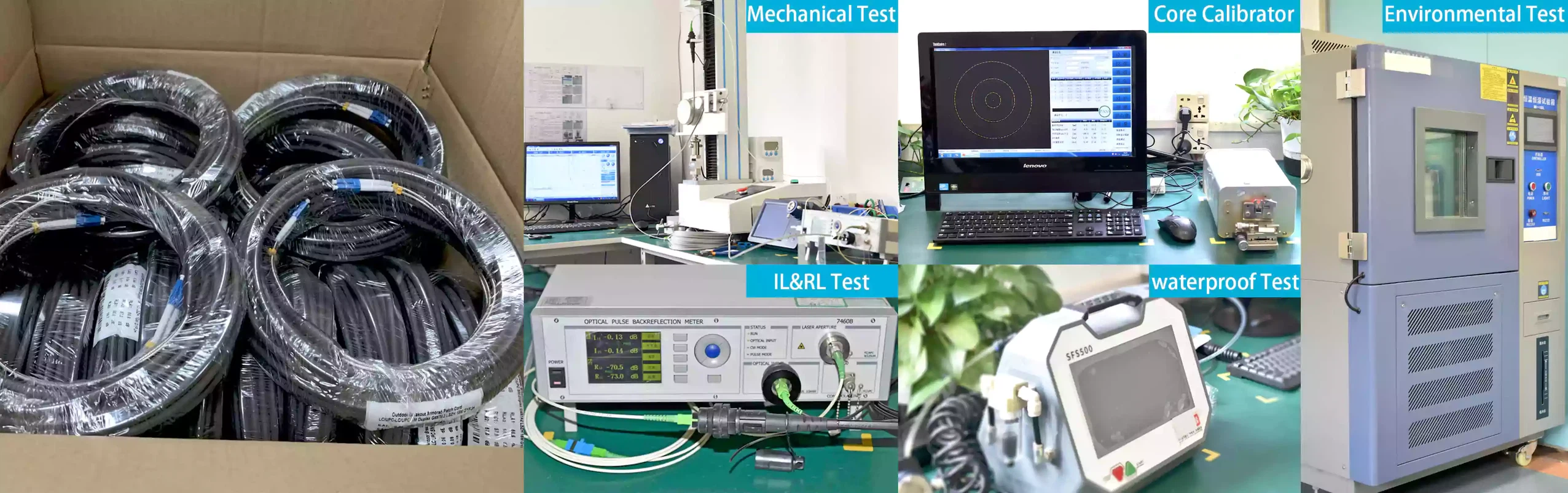

FTTA Fiber and Outdoor Patch Cable Testing Overview

Category	Details & Standards
Optical Performance	Insertion Loss: < 0.3 dB Typical Return Loss: > 55 dB (PC), > 60 dB (APC) Fiber Type: G.657.A1/A2 (Bend-Insensitive)
Environmental Testing	Temperature Cycling: -40°C to +85°C (IEC 61300-2-22) IP Rating: IP67/IP68 Certified UV Aging: 500 Hours Salt Spray: 96-168 Hours
Mechanical Testing	Tensile Strength: 150N (Short-Term) Flexing Test: 90°, 1000+ Cycles Durability: > 500 Mating Cycles
Material & Compliance	Flame Retardancy: IEC 60332 Compliant Jacket Material: LSZH or PE Options

Types of Connectors for Our FTTA Fiber & Outdoor Patch Cable

We manufacture a full line of hardened connectors for seamless use with all major wireless equipment.

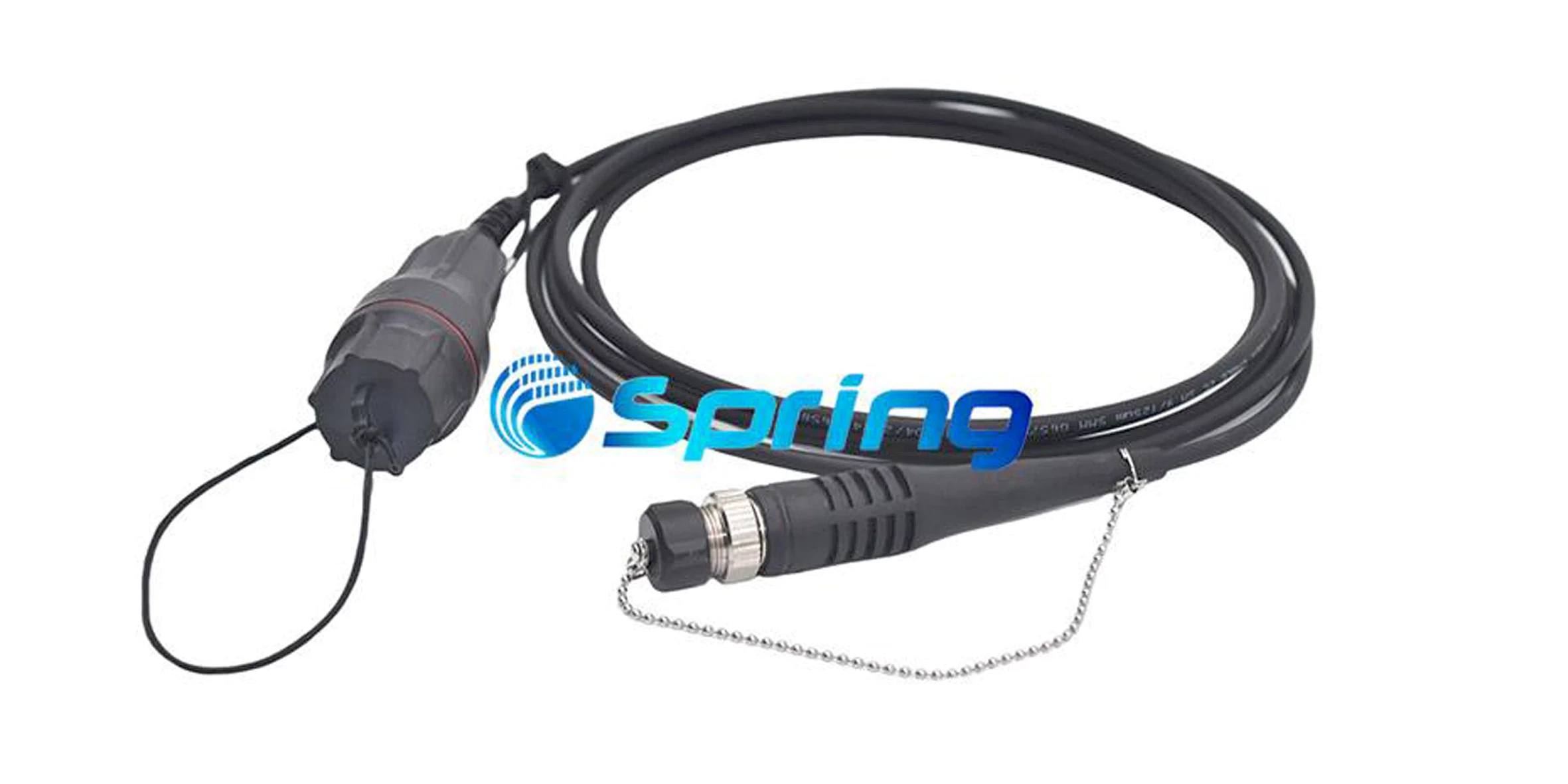

FullAXS FTTA Patch Cord

FullAXS FTTA Cable

For Nokia and Ericsson RRUs, this product is designed for one-handed installation with no tools.

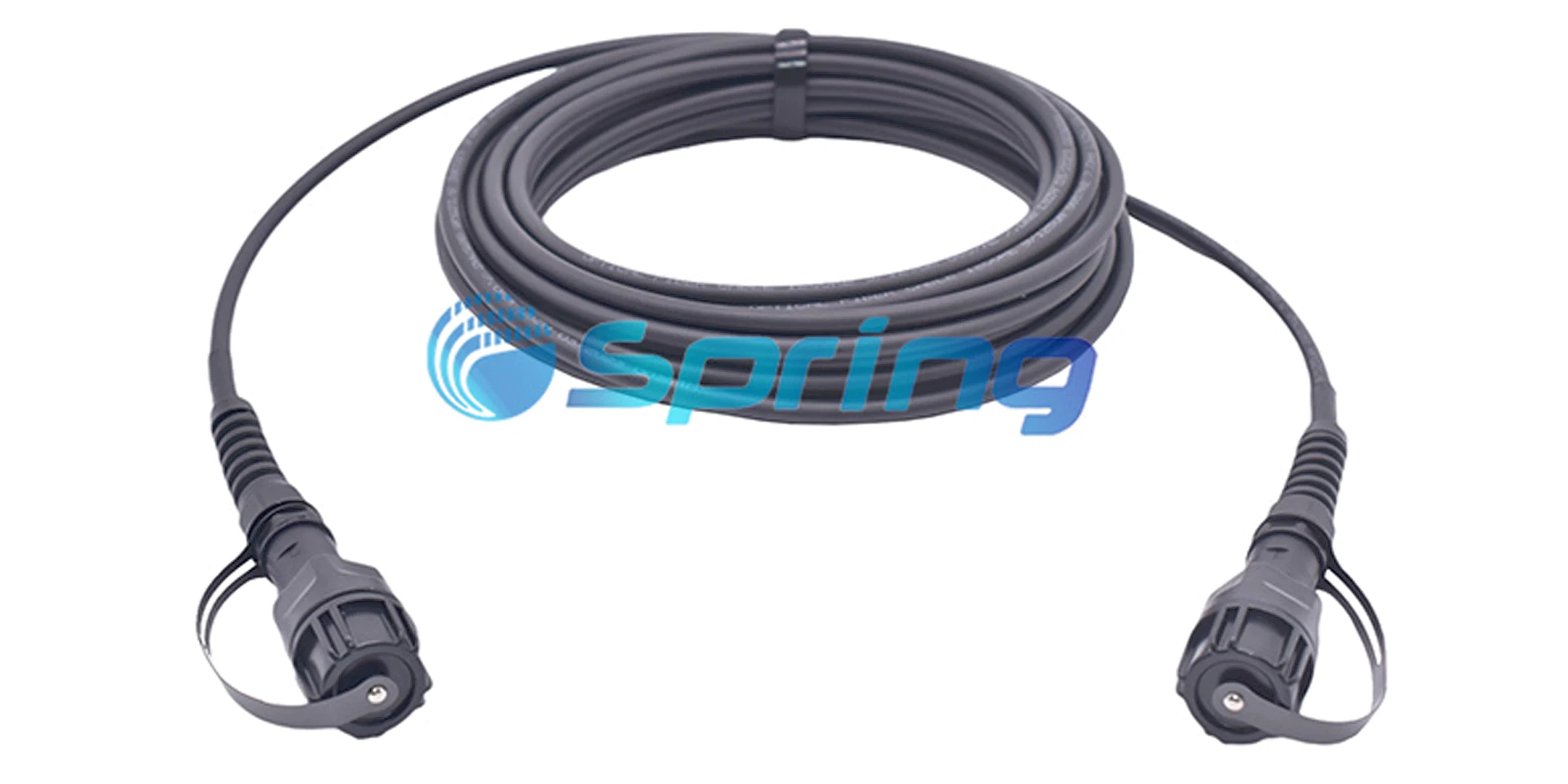

ODVA FTTA Patch Cord

ODVA Outdoor Patch Cable

Designed with an IP68 SFP-compatible connector, which features a strong push-pull locking system.

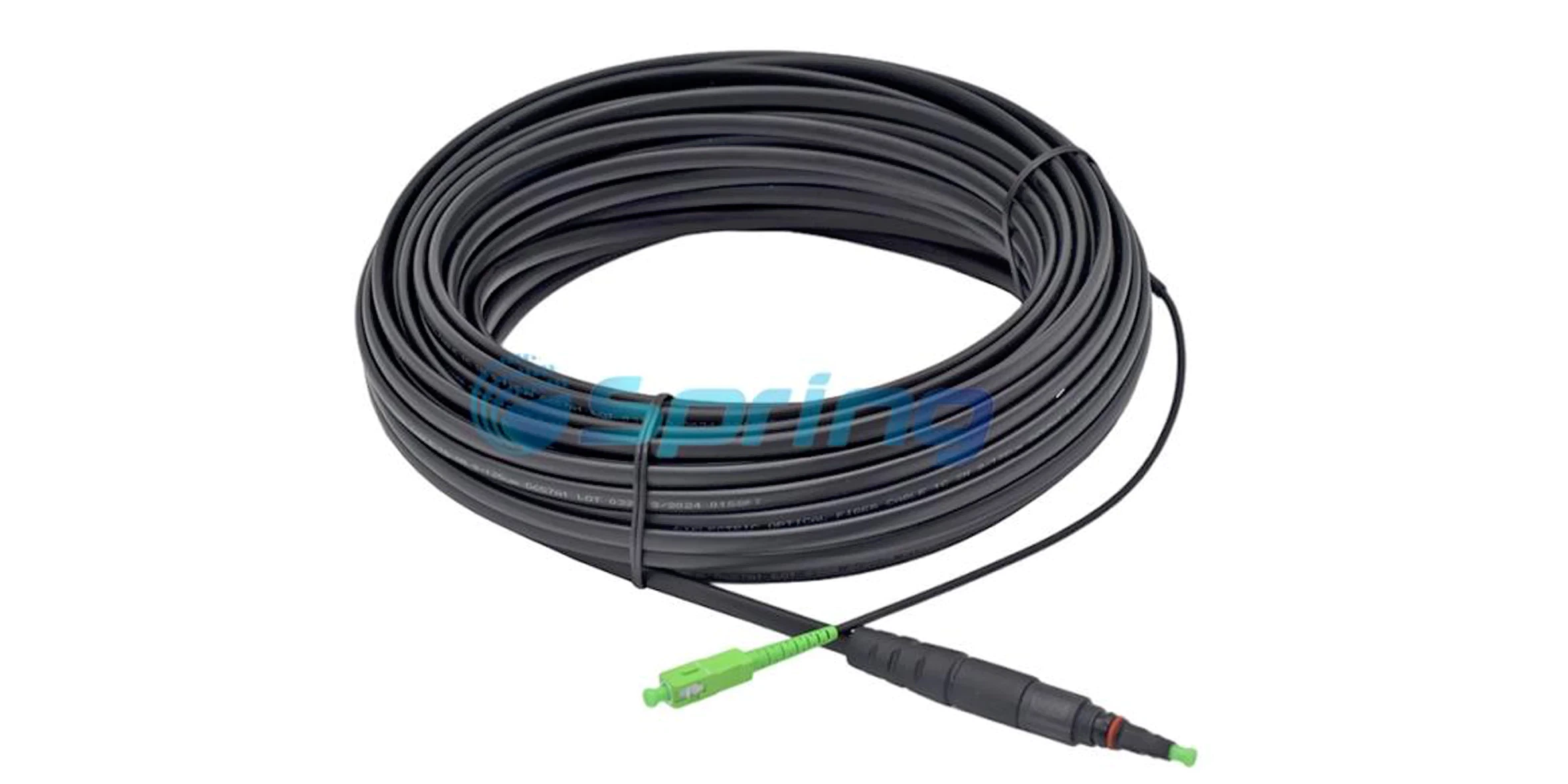

Mini SC FTTA Patch Cord

Mini SC FTTA Jumper

A compact space-saving solution that does not compromise environmental sealing.

LC Duplex FTTA Patch Cord

LC Duplex Outdoor Cable

This is the best solution for hybrid FTTA assemblies or for interfacing within covered wiring enclosures.

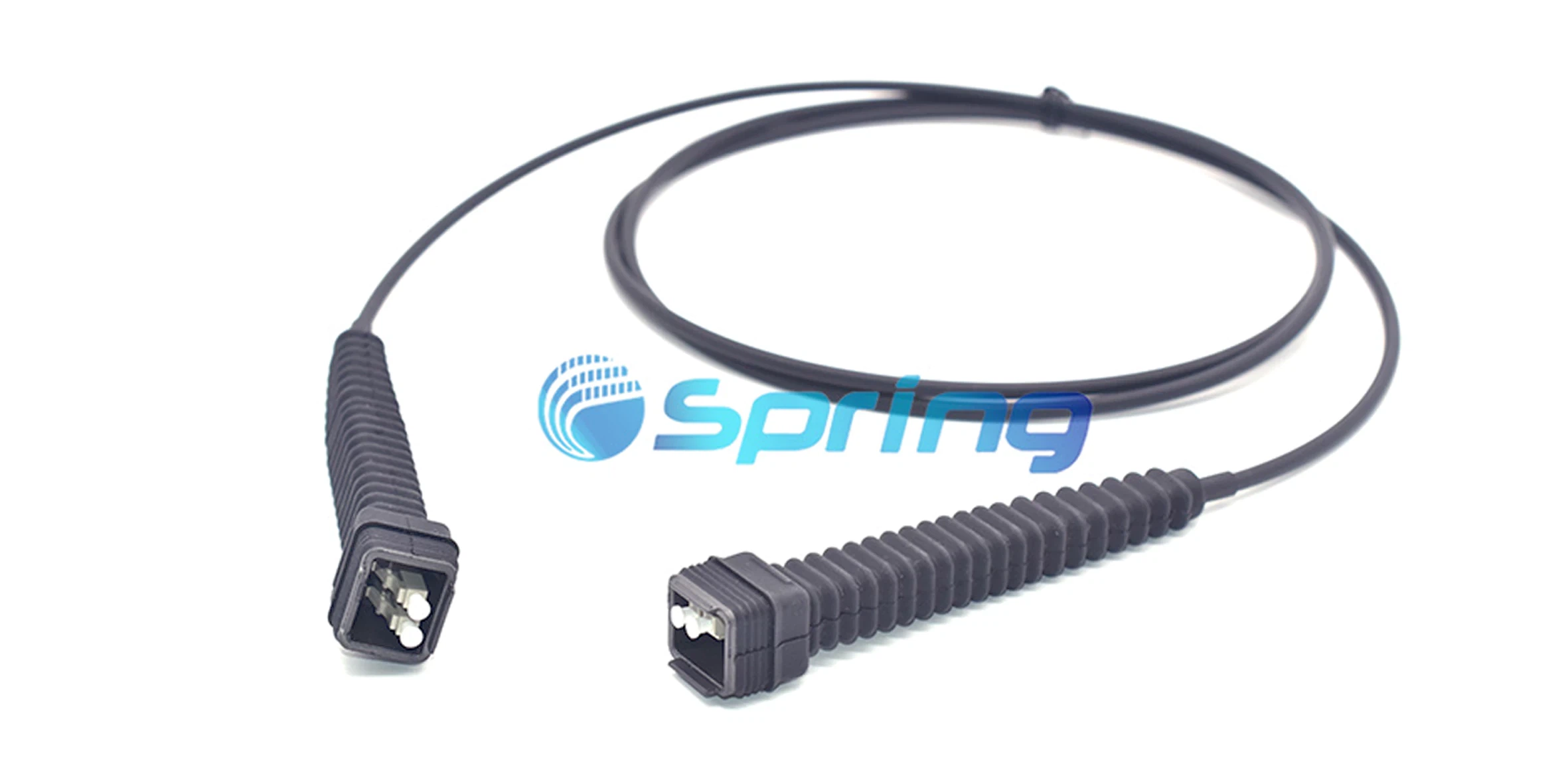

NSN FTTA Patch Cord

NSN Boot FTTA Cable

A Nokia-type connector with a secure bayonet lock is well-suited for demanding outdoor applications.

Why Spring Optic is Your Choice for FTTA Fiber Cable Manufacturer?

Expertise and Experience: We are specialists in optical connectivity, with in-depth knowledge of the specific challenges involved in deploying outdoor & FTTA applications.

Authoritative Compliance: Our FTTA fiber patch cables are manufactured to meet stringent international specifications, including IEC and Telcordia (GR326).

Trust and Reliability: All outdoor patch cables shipped are subjected to 100% optical testing and stringent quality control, ensuring compliance and longevity of performance.

Spring Optical Communication is one of the largest and best ftta outdoor patch cable manufacturers and suppliers with rich experience. Welcome to buy our high quality products or wholesale our customized ftta outdoor patch cable in stock with our factory. Also, free sample is also available if necessary.
