Product Overview – FTTA 5mm Single Mode DLC to FullAXS Fiber Patch Cord

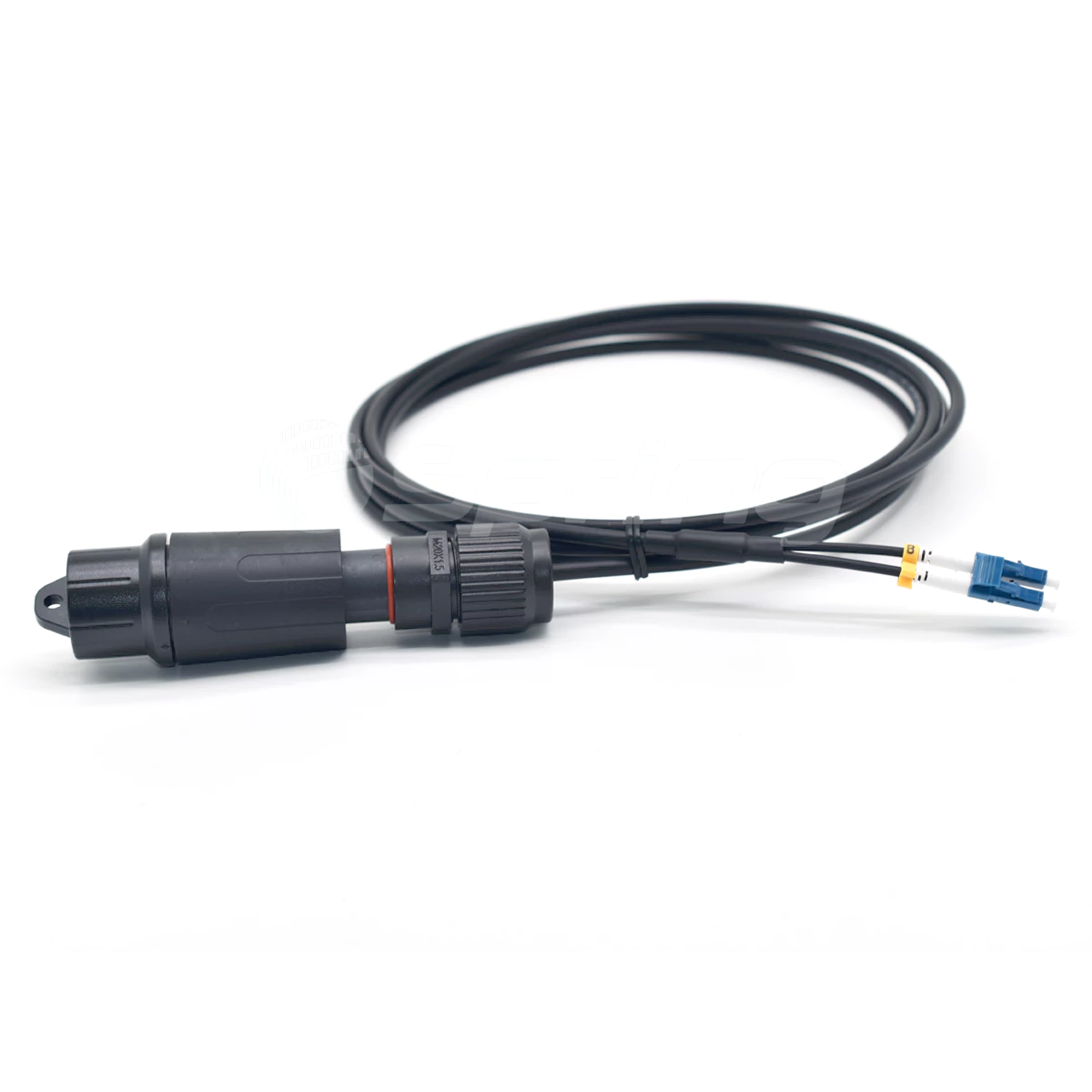

The Spring FTTA 5mm Single Mode DLC to FullAXS Fiber Patch Cord is a ruggedized, pre-terminated single-mode fiber solution engineered for Fiber to the Antenna (FTTA) applications, outdoor base stations, and tower-top wireless access networks.
This 5mm single-mode FTTA fiber patch cord features DLC/UPC duplex LC connectors with FullAXS rugged interface, delivering stable optical performance, secure mechanical mating, and long-term reliability in harsh outdoor environments, including telecom towers, rooftop installations, and outdoor radio cabinets.
With a compact LSZH jacket and G657A2 bend-insensitive single-mode fiber, the cord supports efficient routing, reduced wind load, and consistent signal integrity for modern 4G and 5G deployments.
Applicable Standards & Compliance
The FTTA 5mm Single Mode DLC to FullAXS Fiber Patch Cord is designed, manufactured, and tested in compliance with:
IEC 61754-20 – Optical Fiber Connector, Part 20: LC Connector Family
Compliance ensures connector interoperability, optical stability, and mechanical consistency across global FTTA and outdoor wireless networks.
Structural Design

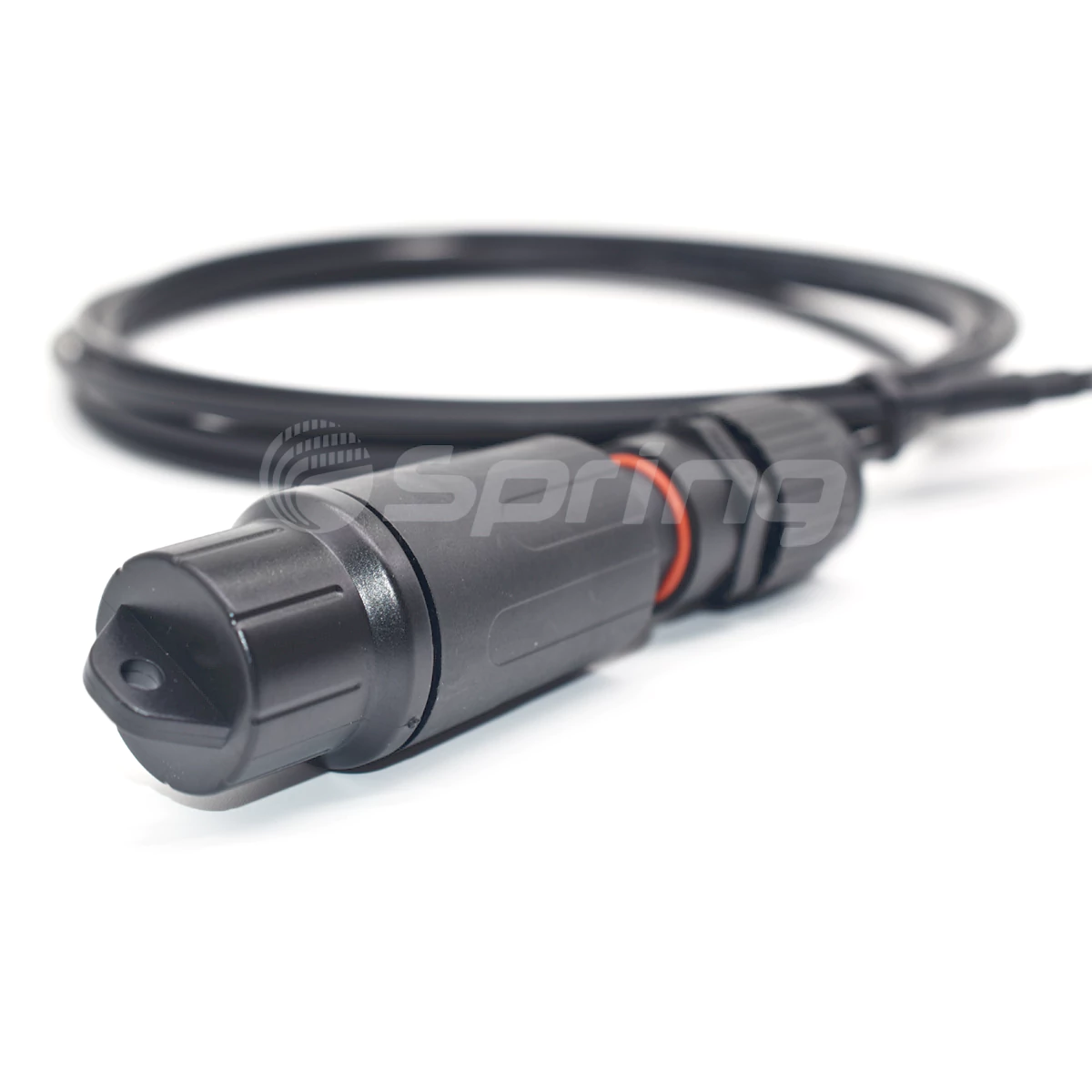

DLC Connector with FullAXS Interface – engineered to withstand outdoor vibration and mechanical stress
Reference connector dimensions: L1 = L2 = 75 ± 10 mm
Optimized internal alignment ensures repeatable fiber positioning and stable optical performance
Note: Structural illustrations are for reference only; final connector design may vary based on customer configuration.

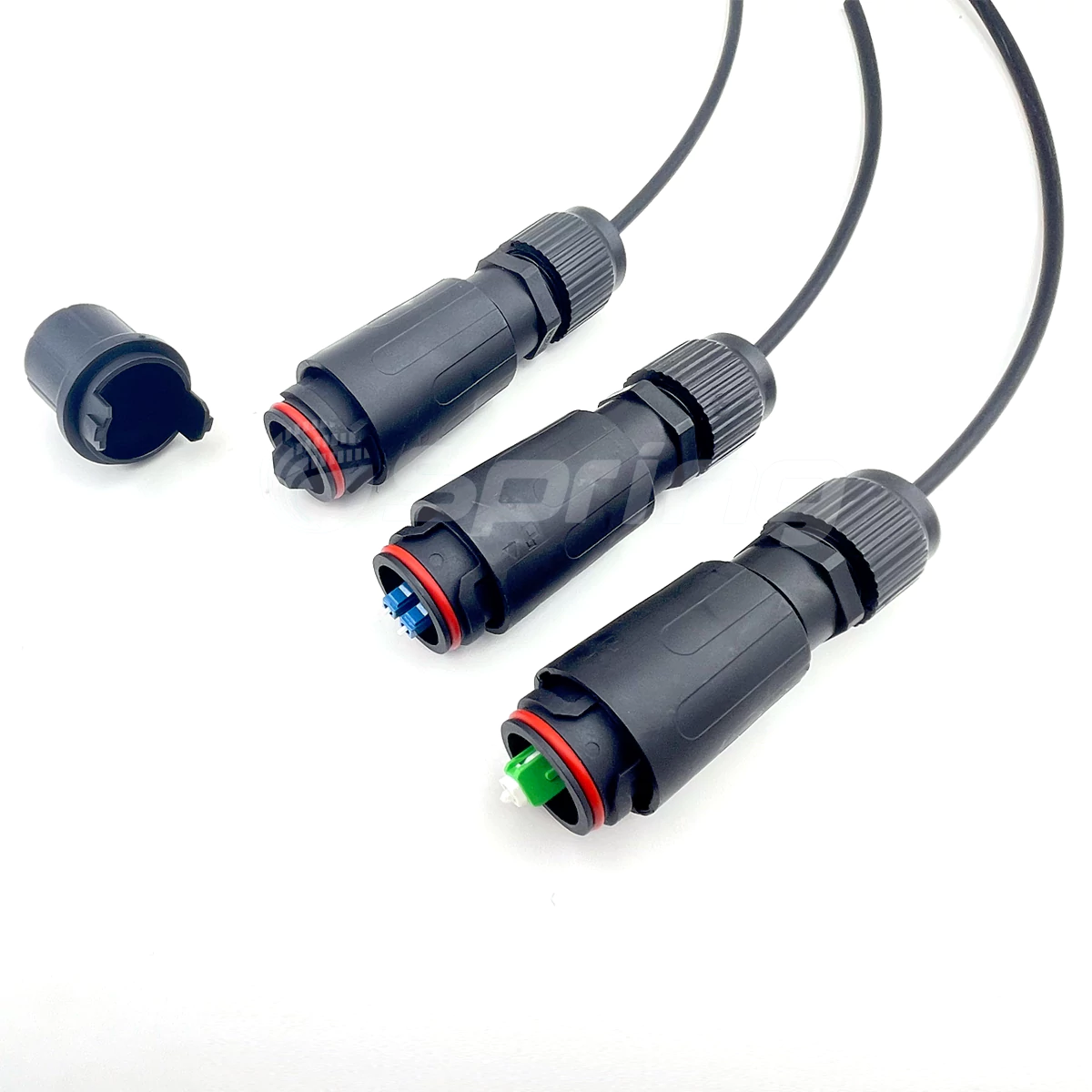

Waterproof FullAXS connector options for FTTA fiber patch cord
DLC-Fullaxs Waterproof Fiber Connector
SC-Fullaxs Waterproof Fiber Connector
MPO-Fullaxs waterproof fiber connector
| No. | Name | Material |
|---|---|---|
| 1 | Waterproof Connector Dust Cap | PPS |
| 2 | Waterproof Connector Clip Assembly | See Table 2 |
| 3 | Waterproof Connector Rubber Ring | Rubber |
| 4 | Waterproof Connector Nut | PA66 |
| No. | Name | Material |
|---|---|---|
| a | Seal Ring (Large) | Silicone |
| b | Clip | PA66 |
| c | Round Washer | SUS |
| d | Seal Ring (Medium) | Silicone |
| e | Long Tube | PBT |
| f | Seal Ring (Small) | Silicone |
| g | Short Tube | PA66 |
Connector & Assembly Configuration
| Item | Specification |
|---|---|
| Connector Type | DLC/UPC (Duplex LC) |
| Fiber Mode | Single Mode (SM) |
| Boot Color | White |
| Connector Housing Color | Blue |
| Dust Cap Color | White |

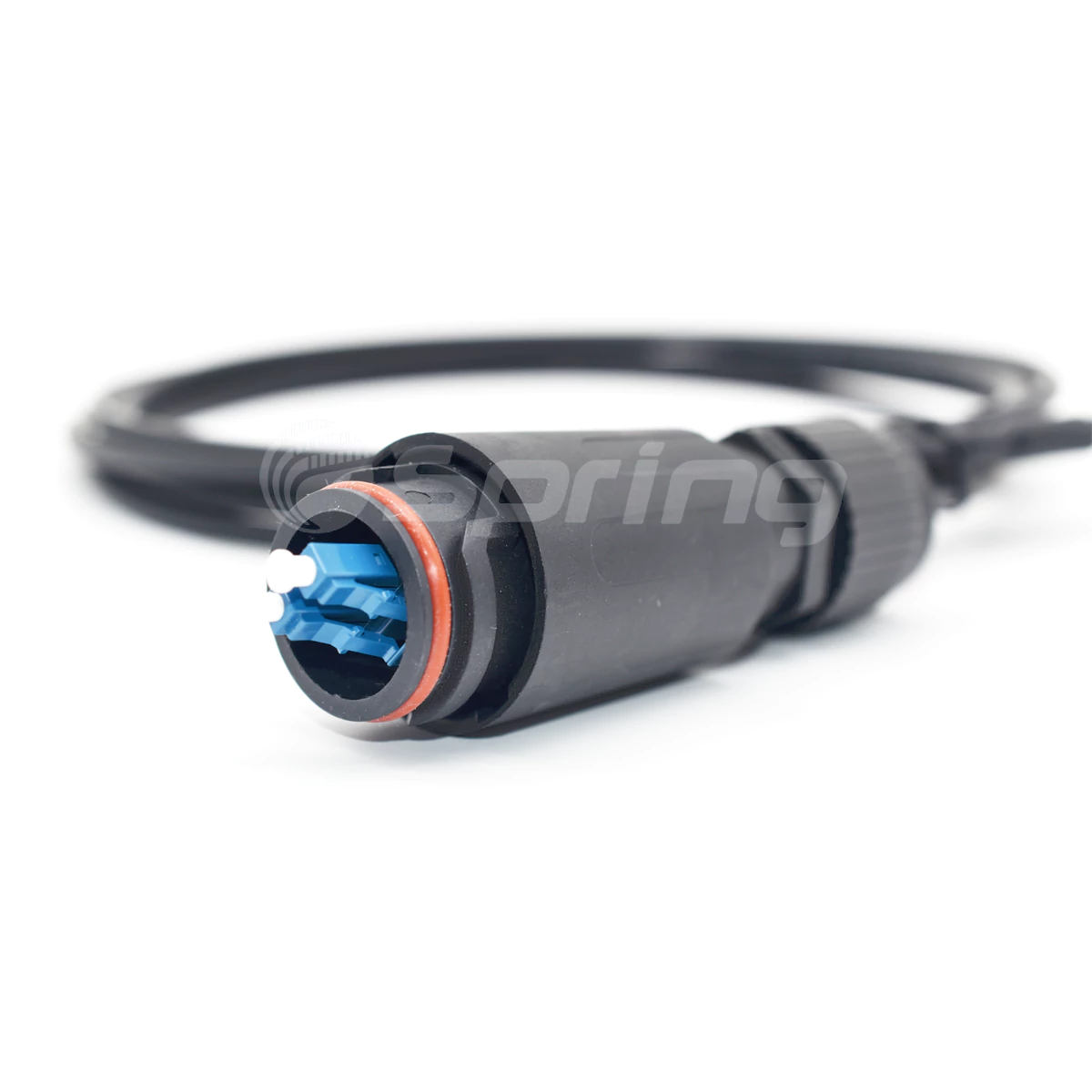

The DLC connector with FullAXS rugged housing ensures secure blind-mating in compact outdoor enclosures, reducing installation time and minimizing maintenance risk in tower-top deployments.
Optical & Mechanical Specifications
| Property | Unit | Specification |
|---|---|---|
| Product Length (L) | m | 50 (Customizable) |
| Connector Configuration | / | DLC/UPC (FullAXS) – DLC/UPC |
| Optical Fiber Type | / | SM G657A2 (9/125 μm) |
| Number of Fibers | / | 2 |
| Cable Jacket Material | / | LSZH |
| Cable Outer Diameter | mm | 5.0 |
| Cable Jacket Color | / | Black |
| Fiber Attenuation | dB/km | ≤0.4 @1310 nm, ≤0.3 @1550 nm |
| Connector Insertion Loss | dB | ≤0.30 |
| Connector Return Loss | dB | ≥50 (UPC) |
Length Tolerance
L ≤ 5 m: +0.1 m / –0 m
L > 5 m: +2% × L / –0 m
Ensures precise installation and efficient routing for tower-top and outdoor cabinet environments.
Key Advantages – Spring FTTA Fiber Patch Cord
FullAXS ruggedized interface for secure outdoor FTTA connections
Low insertion loss and high return loss for stable optical transmission
5mm compact cable diameter for easy routing and reduced mechanical load
LSZH cable jacket for enhanced safety and environmental compliance
Factory pre-terminated design reduces on-site labor and installation time
Typical Applications
4G / 5G FTTA base station deployments
Remote Radio Head (RRH / RRU) interconnections
Outdoor radio and antenna feeder systems
Telecom towers and rooftop wireless installations
Outdoor wireless access and backhaul networks
Quality Assurance
As an OEM manufacturer, Spring implements comprehensive quality assurance for every FTTA fiber patch cord:
100% connector end-face inspection
Insertion loss and return loss testing
Mechanical integrity and visual inspection
Dimensional accuracy and labeling verification
All cords are released only after meeting optical and mechanical acceptance criteria.
Customization & OEM Capabilities
Spring offers OEM / ODM services, including:
Custom cable lengths
Connector/interface configuration
Private labeling and packaging
Project-based production and documentation support
Summary
The Spring FTTA 5mm Single Mode DLC to FullAXS Fiber Patch Cord is a carrier-grade, ruggedized single-mode fiber solution designed for modern FTTA and wireless access networks.
By combining IEC-compliant DLC connectors, FullAXS rugged interface, and G657A2 bend-insensitive fiber, it provides reliable, long-term connectivity in demanding outdoor telecom environments.
FAQ – FTTA 5mm Single Mode DLC to FullAXS Fiber Patch Cord
Q1: What is an FTTA 5mm Single Mode DLC to FullAXS Fiber Patch Cord?
An FTTA fiber patch cord is a pre-terminated single-mode fiber cable used to connect radio equipment such as RRHs or antennas to baseband units (BBUs) in Fiber to the Antenna (FTTA) networks, designed for reliable outdoor and tower-top performance.
Q2: What connectors are used?
It uses DLC/UPC (Duplex LC) connectors with a FullAXS rugged interface on one side and standard DLC/UPC on the other, ensuring secure blind-mating and stable optical performance.
Q3: What type of fiber is used?
The cord uses G657A2 single-mode fiber (9/125 μm), which is bend-insensitive, with low attenuation for high performance in tight routing paths.
Q4: Is it suitable for outdoor deployments?
Yes. The FTTA fiber patch cord has a 5mm LSZH jacket and FullAXS rugged interface, making it ideal for base stations, rooftop cabinets, and outdoor telecom towers.
Q5: What are the typical insertion loss and return loss values?
-
Insertion Loss: ≤0.30 dB
-
Return Loss: ≥50 dB (UPC)
Meets carrier-grade FTTA optical performance requirements.
Q6: Can the cord be customized?
Yes. Spring provides OEM customization options including cable length, connector type, labeling, and packaging to meet project-specific requirements.
