Description:
Planar lightwave circuit (PLC) splitter is a type of optical power management device that
is fabricated using silica optical waveguide technology. It features small size, high
reliability, wide operating wavelength range and good channel-to-channel uniformity,and
is widely used in PON networks to realize optical signal power splitting.
Features:
1. Low Insertion Loss and PDL
2. High reliability
3. High channel counts
4. Wide wavelength range
5. Large operating temperature range
6. Excellent Environmental & Mechanical Stability
Application:
1. FTTX (FTTP, FTTH, FTTN, FTTC) Fiber to the home (FTTH)
2. Local Area Networks (LAN)
3. Test Equipment
4. CATV
5. Analog/Digital Passive Optical Networks (PON)
Compliance:
--Telcordia GR-1209
--Telcordia GR-1221
Specifications:
| Port Configuration | 1*4 | 1*8 | 1*16 | |
|---|---|---|---|---|
| Fiber Type | G657A1 | |||
| Operating Wavelength(nm) | 1260-1650 | |||
| Insertion Loss(dB) | Typical | 6.8 | 10.2 | 13.3 |
| Max | 7.4 | 10.5 | 13.5 | |
| Loss Uniformity(dB) | Max | 0.7 | 1 | 1.4 |
| Return Loss(dB) | Min | 55 | 55 | 55 |
| Polarization Dependent Loss(dB) | Max | 0.2 | 0.3 | 0.3 |
| Directivity(dB) | Min | 55 | 55 | 55 |
| Wavelength Dependent Loss(dB) | Max | 0.3 | 0.3 | 0.5 |
| Temperature Dependent Loss(-40℃~85℃)(dB) | Max | 0.5 | 0.5 | 0.5 |
| Operating Temperature(℃) | -45~85 | |||
| Storage Temperature(℃) | -45~85 | |||
| Connectors Of Ports | SC/APC |
S/N Model:

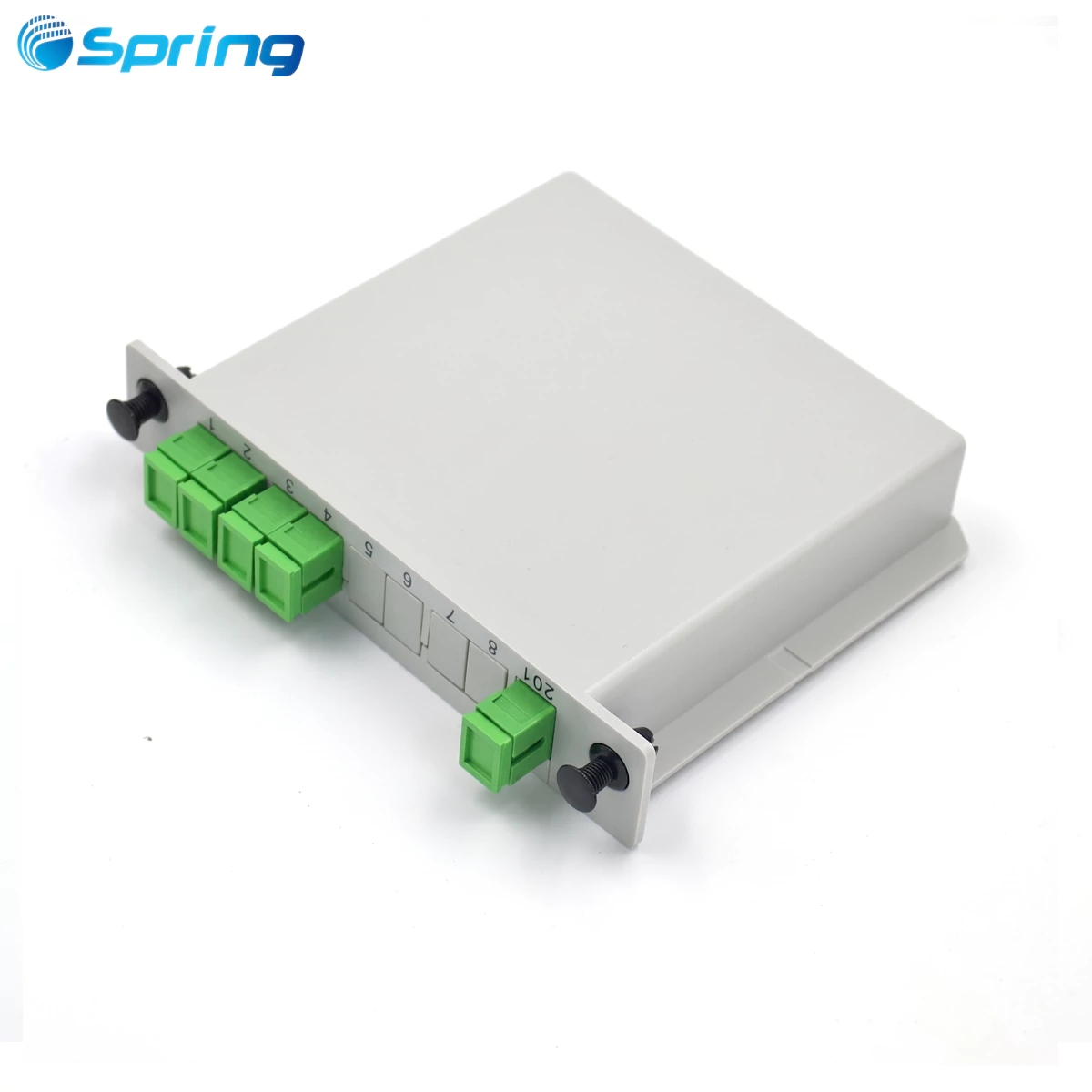

SP-LGX-1*4 SCA

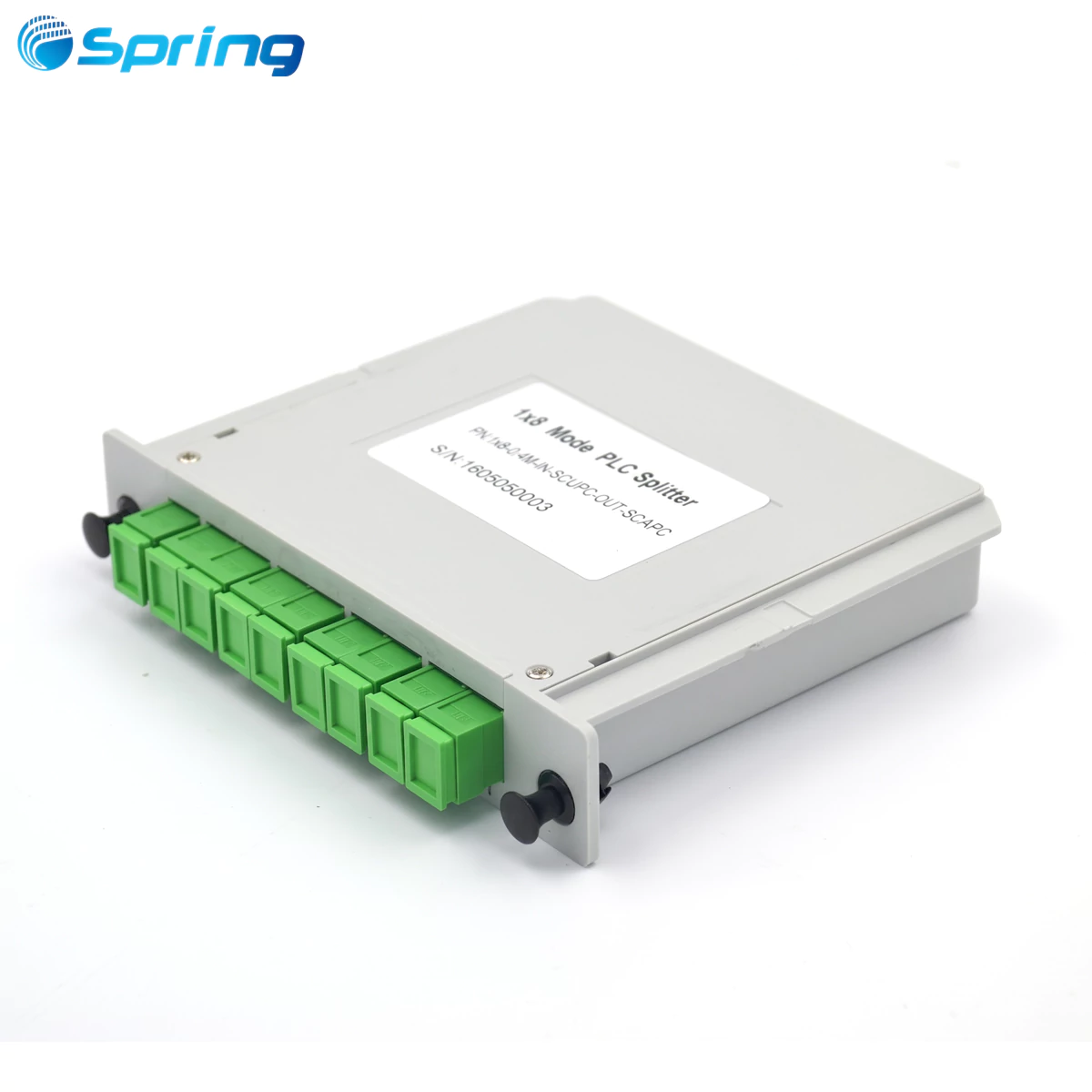

SP-LGX-1*8 SCA

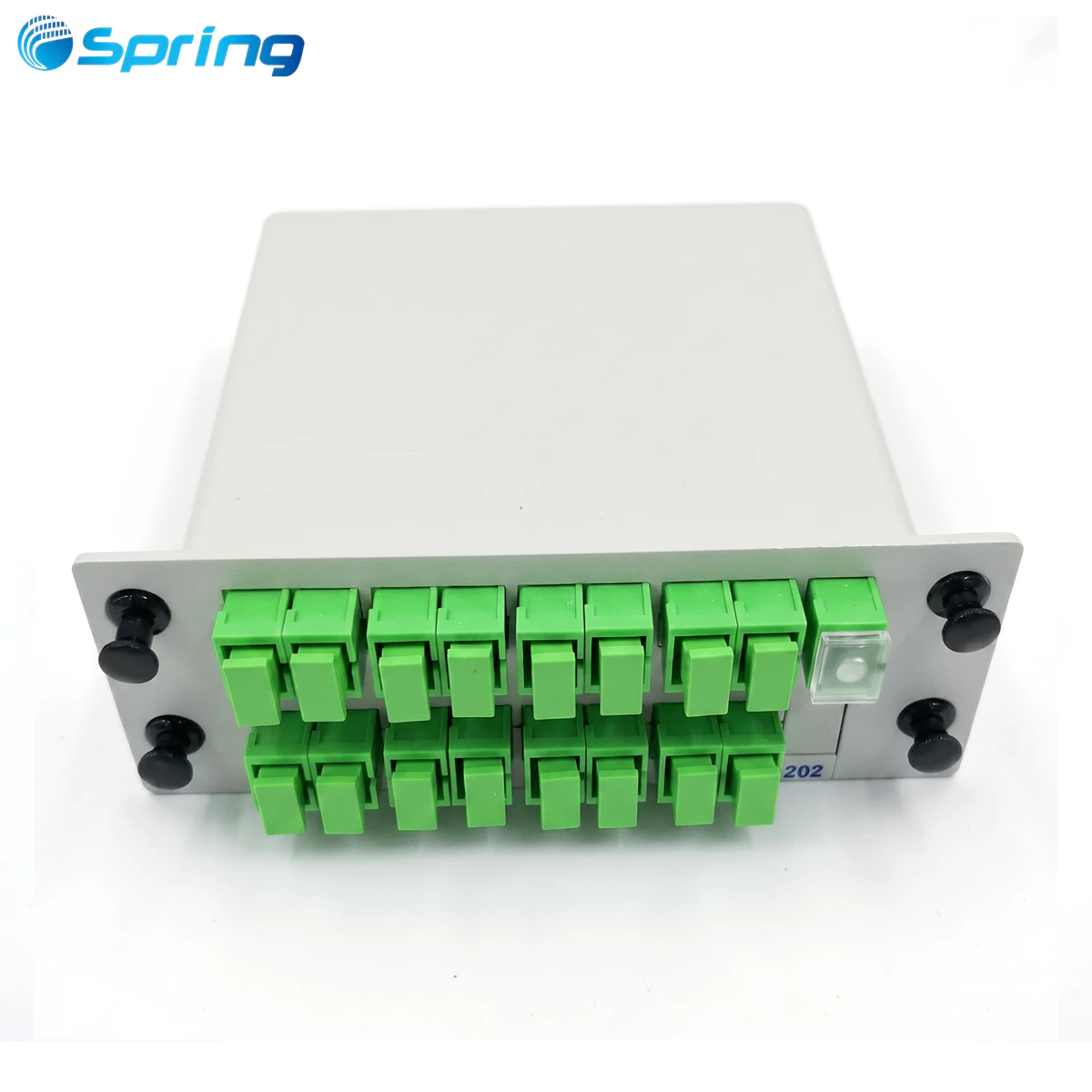

SP-LGX-1*16 SCA
Dimension:
| Item | 1*4 | 1*8 | 1*16 |
| Size(L*W*H) (CM) | 13*10*2.5 | 13*10*5 | |
