Product Overview
SN Fiber Optic Patch Cords are high-density duplex fiber cables designed for next-generation data center networks, especially 400G and 800G high-speed transmission environments.
The SN connector is a Base-2 interface that combines compact size with carrier-grade optical performance. It enables network operators to significantly increase port density while maintaining stable signal transmission and long-term reliability.
SN Fiber Optic Patch Cords are widely used in hyperscale data centers, cloud computing platforms, and AI clusters where space is limited and bandwidth demand is continuously increasing. Compared with traditional LC patch cords, SN solutions offer higher density and improved cable management efficiency.
At Spring Optical, all SN Fiber Optic Patch Cords are manufactured under strict quality control and comply with international standards such as TIA-604 (FOCIS) and IEC 61754. Each connector is fully tested to ensure low insertion loss and consistent performance.
These patch cords support multiple fiber types including OS2, OM1, OM2, OM3, OM4, and OM5, making them suitable for Gigabit Ethernet, 10G, 40G, 100G, and high-speed Fiber Channel applications.
Key Features
·SN Fiber Optic Patch Cords provide ultra-high density compared to LC patch cords
·Designed for 400G / 800G data center applications
·Push-pull connector design for easy installation in dense environments
·Low insertion loss ensures stable and efficient signal transmission
·Supports both single-mode and multimode fiber types
·Compatible with Base-2 connectivity and parallel optics architectures
·Rugged cable structure with internal strain relief for durability
Product Variants
SN Fiber Optic Patch Cords are available in:
Fiber types: OS2 / OM1 / OM2 / OM3 / OM4 / OM5
Connector polish: UPC / APC
Cable diameters: 1.6 mm / 2.0 mm
Jacket types: LSZH / PVC / OFNP / OFNR
Cable lengths: 0.5 m to 100 m
Optional gang-clip for 4-channel (8 fibers) connection
Applications of SN Fiber Optic Patch Cords
SN Fiber Optic Patch Cords are used in:
Hyperscale data centers
Cloud computing infrastructure
AI and HPC clusters
High-speed telecom networks
400G / 800G optical transmission systems
They are ideal for environments requiring high density, low latency, and scalable fiber connectivity.
Typical Network Architecture of SN Fiber Optic Patch Cords
In modern data centers, SN Fiber Optic Patch Cords are typically deployed in high-density patch panels and connected to transceivers.
A typical architecture includes:
Spine-leaf switching topology
SN patch cords connecting switches to optical modules
MPO backbone cables for high-capacity trunk links
Patch panels used for cable management
Signal flow:
Transceiver → SN Patch Cord → Patch Panel → MPO Trunk → Distribution Area
This structure allows efficient fiber routing, reduced cable congestion, and simplified upgrades to higher speeds.
Product Advantages
High scalability for future 400G / 800G upgrades
Compact design for maximum port density
Easy installation with push-pull mechanism
Stable optical performance with low loss
Long-term reliability under harsh environments
SN Fiber Optic Patch Cords are a key solution for next-generation data center cabling.

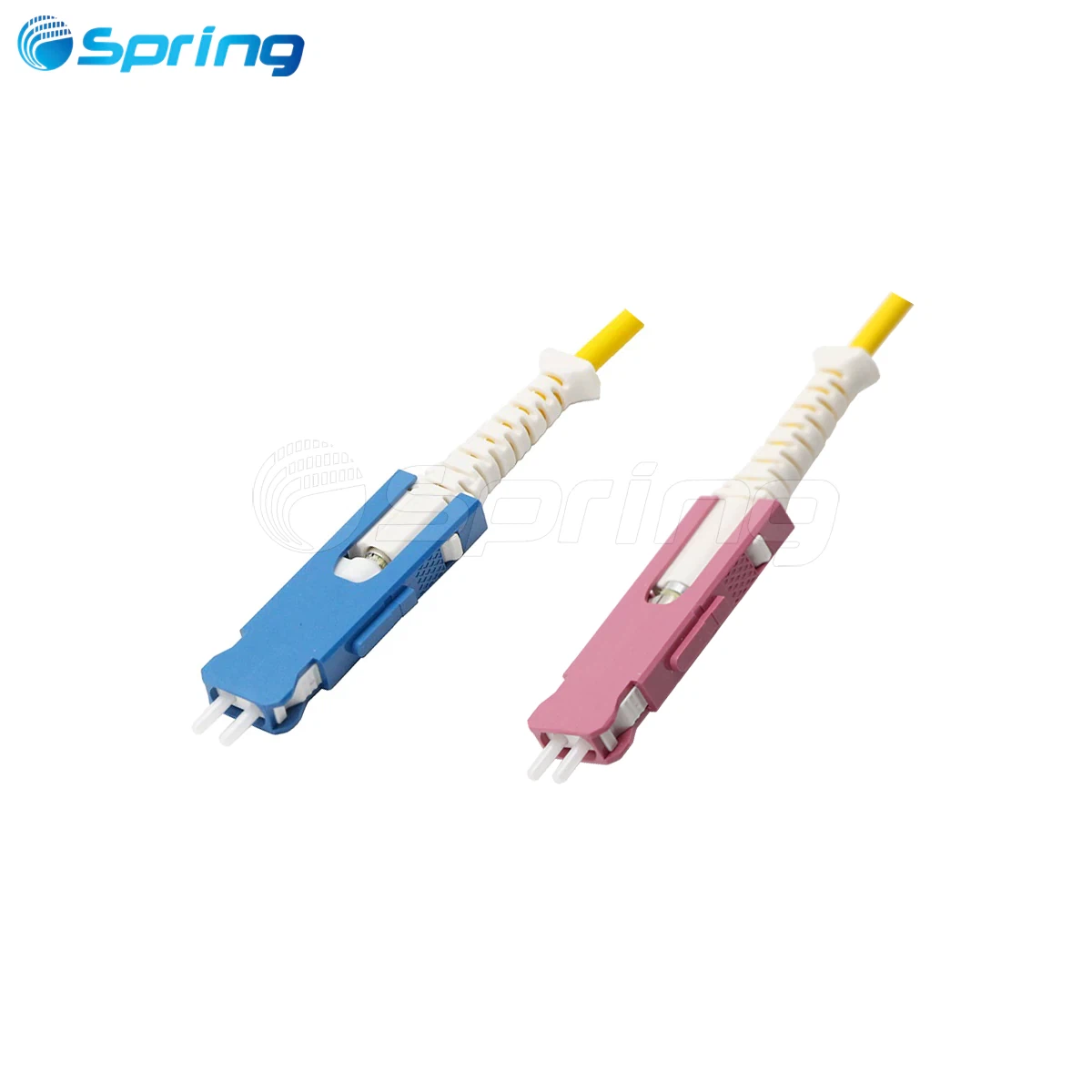

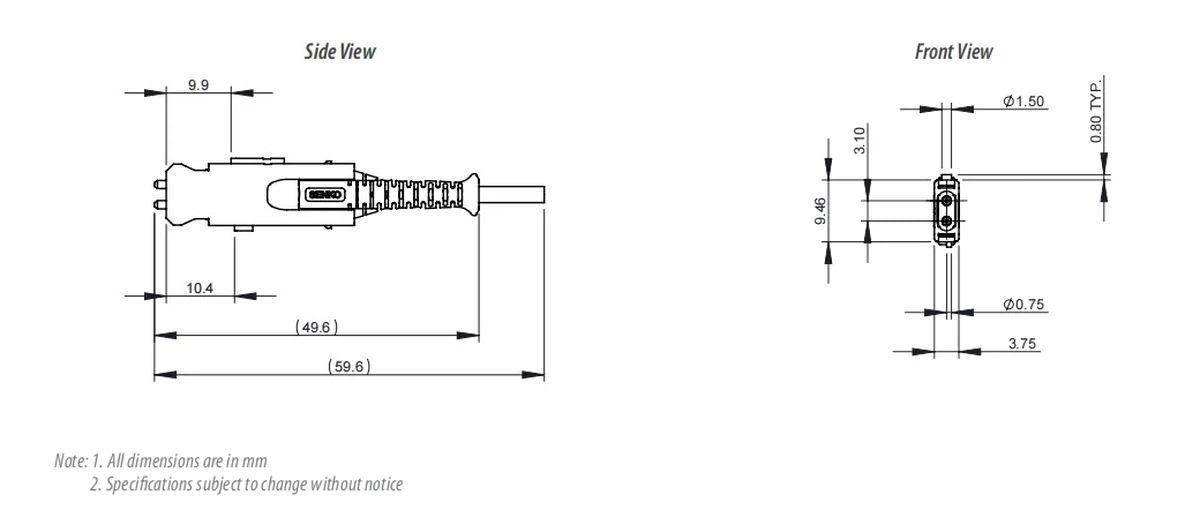

SN Connector Details
SN Patch Cord Diagram
Related Products
FAQ
Q: What are SN Fiber Optic Patch Cords?
A: They are high-density duplex fiber cables using SN connectors for 400G/800G networks.
Q: What is the advantage over LC patch cords?
A: SN provides higher density and better cable management.
Q: What fiber types are supported?
A: OS2 and OM1–OM5 fibers.
Q: Are SN patch cords suitable for 800G?
A: Yes, they are designed for next-generation high-speed networks.
Q: Do you support OEM customization?
A: Yes, full OEM and ODM services are available.
Manufacturer Introduction
Spring Optical is a professional fiber optic manufacturer with extensive experience in telecom and data center solutions.
We operate multiple production lines including:
MPO/MTP production workshop
Fiber cable manufacturing
Patch cord assembly lines
PLC splitter production
Fiber distribution box manufacturing
Our products are exported globally to telecom operators, ISPs, and distributors.
Looking for a reliable supplier of SN Fiber Optic Patch Cords?
Spring Optical provides technical support, product customization, and fast delivery for global telecom and data center projects.
👉 Contact us to discuss your requirements and receive a detailed quotation.
Conclusion
SN Fiber Optic Patch Cords provide a high-density, scalable, and reliable solution for modern data center networks.
With support for 400G and 800G applications, they enable efficient fiber management and future-proof infrastructure upgrades.
Packing and Transportation
SN Fiber Optic Patch Cords are carefully packaged to ensure protection during storage and transportation.
Each cable is individually packed in protective bags
Bulk packaging is available for large-volume orders
Products are stored in dry, dust-free environments
Suitable for international shipping via air, sea, or express
Proper handling ensures that optical performance remains stable during delivery and deployment.
Hot Tags: SN Fiber Optic Patch Cords,SN patch cord,SN connector fiber
Technical Specifications
Optical Performance
| Parameter | Value |
|---|---|
| Insertion Loss (SM UPC) | 0.15 dB (Premium Low Loss) / 0.20 dB |
| Insertion Loss (SM APC) | 0.15 dB / 0.25 dB |
| Insertion Loss (MM) | 0.15 dB |
| Return Loss (SM UPC) | ≥50 dB |
| Return Loss (SM APC) | ≥60 dB |
| Return Loss (MM) | ≥25 dB |
Mechanical & Environmental
| Parameter | Value |
|---|---|
| Durability | ≥500 matings (TIA-568) |
| Operating Temperature | -40°C to +75°C |
| Pulling Force | 40N (1.6mm) / 50N (2.0mm) |
Cable & Material
| Parameter | Value |
|---|---|
| Fiber Type | G652D, G655, G657A1/A2/B3, OM1–OM5 |
| Cable Diameter | 1.6 mm / 2.0 mm |
| Jacket Material | PVC, OFNR, OFNP, LSZH, TPU |
| Strength Member | Aramid Yarn / Polyester Yarn |
| Cable Weight | 3.5 kg |
Connector Geometry
| Parameter | Value |
|---|---|
| Apex Offset | ≤50 μm |
| Fiber Height | ±100 nm |
| Angle (APC) | 8° ± 0.5 |
| ROC | 7–25 mm (PC), 5–12 mm (APC) |
Endface Quality (IEC 61300-3-35)
| Zone | Requirement |
|---|---|
| Core | No scratches / defects |
| Cladding | No defects |
| Adhesive | No defects |
| Contact | No defects |
