Product Introduction

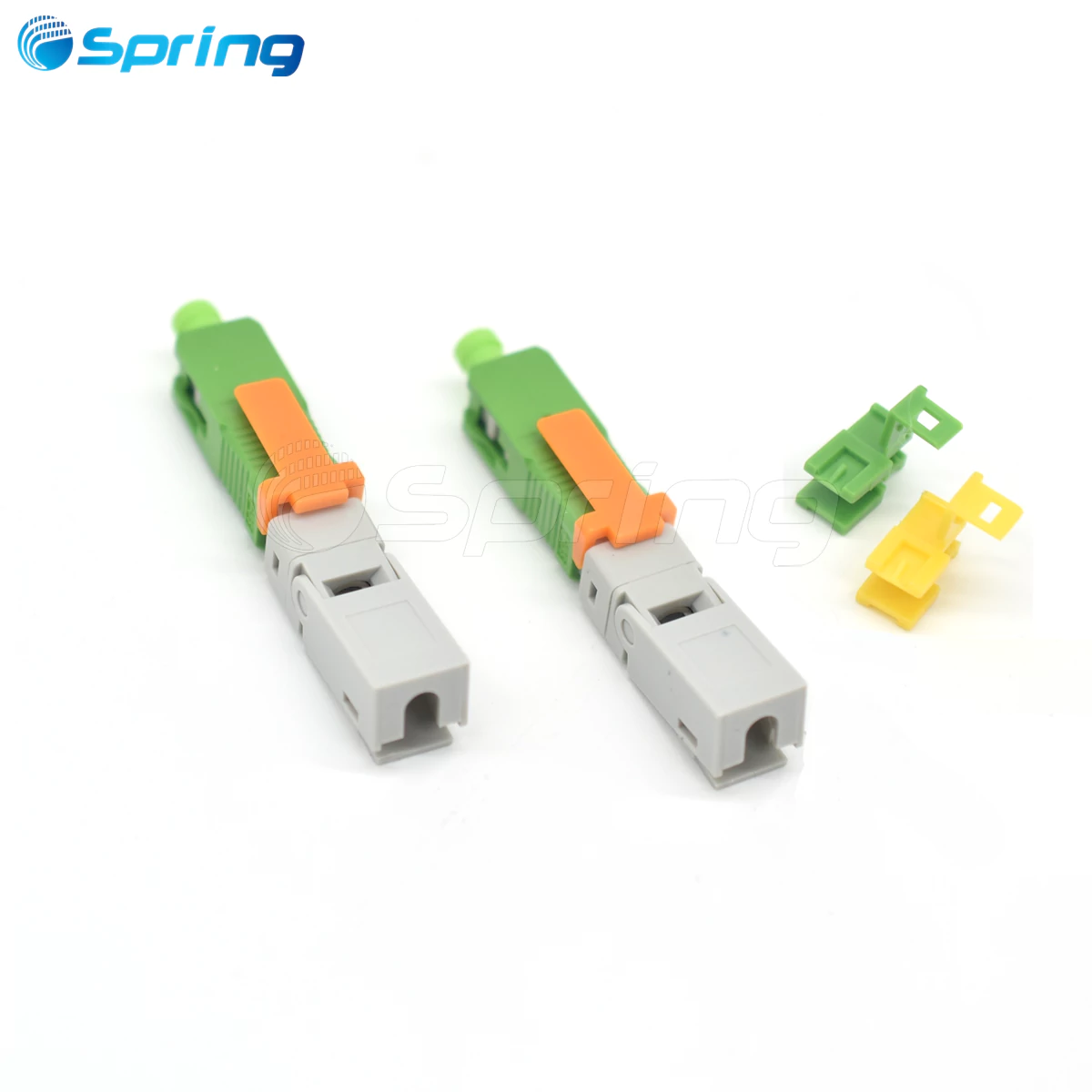

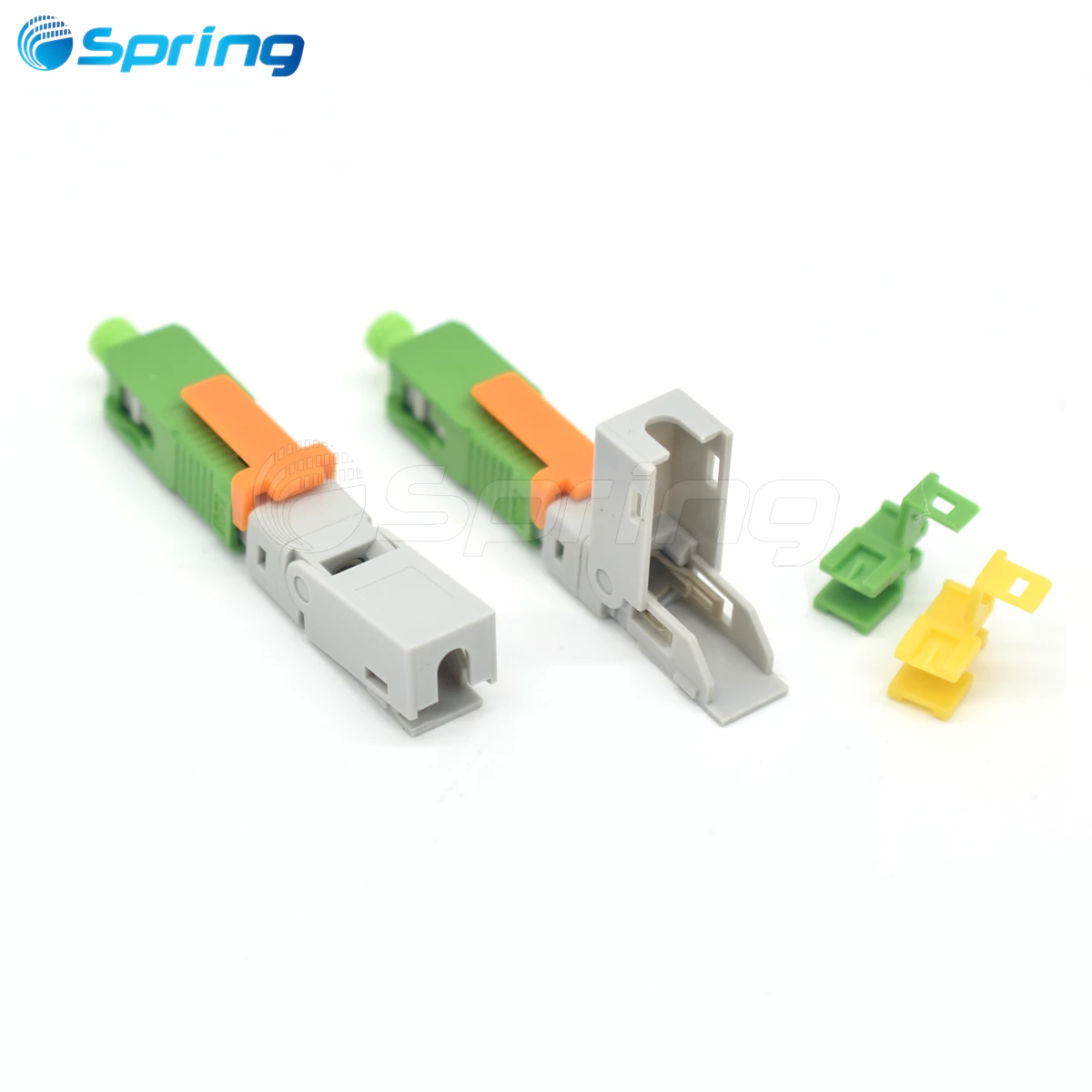

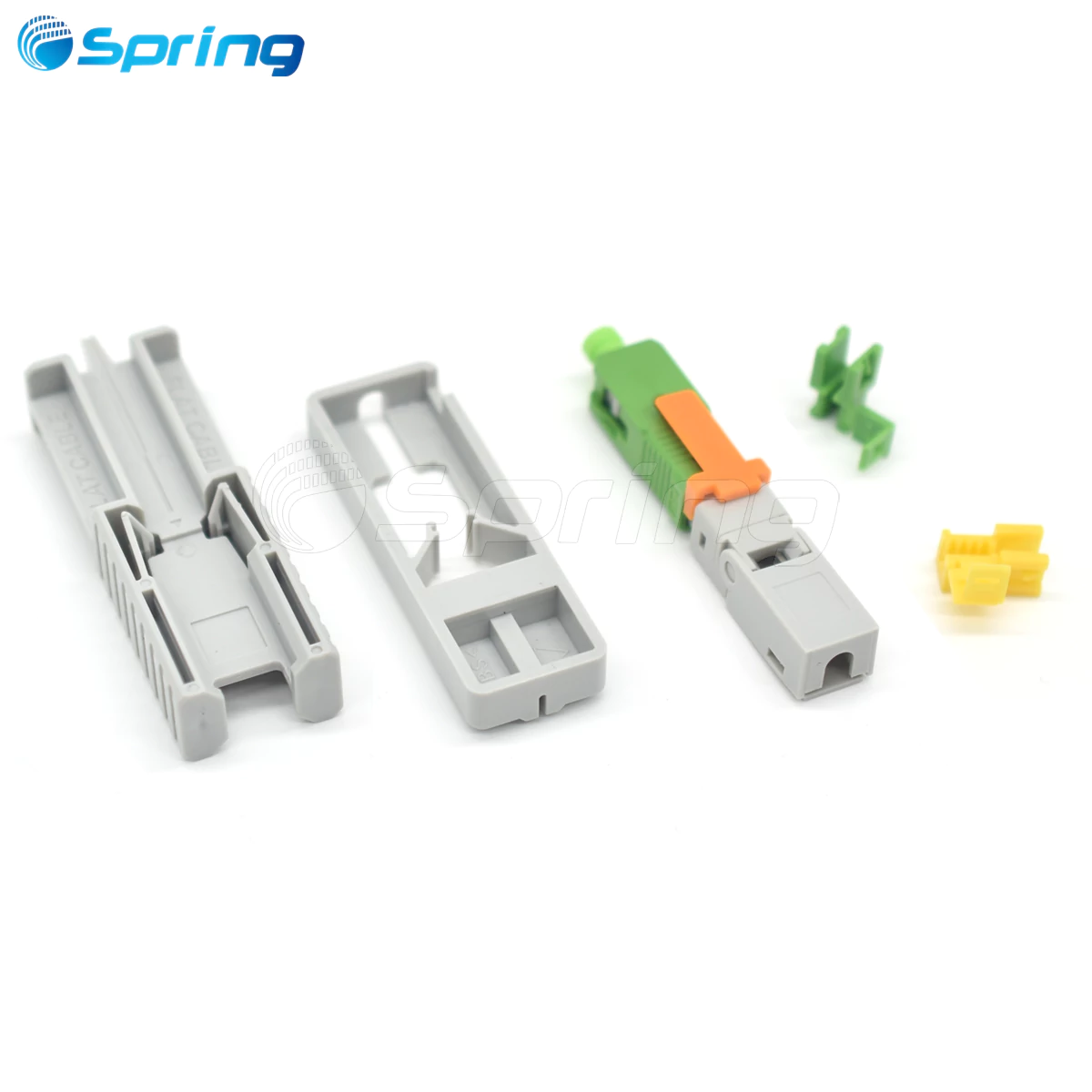

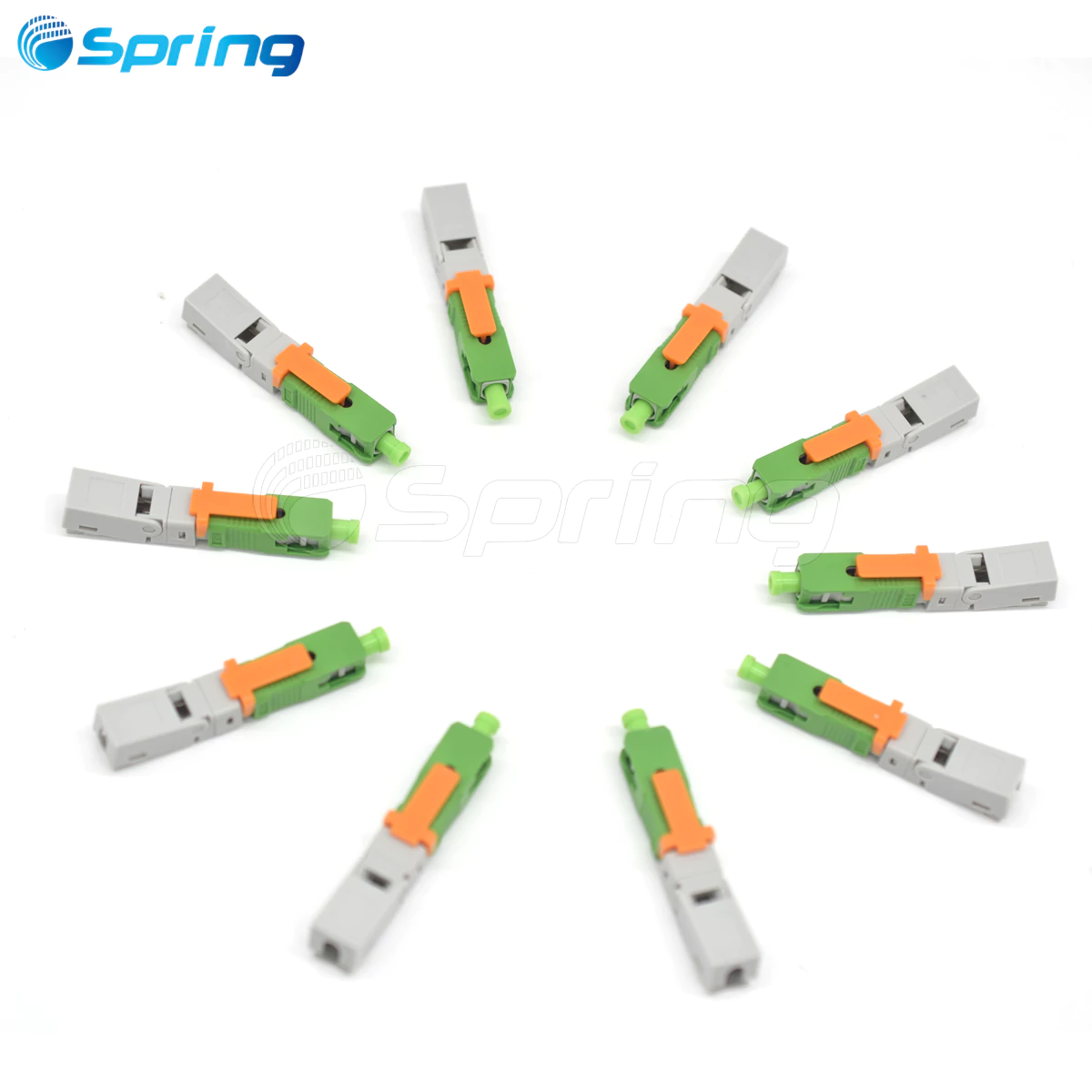

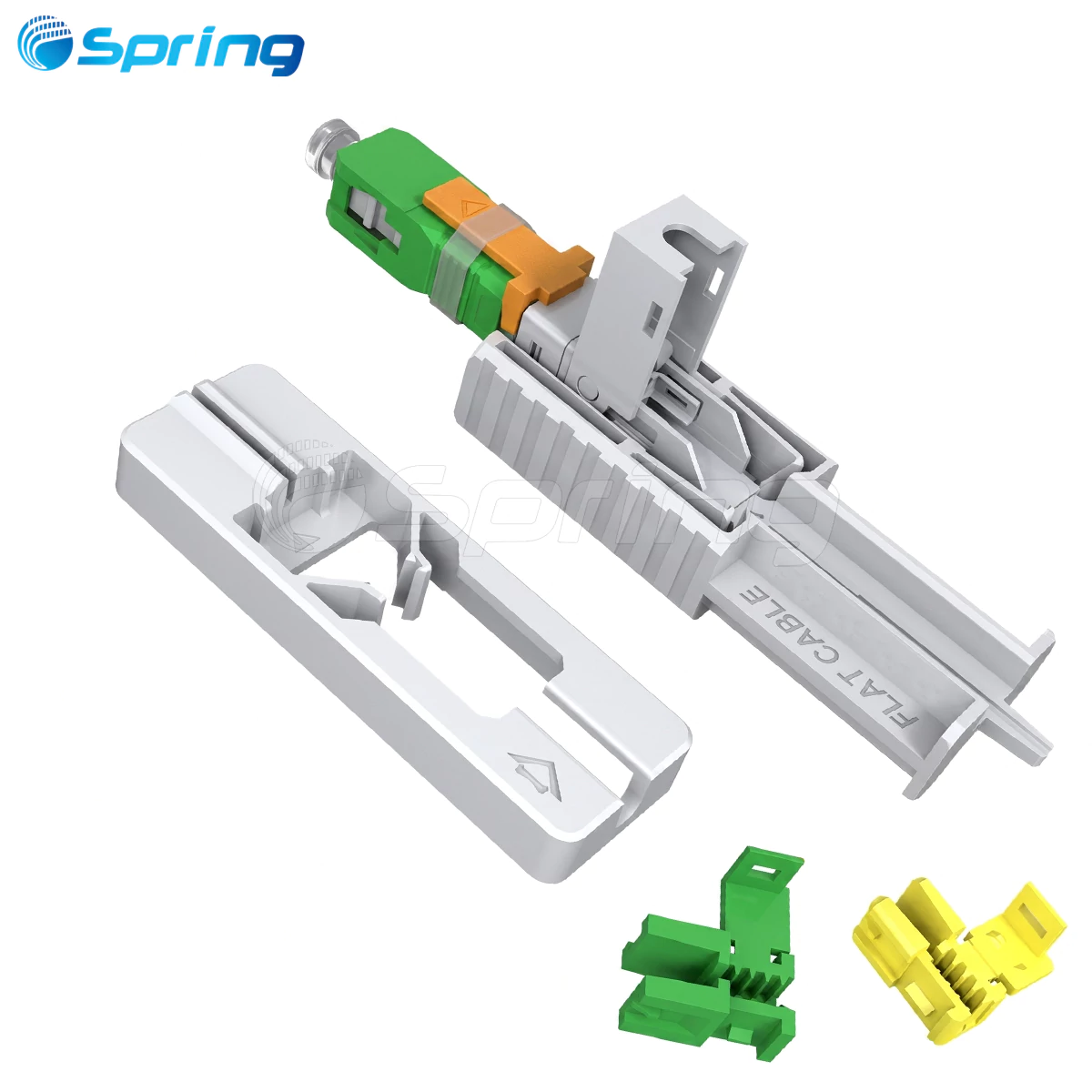

Spring Optical G53 SC Field Assembly Fiber Connector is designed for fast fiber termination in FTTH access networks, outdoor fiber terminals, and FTTA BBU/RRU applications. Supporting SM/UPC and SM/APC polishing types, this field-installable SC connector delivers insertion loss AVG ≤0.3dB and MAX ≤0.5dB with reliable optical performance for telecom installation projects. Its quick assembly design allows installers to complete fiber connections within minutes without factory pre-termination.
Product Features & Benefits
Fast Field Termination Without Fusion Splicing Equipment
Traditional fiber deployment often requires fusion splicing machines, power supply and skilled technicians, increasing installation time and labor costs. G53 SC Fast Connector enables installers to terminate fiber directly at the installation site using standard tools, making it suitable for rapid FTTH rollout, maintenance repair and emergency fiber restoration projects.
Low Insertion Loss for Stable Optical Transmission
The G53 SC Fiber Connector provides insertion loss AVG ≤0.3dB and maximum ≤0.5dB, reducing optical signal attenuation during fiber transmission. This performance helps telecom contractors maintain stable connections in FTTH access networks, outdoor fiber terminals and mobile communication infrastructure.
APC & UPC Compatibility for Different Network Requirements
Available with SM/UPC and SM/APC ferrule options, the connector supports different optical network designs. APC versions provide return loss ≥55dB while UPC versions achieve return loss ≥50dB, making it suitable for broadband access systems requiring stable optical reflection control.
Designed for Outdoor Fiber Deployment
With an operating temperature range from -20℃ to +75℃ and storage temperature from -40℃ to +85℃, the G53 SC connector supports outdoor telecom environments where temperature variation and field installation conditions are common.
Technical Specification
| Specification | Details |
|---|---|
| Product Type | Field Assembly Fiber Connector |
| Model | G53 SC |
| Connector Type | SC |
| Fiber Mode | Single Mode |
| Ferrule Type | SM/UPC, SM/APC |
| Ferrule Inner Diameter | 125μm |
| Length | 51.3 ±0.1mm |
| Insertion Loss | AVG ≤0.3dB / MAX ≤0.5dB |
| Return Loss | UPC ≥50dB / APC ≥55dB |
| Working Temperature | -20℃ to +75℃ |
| Storage Temperature | -40℃ to +85℃ |
| Mating Cycles | 500 Times |
| Compatible Cable Diameter | 2.0×3.0mm / 2.0×1.6mm |
Application Scenarios
SC Fast Connector for FTTH Fiber Drop Cable Deployment
Traditional FTTH installations typically require pre-terminated patch cords or on-site fusion splicing equipment, which are often constrained by construction environments and technician skill levels in residential fiber access projects. The G53 SC Fast Connector supports rapid field termination and can be applied directly to FTTH drop cable installations, enabling shorter deployment cycles and more flexible maintenance. It is suitable for ISP broadband construction, fiber-to-the-home projects, and large-scale FTTH network deployments.
Field Assembly Fiber Connector for Outdoor Fiber Terminal Applications
Outdoor fiber terminals face long-term challenges from temperature variations, limited installation space, and high demands for maintenance efficiency. The G53 SC Field Assembly Connector features a rapid field-installable design that supports both SM/APC and SM/UPC connection types. It maintains stable optical performance across a working temperature range of –20 °C to 75 °C, making it ideal for outdoor fiber terminals, ODN access nodes, and outdoor fiber distribution systems.
SC Fiber Connector for FTTA BBU/RRU Mobile Base Station Deployment
5G wireless base station deployments require fiber connections that support fast installation and efficient field maintenance. The G53 SC Fast Connector is well-suited for FTTA BBU/RRU connection scenarios, helping engineering teams reduce on-site termination time and improve mobile base station fiber access efficiency. It is appropriate for telecom operators, network integrators, and OEM equipment project procurement.
OEM Bulk SC Fast Connector Supply for Fiber Network Projects
Large-scale FTTx projects typically demand stable supply, consistent specifications, and bulk delivery capability. Spring Optical provides OEM fiber connector supply services that support various fiber specifications, packaging requirements, and project procurement needs, delivering bulk SC Fast Connector solutions for telecom contractors, distributors, and network construction projects.
Manufacturing Capability
Spring Optical Fiber Connector Manufacturing Capability
Spring Optical specializes in FTTx passive optical components and fiber optic cable assemblies, providing OEM and ODM manufacturing services for global telecom customers.
Capabilities include:
Fiber connector assembly
FTTH components
FTTA solutions
ODN products
Custom fiber optic assemblies
Support：
Custom connector requirements
Private label packaging
Bulk project supply
OEM & Customization
Spring Optical supports customized fiber connector solutions:
Custom packaging design
Private label service
Bulk OEM orders
Cable compatibility customization
Connector specification adjustment
suitable for：
Telecom distributors
Fiber installation contractors
Network equipment suppliers
FAQ
What is a field assembly fiber connector?
A field assembly fiber connector is a connector that allows installers to terminate optical fibers directly at the installation site without factory pre-termination.
How does an SC fast connector reduce installation time?
SC fast connectors simplify field termination by allowing installers to complete fiber connections using standard installation tools instead of complex fusion splicing equipment.
What applications use G53 SC Fast Connector?
G53 SC Fast Connector is used for FTTH deployment, outdoor fiber terminals, FTTA BBU/RRU systems and mobile base station optical access networks.
What is the difference between SC/APC and SC/UPC?
SC/APC connectors provide higher return loss performance (≥55dB), while SC/UPC connectors provide ≥50dB return loss and are used in different optical network applications.
Can Spring Optical provide OEM fiber connector supply?
Yes. Spring Optical supports OEM and bulk supply for telecom contractors, distributors and network infrastructure projects.
