Product Introduction

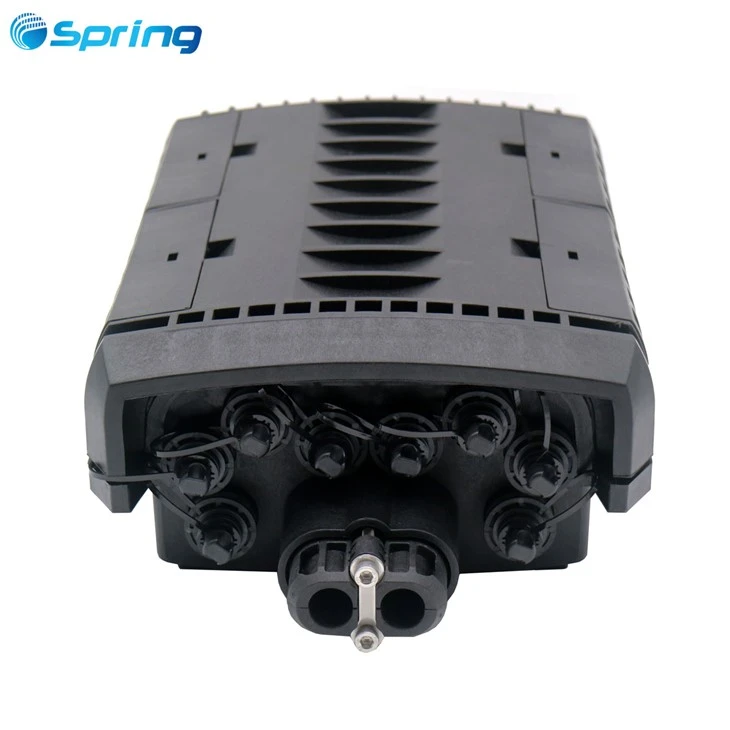

Spring Optical SP-GJSC-06 Fiber Sealed Drop Closure (FSDC) is an outdoor fiber termination solution designed for FTTx networks, connecting feeder cables with hardened drop cables through 8 pre-installed Opti-compatible SC adapters. Supporting up to 96 fiber splicing capacity, IP68 waterproof protection and integrated fiber management, this closure combines fiber splicing, splitting, distribution and cable protection in one compact enclosure for broadband deployment projects.
Product Features & Benefits

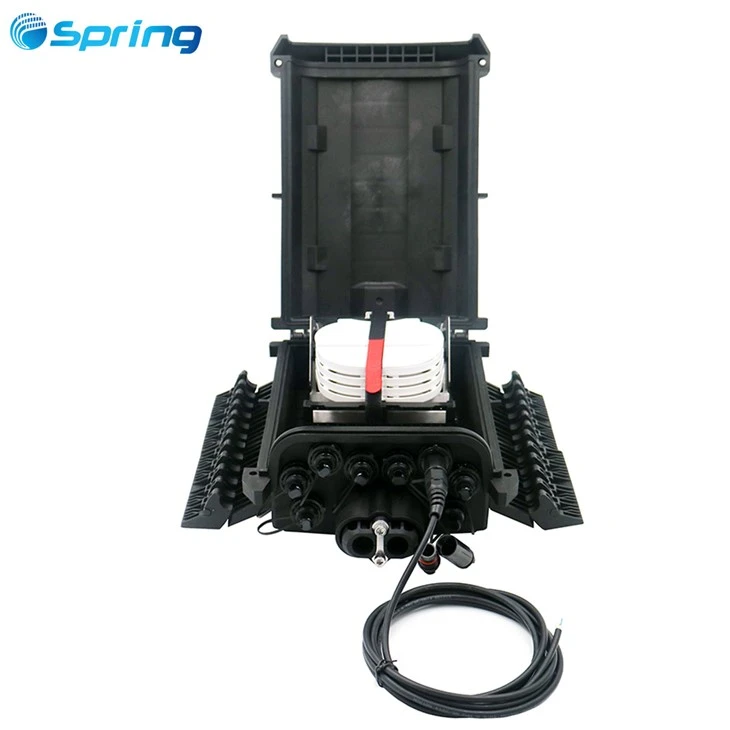

1. 8-Port Opti Compatible Design for Hardened Drop Cable Deployment
Traditional FTTH network expansion often requires multiple fiber distribution points, increasing installation complexity and maintenance requirements. SP-GJSC-06 integrates 8 pre-installed reinforced Opti-compatible SC adapters, allowing direct connection with hardened fiber drop cables for faster subscriber connection and simplified outdoor FTTx deployment.
2. IP68 Waterproof Fiber Sealed Drop Closure for Outdoor Networks
Outdoor fiber closures face challenges from rain, dust, humidity and temperature changes. SP-GJSC-06 adopts a waterproof sealing structure with IP68 protection, helping maintain stable fiber connections in harsh outdoor environments including aerial, pole-mounted and wall-mounted installations.

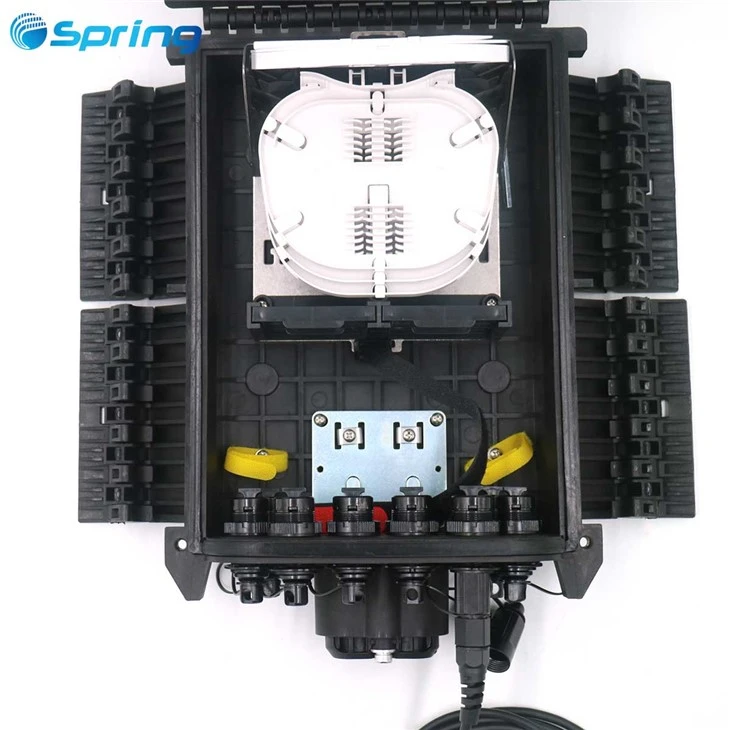

3. 96 Fiber Splice Capacity for Large-Scale FTTH Projects
Limited splice capacity can increase the number of network enclosures required during broadband rollout. SP-GJSC-06 supports up to 96 fiber splicing points through 4 splice trays with 24 fibers per tray, providing higher-density fiber management for ISP and contractor projects.
4. Integrated Splicing, Splitting and Distribution Function
Traditional fiber deployment may require separate splice boxes, splitter boxes and distribution units, increasing installation space and project cost. This FSDC integrates fiber splicing, PLC splitting, storage and cable connection functions in one enclosure. Each splice tray can support optional 1x8 PLC splitter installation for flexible network design.
5. Rugged Mechanical Protection for Outdoor Fiber Infrastructure
Fiber closures installed outdoors require strong mechanical protection against impact and pulling forces. SP-GJSC-06 provides IK10 impact resistance and 100N pull force protection, with stainless anti-rust bolts and nuts for long-term outdoor deployment reliability.
Technical Specification
| Specification | Details |
|---|---|
| Product Type | Fiber Sealed Drop Closure (FSDC) |
| Model | SP-GJSC-06 |
| Application | FTTH / FTTx Fiber Network |
| Fiber Capacity | 96 Fibers |
| Splice Capacity | 4 trays × 24 fibers/tray |
| Subscriber Ports | 8 Ports |
| Adapter Type | Reinforced OptiTap Compatible SC Adapter |
| Connector Option | SC/UPC or SC/APC |
| PLC Splitter Capacity | Optional 1×8 PLC Splitter |
| Protection Level | IP68 |
| Impact Resistance | IK10 |
| Pull Force | 100N |
| Cable Entry | 1 Mid-span Cable Entrance |
| Cable Diameter | 10-16.5mm |
| Installation Method | Wall Mount / Pole Mount / Aerial Hanging |
| Fiber Bend Radius | >40mm |
| Material | Strengthened Polymer Plastic |
| Dimension | 385×245×130mm |
| Weight | 4.5kg |
| Color | Black |
Application Scenarios
Fiber Sealed Drop Closure (FSDC) for FTTH Broadband Network Deployment
Traditional FTTH networks often require separate splice closures and distribution boxes, increasing installation steps and maintenance workload. SP-GJSC-06 Fiber Sealed Drop Closure combines fiber splicing, splitting and subscriber distribution in one enclosure, supporting up to 8 hardened drop cable connections and 96 fiber splicing points. It is designed for ISP broadband rollout projects requiring compact fiber management and efficient subscriber connection.
IP68 Fiber Drop Closure for Outdoor Aerial and Pole Mounted Installation
Outdoor fiber deployment requires protection against rain, dust and environmental stress. Standard fiber boxes may suffer from water ingress and limited mechanical protection. SP-GJSC-06 features IP68 waterproof sealing, IK10 impact protection and rugged polymer housing, making it suitable for aerial hanging, pole mounting and wall mounting installations in outdoor FTTx networks.
Opti-Compatible Fiber Closure for Hardened Drop Cable Systems
Modern broadband networks increasingly adopt hardened fiber connectors to reduce field installation time. SP-GJSC-06 includes 8 pre-installed reinforced Opti-compatible SC adapters, enabling direct connection with hardened drop cables. It is suitable for FTTH access networks, rural broadband deployment and telecom contractors requiring plug-and-play fiber connection solutions.
OEM Fiber Sealed Drop Closure Supply for Large Telecom Projects
Large-scale fiber deployment projects require stable production capacity, consistent specifications and reliable delivery schedules. Spring Optical provides OEM fiber closure manufacturing services, supporting customized adapter configurations, packaging requirements and bulk procurement for telecom distributors, contractors and network operators.
Manufacturing Capability
Spring Optical FSDC Manufacturing Capability
Spring Optical specializes in FTTx passive optical network products, including fiber closures, ODN components, FTTA solutions and fiber cable assemblies.
Manufacturing capabilities:
Fiber optic closure production
Fiber assembly manufacturing
ODN component integration
OEM/ODM customization
Bulk project supply
Supporting:
Telecom distributors
ISP network projects
Engineering contractors
Quality Control
Fiber Sealed Drop Closure Testing Process
Production quality control includes:
Mechanical Testing
Impact resistance testing
Pull force testing
Housing inspection
Optical Management Testing
Fiber routing inspection
Bend radius verification
Splice tray inspection
Environmental Testing
Waterproof sealing inspection
Outdoor protection verification
Key specifications:
IP68 protection
IK10 impact resistance
100N pull force
OEM & Customization
Spring Optical supports customized Fiber Sealed Drop Closure solutions:
Custom adapter configuration
SC/APC or SC/UPC options
Custom packaging
Private label service
Project-based bulk production
Suitable for:
Telecom distributors
Broadband contractors
FTTH engineering companies
FAQ
What is a Fiber Sealed Drop Closure (FSDC)?
A Fiber Sealed Drop Closure (FSDC) is an outdoor fiber enclosure designed to connect feeder cables with hardened drop cables in FTTx networks while providing fiber splicing, splitting and protection functions.
What is the difference between FSDC and traditional fiber splice closure?
FSDC integrates subscriber drop cable connection ports with fiber splicing and distribution functions, while traditional splice closures mainly focus on fiber joint protection.
How many fibers can SP-GJSC-06 Fiber Sealed Drop Closure support?
SP-GJSC-06 supports up to 96 fiber splicing points using 4 splice trays with 24 fibers per tray.
Is SP-GJSC-06 compatible with Opti hardened drop cables?
Yes. The product includes 8 pre-installed reinforced OptiTap compatible SC adapters for hardened fiber drop cable connection.
Where can Fiber Sealed Drop Closures be installed?
FSDC products can be installed on walls, poles and aerial structures for outdoor FTTH and FTTx network deployment.
Can Spring Optical provide OEM Fiber Closure production?
Yes. Spring Optical supports OEM and bulk manufacturing for telecom operators, distributors and fiber network contractors.
