Product Overview
The MPO/MTP-LC Uniboot Breakout Patch Cord is a premium, high-density fiber optic connectivity solution engineered for ultra-dense cabling environments. By converting a single multi-fiber MPO/MTP connector into multiple LC Uniboot connectors, it allows seamless migration from high-speed parallel optics (such as 40G/100G/400G transceivers) to discrete 10G/25G equipment ports.
This space-saving breakout solution features a slim main trunk cable, a ruggedized fan-out transition unit, and precision-engineered fiber connectors. Designed to minimize cable congestion and optimize airflow in high-capacity networks, it is the ideal component for modern enterprise data centers, Telecom Backbone Networks, and Optical Distribution Frames (ODF).
Core Advantages at a Glance
100% Factory Quality Tested
Every cable undergoes strict:
·Insertion Loss (IL)
·Return Loss (RL)
·Polarity verification
·3D interferometer geometry inspection
Premium Grade Ferrules
Built with industry-leading ceramic ferrules and professional polishing technology for superior optical stability.
High-Density Uniboot Design
Cuts standard duplex patching bulk in half, drastically improving airflow and rack-space management.
International Compliance
Fully compliant with:
·Telcordia GR-326
·IEC 61300-2
·RoHS
·IEC 61754
·IEC 61753-1
Technical Specifications
| Optical Parameter | LC Uniboot End | MPO/MTP Standard | MPO/MTP Elite |
|---|---|---|---|
| Insertion Loss (SM UPC) | ≤0.30 dB | ≤0.50 dB (12F/24F) | ≤0.35 dB (12F/24F) |
| Insertion Loss (SM APC) | ≤0.35 dB | ≤0.50 dB | ≤0.35 dB |
| Insertion Loss (MM PC) | ≤0.70 dB | ≤0.50 dB | ≤0.35 dB |
| Return Loss (SM UPC) | ≥50 dB | ≥20 dB | ≥20 dB |
| Return Loss (SM APC) | ≥60 dB | ≥55 dB | ≥55 dB |
| Return Loss (MM PC) | ≥30 dB | ≥20 dB | ≥20 dB |
| Mating Durability | ≥1,000 times | ≥1,000 times | ≥1,000 times |
| Operating Temperature | -25°C to +70°C | -25°C to +70°C | -25°C to +70°C |
| Available Fiber Types | OS2, OM1, OM2, OM3, OM4 | OS2, OM1, OM2, OM3, OM4 | OS2, OM1, OM2, OM3, OM4 |
Need custom breakout lengths or low-loss Elite configurations?
Contact Our Engineering Team for an Instant Quote.
Customization Matrix (Configuration Options)
Spring Optical offers comprehensive OEM/ODM customization options to fit your exact network architecture requirements:
| Parameter | Options |
|---|---|
| Fiber Type | OS2, OM1, OM2, OM3, OM4 |
| Fiber Count | 4F, 8F, 12F, 16F, 24F, Custom |
| MPO/MTP Connector | MPO Standard, MTP Standard, MTP Elite |
| MPO/MTP Gender | Male (Pinned), Female (Unpinned) |
| LC Connector Type | LC Uniboot, LC Push-Pull Uniboot |
| End Face Polish | UPC, APC |
| Cable Jacket Material | LSZH, PVC, OFNP |
| Cable Color | Yellow (OS2), Aqua (OM3), Magenta (OM4), Beige (OM1/OM2) |
| Custom Services | Length, Fiber Type, Polarity, Connector Configuration |
Common Ordering Examples

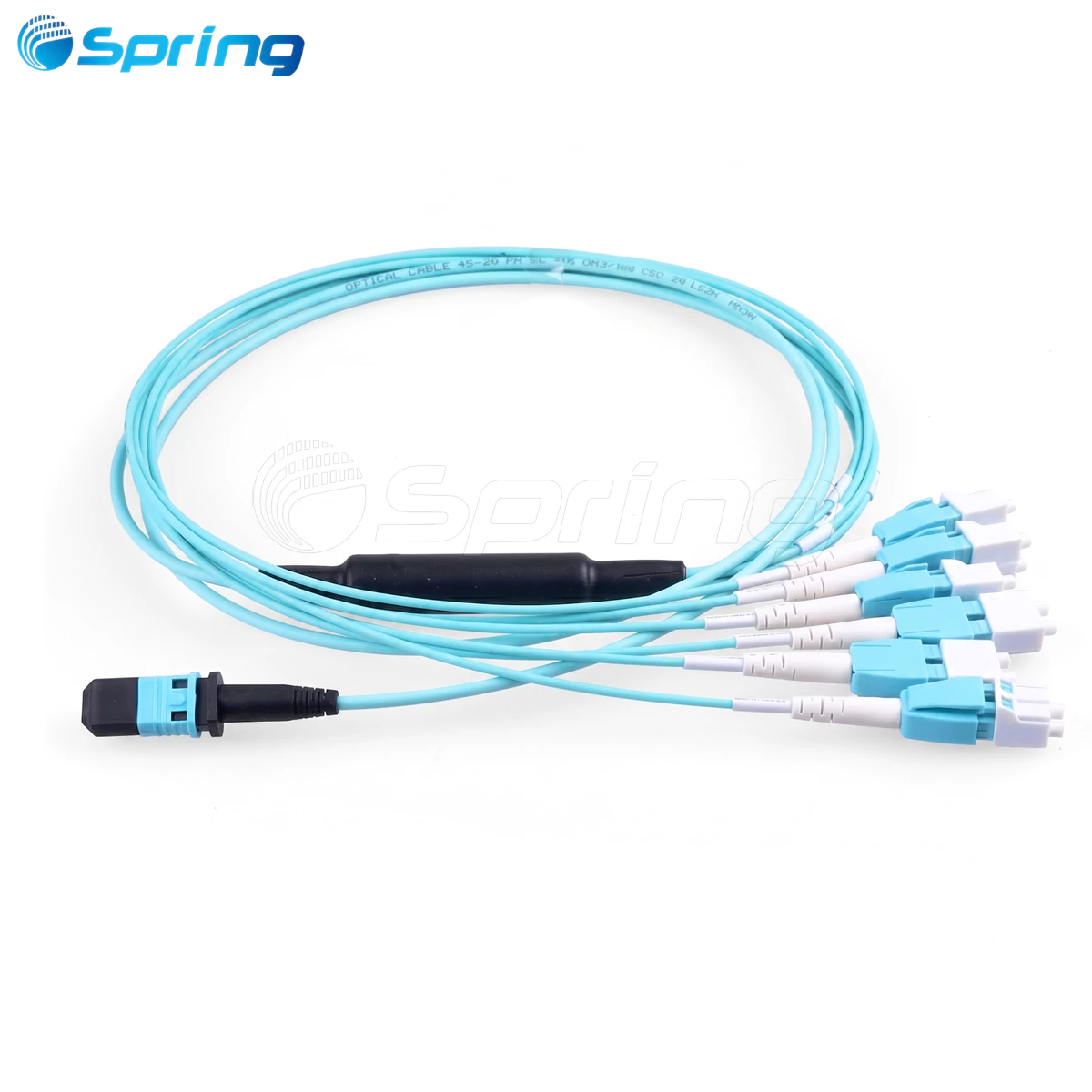

MPO-LC Uniboot 12-Core OM3 Breakout Patch Cord (Ideal for 40G BASE-SR4 to 10G Base-SR migration)
MTP Elite-LC Push-Pull Uniboot 12-Core SM Breakout Patch Cord (Ultra-low loss for long-range enterprise switches)

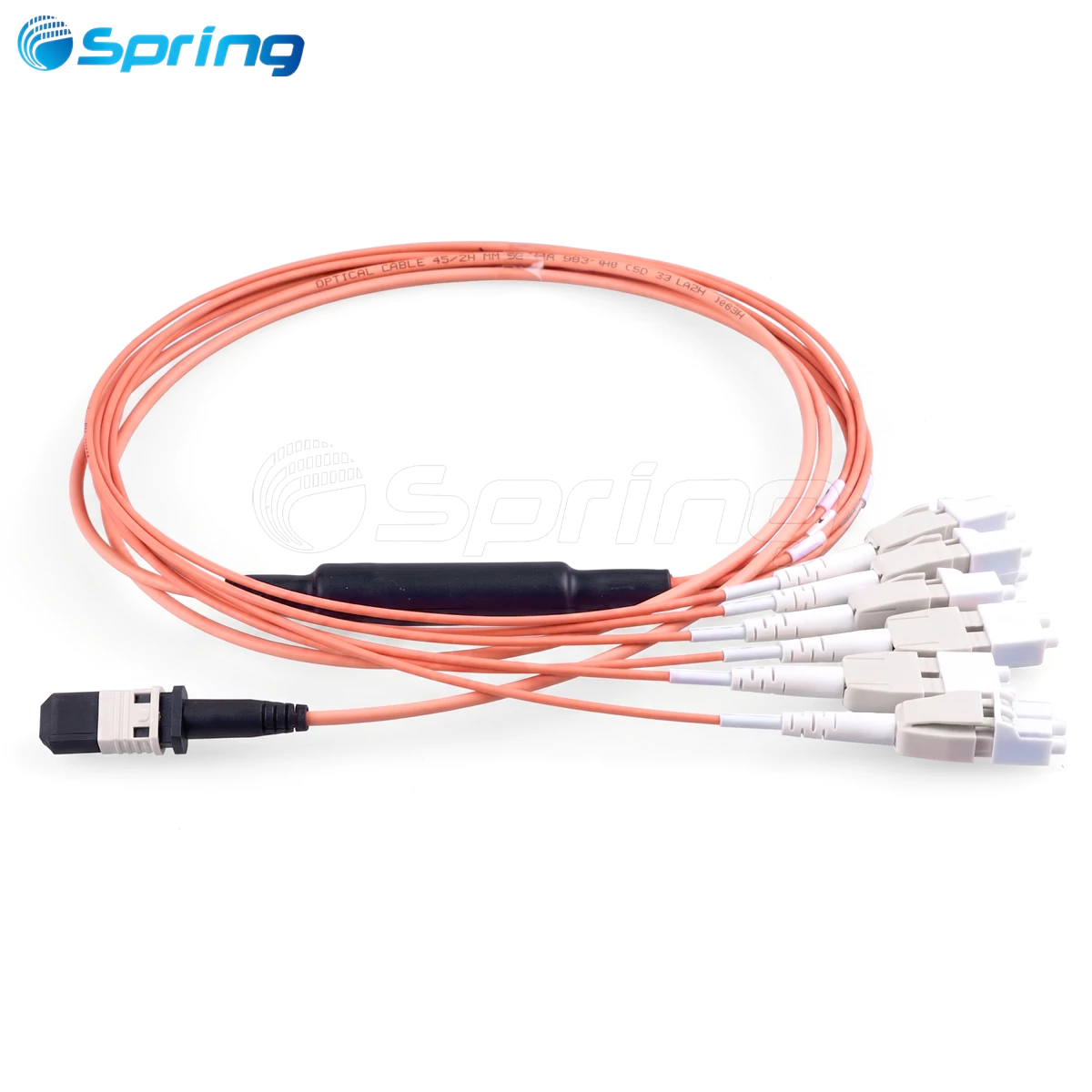

MPO-LC Uniboot 12-Core OM2 Breakout Patch Cord (Legacy infrastructure patch solution)
Key Deployment Applications
High-Density Data Center Interconnects
Ideal for splitting:
40G QSFP+ ports into 4x10G SFP+ duplex connections
100G QSFP28 ports into 4x25G SFP28 duplex connections
Optical Distribution Frames (ODF)
Streamlining high-density central office optical mainframes.
Fiber Distribution Systems
Improving:
Organization
Accessibility
Fiber routing speed within distribution racks
Enterprise Backbone Networks
Ensuring high-bandwidth, stable data transmission for:
Storage Area Networks (SAN)
Cloud setups
Our Complete Factory Quality Testing Protocol
To ensure carrier-grade performance and long-term deployment reliability, Spring Optical subjects every breakout assembly to 100% rigorous automated factory testing:
Optical Performance Verification
Individual testing for precise:
Insertion Loss (IL)
Return Loss (RL)
values.
01
Polarity Mapping Test
Verification of:
Type A
Type B
Type C
fiber routing to eliminate channel connection errors.
02
3D Interferometer Geometry Test
Inspection of:
Core offsets
Apex offset
Fiber undercut
to guarantee optimal physical end-face contact.
03
400x End-Face Microscopic Inspection
Absolute elimination of:
Scratches
Pits
Dust contamination
on the ceramic ferrule.
04
Frequently Asked Questions (FAQ)
What is an MPO MTP to LC Uniboot breakout cable used for?
An MPO MTP to LC Uniboot breakout cable is used to connect high-speed multi-fiber network equipment, such as 40G QSFP+ or 100G QSFP28 transceivers, to individual 10G SFP+ or 25G SFP28 ports. It splits a single high-density connector into multiple duplex LC connectors, allowing seamless migration from parallel optics to discrete equipment channels while saving up to 50 percent of rack space.
What is the difference between an MPO and an MTP connector?
The main difference is that MTP is a registered trademark of US Conec for an enhanced, premium MPO connector designed with superior mechanical and optical performance. While all MTP connectors are fully compliant with MPO standard specifications, they offer lower insertion loss, higher durability, and floating ferrules for better physical contact compared to standard MPO connectors.
What are the benefits of using an LC Uniboot connector over standard LC duplex?
The primary benefit of an LC Uniboot connector is that it utilizes a single round cable jacket for two fibers instead of traditional dual-zip duplex cables, reducing overall cable volume by 50 percent. This slim line design dramatically improves airflow efficiency and ventilation within high density data center server racks, while making cable routing and management much easier for network engineers.
Does this MPO LC breakout patch cord support custom polarity and lengths?
Yes, Spring Optical provides fully customized MPO LC breakout patch cords, including custom staggered or equal breakout leg lengths and exact overall cable dimensions. We support standard industry polarity options including Method A, Method B, and Method C configurations to ensure absolute compatibility with major networking hardware brands like Cisco, Arista, and Juniper.
What quality testing standards do your fiber breakout cables comply with?
Our fiber optic breakout cables comply with international carrier grade standards including Telcordia GR-326-CORE, IEC 61300-2, RoHS, IEC 61754, TIA-568.3-D, and IEC 61753-1. Every product undergoes 100 percent automated factory testing, which includes structural 3D interferometer geometry inspection, optical insertion loss verification, return loss checking, and 400x microscopic ferrule end-face cleanliness analysis.
Packaging, Support, & Logistics
Protective Packaging
Every patch cord is individually sealed in an anti-static, heavy-duty protective bag to safeguard the polished ceramic ferrules.
Dust caps remain secured on all connectors throughout shipping.
Documentation Included
Individual factory test reports (IL/RL data)
Product labels with exact lengths
Serial numbers
Polarity tracking
