MPO to 12 LC Breakout Cable is a fiber optic fanout assembly designed to convert one MPO/MTP® high-density connector into 12 LC simplex or duplex connectors. It is widely used in data centers, FTTH, and telecom networks to simplify high-density fiber cabling and enable fast deployment.
Product Overview

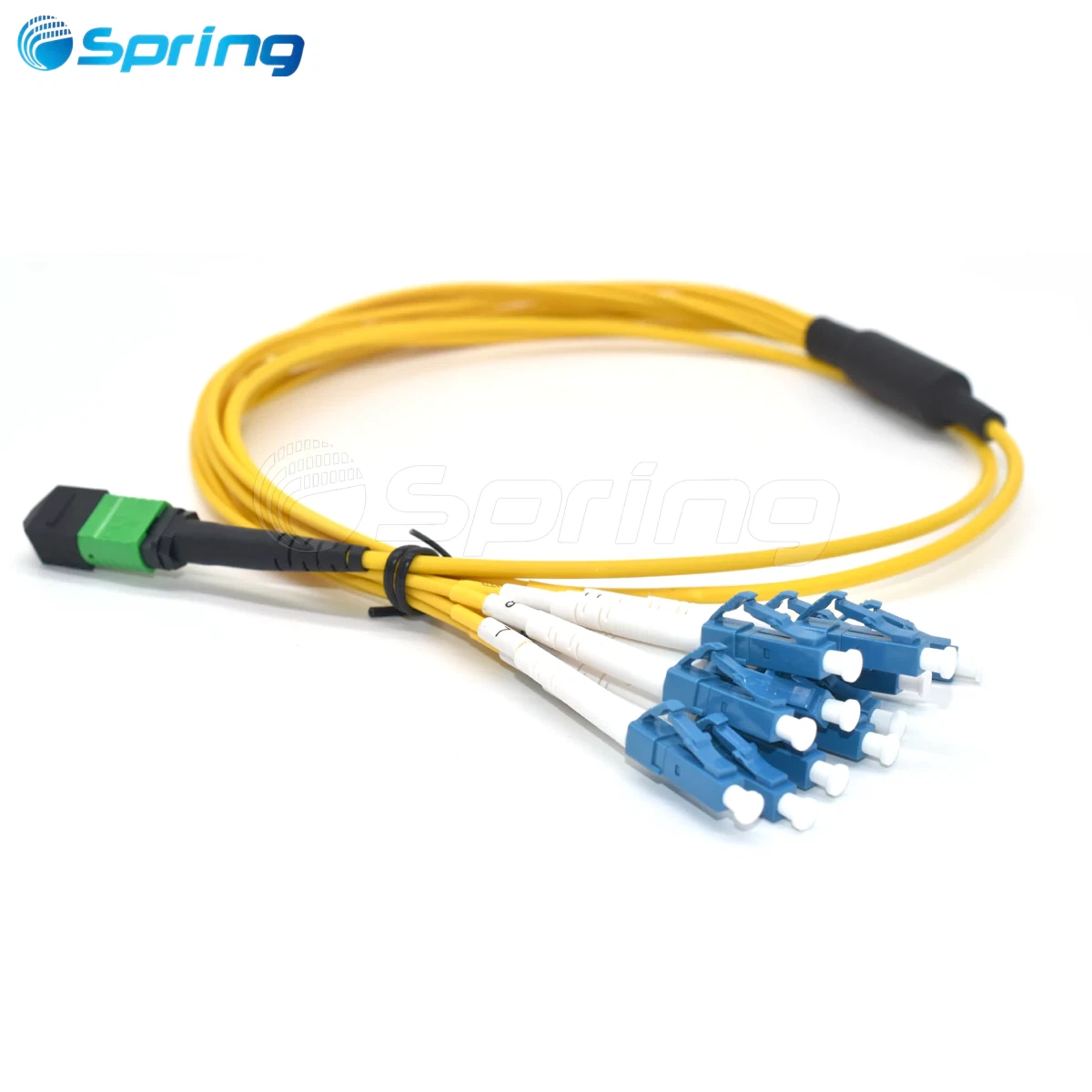

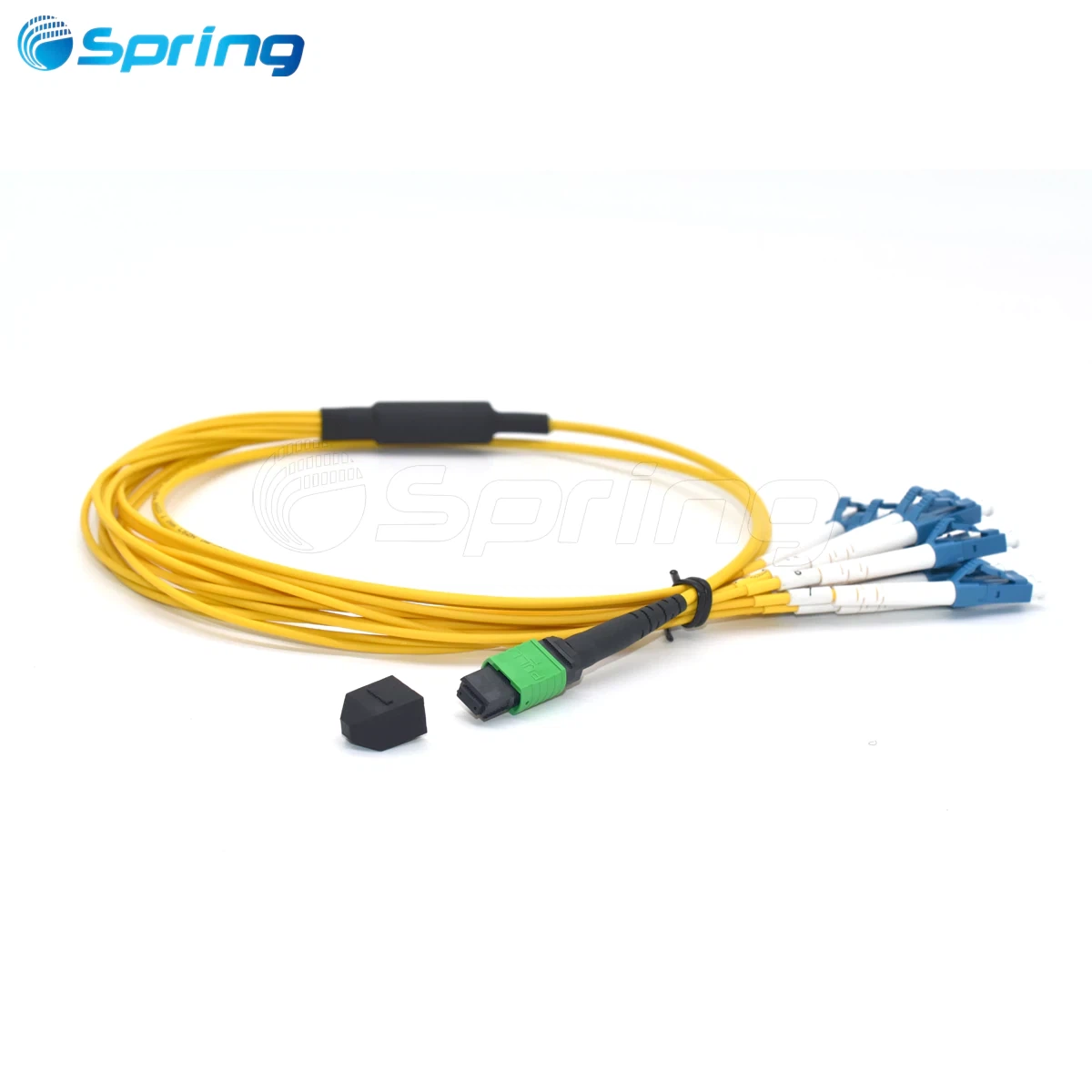

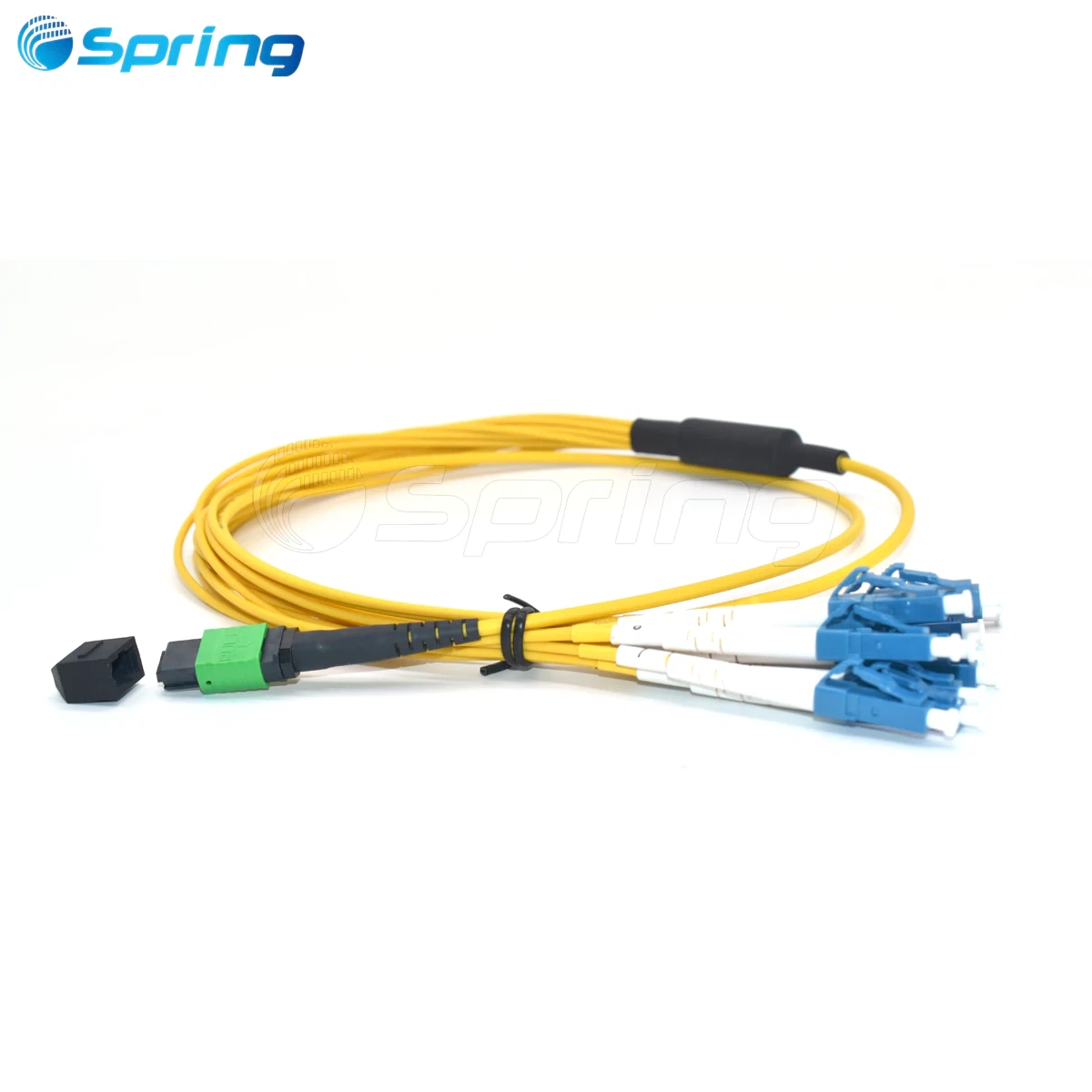

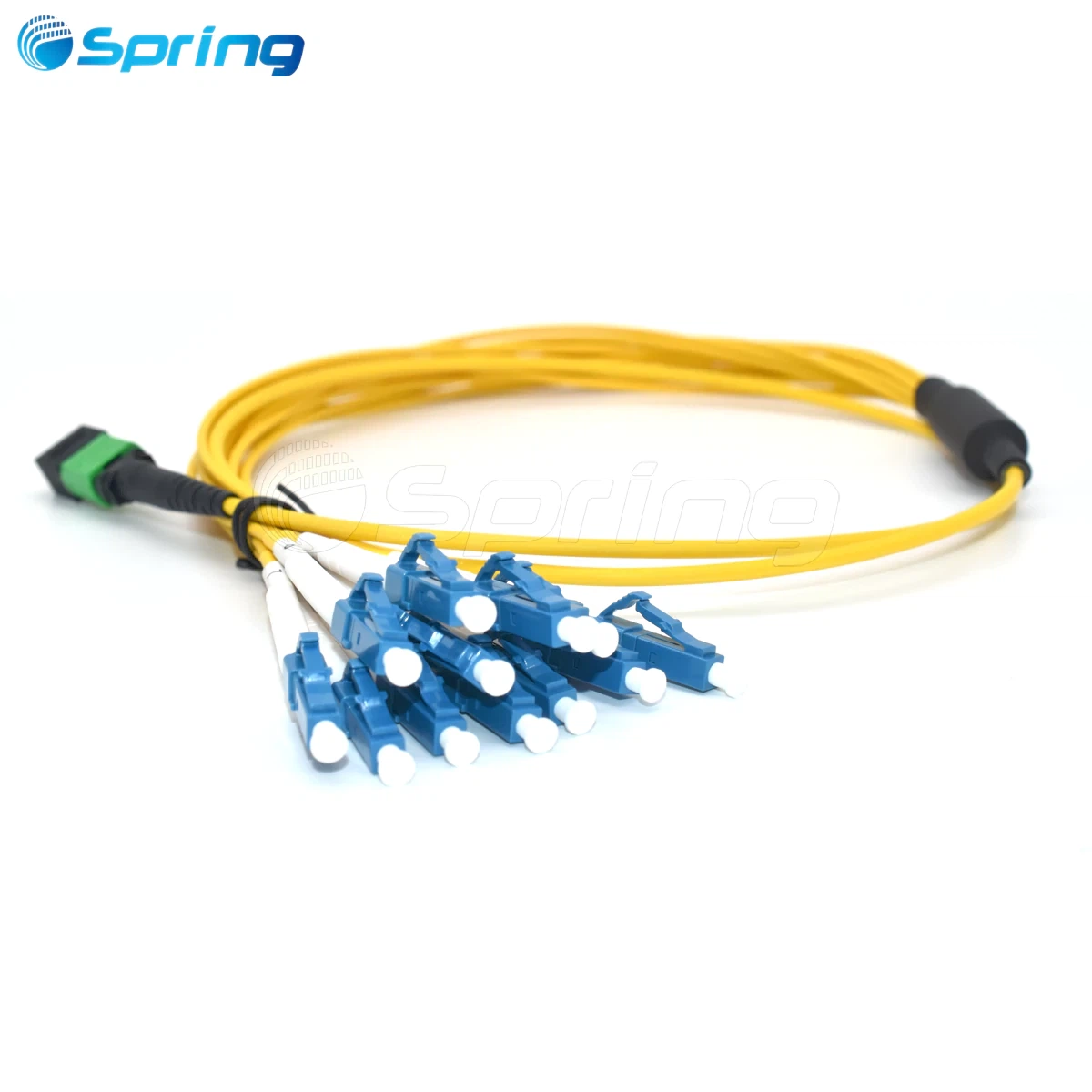

The MPO to 12 LC Breakout Cable (also known as MPO 12 breakout cable or MPO 12 to LC cable) is a high-density fiber optic pre-terminated assembly designed for modern optical communication networks. It features an MPO/MTP® connector on one end and 12 LC connectors on the breakout end, enabling efficient conversion from backbone trunk cables to individual fiber links.
This MPO to 12 LC Breakout Cable is widely deployed in data centers, FTTH networks, telecom backbone systems, and enterprise fiber infrastructure. It solves the critical challenge of space-constrained, high-density cabling by replacing complex field termination with factory-terminated precision assemblies.
Built with LSZH 3.0mm main trunk cable and 2.0mm breakout fibers, the structure ensures mechanical reliability and long-term stability. The product supports both singlemode (G652D, G657A1) and multimode (OM1, OM2, OM3) fiber types, making it suitable for diverse network architectures.
All MPO/MTP connectors comply with IEC-61754-7 and TIA-604-5 standards, ensuring interoperability and telecom-grade performance. Spring Optical uses US Conec MPO connectors, supporting both standard and elite low-loss configurations for high-performance optical networks.
Key Features
MPO to 12 LC Breakout Cable enables high-density fiber conversion from MPO backbone to LC interfaces
Factory-terminated MPO/MTP® connectors ensure stable and low-loss optical performance
Supports singlemode (G652D, G657A1) and multimode (OM1–OM3) fiber types
3.0mm LSZH main cable with 2.0mm breakout construction for mechanical reliability
MPO 12 breakout cable designed for fast deployment in data center and telecom environments
Compliant with IEC-61754-7 and TIA-604-5 standards
Available in standard and elite low-loss grades
Custom configurations for polarity, fiber count, and connector combinations
Technical Specifications
|
|
Single Mode |
Single Mode |
Multi Mode |
|||
|
(APC Polish) |
(UPC Polish) |
(PC Polish) |
||||
|
Fiber Count |
8,12,24 etc. |
8,12,24 etc. |
8,12,24 etc. |
|||
|
Fiber Type |
G652D,G657A1 etc. |
G652D,G657A1 etc. |
OM1,OM2,OM3 etc. |
|||
|
Maximum Insertion Loss |
Elite |
Standard |
Elite |
Standard |
Elite |
Standard |
|
Low Loss |
Low Loss |
Low Loss |
||||
|
≤0.35 dB |
≤0.75dB |
≤0.35 dB |
≤0.75dB |
≤0.35 dB |
≤0.60dB |
|
|
Return Loss |
≥60 dB |
≥60 dB |
NA |
|||
|
Durability |
≥500 times |
≥500 times |
≥500 times |
|||
|
Operating Temperature |
-40℃ ~ +80℃ |
-40℃ ~ +80℃ |
-40℃ ~ +80℃ |
|||
|
Test Wavelength |
1310nm |
1310nm |
1310nm |
|||
Product Variants
Fiber counts: 8, 12, 24 fibers (12-core standard version)
Connector options: LC, SC, FC, ST, MTRJ
Fiber types: Singlemode (9/125μm), Multimode (50/125μm, 62.5/125μm)
Length options: custom 1m–50m or project-based
Polarity: Type A / B / C configurations available
Jacket types: LSZH round cable, flat ribbon cable, bare ribbon fanout
Applications (MPO to 12 LC Breakout Cable Applications)
FTTH access network distribution
FTTA wireless base station fiber cabling
Data center high-density interconnect systems
Telecom operator backbone networks
ODN optical distribution networks
Enterprise broadband and structured cabling systems
Typical Network Architecture
A standard deployment of the MPO to 12 LC Breakout Cable follows this structure:
OLT / Switch → MPO/MTP® Trunk Backbone Cable → Patch Panel or Cassette → MPO to 12 LC Breakout Cable → LC Patch Cord → Active Equipment (Server / Switch / Transceiver Port)
This architecture enables high-density backbone aggregation while distributing fiber into individual LC interfaces for equipment-level connectivity, reducing installation complexity and improving scalability.
Product Advantages
High-density design reduces rack space usage
MPO to 12 LC Breakout Cable enables fast plug-and-play deployment
Reduces field termination cost and installation time
Scalable architecture for 40G/100G/400G network evolution
Low insertion loss ensures stable signal transmission
Long-term reliability under telecom-grade environments
Comparison Table
| Feature | MPO to 12 LC Breakout Cable | Traditional Field Termination |
|---|---|---|
| Installation Time | Fast plug-and-play | Time-consuming |
| Performance Stability | Factory controlled | Variable |
| Density | High | Low |
| Labor Cost | Low | High |
| Scalability | Excellent | Limited |
Related Products
FAQ – MPO to 12 LC Breakout Cable
What is MPO to 12 LC Breakout Cable?
MPO to 12 LC Breakout Cable is a pre-terminated fiber optic assembly that converts one MPO/MTP® connector into 12 LC fiber connections for high-density network distribution.
Where is MPO to 12 LC Breakout Cable used?
It is used in data centers, FTTH networks, telecom backbone systems, ODN networks, and enterprise fiber infrastructures.
What fiber types are supported?
This MPO to 12 LC Breakout Cable supports singlemode fibers (G652D, G657A1) and multimode fibers (OM1, OM2, OM3).
What is the insertion loss of MPO to 12 LC Breakout Cable?
The insertion loss is ≤0.35 dB for elite grade and ≤0.75 dB for standard grade configurations.
Is custom length available?
Yes, Spring Optical provides customized lengths, fiber counts, and connector configurations based on project requirements.
What standards does this product comply with?
It complies with IEC-61754-7 and TIA-604-5 international fiber optic standards.
What is the difference between MPO and LC connectors in this cable?
MPO connector is used for high-density trunk connections, while LC connectors provide individual port-level fiber access.
Is OEM or ODM customization supported?
Yes, Spring Optical supports full OEM/ODM customization including labeling, polarity, fiber type, and jacket material.
Packing & Shipping
Packaging: individual PE bag + carton box or reel packing
Storage conditions: dry environment, -40°C to +80°C recommended storage range
Shipping method: air, sea, or express delivery based on project requirements
Handling precautions: avoid excessive bending radius and mechanical stress during installation
Contact Spring Optical for technical consultation, OEM customization, or project-based fiber optic solutions for your MPO to 12 LC Breakout Cable deployment requirements.
