A New Choice for High-Density Data Center Cabling: MMC Solutions

As the demand for bandwidth and port density in data centers continues to grow exponentially, traditional cabling solutions are facing the dual challenges of spatial constraints and operational efficiency. If you are planning or upgrading your data center infrastructure, ultra-small form factor (VSFF), high-density fiber optic connectivity solutions have become a top priority. This article introduces the MMC connector, MMC adapters, MMC fiber patch cords, and related product series developed by US Conec, helping customers with data center cabling needs understand this next-generation solution.

1. Why is Smaller, Denser Fiber Connectivity Needed?

2. MMC Connector: Ultra-Small Form Factor, Ultra-High Density

The MMC (Micro Multi-fiber Connector) is a next-generation Very Small Form Factor (VSFF) multi-fiber optical connector designed to deliver ultra-high-density fiber connectivity for 400G, 800G, and future data center networks. Its core advantages include:

3x Density Increase: Compared to traditional MPO connectors, the MMC provides triple the fiber port density in the same physical space, significantly optimizing rack space utilization.

Ease of Operation: Utilizing the DirectConec™ push-pull grip design, it ensures effortless insertion and extraction even in the most densely populated patch panel environments.

Proven Reliability: Built upon the foundation of industry-proven MT or MT-16 mechanical and optical alignment structures.

Broad Compatibility: Fully compatible with standard 250µm and smaller pitch optical fibers, supporting cable outer diameters (OD) up to 2.5mm.

Low-Loss Performance: Equipped with TMT Elite™ low-loss ferrules that comply with IEC Grade B standards, delivering random intermate insertion loss as low as 0.25dB (≥97%), ensuring robust signal integrity.

Flexible Configurations: Available in 1×12, 1×16, and 2×12 options, supporting both single-mode and multi-mode applications, along with APC (Angled Physical Contact) end-face polishing.

Rigorous Validation: Tested to comply with Telcordia GR-1435 standards, guaranteeing long-term network reliability.

Comprehensive Ecosystem: Seamlessly compatible with standard cabling industry infrastructure, including one-click cleaners, polishing machines, interferometers, and optical test equipment.

Comparison of manageable fiber counts between MPO and MMC connectors using a 1U fiber patch panel:

(Note: Corrected "26F" from traditional non-standard references to the industry standard 24F configurations for precise technical accuracy.)

3. MMC Connector Applications

Structured cabling systems

Data Center Interconnect (DCI) and small-diameter pre-terminated fiber cable assemblies

High-bandwidth optical transceivers

Co-Packaged Optics (CPO) and on-board interconnects

💡 Spring Optical Field Insight: In actual 400G/800G infrastructure rollouts, deploying the DirectConec™ push-pull mechanism reduces patch-mating time by up to 40% in ultra-dense configurations compared to traditional MPO latching sleeves, significantly lowering human error risks and damage during hot-swaps.

4. TMT Ferrule Technology

The performance foundation of the MMC connector relies on TMT ferrule technology. The TMT ferrule morphology is based on the alignment structures of the time-tested MT and MT-16 ferrules used in MTP® and MTP®-16 applications. Its innovative shoulder features ensure precise polishing and the mechanical integrity required for repeated mating cycles. In addition to MMC applications, TMT ferrules are ideal for on-board fiber management, optical modules, and ruggedized interconnect implementations.

250μm pitch

Compatible with 250μm, 200μm, and 165μm outer diameter fibers

Intermateable with MT and MT-16 ferrules

Low-loss performance, optimized for single-mode APC and multi-mode APC

5. MMC Adapters

MMC adapters offer a variety of port configurations, including versions that support direct mating of MMC and MMC Jr. connectors. The 2-port adapter fits standard MPO (SC) panel cutouts, allowing for seamless upgrades from MPO to MMC while doubling port density. For even higher density scenarios, 4-port or 6-port configurations are available. All models feature optional dust caps to protect unpopulated ports when not in use.

6. MMC Fiber Patch Cord Product Portfolio

The MMC system provides not only compact connection options but also a comprehensive portfolio of fiber patch cords to support diverse cabling architectures and seamless system integration. The MMC patch cord series satisfies a wide array of connectivity scenarios, primarily including:

Direct Patch Cords: Such as MMC12, MMC16, and MMC24, used for high-density interconnectivity within native MMC systems.

Conversion Patch Cords: Such as MMC16/24 to MPO16/24, enabling efficient migration and integration between MMC and legacy MPO systems.

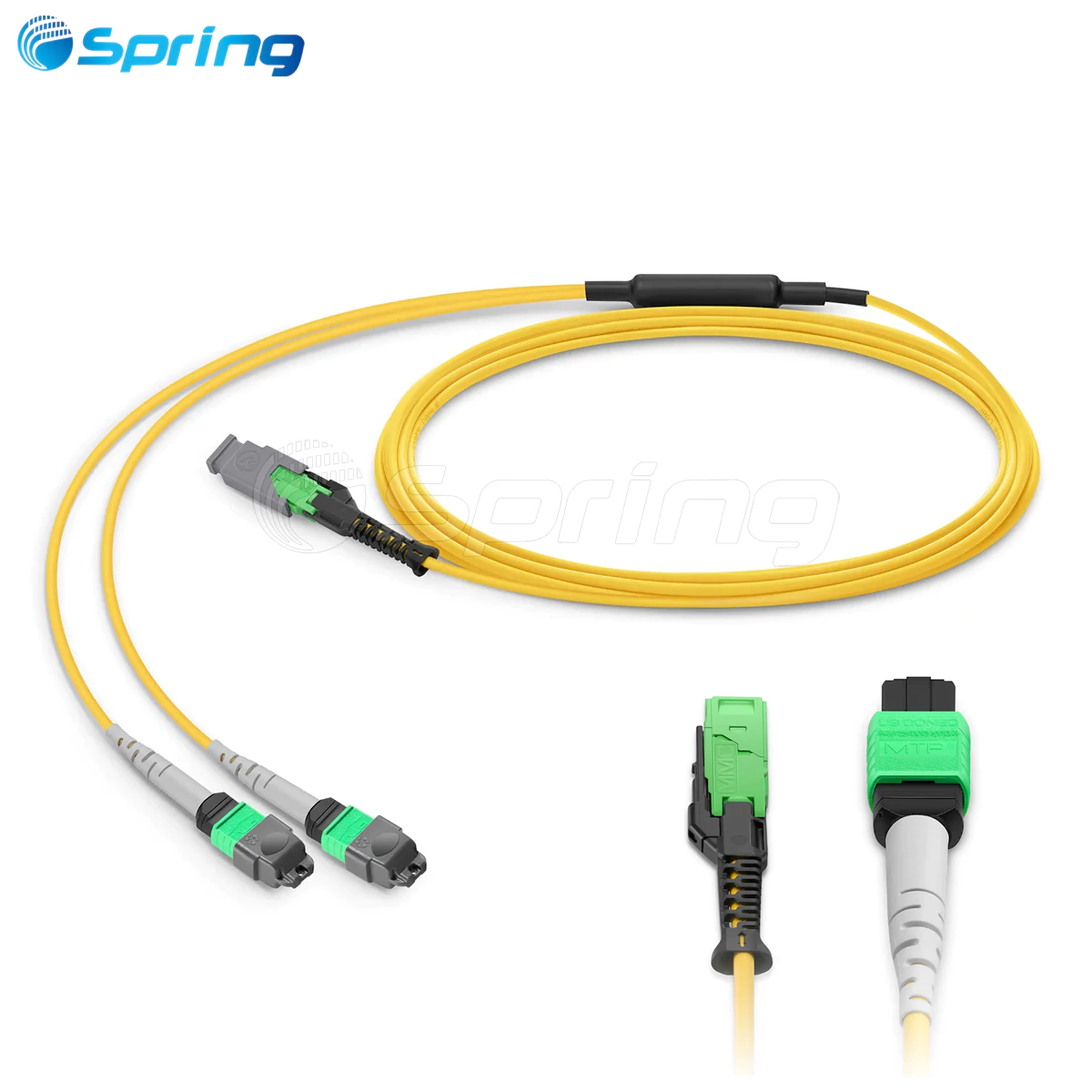

Breakout Patch Cords: Such as MMC16 to 8×LC/DX and MMC24 to 12×LC/DX, facilitating easy connections to active equipment ports and maximizing cabling flexibility.

7. MMC-Related Products Offered by Spring Optical

8. Frequently Asked Questions (FAQ)

Ready to Maximize Your Data Center Cabling Density?

Planning your next 400G/800G infrastructure upgrade or struggling with cabinet space? Contact Spring Optical's engineering team today for a complimentary MMC cabling design blueprint and certified product samples.
