Fiber networks are expanding, especially as 5G and FTTH infrastructure are being rolled out globally. This has increased the need for reliable and efficient connectors that can withstand the weather. Opti-Tap connectors are a hardened, factory-terminated connector system that is designed to meet these demanding requirements.
What Is Opti-Tap Connector?
Opti-Tap Connector is purpose-built for deployment in harsh outdoor environments, engineered to endure extreme temperature variations, high humidity, dust, and physical impact. They incorporate either a threaded or push-pull locking mechanism, enabling quick, reliable, and tool-free plug-and-play installations.
SpringOptic's Opti-Tap is compatible with Corning's OptiTap connectors. These connectors, which are IP68-certified for waterproof protection, perform in conditions with high humidity and UV exposure as well as dust, rain, and extreme temperature changes between -40 °C & +75 °C. This ruggedized design provides exceptional mechanical strength and optical performance, making it the ideal choice for FTTH flat-drop cables, FTTA deployments (Fiber to Antenna), and other outdoor hardened fibre optic networks.
Opti-Tap for FTTH Flat-Drop Cable Applications
Flat drop cables play a vital role in FTTH systems, delivering optical signals directly from splitters to homes. The flat drop cables' compact profile, low-bending radius, and versatility make them suitable for installation in multiple scenarios, including aerial runs, underground ducts, and direct burial.

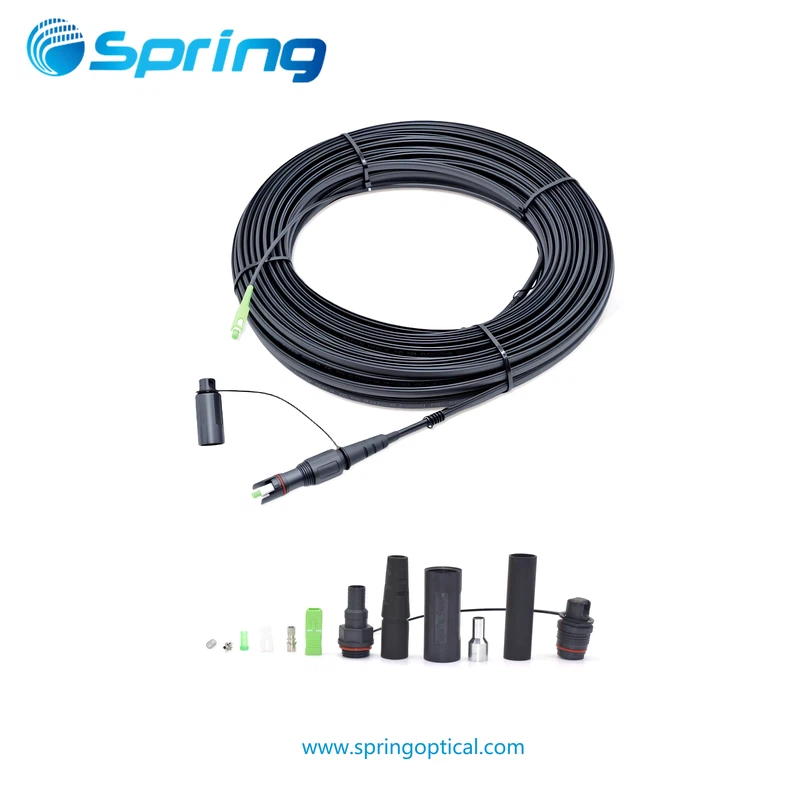

SpringOptic's Opti-Tap Connectors are designed to seamlessly integrate with a range of flat cable assemblies that have been pre-terminated. They provide fast, reliable connections, including:
SST Toneable Flat Drop Assemblies SuperTap SC/APC Breakout Patch Cables
4 Fiber Hardened SC/APC Breakout Assemblies with Flat Dielectric Cable
SuperTap Flat Drop Assemblies with Pulling Eyes
Each assembly is equipped with high-performance SC/APC plugs that have been rigorously tested to guarantee minimal insertion loss and consistent optical performance. Whether used on the building exterior, inside the conduits, overhead, or in the ceiling, SpringOptic's Opti-Tap cables and connectors provide durable, environmentally sealed fiber connections. This simplifies the last-mile FTTH install process.
Opti-Tap in Outdoor Fiber Cable Applications
Outdoor fiber networks require components that can withstand harsh environments. SpringOptic's Opti-Tap Connector Assemblies are designed specifically for these applications. These include installations in underground conduits as well as pole-mounted termini, handholes, and distribution cabinets. Key product offerings include
Outdoor Hardened SC/APC SST Flat Dielectric Drop Cable Assemblies (4.5×8.1mm)
FTTA Hardened SC/APC Drop Cable Assemblies (5.0mm breakout cables)
These cable assemblies feature excellent UV resistance, mechanical strength, and an IP68-rated seal. They are ideal for a variety of outdoor applications, including Passive Optical Networks, 5G small cells backhaul, rural deployments, emergency communications setups, as well as connections in extreme conditions such as intense heat and freezing cold.
Why Choose SpringOptic's Opti-Tap Series?
Fast Deployment, Low Cost
The push-pull self-locking mechanism enables tool-free installation, significantly reducing labor time and field complexity. The plug-and-play design facilitates rapid connections, critical for large-scale FTTH and FTTA network rollouts, where efficiency directly translates into cost savings.
Superior Optical Performance
OptiTap connectors demonstrate outstanding optical characteristics:
Insertion Loss at 1310nm and 1550nm wavelengths averages 0.2dB, with a maximum of 0.3dB
Return Loss exceeds 60dB, ensuring minimal back reflection
Consistent low attenuation maintains high signal integrity across multiple connection points and long distances
Certified & Reliable
SpringOptic's Opti-Tap connectors have been designed for durability and environmental resistance. They are made of robust materials that resist physical damage as well as environmental stress. They are designed with an IP68 rating to provide superior protection from water, dust, and contaminants. This ensures reliable performance even in harsh outdoor environments. They are suitable for climates with extreme temperatures ranging from -40degC up to +75degC. Rigorously tested to meet IEC and Telcordia standards--including IEC 61300 series mechanical and environmental tests and GR-3120-CORE/GR-326-CORE reliability certifications--Opti-Tap connectors guarantee long-term optical and mechanical stability in real-world deployments.
Broad Compatibility
The Opti-Tap connector family supports multiple interface types, including SC/APC, LC, and MPO, and is available in single-fiber up to 12-fiber assemblies, accommodating various network densities and configurations. Custom solutions are also available upon request.
The Guidelines For Installation
A Repeatable And Efficient Process To guarantee the best function and longest life of the network, SpringOptic wants you to follow one standardized on-site installation procedure: Gather together all the tools you will need, including:
★ fibre cleaver, lint-free wipes, isopropyl alcohol, OTDR, and optical power meter.
★ Be sure to clean the end-faces of the connectors in a satisfactory manner, as well as giving them a visual inspection.
★ Line up the SC/APC hardened connector with the adapter for return
★ Put an audible "click" to ensure that the locking mechanism seems secure.
★ It will keep the optical is the same as it displays on any other device it works with
★ Cables may be fixed as much as possible with clamps and ties so that the mechanical stress on connections is minimized. The strategy is ★ ★ consistent, and this lends itself to a reduction in installation errors, risk of contamination, as well as long-term stable operation.
Typical Applications
|
Application |
Description |
|
FTTH Last-Mile |
Quick, tool-free subscriber connections, avoiding fusion splicing. |
|
5G & Small Cell Backhaul |
Rugged, reliable fiber links for antenna-to-network interfaces. |
|
Rural Fiber Networks |
Cost-effective, scalable solutions for underserved areas. |
|
Outdoor Distribution Boxes |
Simplified plug-and-play terminations in terminals and handholes. |
|
Emergency Communications |
Rapid deployment for disaster recovery and field operations. |
SpringOptic is one of the biggest suppliers of Opti-Tap products to the U.S., and our products have stood the test of time when it comes to quality and reliability. That's why we're able to offer great pricing and solid performance, giving telecom operators real value and support. Need help or want to test our products? Just reach out to us at sales@springoptic.com - we'll be happy to send you free samples and detailed technical info.
