Application
GIS-M11/RS-A is a type of dome closure series, used for direct connection during the optical fiber transmission process, and provides joint connection protection.
GJS-M11/RS-B(BS) is a type of dome closure series, used for direct connection during the optical fiber transmission process, and provides joint connection protection.
Feature
GJS-M11/RS-A
GJS-M11/RS-AS
·All performance parameters comply with the latest national standards.
·The enclosure is made from high-strength engineering plastic, offering a lightweight structure, excellent mechanical durability, resistance to aging, corrosion, and lightning, ensuring a long service life.
·It features 10 round cable ports and 1 oval port, with the oval port supporting cable looping.
·Suitable for pole, wall, and underground installations, the enclosure uses a mechanical sealing method for easy and secure setup.
·The stacked splice tray design and independent insulation grounding enable flexible fiber configuration, expansion, and grounding.
·Each splice tray includes a reserved slot for installing 1:8 or 1:16 PLC splitters.

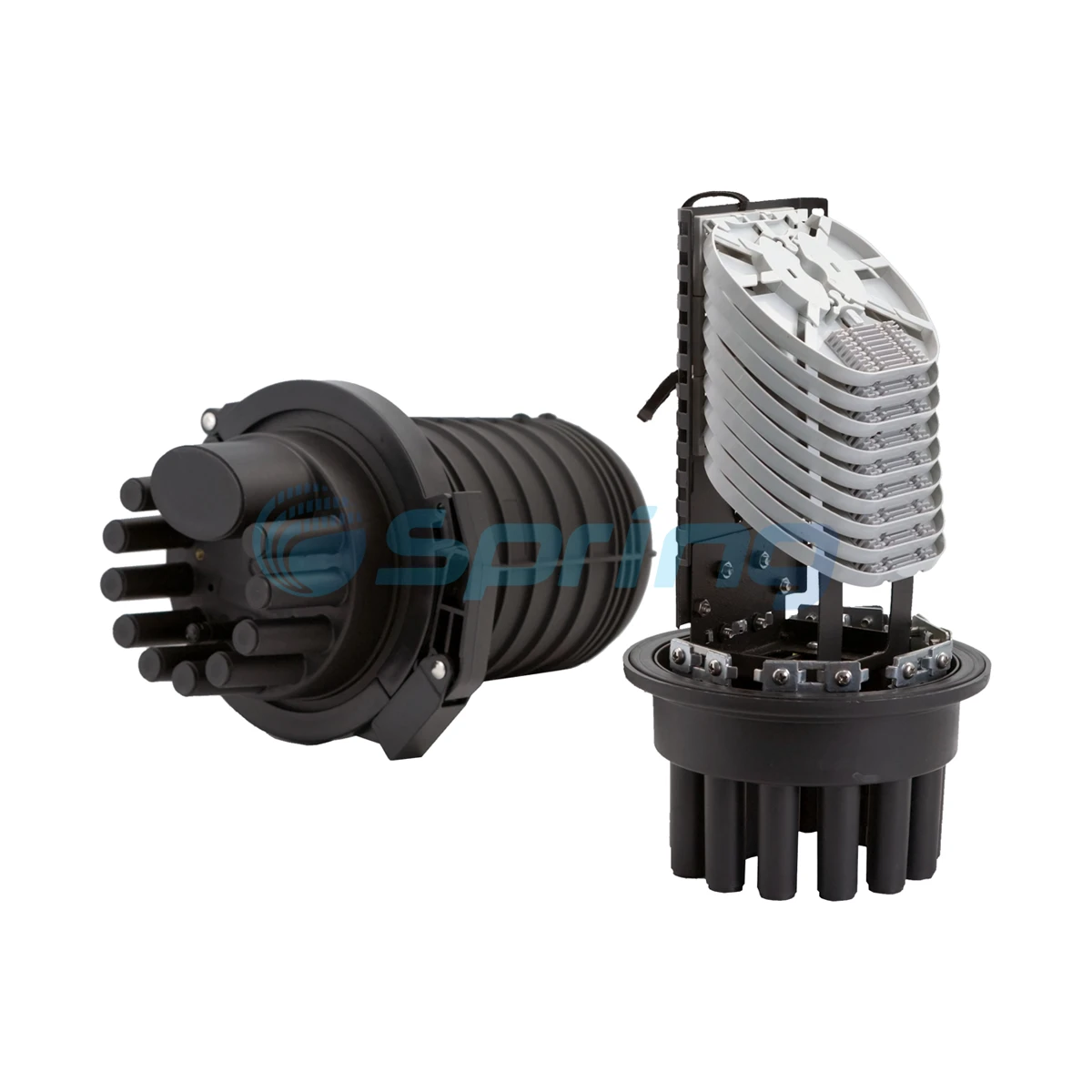

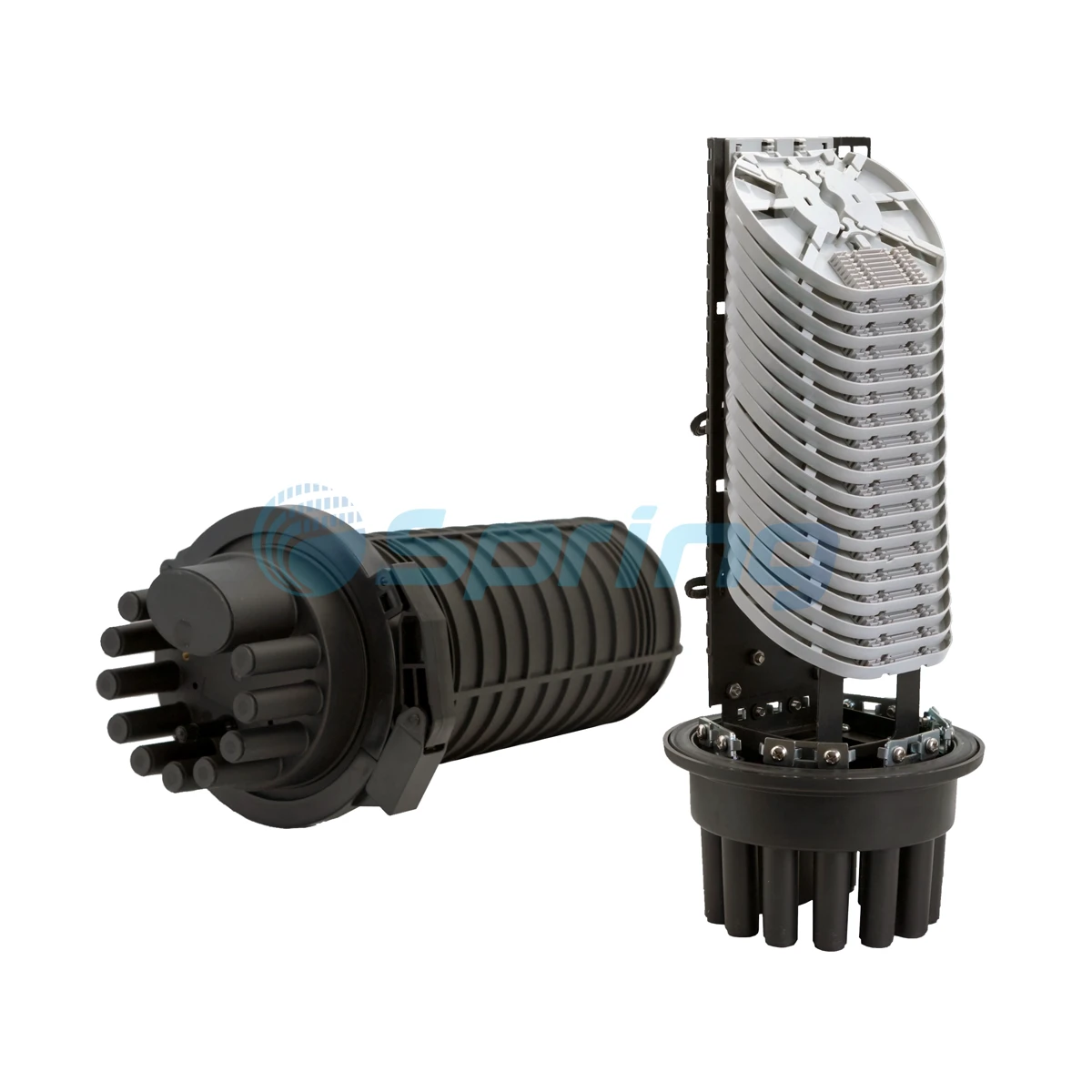

GJS-M11/RS-B
GJS-M11/RS-BS
·All performance indicators comply with the latest national standards.
·The enclosure is made from high-strength engineering plastic, offering light weight, excellent mechanical strength, aging resistance, corrosion resistance, lightning protection, and long service life.
·It features 10 round cable ports and 1 oval port, with the oval port designed for loop-through cable applications.
·The closure supports pole mounting, wall mounting, and underground installation, utilizing a reliable heat shrink sealing method.
·Its stacked splice tray design and independent grounding system ensure flexible, safe, and convenient fiber management and expansion.
·Depending on project requirements, two closure types are available, and users can choose between C-type and H-type splice trays.
Technical Index
·Fiber radius of curvature: >40mm
·Optical disk additional loss: <0.01dBTemperature Range:-20℃~+ 60℃ Anti lateral pressure:>2000N/10cm
·Shock resistance: >20N.m
·Protection level: IP68
Product size
GJS-M11/RS-A
GJS-M11/RS-AS
GJS-M11/RS-B
GJS-M11/RS-BS
specification
| Model | GJS-M11/RS-AS | GJS-M11/RS-A |
|---|---|---|
| Size (mm) | Φ230 × 315 | Φ230 × 430 |
| Cable Port | 1 oval port, 10 circular ports | 1 oval port, 10 circular ports |
| Cable Diameter | Φ7 ~ Φ12 | Φ7 ~ Φ12 |
| Splice Tray Capacity | 24 (single core) | 24 (single core) |
| Max No. of Splice Trays | 6 pcs | 6 pcs |
| Max Capacity | 144 fibers (single core) | 144 fibers (single core) |
| Sealing Type | Heat-shrinkable seal | Heat-shrinkable seal |
| Outer Packaging Size / Qty | 490 × 420 × 720 mm / 8 pcs | 540 × 485 × 465 mm / 4 pcs |
| Total Weight | ≈23.5 kg | ≈ 14.2 kg |
| Specification | GJS-M11/RS-BS-C | GJS-M11/RS-BS-H | GJS-M11/RS-B-C | GJS-M11/RS-B-H |
|---|---|---|---|---|
| Type | GJS-M11/RS-BS-C | GJS-M11/RS-BS-H | GJS-M11/RS-B-C | GJS-M11/RS-B-H |
| Size (mm) | Φ230 × 325 | Φ230 × 325 | Φ230 × 440 | Φ230 × 440 |
| Cable Port | 1 big oval, 10 small | 1 big oval, 10 small | 1 big oval, 10 small | 1 big oval, 10 small |
| Cable Diameter (mm) | Φ7 ~ Φ20 | Φ7 ~ Φ20 | Φ7 ~ Φ20 | Φ7 ~ Φ20 |
| Splice Tray Capacity (core) | 16 | 12 | 16 | 12 |
| Max No. of Splice Trays | 9 pcs | 18 pcs | 18 pcs | 36 pcs |
| Max Capacity (Single Core) | 144 | 216 | 288 | 432 |
| Sealing Type | Heat-shrinkable seal | Heat-shrinkable seal | Heat-shrinkable seal | Heat-shrinkable seal |
| Outer Carton Size (mm) / Qty | 490 × 420 × 720 / 8 pcs | 490 × 420 × 720 / 8 pcs | 540 × 485 × 465 / 4 pcs | 540 × 485 × 465 / 4 pcs |
| Outer Carton Weight (kg) | ≈ 20.6 | ≈ 20.6 | ≈ 14.9 | ≈ 14.9 |
