Scope of application

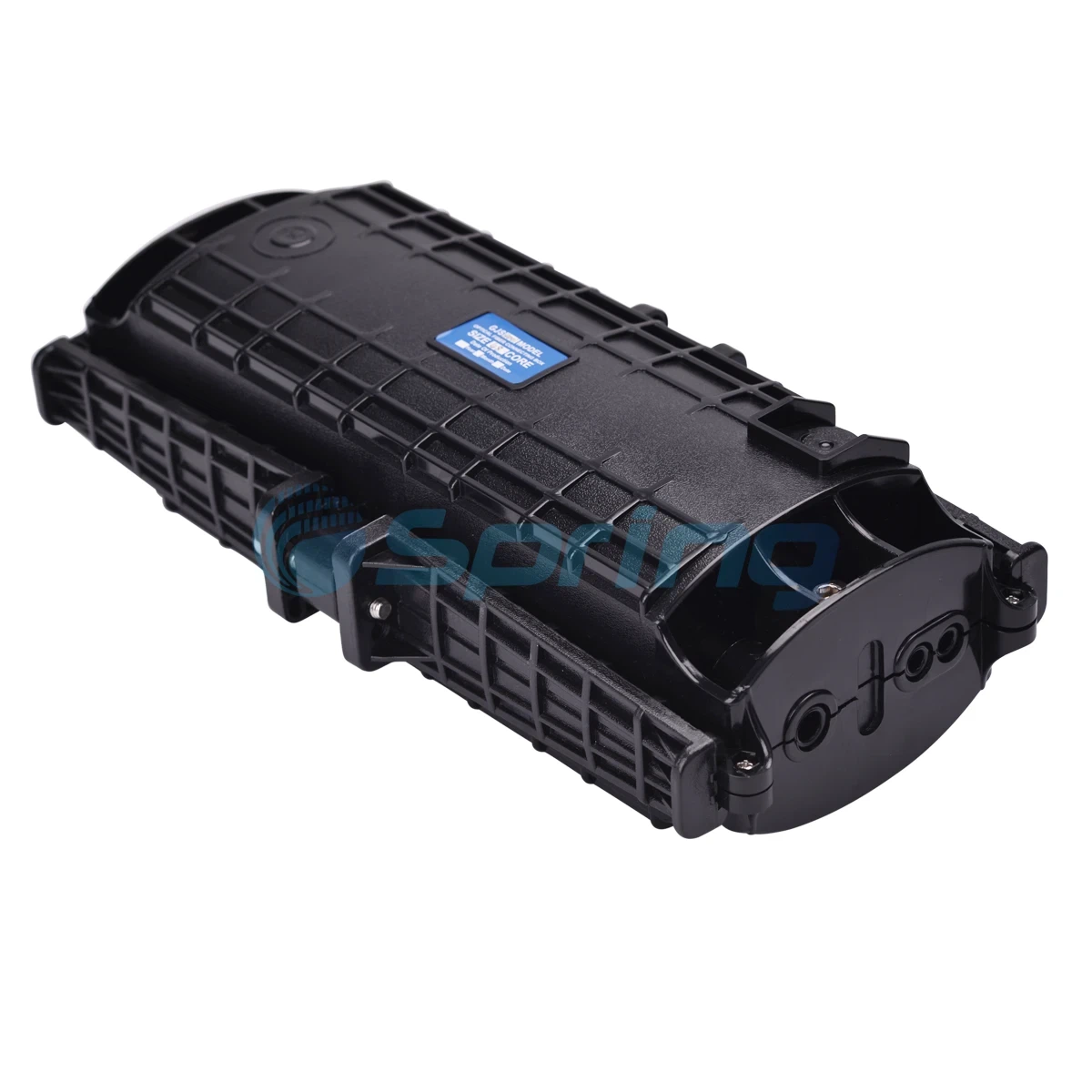

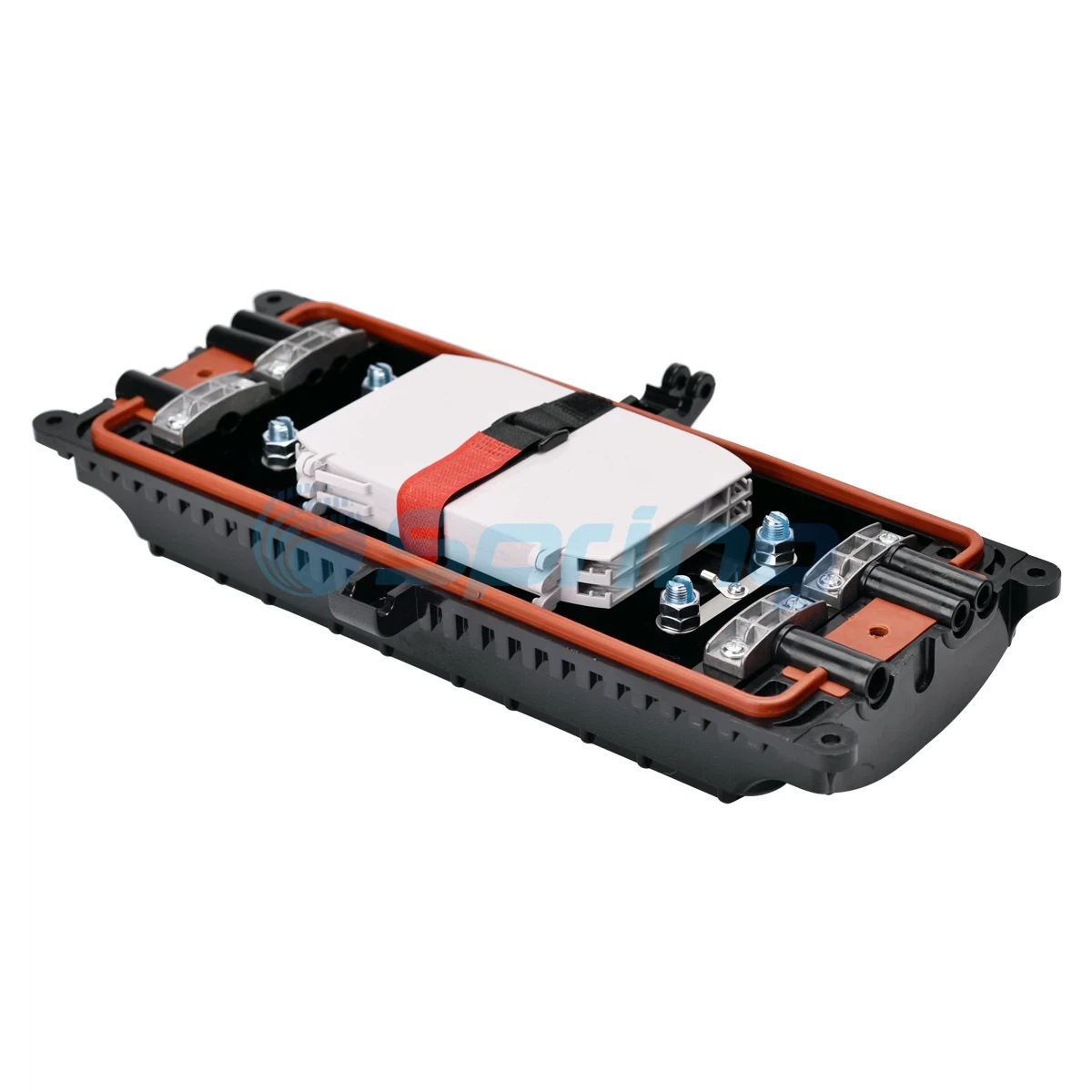

This Installation Manual is suitable for the Fiber Optic Splice Closure (hereafter abbreviated as FOSC), guiding proper installation.
The scope of application is: aerial, underground, wall-mounting, wall-mounting in duct, and handhole. The ambient temperature ranges from -40 to +65℃.
Basic structure and configuration
2.1 Dimension and capacity
| Outside dimension (LxWxH) |
390×210×120 |
|
Weight (excluding outside box) |
1900g-2100g |
|
Number of inlet/outlet ports |
6 ports |
|
Diameter of fiber cable |
Φ7-Φ16(mm) |
|
Capacity of FOSC |
Bunchy: 6-96(Cores) |
2.2 Main components
| No. |
Name of components |
Quantity |
Usage |
Remarks |
|
|
1 |
Housing |
1 set |
Protecting fiber cable splices in the whole |
Internal diameter: |
|
|
2 |
|
Housing |
1 set |
Protecting fiber cable splices in the whole |
Internal diameter: |
|
3 |
Insert plate |
2 pairs |
Fixing the housing |
175x56x30(mm) |
|
|
4 |

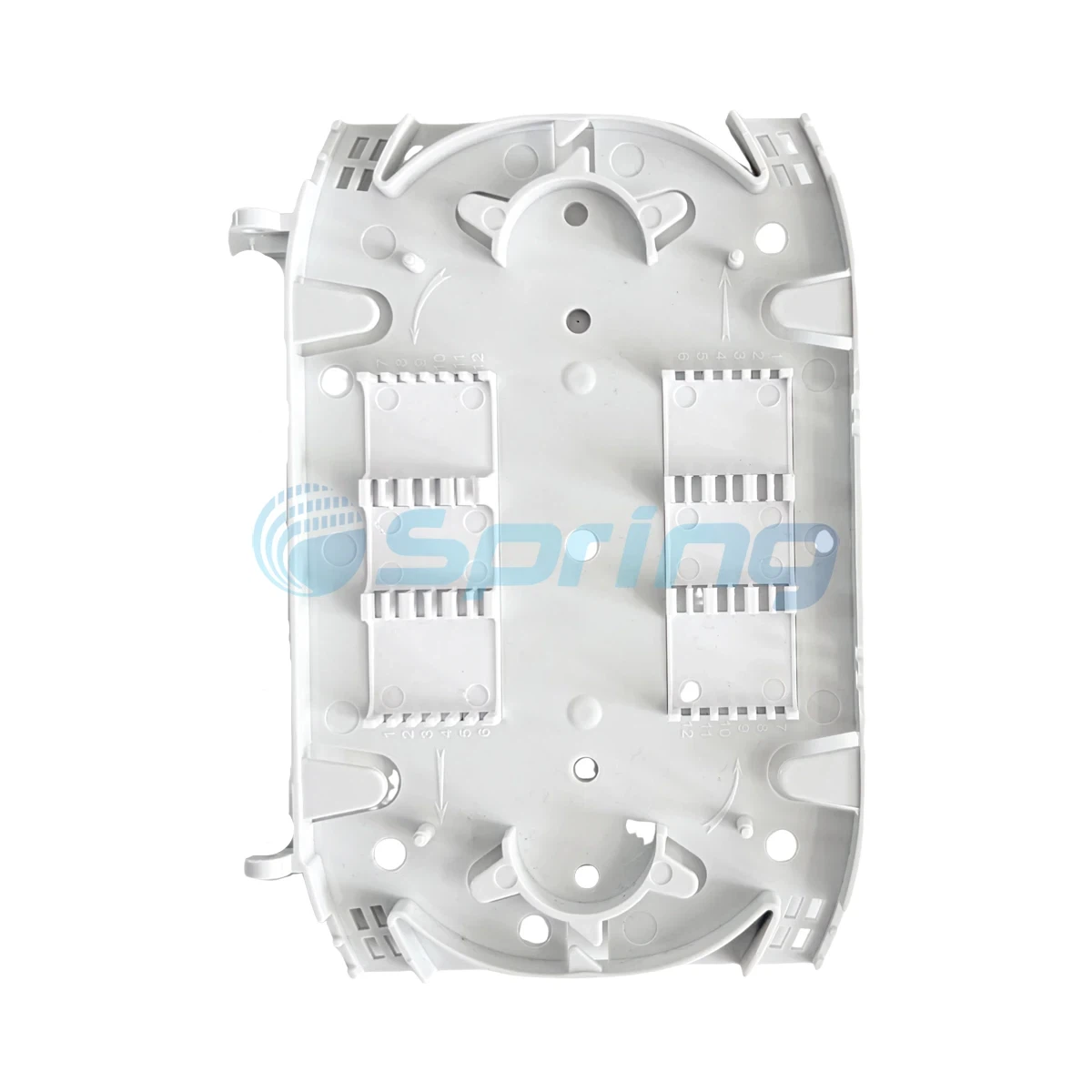

Fiber optic splice tray |
Max.4 trays (bunchy) or Max.4 trays (ribbon) |
Fixing the heat-shrinkable protective sleeve and holding fibers |
Suitable for: Bunchy: 6,8,12,16,24(cores) Ribbon: 3 (pieces) |
|
|
5 |
Foundation |
1 set |
Fixing fiber cable, reinforced core, and FOST |
|
|
|
6 |
Seal fitting |
1 set |
Sealing between the FOSC cover and the FOSC bottom |
|
|
|
7 |
Fixed bolt |
4 pieces |
Fixing the house |
|
|

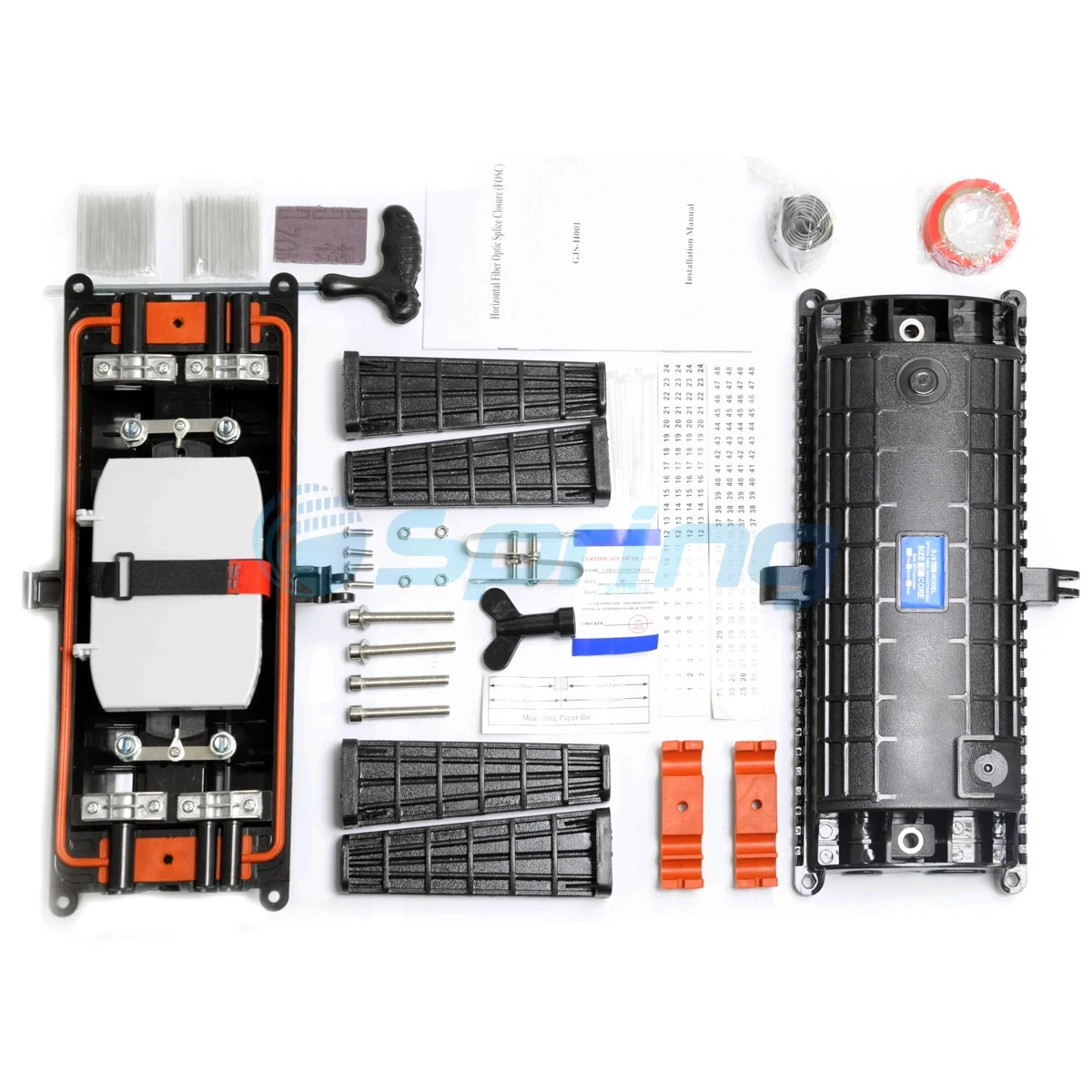

2.3 Main accessories and special tools
| No. |
Name of accessories |
Quantity |
Usage |
Remarks |
|
1 |
Heat-shrinkable protective sleeve |
|
Protecting fiber splices |
Configuration as per capacity |
|
2 |
Nylon tie |
|
Fixing fiber with a protective coat |
Configuration as per capacity |
|
3 |
Insulation tape |
1 roll |
Enlarging the diameter of the fiber cable for easy fixing |
|
|
4 |
Seal tape |
1 roll |
Enlarging the diameter of the fiber cable, which fits in with the seal fitting |
Configuration as per specification |
|
5 |
Hanging hook |
1 set |
For aerial use |
|
|
6 |
Earthing wire |
1 piece |
Putting through between the earthing devices |
To put through as per the actual requirement |
|
7 |
Abrasive cloth |
1 piece |
Scratching the fiber cable |
|
|
8 |
Labeling paper |
1 piece |
Labeling fiber |
|
|
9 |
M8 Special wrench |
1 pieces |
Fixing the bolts of the housing and inserting the plate |
|
|
10 |
M10 Special wrench |
1 piece |
Tightening the nut of the reinforced core |
|
|
11 |
Measuring paper |
1 piece |
To measure the circle, whose diameter is enlarged with seal tape |
|
|
12 |
Instruction manual |
1 piece |
Standard installation |
|
2.4 package
| NO. |
specification |
carton size(cm) |
capacity |
N.W |
Remarks |
|
1 |
inner box |
40*20*12.5 |
1pcs |
2.1-2.2kg |
Configuration as per weight |
|
2 |
outer box |
60*40.5*42 |
10pcs |
21-22kg |
Configuration as per weight |
