24core Fiber Splice Termination Enclosures Inline can be used as fiber distribution box or fiber access terminal box. It is designed to install in pole mounted, aerial mounted or duct environment which can keep internal components away from outdoor atrocious weather and provide a protected access point. The distribution fiber is spliced to the input of the optical splitter. The splitter output are terminated to drop cable.
Features:
- Compact design, light weight and easy installation
-
Made by high quality material(PP+GF) and meet 120 hours salt spray
-
Build in one splice tray (24F), max capacity up to 24F
-
Applicable for 1pcs of uncut cable and 8pcs of drop cable
-
Support micro splitter (1:8) and 8 pcs SC/APC adaptors
-
Water proof level: IP68
-
Installation method: Pole mounting, Wall mounting, Aerial mounting
Specifications:
|
Model Name. |
SP-8217B |
|
Size(mm) |
256*169*83.5 |
|
Gross Weight(kgs) |
1.5-2.0 |
|
No of Cable Entry |
1 un-cut cable, Φ10mm～17.5mm |
|
No of Drop Cable |
8 pcs drop cable, Φ2*3mm or Φ3-8mm round cable |
|
Adapter |
8 pcs SC/APC |
|
Splitter |
1:8 Micro splitter |
|
Splice Tray |
24F |
|
Max Capacity |
24F |
|
Water proof level |
IP68 |
|
Installation Method |
Pole/Wall/ Aerial mounted |
|
Operation temperature |
－45℃～85℃ |
Applications:

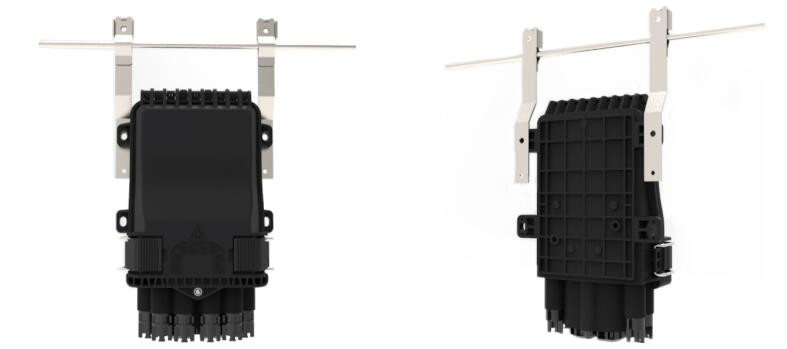

Aerial mount

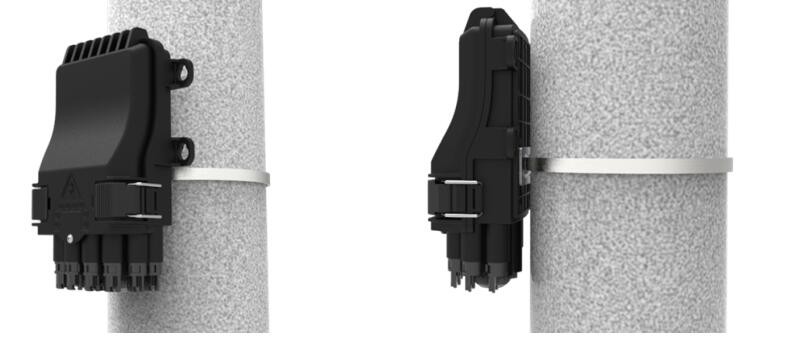

Pole Mount
Wall Mount
Accesories:
