Spring Optical Communication is one of the largest and best sp-gjs-m5-jft fiber optical vertical joint splice closure box manufacturers and suppliers with rich experience. Welcome to buy our high quality products or wholesale our customized sp-gjs-m5-jft fiber optical vertical joint splice closure box in stock with our factory. Also, free sample is also available if necessary.
Features:
-
All performance indicators meet the requirements of the national YD 814.1-2004closure standard;
-
The outer box body is made of high-strength engineering plastics, It has features of light weight, high mechanical strength, anti aging, strong corrosion resistance, lightning resistance, and long service life.
-
Stacked structure splice tray and independent insulation grounding device make it flexible, convenient and safe for the optical fiber core configuration, expansion and the cable grounding.
-
Working Temperature: -40 degrees centigrade~+65 degrees centigrade;
-
Atmospheric Pressure: 62~106Kpa;
-
Temperature recycle: under -40℃~+65℃，with 60(+5)Kpa inner pressure, in 10cycles; Inner pressure shall decrease less than 5 Kpa when closure turn to normal temperature.
-
Durability：25 years
-
There are 4 round cable ports (4 small ) and 1 piece uncut cable glands;
Specifications:
|
Item |
Description |
|
Material |
PP+GF |
|
Dimension(mm) |
Dia 230mm* L 445mm |
|
Weight(kg) |
1.42 |
|
Max. diameter of cable (mm) |
IN:8-18 OUT: 7-22.5 |
|
No. of Cable Inlet/Outlet |
1In - 4Out |
|
Number of Fibers per Tray |
24 Cores |
|
Max. Number of Trays |
6 |
|
Max. Number of Fibers |
144 |
|
Sealing of Inlet/Outlet ports |
Mechanical |
|
Working Temperature |
-40℃~+65℃ |
|
Protection Grade |
IP68 |

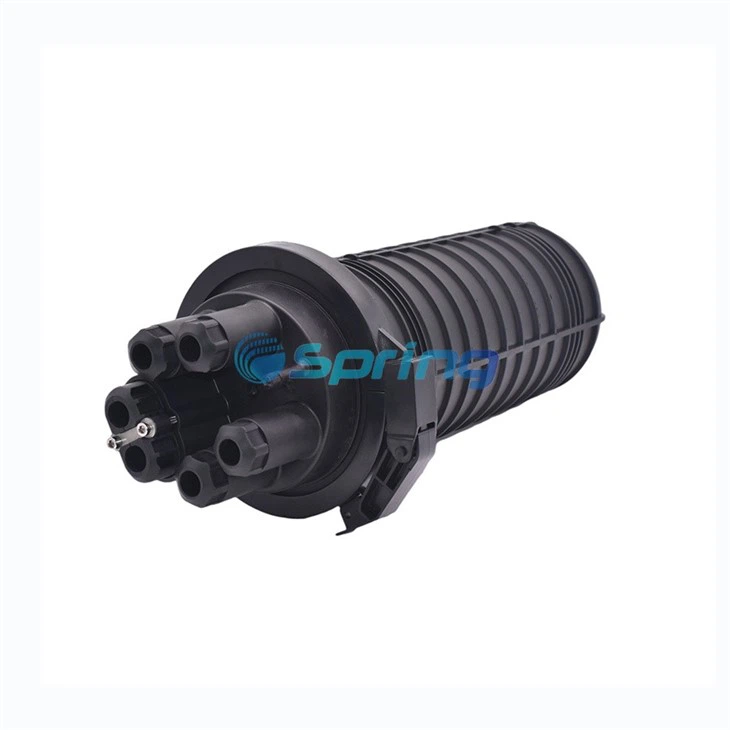

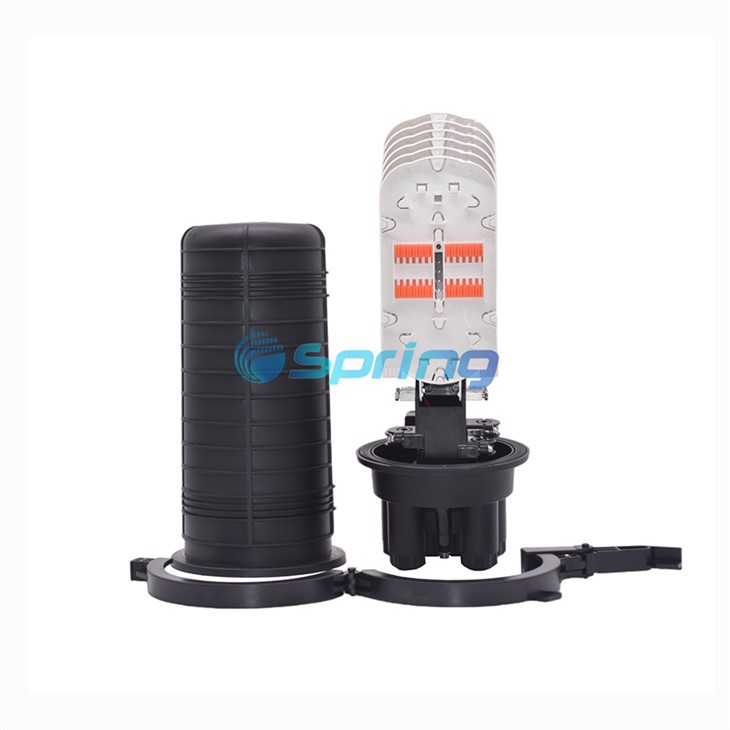

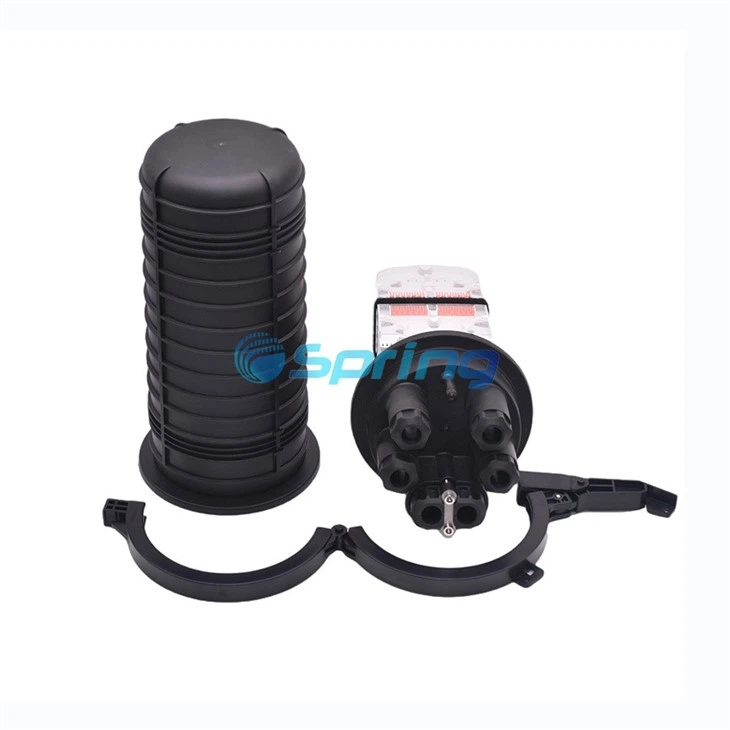

More pictures:
