Product Overview

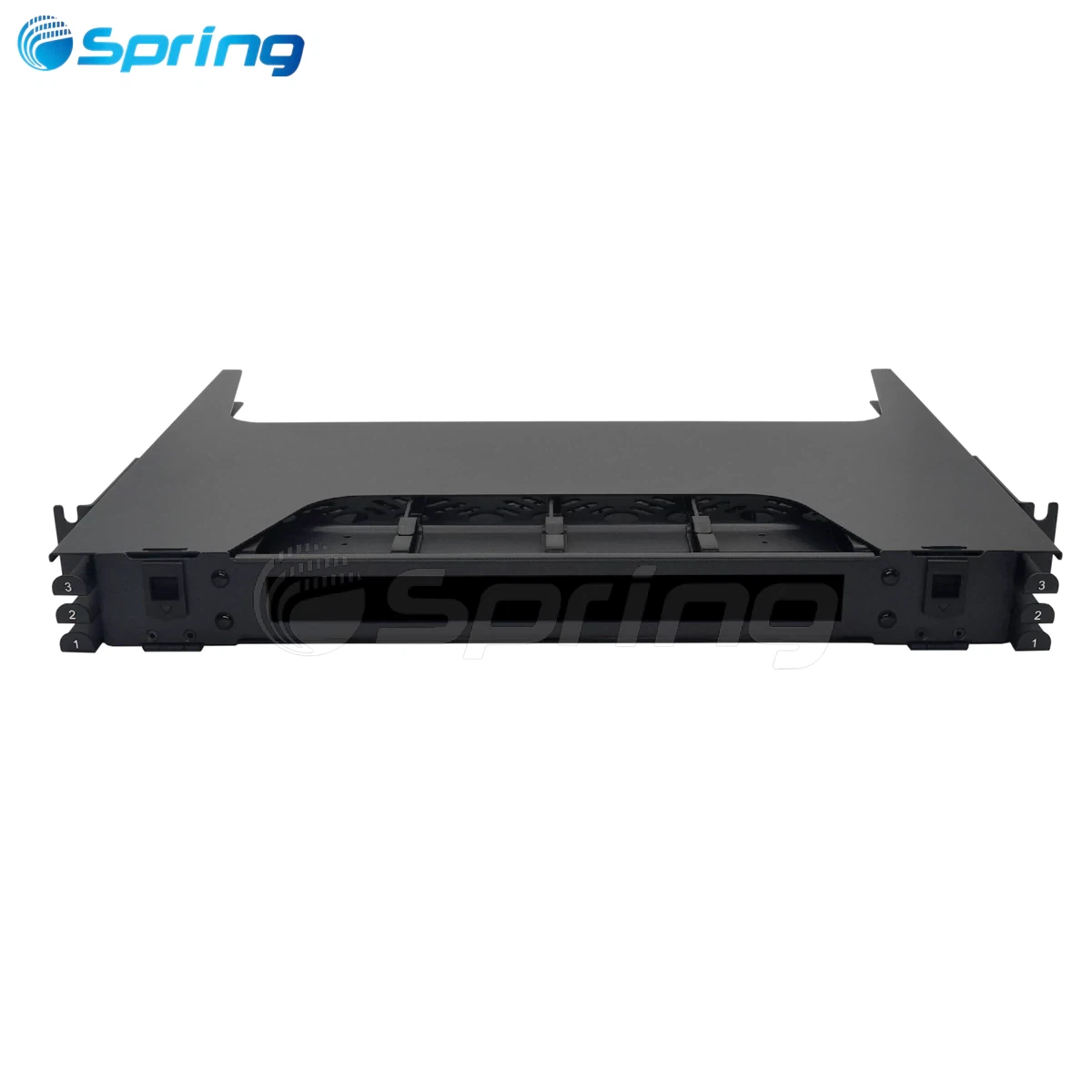

The SP6 High Density Fiber Patch Panel is a next-generation modular fiber management system designed for hyperscale data centers, telecom networks, and enterprise optical infrastructure.
As a professional MTP MPO Patch Panel manufacturer, Spring Optical engineered the SP6 system to solve three key industry challenges:
Ultra-high fiber density in limited rack space
Faster deployment of 400G/800G networks
Simplified maintenance and troubleshooting in large-scale fiber environments

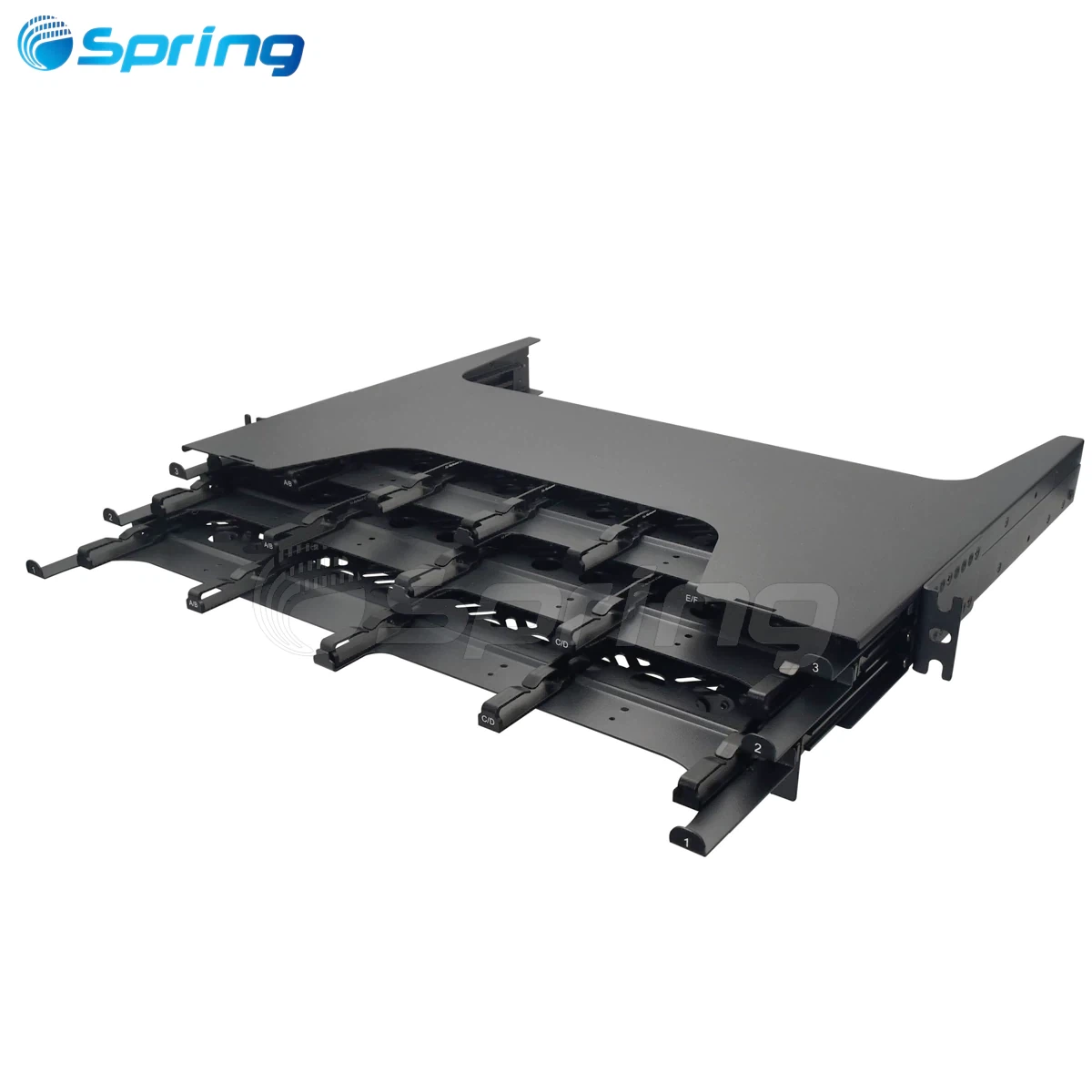

Built with a front and rear sliding rail structure, the SP6 improves accessibility, reduces downtime, and supports rapid cassette-based deployment.
It is fully compatible with MTP MPO Patch Panel cassette modules, including LC, CS, SN, TAP, and splicing solutions.
Key Feature
High Density Fiber Patch Panel for Data Centers
The SP6 is optimized for ultra-high-density environments:

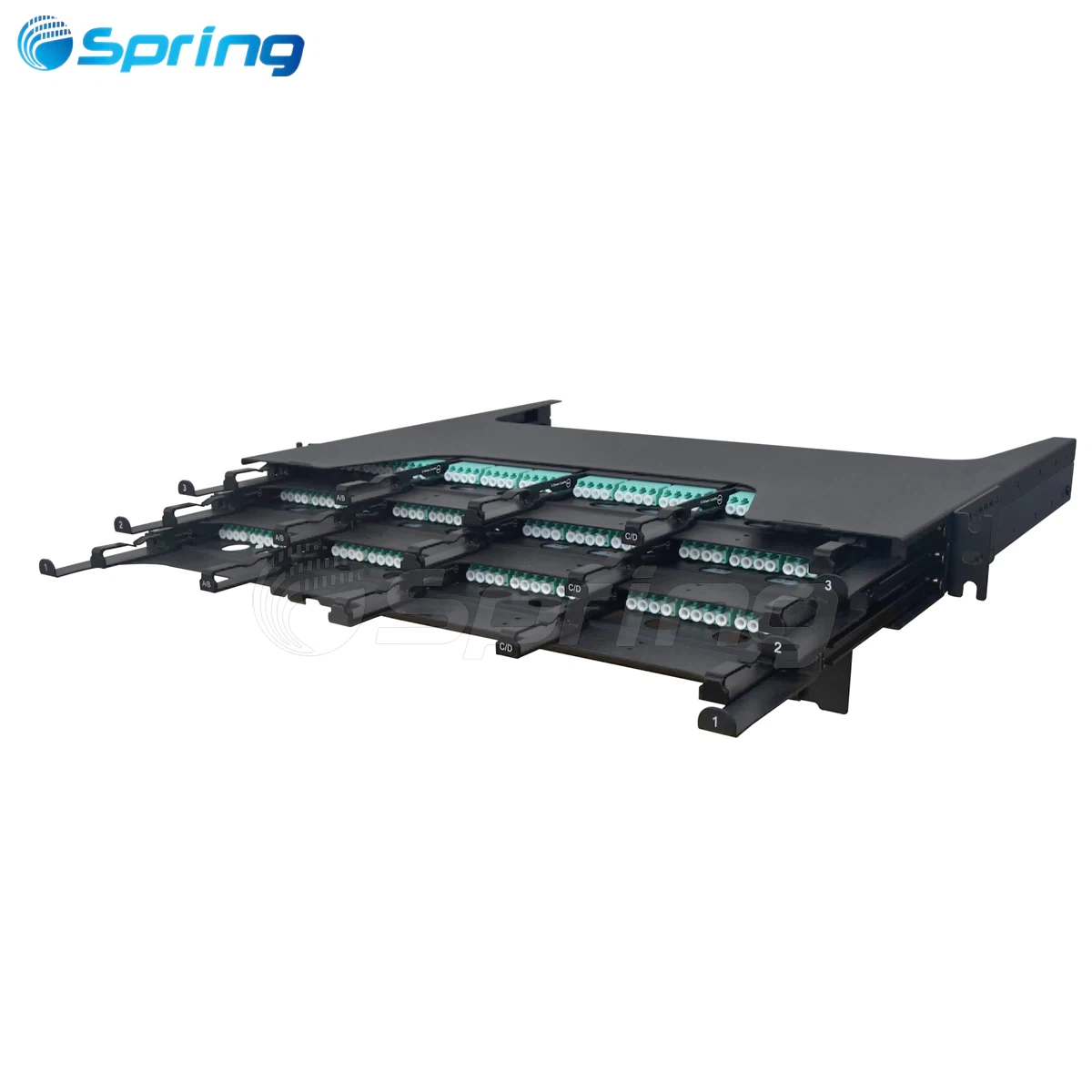

1U: up to 144F (LC) / 216F (CS)

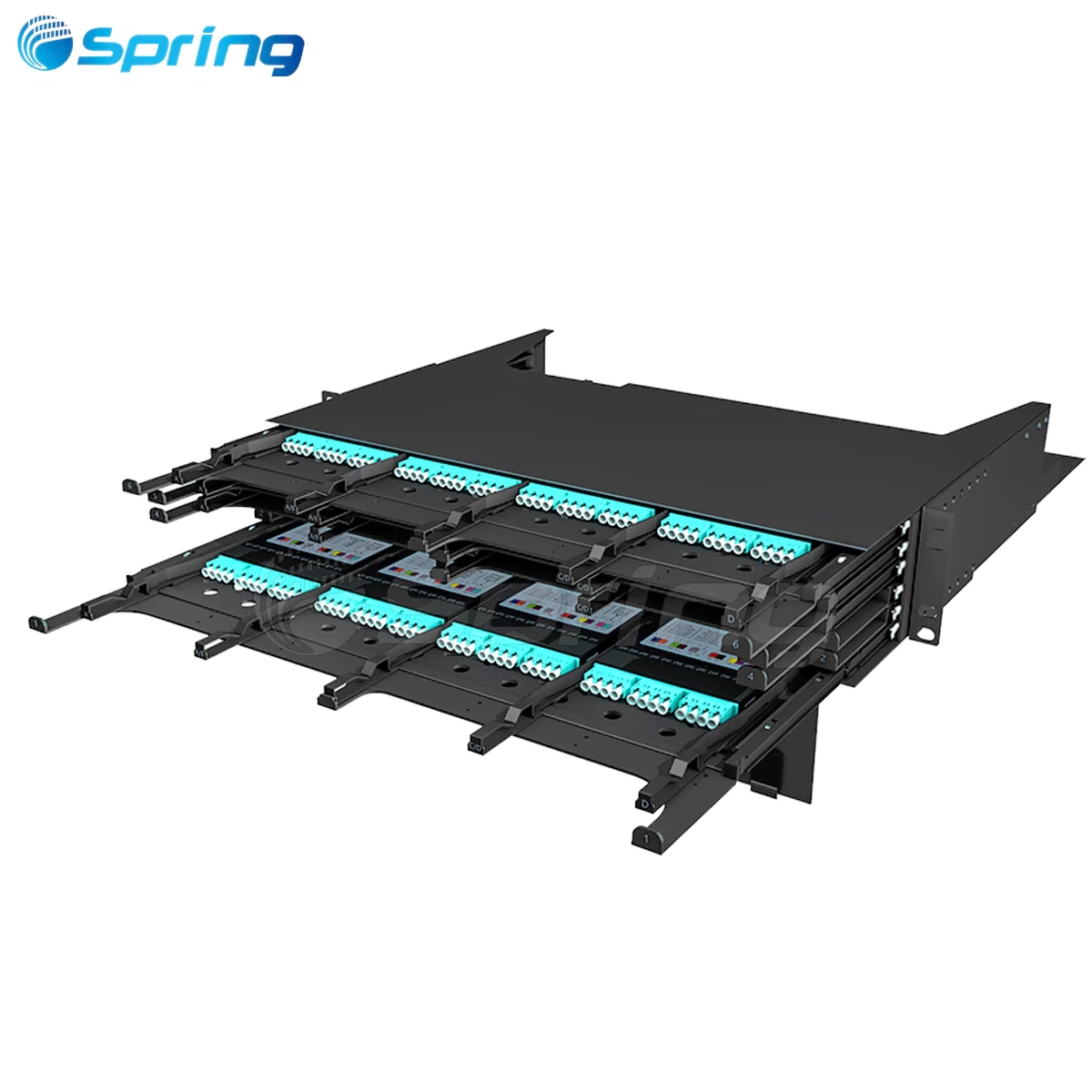

2U: up to 288F

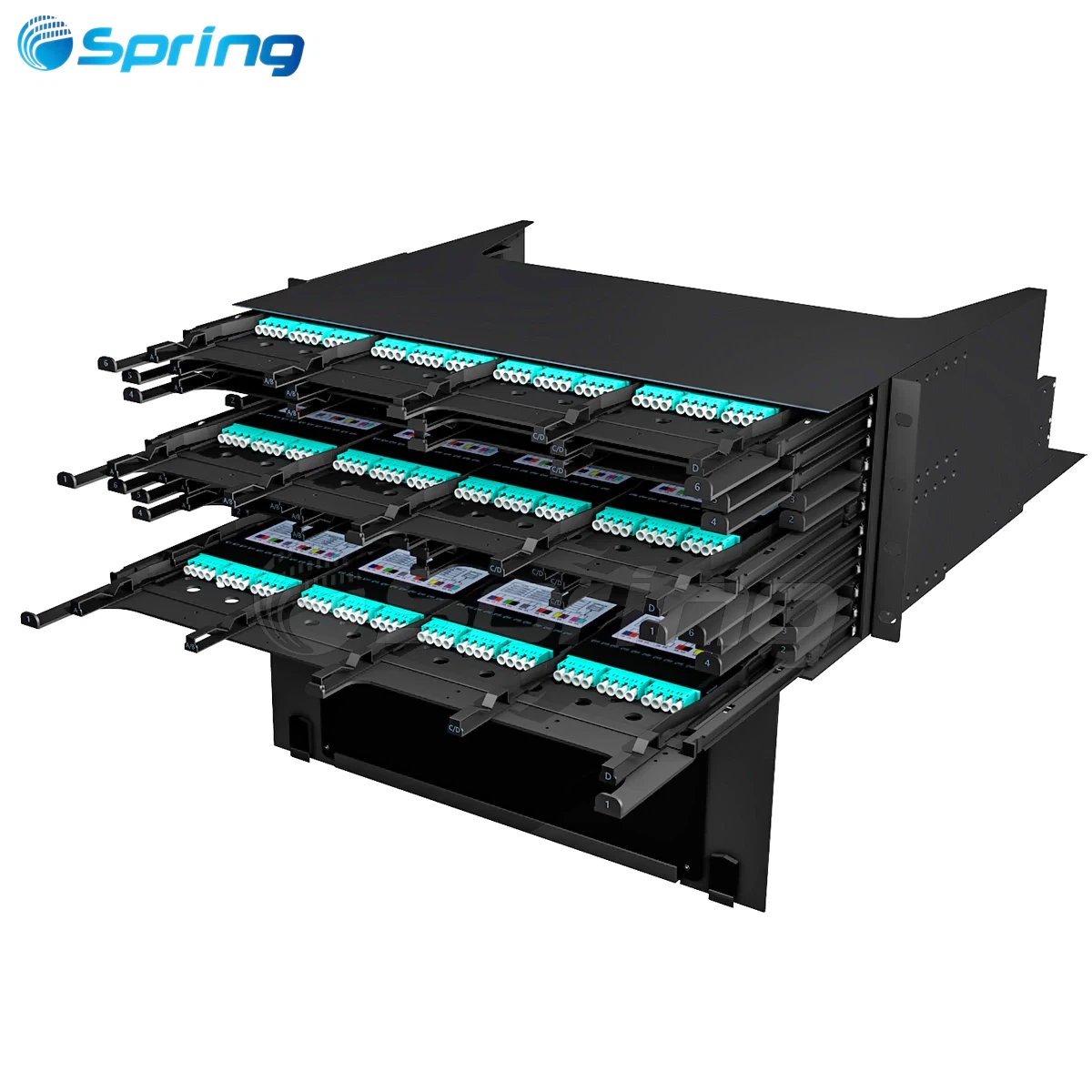

4U: up to 576F
MPO backbone access: up to 1728F
👉 This makes it one of the highest-density fiber patch panel systems for data centers.
Full MTP MPO Patch Panel Compatibility
Supports full ecosystem integration:
MPO to LC breakout cassette
MPO to CS / SN ultra-high-density interfaces
MPO to MDC next-generation connectors
TAP monitoring cassette
Splicing cassette (MPB6S)
Adapter panel cassette (MPB6P)
400G / 800G / 1.6T Ready Architecture
Designed for next-generation optical networks:
100G legacy systems
400G Ethernet upgrade paths
800G high-speed interconnects
Future 1.6T AI data center networks
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | High Density Fiber Patch Panel |
| Model | SP6 |
| Mounting | 19-inch rack |
| Size Options | 1U / 2U / 4U |
| Material | Cold rolled steel |
| Operating Temp | -40°C ~ +75°C |
| Humidity | ≤85% |
Fiber Capacity

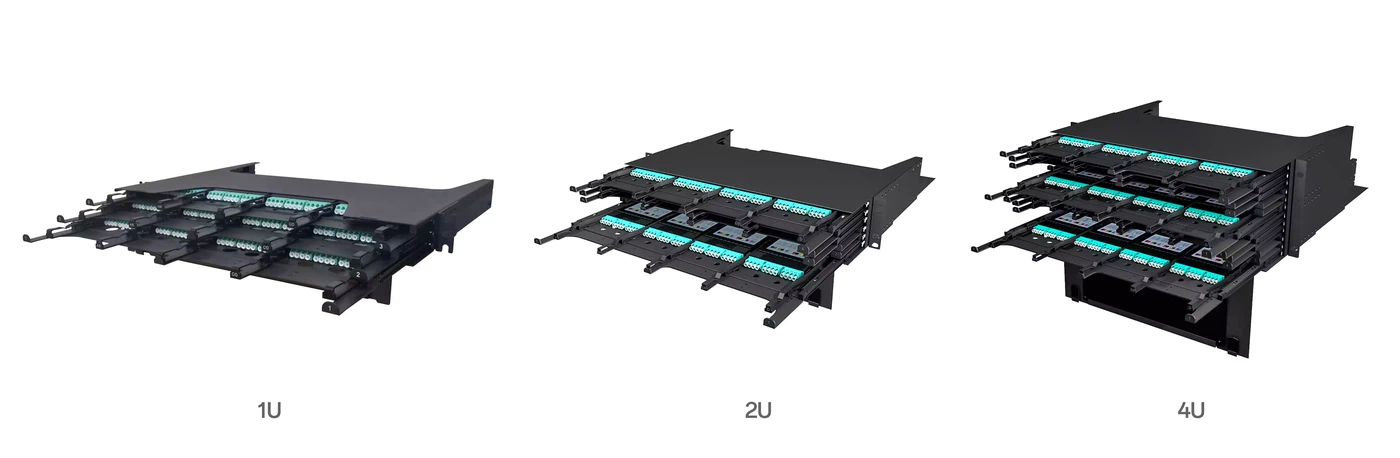

| Size | LC Capacity | CS Capacity | MPO Access |
|---|---|---|---|
| 1U | 144F | 216F | 1728F |
| 2U | 288F | - | - |
| 4U | 576F | - | - |
High Density Fiber Patch Panel Dimension
Benefits
1. Maximum Rack Density
Best-in-class high density fiber patch panel design for hyperscale environments.
2. Faster Deployment
Pre-terminated cassette system reduces installation time by up to 70%.
3. Easy Maintenance
Sliding rail structure allows front/rear access for troubleshooting.
4. Lower Total Cost
Reduces labor cost, downtime, and operational complexity.
5. Future Proof Design
Supports continuous upgrade path from 100G → 800G → 1.6T.
Applications
The SP6 MTP MPO Patch Panel is widely used in:
Hyperscale Data Centers (AI / Cloud / Hyperscale)
Telecom Backbone Networks (ODF systems, central offices)
Enterprise Fiber Networks (campus & structured cabling)
HPC / AI Clusters (GPU interconnect, low-latency networks)
Spine-leaf Data Center Architecture
Why Choose Spring Optical
Spring Optical is a professional High Density Fiber Patch Panel manufacturer providing:
Factory-tested low-loss optical performance
OEM / ODM customization
Full MTP MPO Patch Panel compatibility
Fast global delivery
Data center-grade reliability
Trusted by telecom operators, data center integrators, and OEM equipment manufacturers worldwide.
FAQ
Q: What is a High Density Fiber Patch Panel?
A: A High Density Fiber Patch Panel is a modular fiber enclosure that supports large-scale fiber connections in compact rack space, commonly used in data centers and telecom networks.
Q: What is an MTP MPO Patch Panel?
A: An MTP MPO Patch Panel uses MPO/MTP backbone connectors with cassette modules to simplify fiber distribution in 400G and 800G networks.
Q: What is the capacity of SP6 Fiber Patch Panel?
A: The SP6 supports up to:
144F LC (1U)
216F CS (1U)
576F LC (4U)
Up to 1728F MPO access
Q: Is SP6 suitable for 400G and 800G networks?
A: Yes. The SP6 is designed for:
400G Ethernet systems
800G data center interconnects
Future 1.6T optical networks
Q: What cassette types are compatible with SP6?
A: SP6 supports:
MPO to LC cassette
MPO to CS cassette
MPO to SN cassette
TAP monitoring cassette
Splicing cassette
Adapter panel cassette
Q: Can SP6 be customized?
A: Yes. Spring Optical offers OEM/ODM customization including:
Connector types (LC / CS / SN / MPO)
Cassette layout design
Panel size (1U / 2U / 4U)
Private labeling and packaging
