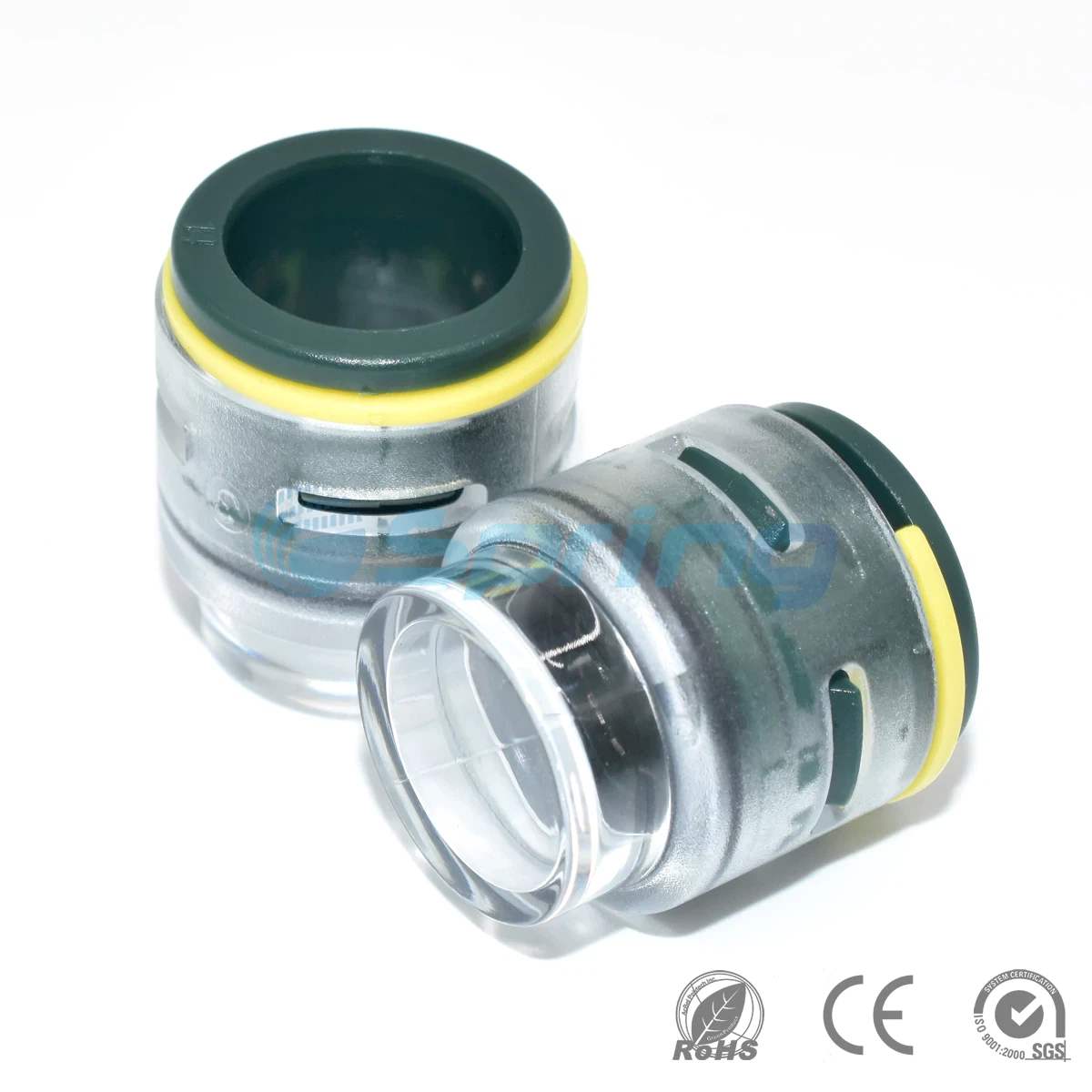

Microduct End Cap:
-
Wide Size Range:
Ideal for microducts from 3 mm to 20 mm in diameter, accommodating various system requirements.
-
Simple "Push-In" Installation:
Quick and effortless setup without the need for special tools – saving both time and labor costs!
-
Crystal Clear Design:
The transparent polycarbonate construction allows for convenient visual inspection of the microduct's interior for additional peace of mind and assurance.
-
Robust Locking Mechanism:
Equipped with locking rings to prevent accidental removal or disconnection, our robust locking mechanism ensures secure and reliable fitting throughout its lifespan.
-
Eco-Friendly and Certified:
Constructed of 95% nonmetallic materials that have received both ROHS and REACH certifications, supporting environmental sustainability and regulatory compliance.
-
Compliant with Industry Standards:
Tested to meet or exceed stringent local microduct connector standards, ensuring suitability for air-blown fiber installations and direct burial (DB) applications.
Product Detail

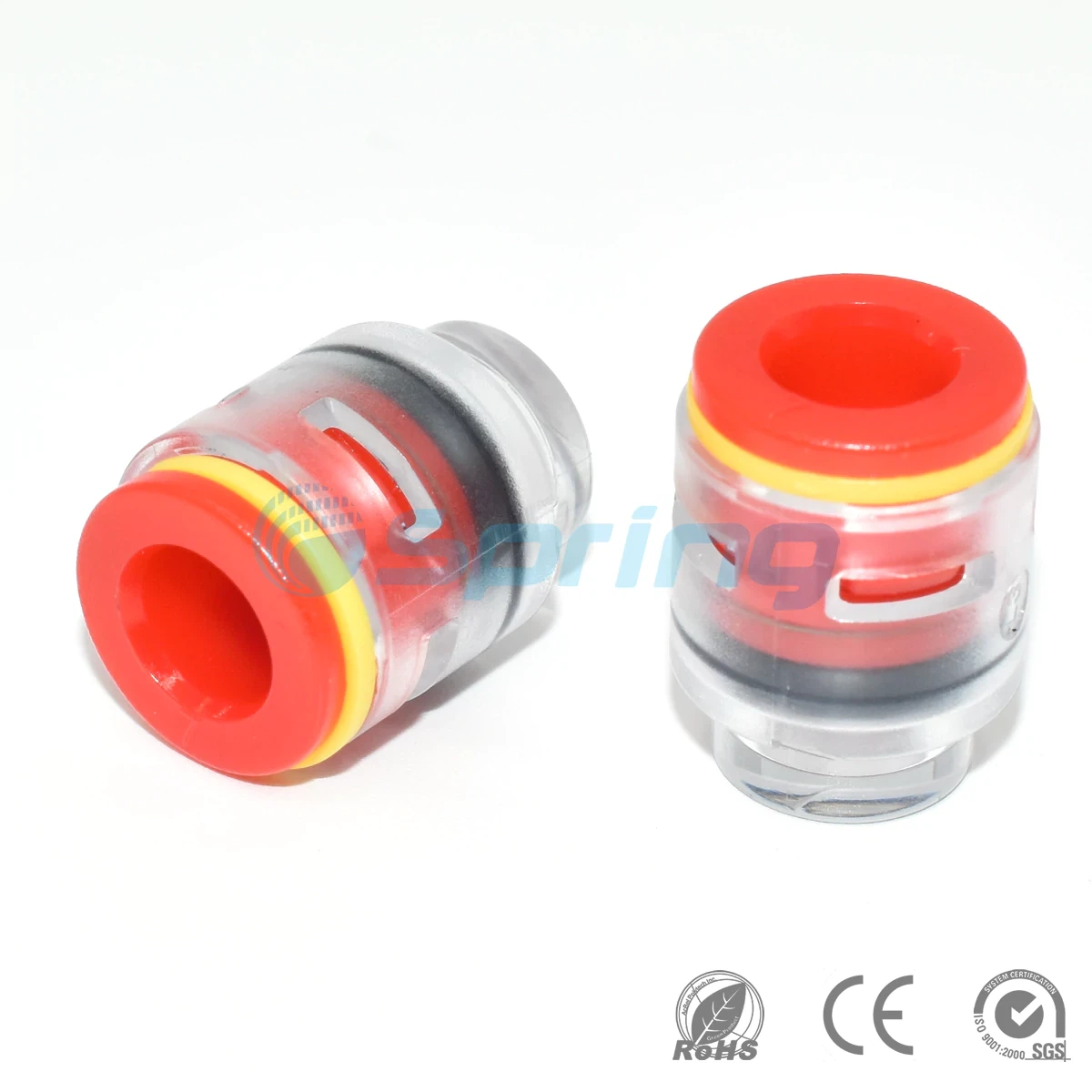

Manufactured from premium clear polycarbonate (Makrolon 2807 by Bayer), these Air Blown Optical Connector Fiber Ending Cap solutions offer excellent strength, impact resistance, and transparency, ensuring long-lasting performance in a range of demanding environments. Available in sizes ranging from 3 mm to 20 mm, these versatile Multiple Microduct End Cap options fit snugly over the ends of microducts, delivering a secure, air- and water-tight seal that preserves the pathway's cleanliness and functionality.
Specifications
| Materials : | 1. Collar | POM |
| 2. Sleeve | POM | |
| 3. Lock Claw | Stainless steel | |
| 4. Washer | POM | |
| 5. Seal | EPDM | |
| 6. Body | Polycarbonate | |
| Fluid | Compressed air with a blowing system | |
| Working pressure | 15 Bar used for the blowing system | |
| Working temperature | From -20℃ to +50℃ | |
| Protection class | IP68 | |
| Estimated life | 25 years | |
| Standards | EN 50411-2-8 Rohs | |
| Microduct to connect | Polyethylene HDPE | |
| Microduct outer diameters | Φ3,Φ4,Φ5,Φ6,Φ7,Φ8,Φ10,Φ12,Φ14,Φ16,Φ18,Φ20 | |
| Patent | Connectors patent | |
Ordering Information
Why Choose Our Microduct End Caps?
Our Microduct End Caps not only provide excellent sealing performance but also offer unmatched ease of use and versatility. Their low-profile design ensures they do not interfere with installation pathways, while their clear body allows for easy identification and inspection. Ideal for both new installations and routine maintenance, these Microduct End Cap End Stop solutions help you achieve cleaner, safer, and more efficient microduct deployments.
Seal the ends. Secure the system. Choose our Microduct End Caps for reliable, long-lasting fiber optic infrastructure protection.
