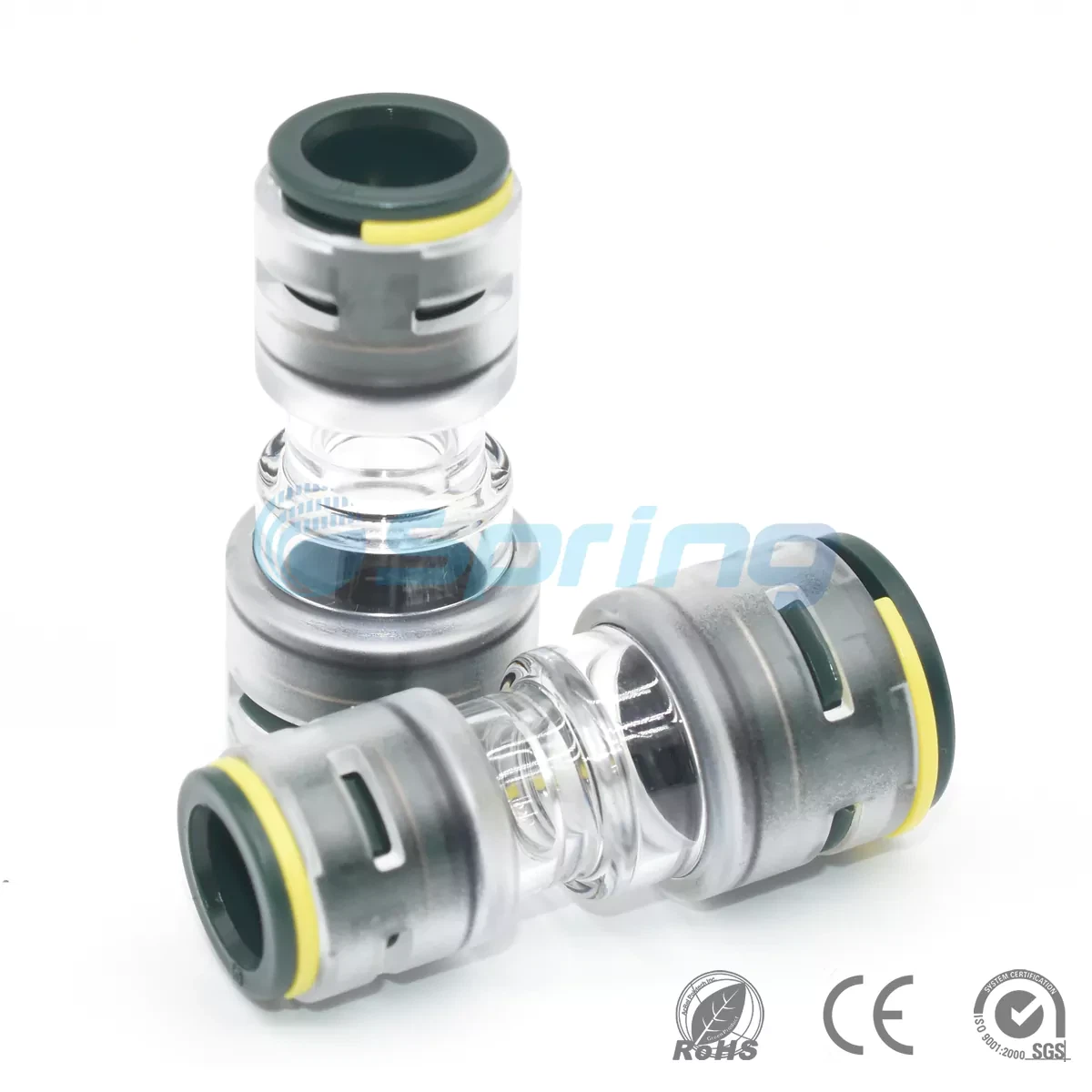

Microduct Reduce Connector:
-
Connects microducts of various sizes, from 3 mm to 20 mm, ensuring a smooth and reliable transition.
-
Constructed from 95% non-metallic materials, offering excellent durability while maintaining a lightweight profile.
-
The transparent housing allows for easy visual inspection, ensuring that every connection is secure and professionally finished.
-
Simplifies installation and maintenance, reducing downtime and costs essential advantage in telecommunications, data centers, and commercial or residential fiber networks.
-
Widely used in applications that require seamless microduct transitions, especially when transitioning from direct buried (DB) to direct installation (DI) ducting in modern fiber optic networks.
Product Detail
Versatile Size Compatibility
The Microduct Reduce Connector is compatible with microducts ranging from 3 mm to 20 mm, making it highly adaptable to diverse installation environments. Whether you're working in direct buried (DB) scenarios or direct installation (DI) scenarios, this connector effortlessly integrates varying microduct configurations, optimizing space and enhancing overall system performance.
Outstanding Sealing Capability
Designed with superior sealing performance, this connector reliably prevents dust, moisture, and environmental contaminants from infiltrating the network. This ensures the long-term integrity and durability of the fiber optic cables, even in harsh outdoor or industrial environments.
Simple "Push-In" Installation
Engineered for user-friendly installation, the Microduct Reduce Connector supports easy and quick push-in assembly complex tools or procedures required. This feature significantly reduces installation time and labor costs, empowering technicians to complete fiber network deployments with greater efficiency and confidence.
Crystal-Clear Transparent Housing
Crafted from premium-quality Makrolon 2807 polycarbonate (manufactured by Bayer), the connector's transparent body offers an intuitive, visual inspection of the internal cable connection. This facilitates real-time verification of connection integrity and quality, making installation and maintenance more straightforward than ever.
Durable and High-Pressure Resistant
The connector boasts a robust construction that withstands high-pressure environments, making it perfect for demanding applications. It's tested by the EN 50411-2-8:2009 standard, ensuring that it meets international quality and performance benchmarks for long-term reliability.
Secure Locking Rings
Equipped with safety locking rings, the connector prevents accidental disconnections and enhances overall stability, vital for both direct buried (DB) and indoor/outdoor fiber deployments.
Specifications

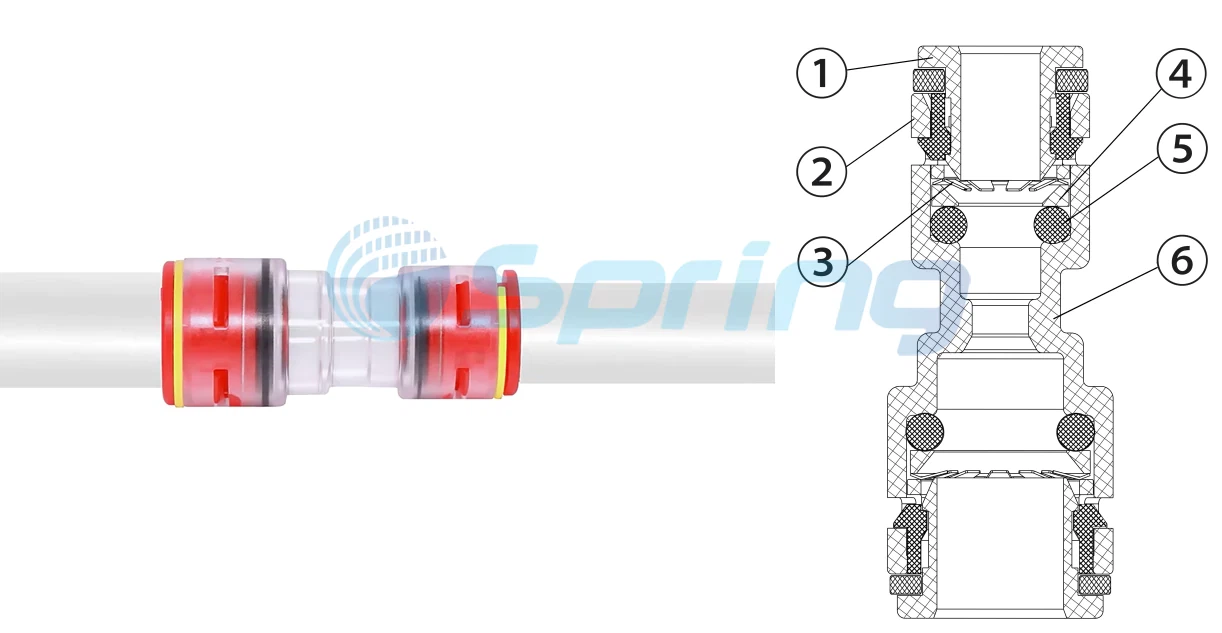

| Materials : | 1. Collar | POM |
| 2. Sleeve | POM | |
| 3. Lock Claw | Stainless steel | |
| 4. Washer | POM | |
| 5. Seal | EPDM | |
| 6 . Body | Polycarbonate | |
| Fluid | Compressed air with a blowing system | |
| Working pressure | 15 Bar used for the blowing system | |
| Working temperature | From -20℃ to +50℃ | |
| Protection class | IP68 | |
| Estimated life | 25 years | |
| Standards | EN 50411-2-8 Rohs | |
| Microduct to connect | Polyethylene HDPE | |
| Microduct outer diameters | Φ5,Φ7,Φ8,Φ10,Φ12,Φ14,Φ16,Φ20 | |
| Patent | Connectors patent | |
Ordering Information
Installation Guidelines
Ensure that the outer diameter of the microduct is clean and free from scratches or damage.
Confirm that the microduct's nominal tolerance meets the ±0.1 mm standard for a secure, snug fit.
Ensure the microduct end face is cut to a rectangular plane to ensure a perfect seal and optimal connection.
During insertion, please verify that the microduct passes through the sealing ring and is fully pushed to the end of the connector until it stops moving.
