Product Overview

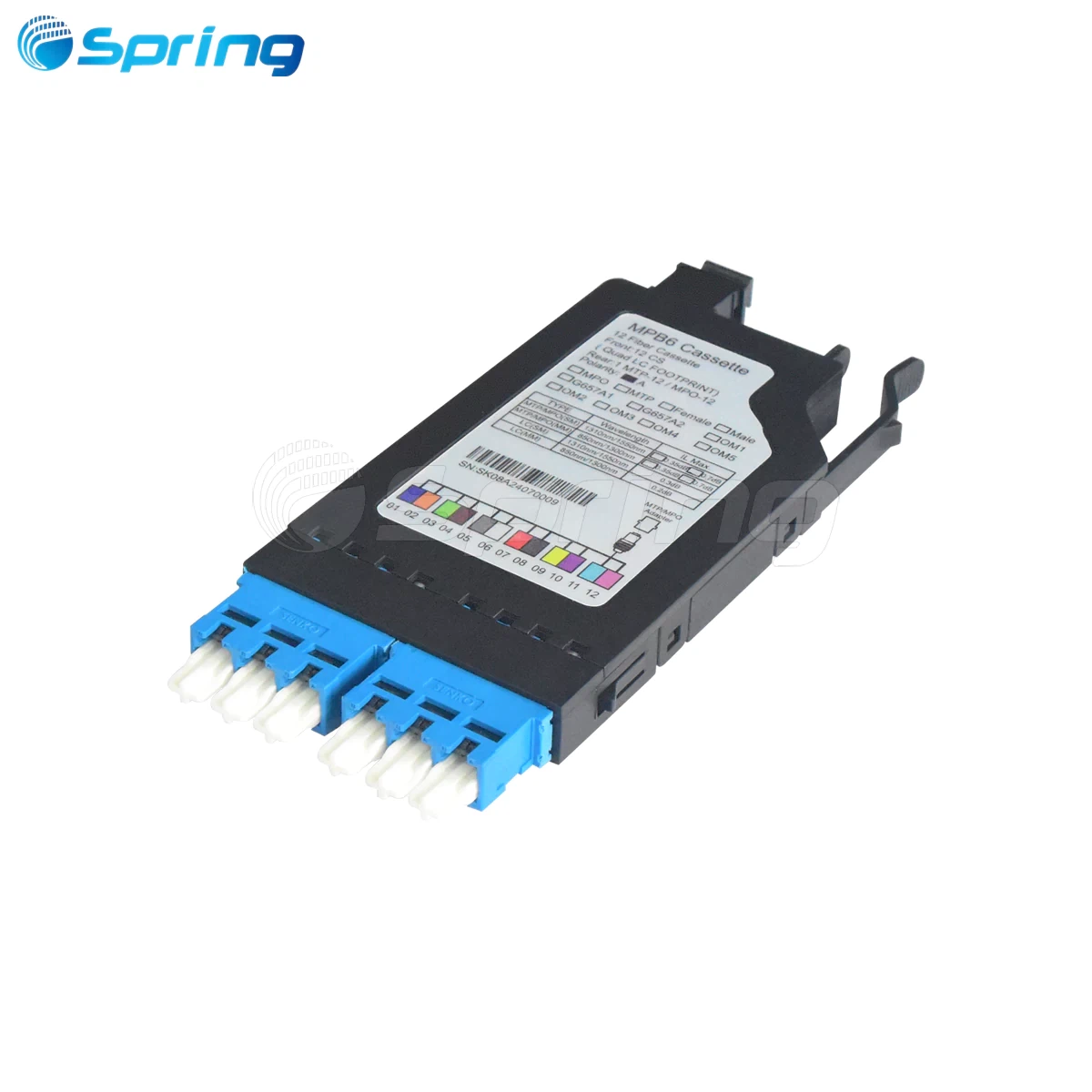

The MPO to CS Cassette Module is a next-generation high-density fiber optic solution designed for 400G and 800G data center networks. It converts a single MPO/MTP® trunk connection into multiple CS duplex ports, enabling ultra-efficient fiber breakout in modern hyperscale and AI-driven network architectures.
With the rapid evolution from 100G to 400G and 800G Ethernet, traditional LC-based systems are reaching density limitations. The CS connector-based cassette solves this challenge by delivering significantly higher port density, reduced footprint, and improved airflow performance.
This makes it an ideal solution for:
Hyperscale data centers
Spine-leaf architectures
AI computing clusters
High-speed cloud interconnects
As a professional MPO to CS Cassette manufacturer, Spring Optical provides factory-terminated, low-loss, and fully tested modules for mission-critical optical infrastructure.
Key Features
Designed for 400G and 800G Migration
Supports modern data center evolution:
100G → 4×25G breakout
400G → 4×100G breakout
Future 800G-ready architecture
Ultra-High Density CS Interface
Compared with LC, the CS connector enables:
~40% higher port density
Smaller footprint per port
Better rack space utilization
Factory-Terminated & Pre-Tested
Each cassette is:
100% factory polished
Insertion-loss tested
Ready for plug-and-play deployment
Multi-Fiber Compatibility
Supports:
OS2 single mode
OM3 multimode
OM4 multimode
OM5 wideband multimode
Product Construction
| Item | Specification |
|---|---|
| Product Type | MPO to CS Cassette Module |
| Fiber Count | 12 Fibers |
| Fiber Mode | SM: G657A1 / G657A2 MM: OM3 / OM4 / OM5 |
| Polarity | Type A / Type B |
| Front Connector | CS UPC / APC |
| Rear Connector | MPO/MTP® Male |
| Housing Material | High-strength Plastic |
| Dimensions | 60 × 105 × 11.4 mm |
| Operating Temperature | -20°C to +70°C |
Connector Color Coding
UPC: Blue
APC: Green
OM3: Aqua
OM4: Violet
OM5: Lime Green
Optical Performance
| Parameter | Performance |
|---|---|
| Front Insertion Loss | SM ≤ 0.3 dB / MM ≤ 0.2 dB |
| Front Return Loss | SM UPC ≥ 50 dB / APC ≥ 60 dB |
| Rear Insertion Loss | MPO/MTP® ≤ 0.35 dB |
| Rear Return Loss | SM ≥ 60 dB / MM ≥ 25–35 dB |
👉 Ensures stable, low-loss performance for high-speed optical transmission.
Benefits
Space Optimization
CS connector reduces footprint and increases port density in limited rack space.
Faster Deployment
Factory-terminated design eliminates field polishing and reduces installation time.
Lower Total Cost
Less labor, faster deployment, and simplified maintenance reduce overall CAPEX/OPEX.
Future-Proof Design
Supports:
400G Ethernet
800G Ethernet
AI data center scaling
Cloud infrastructure expansion
Applications
Hyperscale Data Centers
Spine-leaf switching
High-density patching
Top-of-rack interconnects
Cloud Infrastructure
Server interconnection
High-speed switch breakout
Backbone optical links
Telecom Core Networks
Central office deployment
Transport network upgrades
Edge computing nodes
AI & HPC Clusters
GPU interconnect networks
Low-latency optical links
High-density fiber routing
Why CS Instead of LC?
| Feature | LC Cassette | CS Cassette |
|---|---|---|
| Density | Standard | Higher |
| 400G Support | Good | Better |
| 800G Support | Limited | Future-ready |
| Size | Larger | Smaller |
| Airflow | Standard | Improved |
👉 The CS connector is emerging as the preferred interface for next-generation 400G and 800G optical networks.
Why Choose Spring Optical
Spring Optical delivers premium MPO to CS Cassette modules with:
Low insertion loss design
Strict factory testing
Stable long-term reliability
OEM / ODM customization
Fast global delivery
Competitive factory pricing
Trusted by:
Data center integrators
Telecom operators
Cloud infrastructure providers
Looking for a reliable MPO to CS Cassette Module manufacturer?
Spring Optical provides high-performance fiber cassette solutions for next-generation 400G and 800G data center networks.
👉 Contact us for pricing, samples, and OEM customization support.
FAQ
Q: What is an MPO to CS Cassette Module?
A: It is a fiber optic cassette that converts an MPO/MTP® trunk into multiple CS duplex ports for high-density data center cabling.
Q: Why use CS instead of LC connectors?
A: CS connectors offer higher density, smaller size, and better scalability for 400G and 800G networks.
Q: What fiber types are supported?
A: OS2, OM3, OM4, and OM5 fiber types are supported.
Q: Can it support 400G and 800G networks?
A: Yes, it supports 100G, 400G, and future 800G optical architectures.
Q: Where is it used?
A: It is widely used in hyperscale data centers, cloud networks, telecom systems, and AI computing clusters.
