Product Overview
The SP-MPB6 MPO/MTP® to LC Cassette Series is a next-generation modular fiber optic cabling solution designed for the era of AI-driven data centers and hyperscale cloud infrastructure.
It is engineered for rapid deployment, high-density fiber management, and scalable structured cabling in modern data centers, telecom networks, and enterprise backbone systems.
The modular design and front-and-rear pull-out mechanical structure enable:
Rapid deployment
Fast troubleshooting
Simplified maintenance
Accurate fault isolation
As a professional MPO to LC Cassette manufacturer, Spring Optical provides high-density modular cassette systems optimized for 400G and 800G optical networks.
MPO/MTP® to LC Cassette Link Diagram
SP-MPB6 MPO/MTP® to LC Cassette Series Key Advantages
Modular cassette architecture for scalable fiber deployment
Front and rear pull-out design for easy maintenance
Supports MPO/MTP®, LC, CS hybrid connectivity
High-density support up to 1728-core MPO/MTP® systems (1U)
Optimized for AI data center structured cabling
Plug-and-play deployment with pigtail splicing support
SP-MPB6 MPO/MTP® to LC Cassette Series Overview
The SP-MPB6 series includes four standard high-density configurations:
8F Cassette, 12F Cassette, 16F Cassette, 24F Cassette
Each version shares the same mechanical platform while supporting different fiber density requirements.
Product Specifications by Model

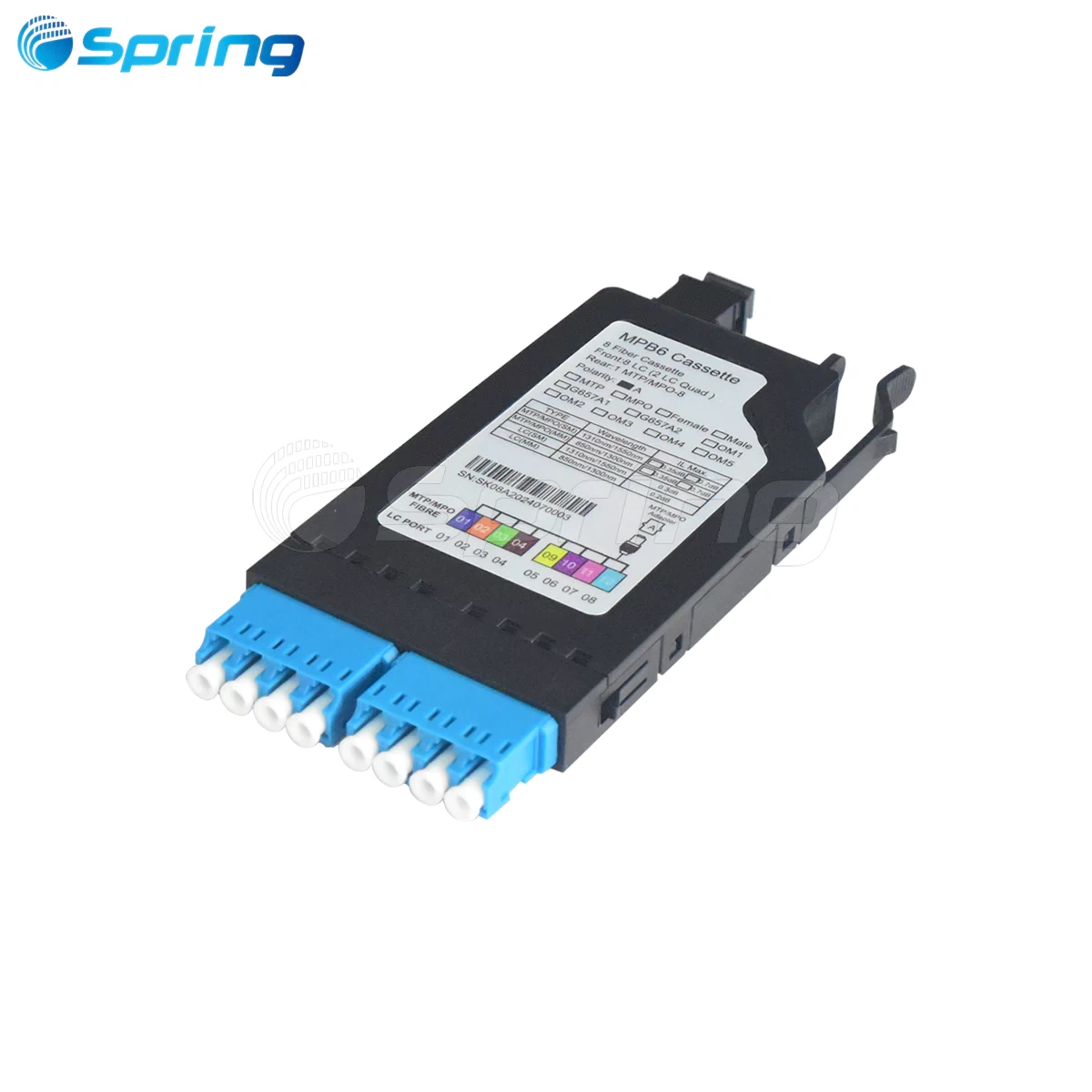

SP-MPB6 MPO/MTP® to LC Cassette 8F
| Item | Specification |
|---|---|
| Fiber Count | 8F |
| Fiber Type | G657A1 / OM3 / OM4 / OM5 |
| Polarity | Type B |
| Grinding Method | SM: UPC / APC, MM: UPC |
| Dimensions | 60 × 105 × 11.4 mm |
| Front Connector | LC (Blue / Green / Aqua / Violet / Lime Green) |
| Rear Connector | MPO/MTP® Male |
| Material | Plastic |
Key Features
Compact edge deployment design
Front & rear cable management structure
Supports LC / CS / MPO conversion
Ideal for access-layer networks

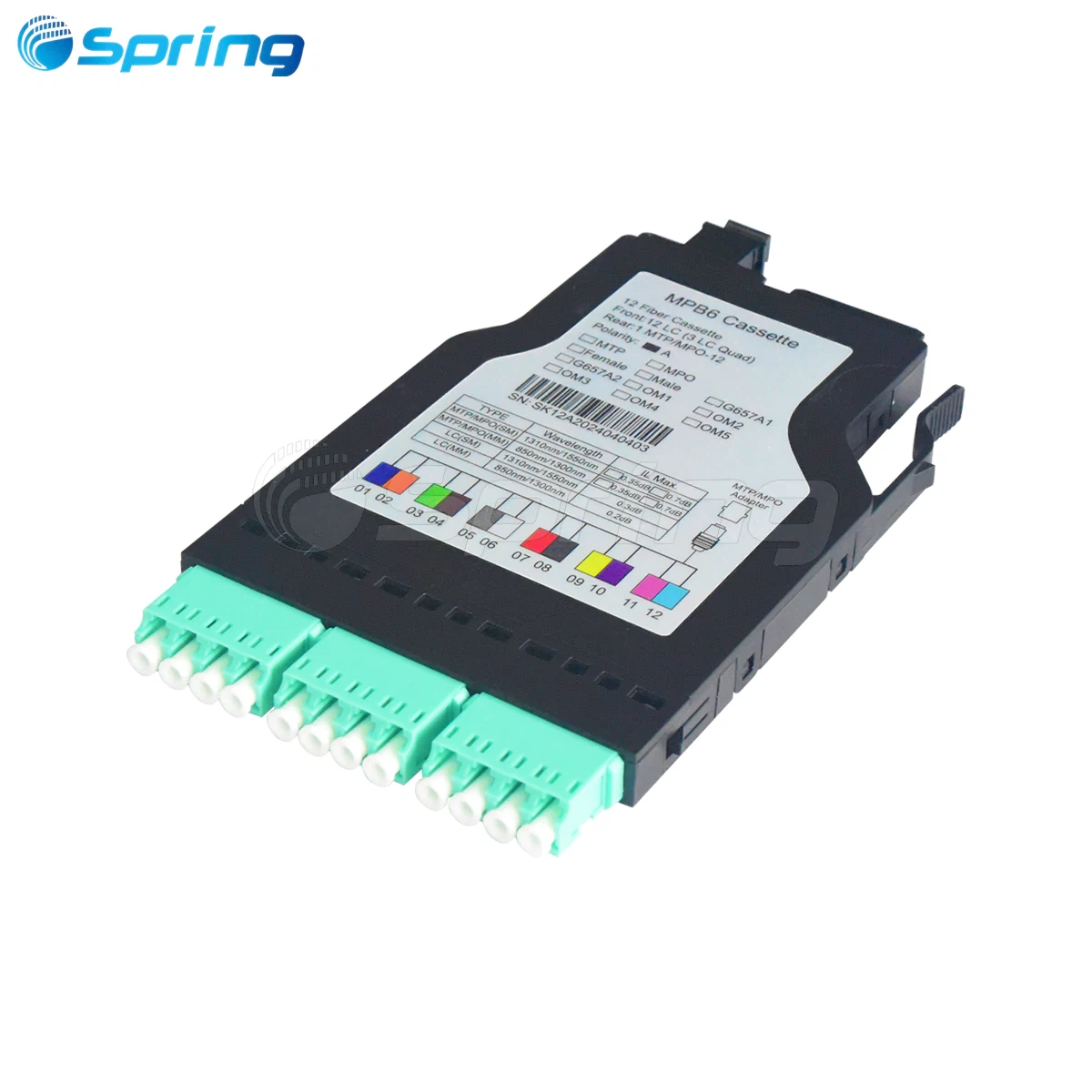

SP-MPB6 MPO/MTP® to LC Cassette 12F
| Item | Specification |
|---|---|
| Fiber Count | 12F |
| Fiber Type | G657A1 / OM3 / OM4 / OM5 |
| Polarity | Type A |
| Dimensions | 90 × 130 × 11.4 mm |
| Front Connector | LC duplex |
| Rear Connector | MPO/MTP® Male |
| Material | Plastic |
Key Features
Most widely deployed SP-MPB6 configuration
Balanced density for structured cabling
Ideal for enterprise and data center use

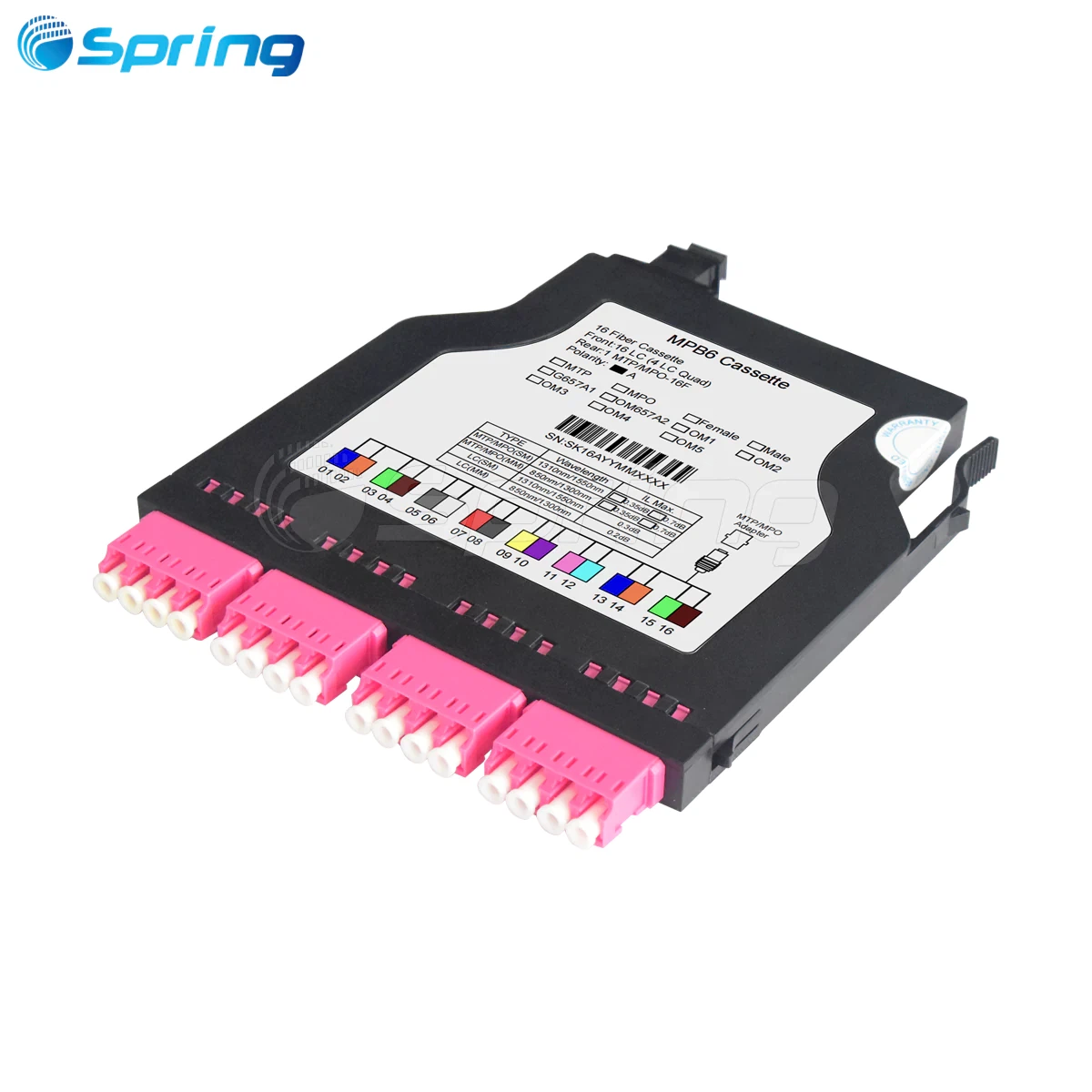

SP-MPB6 MPO/MTP® to LC Cassette 16F
| Item | Specification |
|---|---|
| Fiber Count | 16F |
| Fiber Type | G657A1 / OM3 / OM4 / OM5 |
| Polarity | Type A |
| Dimensions | 127.5 × 130 × 11.4 mm |
| Front Connector | LC duplex |
| Rear Connector | MPO/MTP® Male |
| Material | Plastic |
Key Features
Optimized for 400G breakout architecture
High-density structured cabling support
Enhanced maintenance efficiency

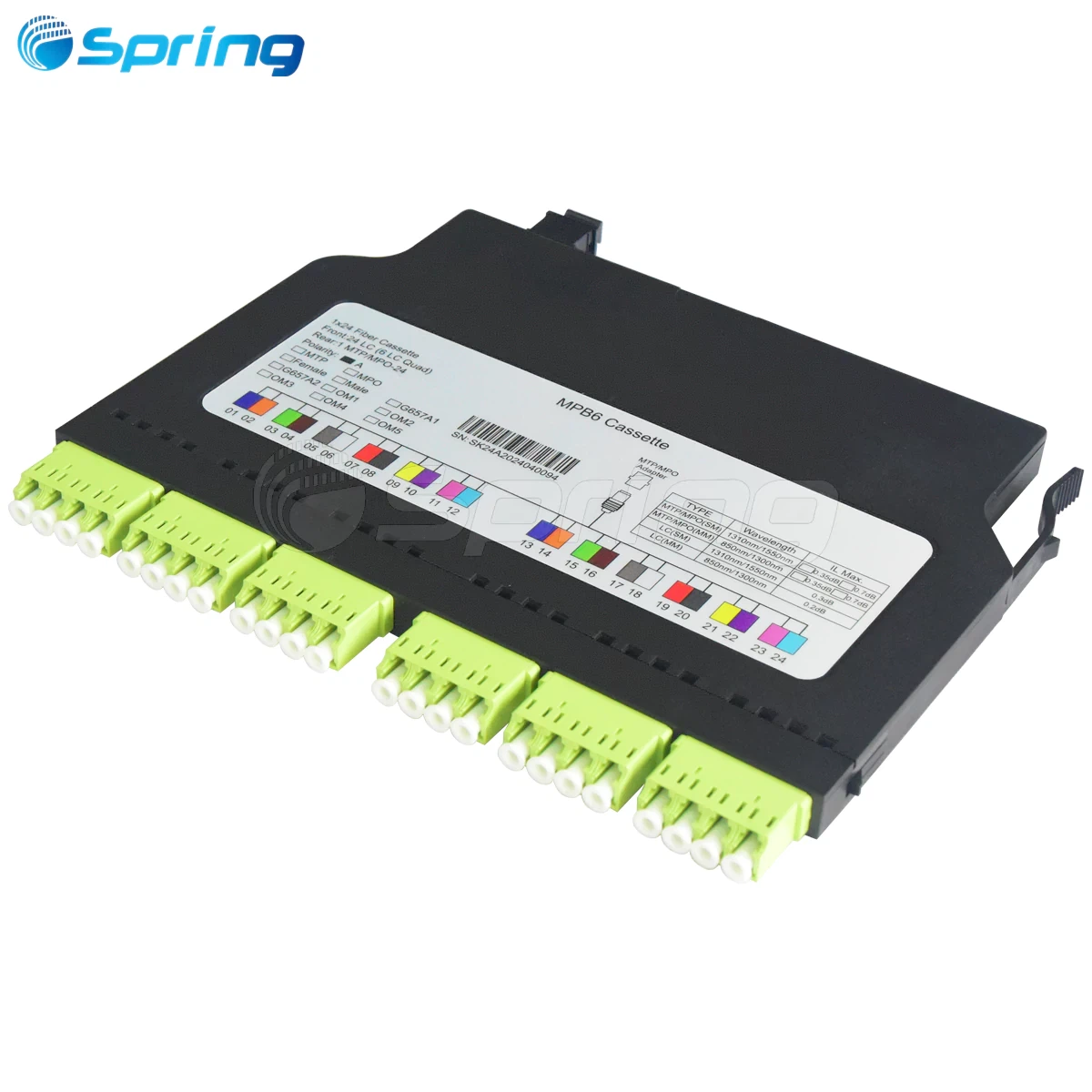

SP-MPB6 MPO/MTP® to LC Cassette 24F
| Item | Specification |
|---|---|
| Fiber Count | 24F |
| Fiber Type | G657A1 / OM3 / OM4 / OM5 |
| Polarity | Type A |
| Dimensions | 187.5 × 130 × 11.4 mm |
| Front Connector | LC duplex |
| Rear Connector | MPO/MTP® Male |
| Material | Plastic |
Key Features
Designed for hyperscale data center backbone
Maximum density structured cabling support
Ideal for AI computing clusters
Shared Technical Architecture (SP-MPB6 Series)
Modular guide-rail pull-out design
Front and rear cable management system
Supports MPO/MTP® ↔ LC / CS / MPO conversion
Compatible with pigtail splicing integration
High-density patch panel compatibility
High-Density Capacity (Industry-Leading Design)
1U: up to 144-core LC or 216-core CS connections
1U: up to 1728-core MPO/MTP® connections
2U: up to 288-core LC connections
4U: up to 576-core LC connections
👉 Designed for AI data centers and hyperscale optical networks
Applications of MPO/MTP® to LC Cassette
Data Centers
10G / 40G / 100G / 400G / 800G Ethernet
Spine-leaf architecture cabling
Cloud computing infrastructure
Enterprise Networks
Backbone fiber distribution
Server room cabling systems
Campus fiber networks
Telecom Networks
ODF systems
Central office distribution
Metro aggregation networks
Advantages of SP-MPB6 Cassette System
Up to 70% faster installation vs field termination
High-density rack optimization
Reduced operational cost
Improved airflow and cable management
Future-proof for 400G–800G migration
Why Spring Optical
Full in-house manufacturing capability
100% optical performance testing
Stable low-loss engineering design
OEM / ODM customization support
Fast global delivery
Competitive factory pricing
Customization Options
Fiber count (8F / 12F / 16F / 24F / custom)
Polarity Type A / Type B
LC UPC / LC APC
MPO/MTP® connector options
Housing color customization
Logo printing / OEM branding
Private label packaging
Frequently Asked Questions About MPO to LC Cassette Module
Q: What is an MPO to LC Cassette Module?
A: An MPO to LC Cassette Module is a pre-terminated fiber optic cassette that converts one MPO or MTP® backbone connector into multiple LC duplex ports for high-density structured cabling systems.
Q: What fiber counts are available for MPO to LC Cassette Modules?
A: Standard configurations include:
8F MPO to 4 LC duplex
12F MPO to 6 LC duplex
16F MPO to 8 LC duplex
24F MPO to 12 LC duplex
These options support different network density requirements.
Q: Can MPO to LC Cassette Modules support 400G and 800G networks?
A: Yes.
The 16F and 24F MPO to LC Cassette Modules are commonly used in 400G and future 800G data center cabling architectures.
Q: What fiber types are compatible?
A: The cassette supports:
OS2 single mode
OM3 multimode
OM4 multimode
OM5 wideband multimode
This allows flexible deployment in various network environments.
Q: What are the advantages of using MPO to LC Cassette Modules?
A: Main advantages include:
Faster installation
Lower insertion loss
Better cable management
Higher port density
Easier maintenance
Future network scalability
Q: Where are MPO to LC Cassette Modules used?
A: They are widely used in:
Hyperscale data centers
Enterprise networks
Telecom central offices
Cloud infrastructure
Structured fiber cabling systems
