Introduction
In modern Fiber-to-the-Home (FTTH) and suburban optical access rollouts, connecting outdoor distribution terminals to subscriber premises quickly and reliably is critical. Traditional field-spliced drop cable deployments require highly skilled technicians, expensive fusion splicers, and significant labor time per household connection.
The pre-connectorized drop cable-also designated as a Hardened Fiber Drop Assembly or Plug-and-Play Drop Cable-has emerged as the global standard for fast, cost-effective ODN (Optical Distribution Network) construction. Factory-terminated with ruggedized, weather-tight optical connectors, pre-connectorized drop cables eliminate field splicing at the subscriber boundary, enabling rapid plug-and-play installation.
In this technical guide, the senior engineering team at Spring Optical breaks down how pre-connectorized drop cables work, compares key hardened connector interfaces, details mechanical specifications, and outlines field installation best practices.
Quick Answer: What Is a Pre-Connectorized Drop Cable?
A Pre-Connectorized Drop Cable is an outdoor optical fiber cable assembly that comes factory-terminated with hardened, IP68-rated connectors on one or both ends. It allows technicians to connect the drop line directly into outdoor Multiport Service Terminals (MSTs) and subscriber wall outlets without performing field fusion splicing or mechanical termination.
Primary Functions of a Pre-Connectorized Drop Cable
·Rapid Plug-and-Play Deployment: Cuts subscriber turn-up time by up to 70% by replacing field fusion splicing with simple plug-and-lock mating.
·IP68 Environmental Protection: Dual O-rings and high-durability polymer shells protect optical ferrules from water ingress, dust, UV degradation, and chemical exposure.
·Factory-Guaranteed Optical Quality: Pre-terminated and 100% tested in controlled laboratory environments to ensure low insertion loss (≤ 0.3 dB) and high return loss (≥ 65 dB).
·Superior Tensile Strength: Integrated Kevlar or FRP strength members and heavy-duty strain-relief boots withstand high pulling tensions during duct pulling and ice loads in aerial spans.
Pre-Connectorized Drop Cable vs. Traditional Field Splicing
Evaluating pre-connectorized technology against conventional field splicing highlights clear operational and economic advantages for telecom operators:
| Feature | Pre-Connectorized Drop Cable Assembly | Traditional Field Fusion Splicing |
| Field Termination Method | Factory-sealed plug-and-play connector | Stripping, cleaving, and arc fusion splicing |
| Field Equipment Needed | Optical power meter (OPM) & cleaning tools | Fusion splicer, precision cleaver, splice sleeves |
| Technician Skill Level | Basic / Standard field installer | Highly skilled fusion splicer operator |
| Average Installation Time | 5 – 10 minutes per subscriber | 30 – 45 minutes per subscriber |
| Environmental Protection | IP68 factory-molded waterproof housing | Requires external sealed splice enclosure/tray |
| Long-Term Splicing Yield | 100% factory-tested and guaranteed | Subject to field operator error and weather conditions |
Hardened Connector Interfaces & Types
To support various Multiport Service Terminal (MST) architectures and operator standards, pre-connectorized drop cables are manufactured with several industry-standard hardened interfaces:
Threaded / Bayonet Style (Opti Compatible)
Features a robust threaded coupling nut and dual O-ring design. It is widely deployed across North American and global broadband networks for aerial strands, pedestals, and underground handholes.
Push-Pull / FastConnect (Mini-SC Style)
Utilizes a compact push-pull locking mechanism that allows for smaller connector footprints. Ideal for high-density outdoor terminals and space-constrained enclosures.

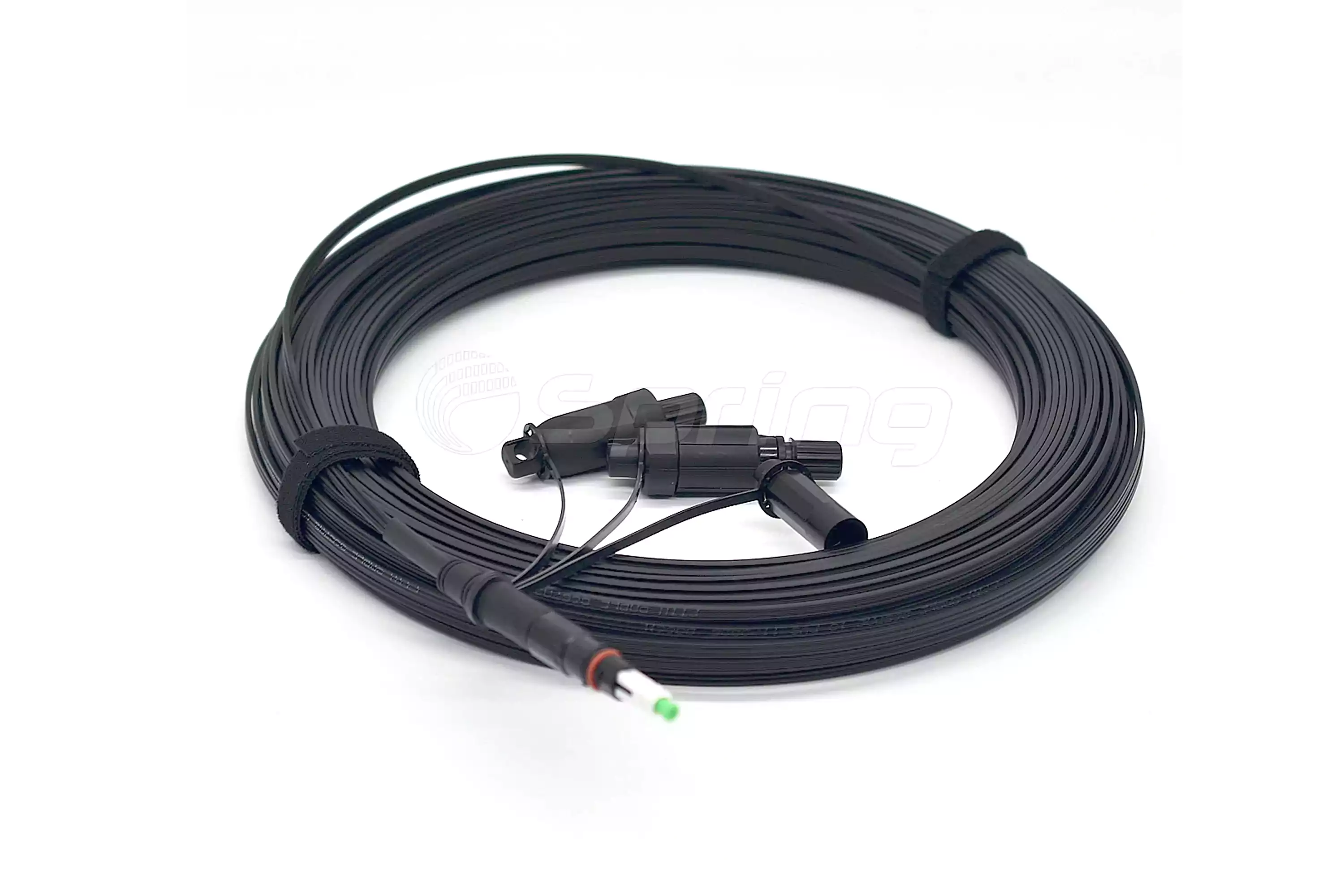

IP68 3-in-1 Waterproof Fiber Optic Connectors
Engineered with an ultra-compact profile and interchangeable outer housing adapters, the IP68 3-in-1 Waterproof Fiber Optic Connector offers ultimate field flexibility. It allows a single pre-connectorized drop cable assembly to convert seamlessly between standard threaded (OptiTap style), FastConnect (Mini-SC style), and Furukawa interfaces, passing easily through narrow microducts and tight conduit bends.
Key Technical Specifications & Cable Constructions
Selecting the right pre-connectorized drop cable requires matching physical cable structures with outdoor deployment environments:
Cable Outer Jacket & Structure Options
Flat Drop Cable Assemblies:
Standard Flat Drop Cables (4.0x7.0mm / 4.5x8.1mm / 2x5.0mm): Incorporate parallel steel wires or dielectric FRP strength members for self-supporting aerial spans, easy stripping, and high tensile resistance.
Toneable Flat Drop Cable (4.5x9.8mm): Features an integrated copper tracer wire alongside the flat drop structure to enable effortless underground location and line tracing.
Round Cable Assemblies:
3.0mm Indoor Round Cable: Compact, highly flexible design ideal for short indoor/outdoor transition routes and space-constrained subscriber conduits.
5.0mm Heavy-Duty Round Cables: Offer 360-degree all-around flexibility, high crush resistance, and rodent protection for direct-buried applications or duct pulling. Available in Single-Fiber Double Sheath, Dual Fiber, and 12-Core Fiber high-density configurations.
Armored Variations:
Includes corrugated steel tape armor to deliver maximum mechanical protection against crush forces and sharp burrowing rodents in harsh buried environments.
Connector Configurations & Polish Specifications
·Connector Types: Flexible optic interfaces tailored for diverse network densities, including SC/Sx (Simplex), LC/Dx (Duplex), and MPO/MTP (Multi-fiber Push-On) high-density connector options.
·Precision Ferrule & Polish: Equipped with precision zirconia ferrules available in SC/APC (8-degree angle polish, green housing) to guarantee high return loss (≥ 65 dB) and eliminate optical back-reflection in GPON, XGS-PON, and RF video networks.
·Protective Pulling Eye Cap: Features a factory-integrated protective cap with a heavy-duty pulling eyelet rated for ≥ 100 lbs tensile force, safeguarding the connector end-face during duct pulling operations.
Environmental Durability
Waterproof Rating: Fully compliant with IP68 immersion standards (submerged at 3 meters for 7 days without optical degradation).
Operating Temperature: Rated for extreme outdoor operation from -40°C to +85°C.
Application Scenarios in FTTH Rollouts
Aerial Drop Applications
Pre-connectorized drop cables are suspended between utility poles and building facades using wedge clamps. The hardened male connector plugs directly into an aerial Multiport Service Terminal (MST) mounted on the strand, avoiding messy aerial splice trays.
Underground Conduit & Pedestal Distribution
In underground subdivisions, pre-connectorized drop assemblies route smoothly through microducts into pedestals or handholes. Technicians remove the protective pulling eye cap and screw or snap the connector into an IP68 bulkhead port in seconds.
Field Installation Best Practices
To maintain minimal insertion loss and long-term network reliability, technicians should follow standard field procedures:
·Conduit Pulling Protection: Keep the protective pulling cap tightly secured over the connector head until the cable is completely pulled through the duct. Never apply pulling tension directly to the connector body or strain relief boot.
·Bend Radius Management: Maintain the cable's specified minimum dynamic bend radius during installation to avoid optical micro-bending loss.
·Ferrule Cleaning Protocol: Inspect the connector end-face with a fiber scope and clean it using a dedicated 2.5mm hardened connector cleaner prior to mating.
·Secure Engagement: Align internal keyways properly and fully engage the coupling nut or latch mechanism until fully seated.
Frequently Asked Questions (FAQ)
What is the main advantage of pre-connectorized drop cables over field splicing?
Pre-connectorized drop cables replace labor-intensive field fusion splicing with quick plug-and-play mating. This cuts subscriber connection time by up to 70%, lowers field labor costs, eliminates the need for expensive fusion splicing equipment, and ensures 100% factory-tested optical quality.
Are Spring Optical pre-connectorized cables compatible with industry-standard outdoor terminals?
Yes. Spring Optical manufactures pre-connectorized drop cable assemblies that are fully intermateable with major global outdoor distribution terminals, including standard threaded (OptiTap compatible), FastConnect (Mini-SC style), and compact hardened connector ecosystems.
Can pre-connectorized drop cables be pulled through narrow conduits?
Yes. Assemblies are equipped with slim protective pulling caps featuring integrated pull eyes rated for ≥ 100 lbs pulling force. They are specifically designed to pass through standard microducts and tight conduit bends without damaging the optical ferrule.
What quality control testing is performed on Spring Optical drop assemblies?
Every manufactured drop cable assembly undergoes 100% factory optical testing for Insertion Loss (≤ 0.3 dB) and Return Loss (≥ 65 dB), 3D ferrule geometry inspection, IP68 waterproof sealing tests, and mechanical tensile pull testing compliant with international IEC and Telcordia standards.
High-Quality Pre-Connectorized Drop Cables from Spring Optical
Adopting reliable, factory-tested pre-connectorized drop cable assemblies helps network operators accelerate FTTH buildouts while maintaining strict quality control across field installations.
Spring Optical (Shenzhen Spring Optical Communication Co., Ltd.) manufactures a complete portfolio of Pre-connectorized Drop Cables, hardened outdoor patch cords, matching MST terminals, and indoor optical distribution hardware tailored for global ISPs, telecom operators, and broadband engineering contractors.
Why Partner with Spring Optical?
Broad Interface Compatibility: Fully intermateable with standard threaded, FastConnect, and compact hardened connector platforms.
Versatile Cable Structures: Available in flat drop, round 5.0mm, toneable, dielectric, and armored cable configurations in custom lengths from 5m to 500m+.
Strict Quality Control: Manufactured with premium optical fiber glass, IP68 waterproof housings, and compliant with IEC and Telcordia standards for outdoor hardware.
Factory-Direct OEM/ODM Services: Custom length labeling, specialized reel packaging, pre-assembled connector kits, and rapid lead times.
