What is a fiber patch cable and how to choose it?
A fiber patch cable is a short optical fiber used to connect network devices. To choose the right one, you must consider connector type (LC/SC/MPO), fiber mode (single mode or multimode), cable length, polishing type (UPC/APC), and jacket type (PVC/LSZH). The correct selection ensures low signal loss, high-speed transmission, and compatibility with data center or FTTH network architecture.
What Are Fiber Patch Cables?
Fiber patch cables are essential components in optical communication systems, used to connect switches, routers, optical modules, and patch panels.
In modern networks (10G–400G), fiber patch cables are critical for:
High-speed data transmission
Scalable structured cabling
Low-latency interconnects
Dense rack environments
Engineering note:
In hyperscale data centers, fiber patch cables are no longer passive accessories-they are part of the network architecture design strategy.
Step-by-Step Guide to Choosing Fiber Patch Cables

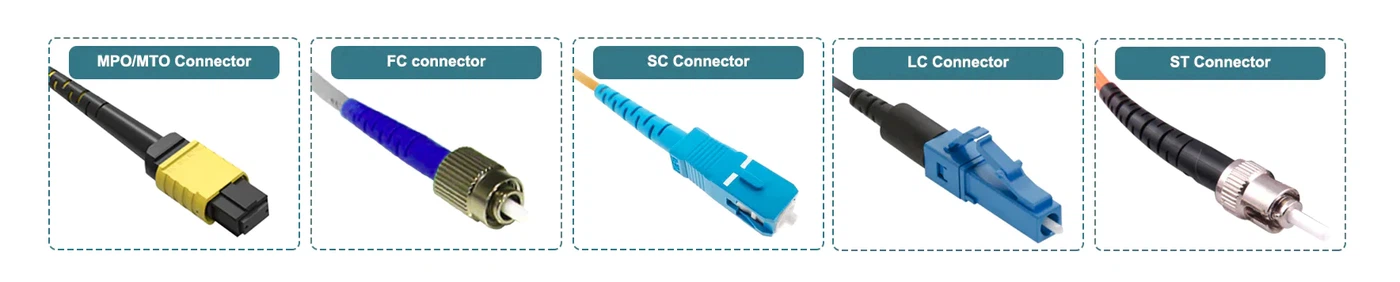

1.Connector Type Selection (LC / SC / ST / MPO)
Connector type defines density and compatibility.
| Type | Best Use Case | Advantage |
|---|---|---|
| LC | Data center SFP/SFP+ | High density |
| SC | FTTH / telecom | Easy installation |
| ST | Industrial | Mechanical stability |
| MPO/MTP | 40G/100G/400G | Ultra high-density |
Industry trend:
MPO/MTP is becoming the default for high-speed spine-leaf architecture in data centers.
2.Single Mode vs Multimode Fiber
| Type | Distance | Application |
|---|---|---|
| OS2 Single Mode | Long distance | Telecom / backbone |
| OM3 | Short distance | 10G networks |
| OM4 | Medium-high speed | 40G / 100G data centers |
| OM5 | Future WDM | High-capacity DC |
📌 Engineering insight:
Most 100G deployments today prefer OM4 or OS2 depending on architecture layer.
3. Simplex vs Duplex vs MPO
Simplex → one direction
Duplex → TX/RX pairs
MPO → multi-fiber parallel transmission
Common mistake:
Using duplex LC in high-density racks leads to poor cable management and scalability issues.
4. Cable Length Selection
📌 Best practice:
Always measure actual routing distance + slack allowance (10–15%)
Too long:
Cable clutter
Airflow blocking
Too short:
Connector stress
Signal instability risk
5. UPC vs APC Connector Type
| Type | Color | Use Case |
|---|---|---|
| UPC | Blue | Data center |
| APC | Green | FTTH / PON |
📌 Key rule:
APC is mandatory for PON networks due to low back reflection.
6. Cable Jacket Selection
PVC → standard indoor use
LSZH → low-smoke safety environments
OFNP → plenum air spaces

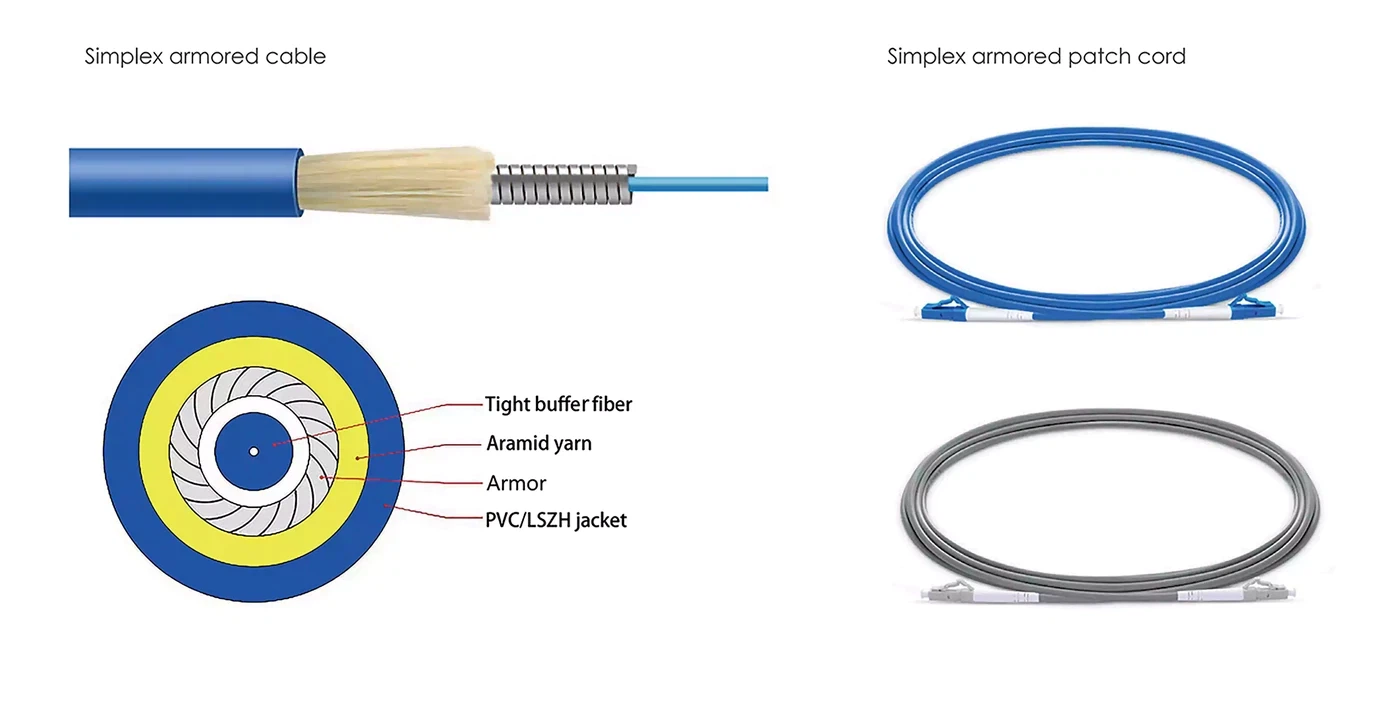

Armored → industrial protection
📌 EU & enterprise trend:
LSZH is now the default requirement in most structured cabling projects.

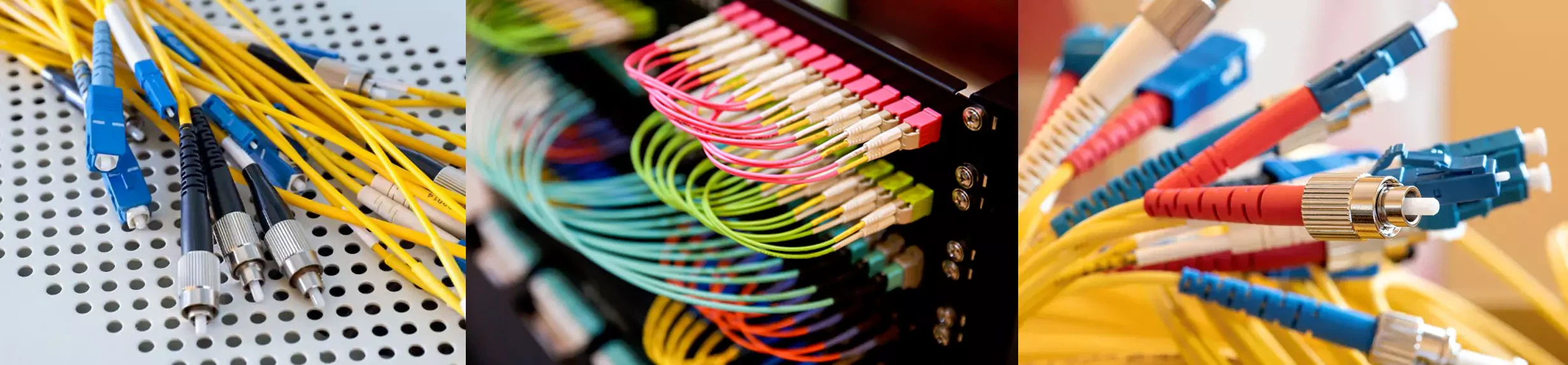

Fiber Patch Cable by Application
Data Center (10G / 40G / 100G / 400G)
✔ Recommended architecture:

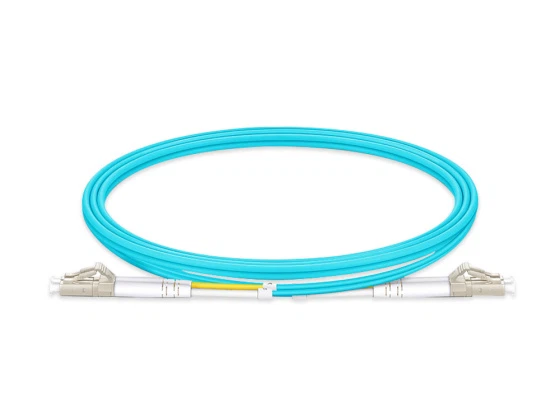

LC duplex (access layer)

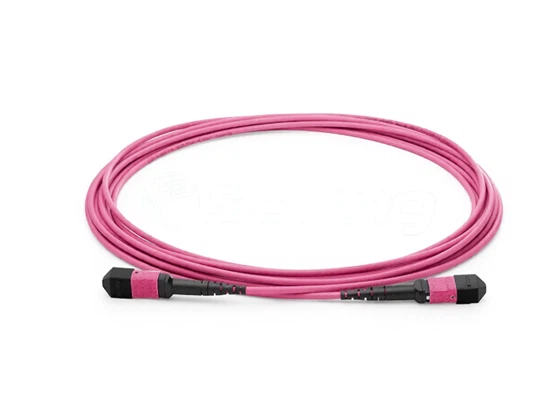

MPO/MTP trunk (spine layer)
OM4 or OS2 fiber
Trend:
Modern data centers are moving toward MPO-based high-density cabling systems.
FTTH / PON Networks
✔ Recommended:

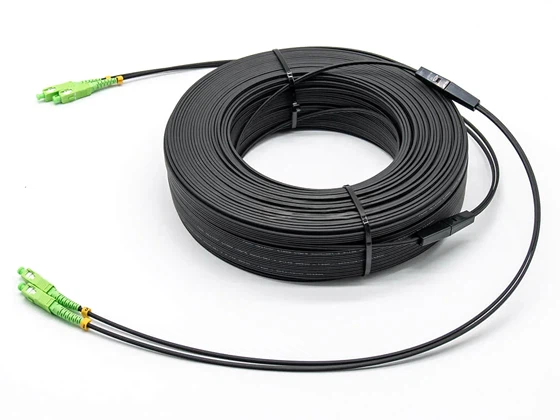

SC/APC connectors
Single mode OS2 fiber

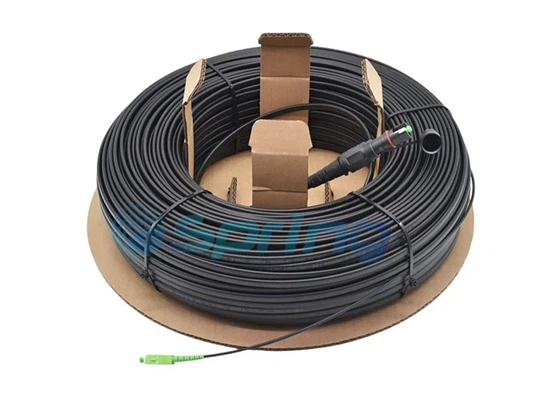

Pre-terminated patch cords
📌 Why:
APC reduces reflection and improves optical stability in passive optical networks.
Industrial / Outdoor Applications
✔ Recommended:
Armored fiber cables
Waterproof connectors
UV-resistant jackets
📌 Key challenge:
Mechanical protection is more important than speed.
Common Mistakes
Mixing UPC and APC connectors
Using OM2 in modern networks
Ignoring MPO polarity rules
Over-length patch cords
Choosing wrong fiber mode for distance
📌 Engineering truth:
70% of fiber network issues come from wrong installation, not cable quality.
Fiber Patch Cable vs DAC vs AOC
| Solution | Medium | Distance | Best Use |
|---|---|---|---|
| Fiber Patch Cable | Fiber | Long | Structured cabling |
| DAC | Copper | <7m | Rack internal |
| AOC | Active optical | 1–100m | High-speed links |
📌 Decision rule:
Inside rack → DAC
Between racks → fiber patch cable
High-performance links → AOC
How to Ensure Fiber Patch Cable Quality
High-quality cables must meet:
IEC / TIA standards
≤0.3 dB insertion loss
High return loss performance
100% factory testing
End-face interferometer inspection
📌 Industry practice:
Top manufacturers test every connector individually, not just batch sampling.
FAQ
Q: What is the best fiber patch cable for data centers?
A: MPO/MTP OM4 or OS2 fiber patch cables are the best choice for 40G/100G data center networks.
Q: LC vs SC fiber patch cable, which is better?
A: LC is better for data centers due to high density, while SC is more common in FTTH and telecom networks.
Q: When should I use APC connectors?
A: APC connectors are used in FTTH and PON systems to reduce back reflection.
Q: What is the difference between OM3 and OM4 fiber?
A: OM4 supports higher bandwidth and longer distance, making it better for 40G/100G networks.
Q: Can fiber patch cables be used for 400G networks?
A: Yes, but typically via MPO/MTP parallel optics solutions in structured cabling systems.
