High-Density Rack Mount Fiber Optic Patch Panel for Data Center Networks
The SPC9 modular fiber patch panel is a rack mount fiber optic patch panel designed for high-density data center cabling, backbone distribution, and scalable network infrastructure. It supports MPO, MTP, LC, SC, PLC splitter, splicing, and direct patching modules inside a single 19-inch enclosure, making it an ideal data center fiber patch panel for modern structured cabling systems.
With a slide-out modular tray design, the SPC9 modular fiber patch panel allows quick front access for installation, maintenance, and future expansion while maximizing fiber density in limited rack space.
Why Choose the SPC9 Modular Fiber Patch Panel
Modern data centers demand:
higher fiber density
faster deployment
easier cable management
future-proof scalability
The SPC9 modular fiber patch panel provides:
✅ High-density rack mount design
✅ Pre-terminated plug-and-play modules
✅ Low insertion loss performance
✅ Flexible tray configuration
✅ Single-person installation
✅ 1U to 6U scalability
✅ Better airflow in cabinets
✅ Faster moves, adds, and changes

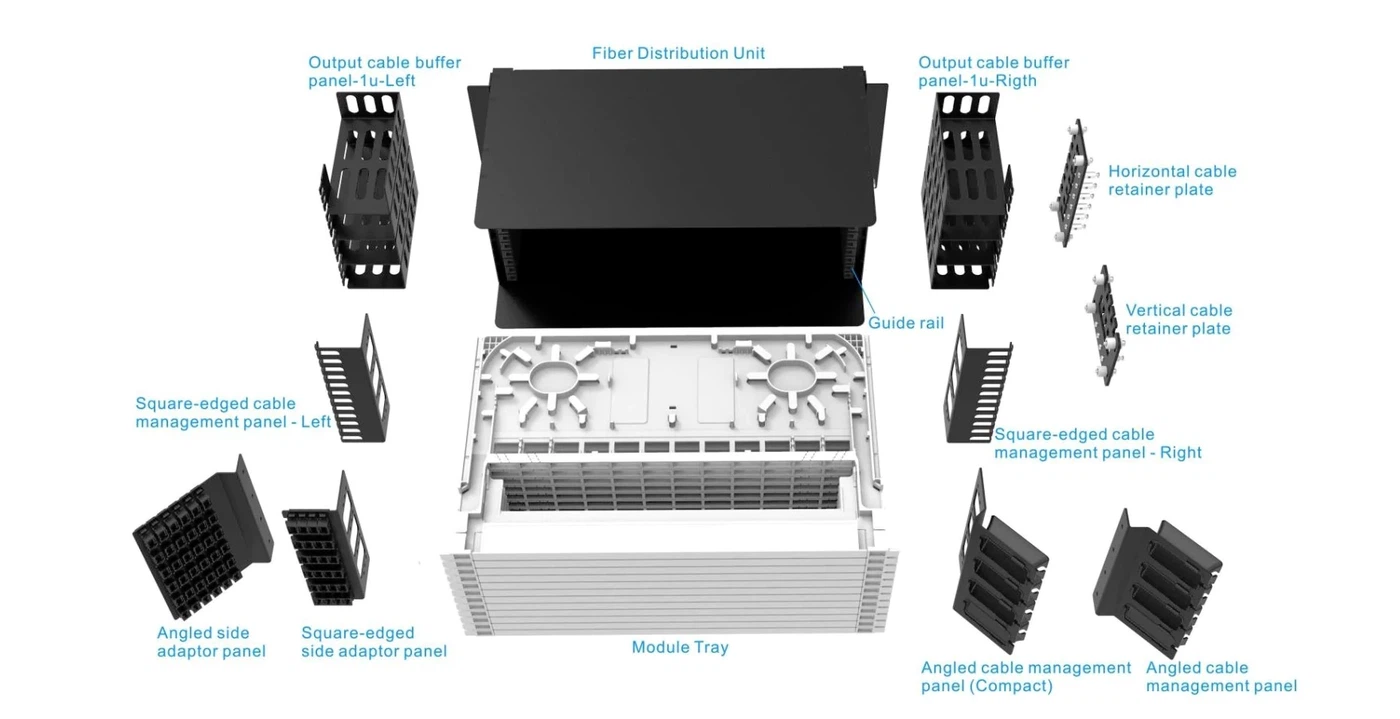

Key Features of the SPC9 Modular Fiber Patch Panel
19-Inch Rack Mount Compatibility
The SPC9 modular fiber patch panel fits standard:
19-inch server racks
network cabinets
data center enclosures
allowing easy integration into existing infrastructure.
Modular Slide-Out Tray System
Each tray slides independently for easier:
inspection
maintenance
fiber routing
connector cleaning
This reduces downtime in mission-critical networks.
Multiple Connectivity Options
The modular fiber patch panel supports:
MPO to LC conversion
MPO to SC conversion
PLC splitter modules
fiber splicing modules
direct patching modules
TAP monitoring modules
High Fiber Density
Each tray can support:
48 LC fibers
24 SC fibers
24 MPO/MTP adapters
Each 1U supports:
3 trays per 1U
allowing very high rack density.

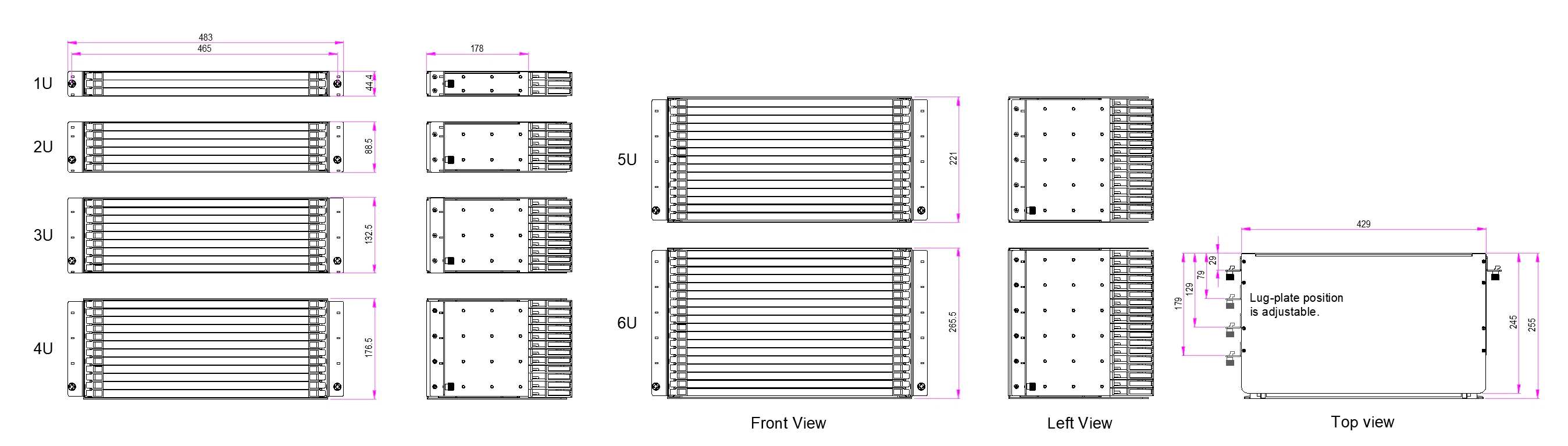

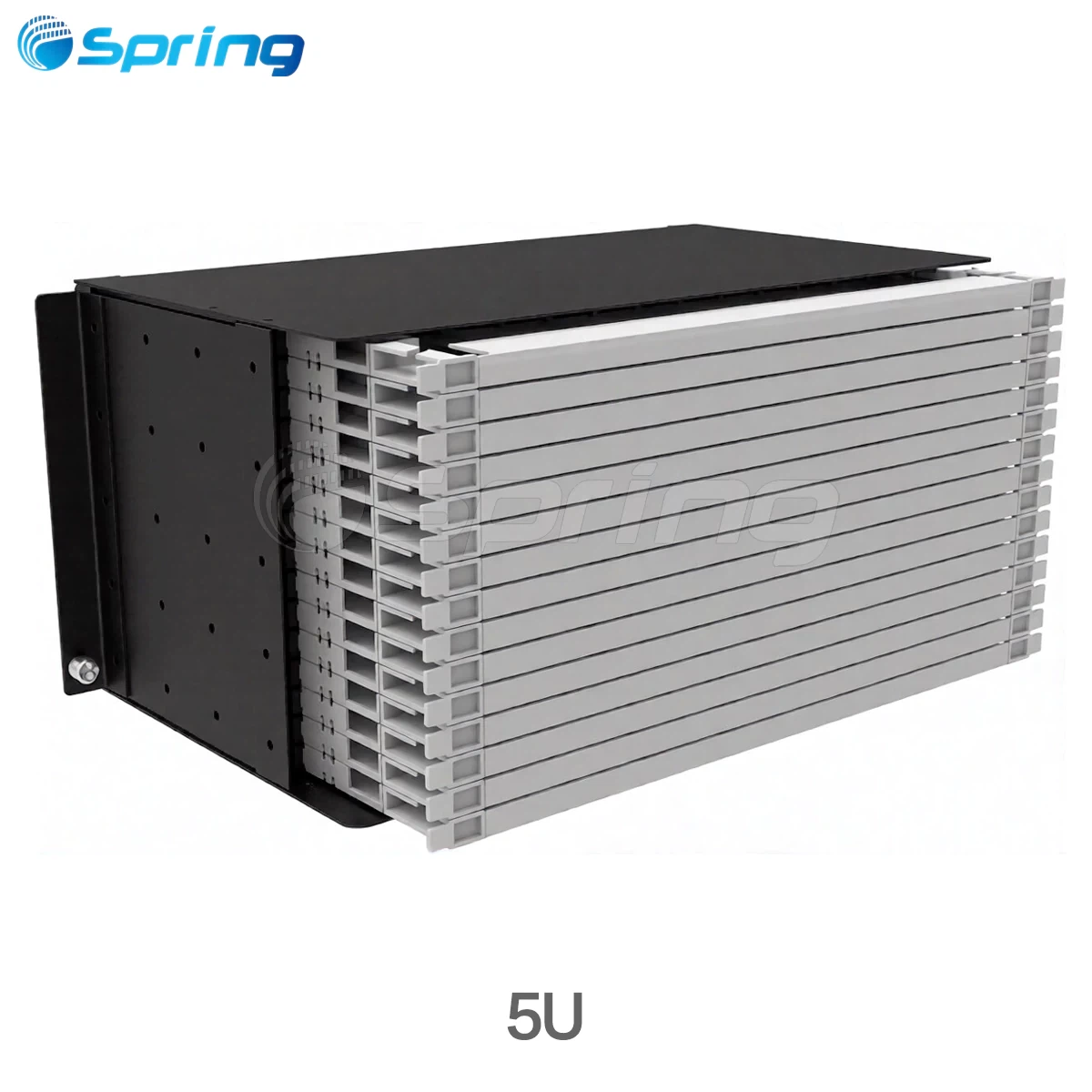

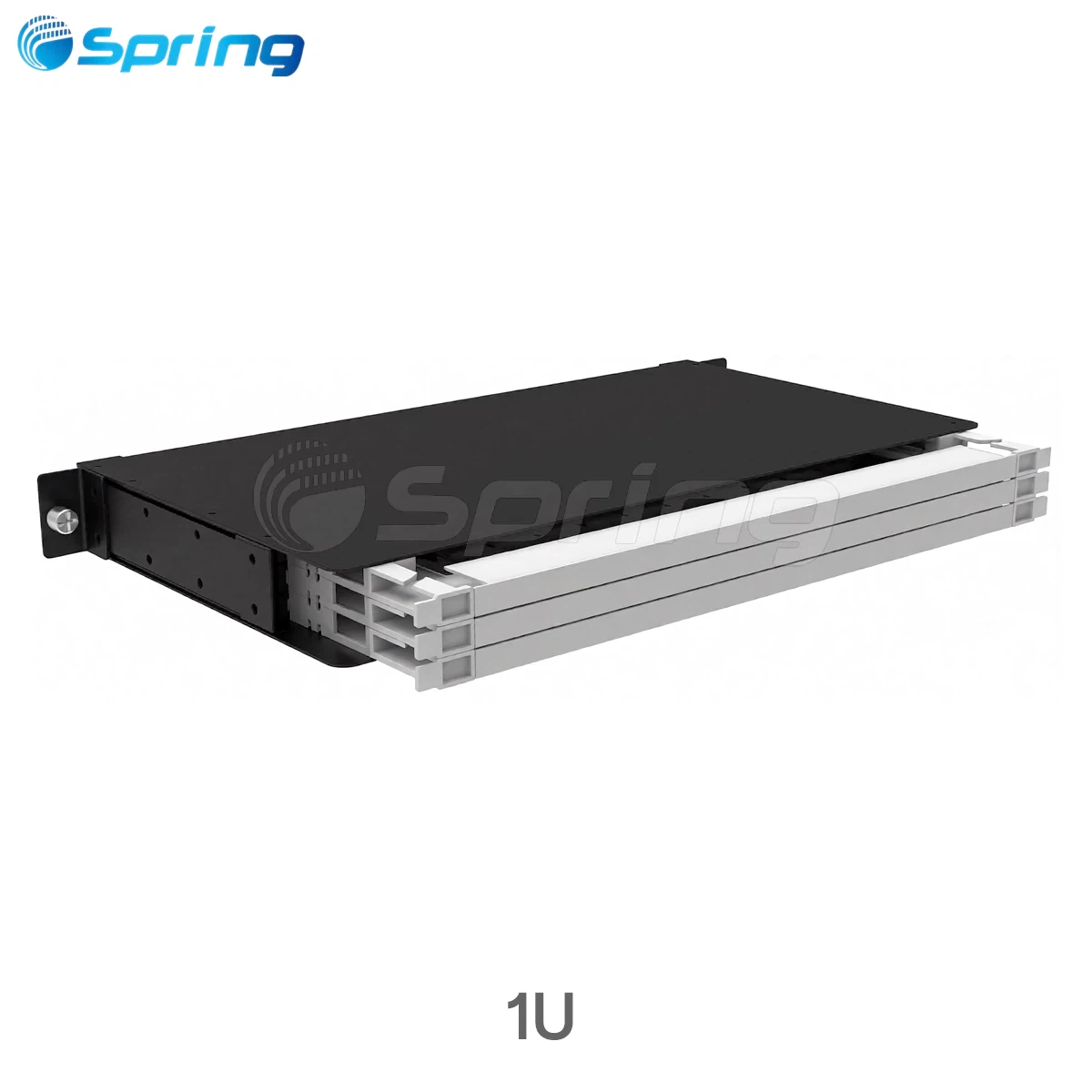

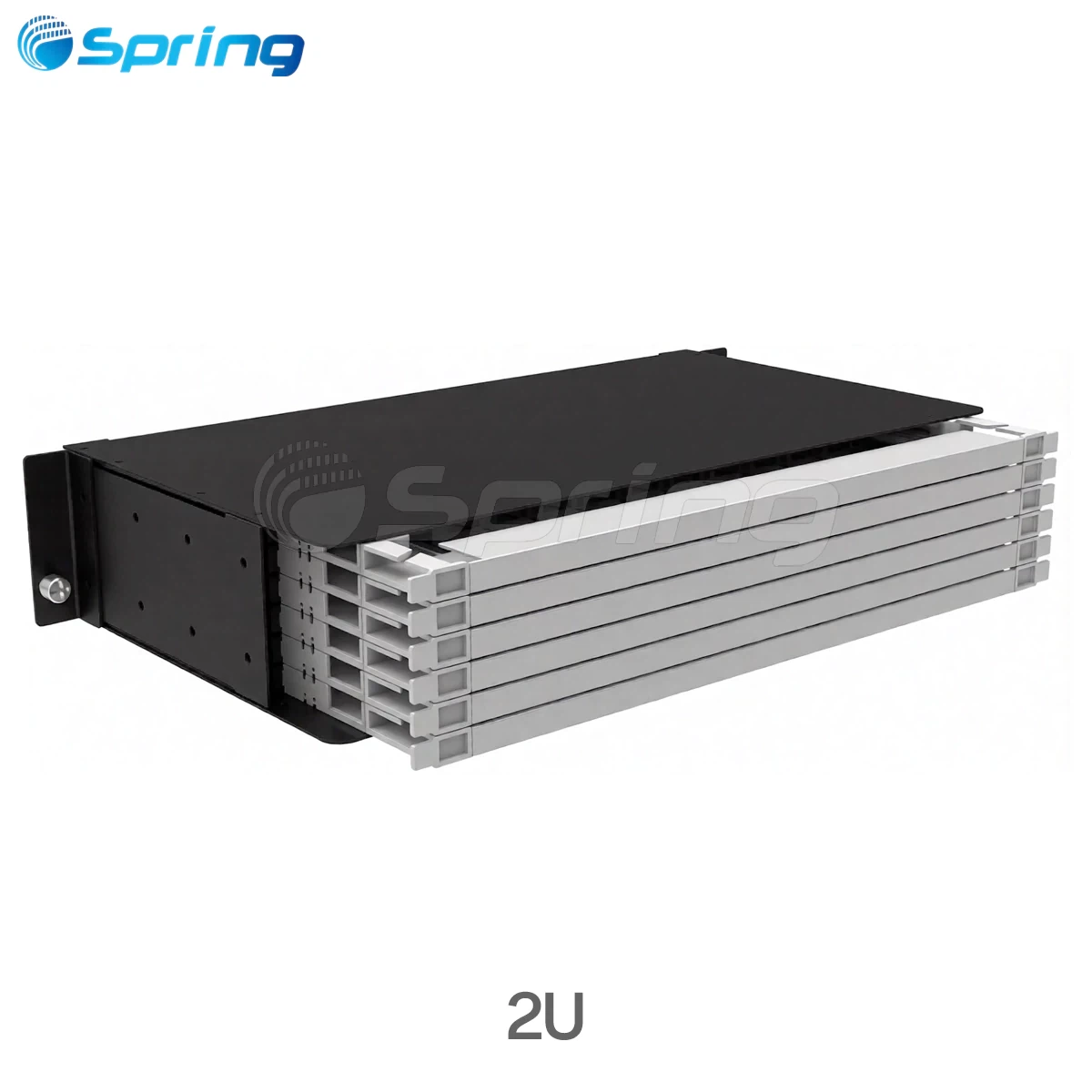

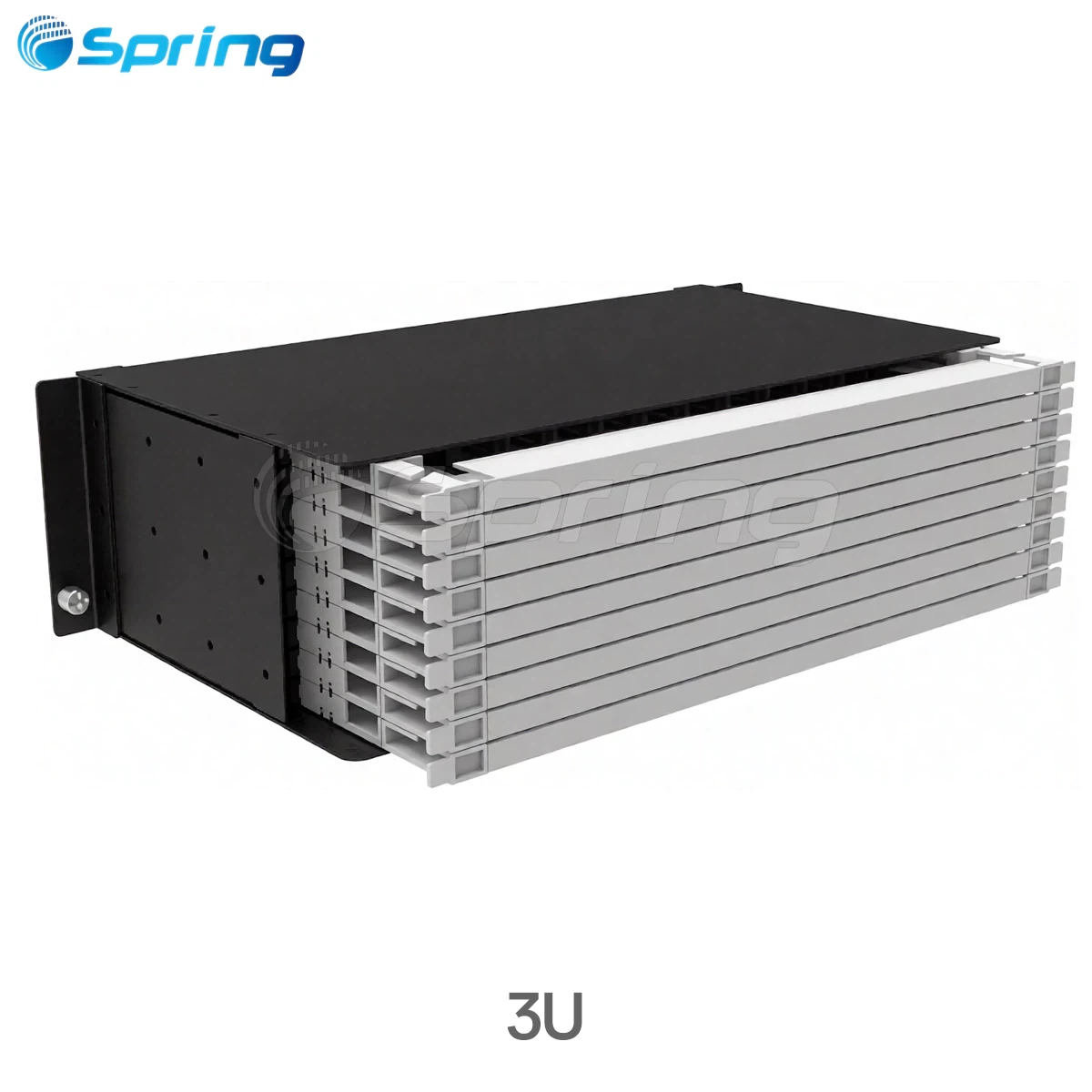

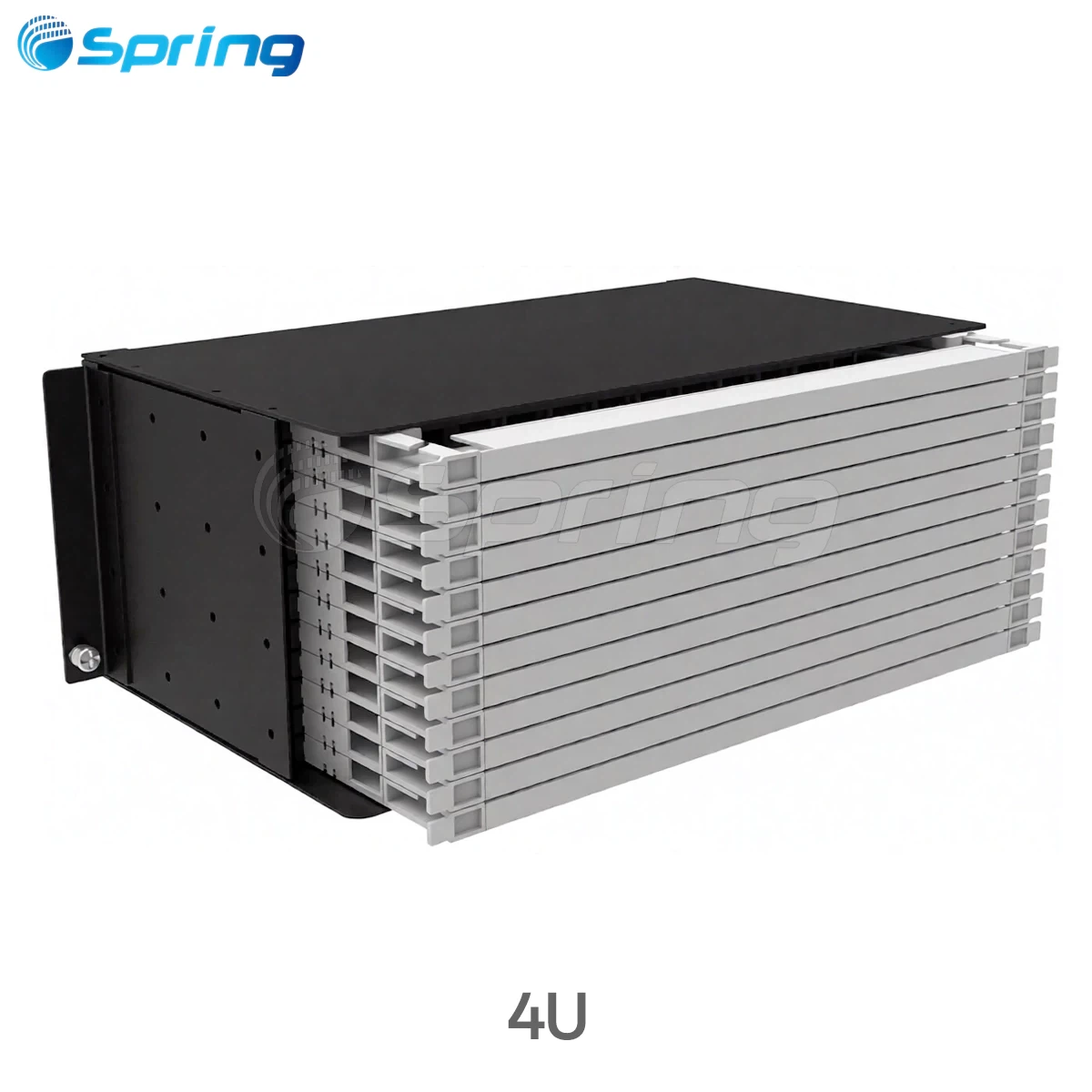

Available Models and Capacity
| Model | Dimensions (W×D×H mm) | Number of Trays | MPO-LC Capacity | MPO-SC Capacity | LC/SC Capacity | PLC Capacity |
|---|---|---|---|---|---|---|
| SPC9-1U | 482 × 295 × 44.4 | 3 | 9 groups of 12F | 3 groups of 12F | 144 / 72 | 12 groups 1×8 LC |
| SPC9-2U | 482 × 295 × 88.5 | 6 | 18 groups of 12F | 6 groups of 12F | 288 / 144 | 24 groups 1×8 LC |
| SPC9-3U | 482 × 295 × 132.5 | 9 | 27 groups of 12F | 9 groups of 12F | 432 / 216 | 36 groups 1×8 LC |
| SPC9-4U | 482 × 295 × 176.5 | 12 | 36 groups of 12F | 12 groups of 12F | 576 / 288 | 48 groups 1×8 LC |
| SPC9-5U | 482 × 295 × 221 | 15 | 45 groups of 12F | 15 groups of 12F | 720 / 360 | 60 groups 1×8 LC |
| SPC9-6U | 482 × 295 × 265.5 | 18 | 54 groups of 12F | 18 groups of 12F | 864 / 432 | 72 groups 1×8 LC |
Tray Options for the SPC9 Modular Fiber Patch Panel

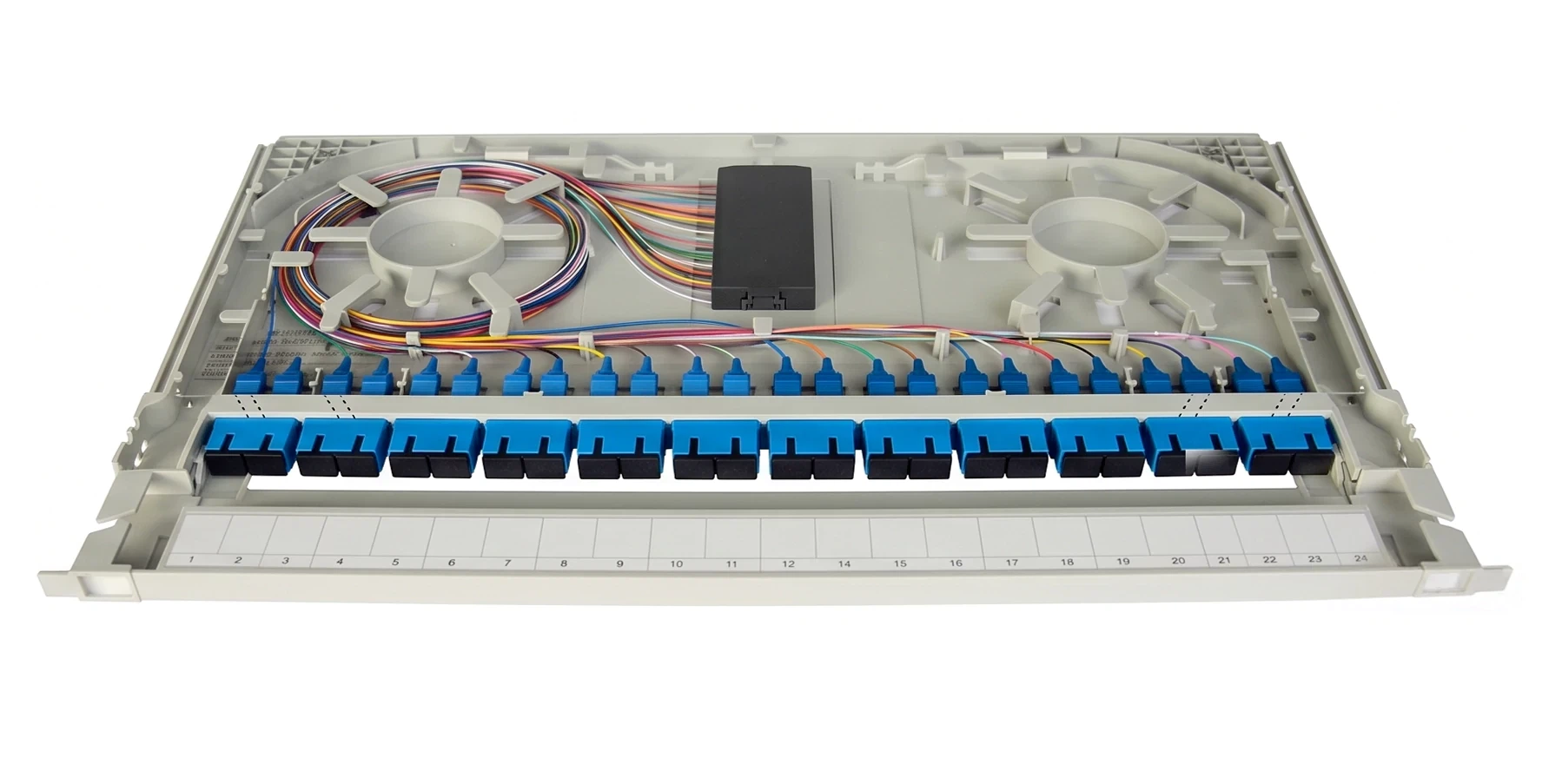

Fiber Splicing Tray
The fiber splicing tray supports:
factory pre-terminated pigtails
field splicing
ribbon splicing
LC / SC / MPO adapters
Maximum tray capacity:
48 LC connectors
24 SC connectors
24 MPO/MTP connectors

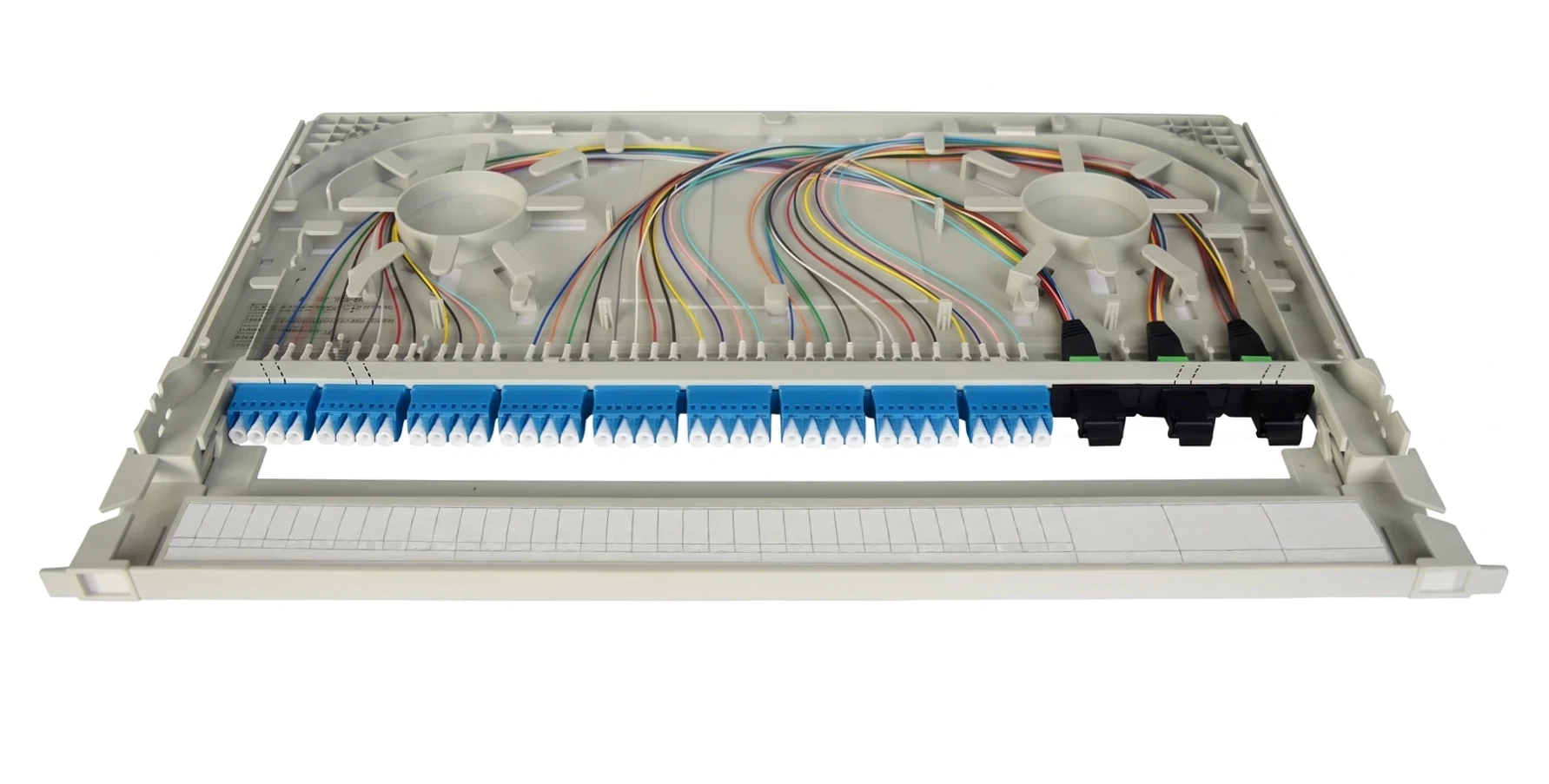

MPO-LC / MPO-SC Transfer Tray
This tray enables fast migration from backbone trunks to access ports.
Supported connector types:
8-fiber MPO
12-fiber MPO
16-fiber MPO
24-fiber MPO
Per tray capacity:
4 × MPO-LC 8F
3 × MPO-LC 12F
1 × MPO-LC 24F
1 × MPO-SC 12F or 16F

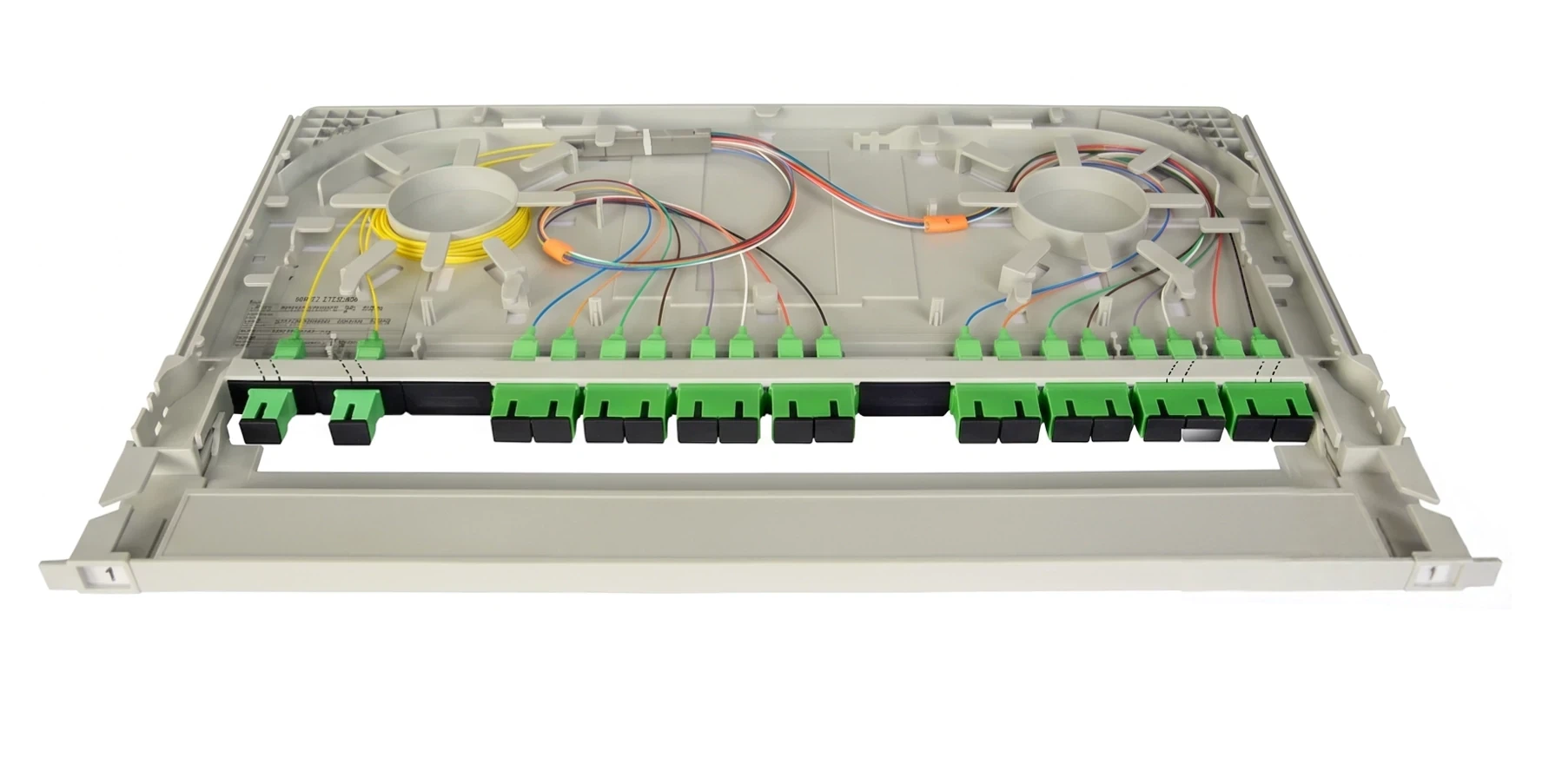

PLC Splitter Tray
The PLC tray supports:
1:8 splitters
1:16 splitters
equal ratio split
unequal ratio split
Suitable for:
passive optical monitoring
FTTx distribution
internal signal splitting

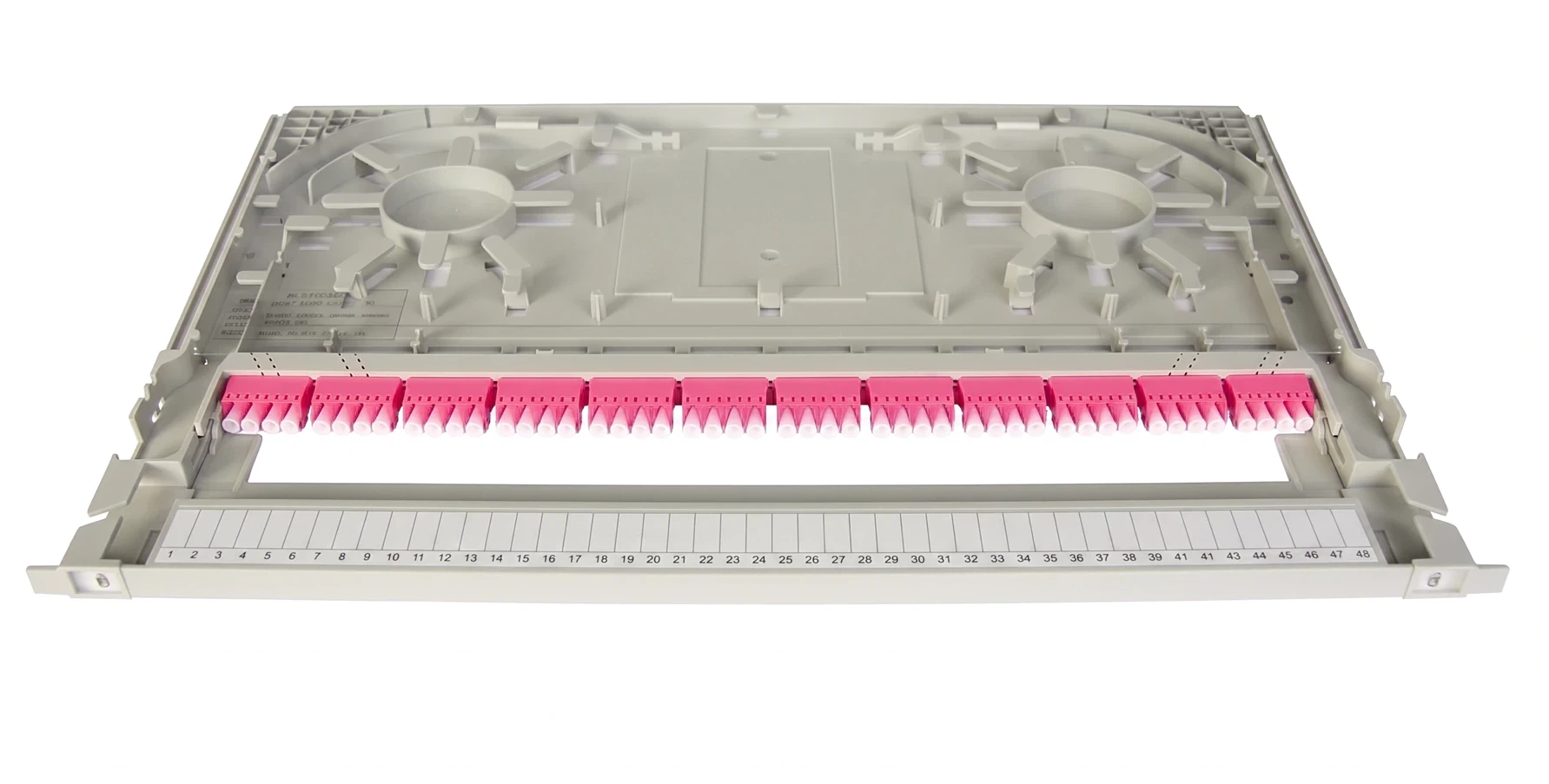

Direct Patching Tray
For flexible patching, each tray supports:
40 LC fibers
20 SC fibers
20 MPO adapters
Technical Parameters
| Parameter | Specification |
|---|---|
| Operating Temperature | -25°C to +55°C |
| Storage Temperature | -25°C to +55°C |
| Relative Humidity | ≤85% (+30°C) |
| Atmospheric Pressure | 70kPa to 106kPa |
| Enclosure Material | Cold-rolled steel sheets |
| Tray Material | PC + ABS |
| Enclosure Size | 483mm × 255mm × 1U–6U |
| Tray Quantity | 3 trays per 1U |
| Tray Capacity | 48 LC fibers |
Optical Performance
Output Connector Performance
| Parameter | Specification |
|---|---|
| SM UPC Insertion Loss | ≤0.3 dB |
| SM APC Insertion Loss | ≤0.3 dB |
| MM UPC Insertion Loss | ≤0.2 dB |
| SM UPC Return Loss | ≥50 dB |
| SM APC Return Loss | ≥60 dB |
| MM Return Loss | ≥35 dB |
Input Connector Performance
MPO Input
| Parameter | Specification |
|---|---|
| SM APC Insertion Loss | ≤0.7 dB |
| MM PC Insertion Loss | ≤0.7 dB |
| SM APC Return Loss | ≥55 dB |
| MM Return Loss | ≥20 dB |
MTP Input
| Parameter | Specification |
|---|---|
| SM APC Insertion Loss | ≤0.35 dB |
| MM PC Insertion Loss | ≤0.35 dB |
| SM APC Return Loss | ≥60 dB |
| MM Return Loss | ≥35 dB |
Manufacturer Advantages
As a professional fiber optic manufacturer, we provide:
100% factory testing
insertion loss verification
custom tray configuration
OEM & ODM service
rapid production
global shipping support
Every SPC9 modular fiber patch panel is tested before shipment to ensure stable optical performance.
Applications of the SPC9 Modular Fiber Patch Panel
The SPC9 modular fiber patch panel is ideal for:
hyperscale data centers
cloud computing infrastructure
enterprise backbone networks
telecom transmission rooms
SAN storage systems
AI computing clusters
high-density cross-connect systems
Ordering Information
ODF Unit
SPC9 - EM - SP - B - 9004 - 4U
| Position | Description |
|---|---|
| 1 | SPC9 |
| 2 | EM = Empty container |
| 3 | SP = Cold rolled steel sheet |
| 4 | B = Fine sand texture |
| 5 | 9004 = RAL9004 |
| 6 | 1U / 2U / 3U / 4U / 5U / 6U |
Frequently Asked Questions
Q: What is a modular fiber patch panel?
A: A modular fiber patch panel is a rack-mounted fiber enclosure with removable trays that supports different fiber management functions inside one chassis.
Q: How many fibers can the SPC9 support?
A: The SPC9 modular fiber patch panel can support up to:
864 LC fibers in a 6U configuration depending on tray type.
Q: Is the SPC9 compatible with MPO connectivity?
A: Yes. The panel supports:
MPO, MTP, LC, SC, PLC modules for flexible network designs.
Q: Can the tray configuration be customized?
A: Yes. The SPC9 modular fiber patch panel can be customized for:
connector type, fiber count, panel height, adapter color, tray style
Q: Is the SPC9 suitable for hyperscale data centers?
A: Yes. The SPC9 modular fiber patch panel is specifically designed for:
high-density racks, cloud environments, AI clusters, spine-leaf architecture
