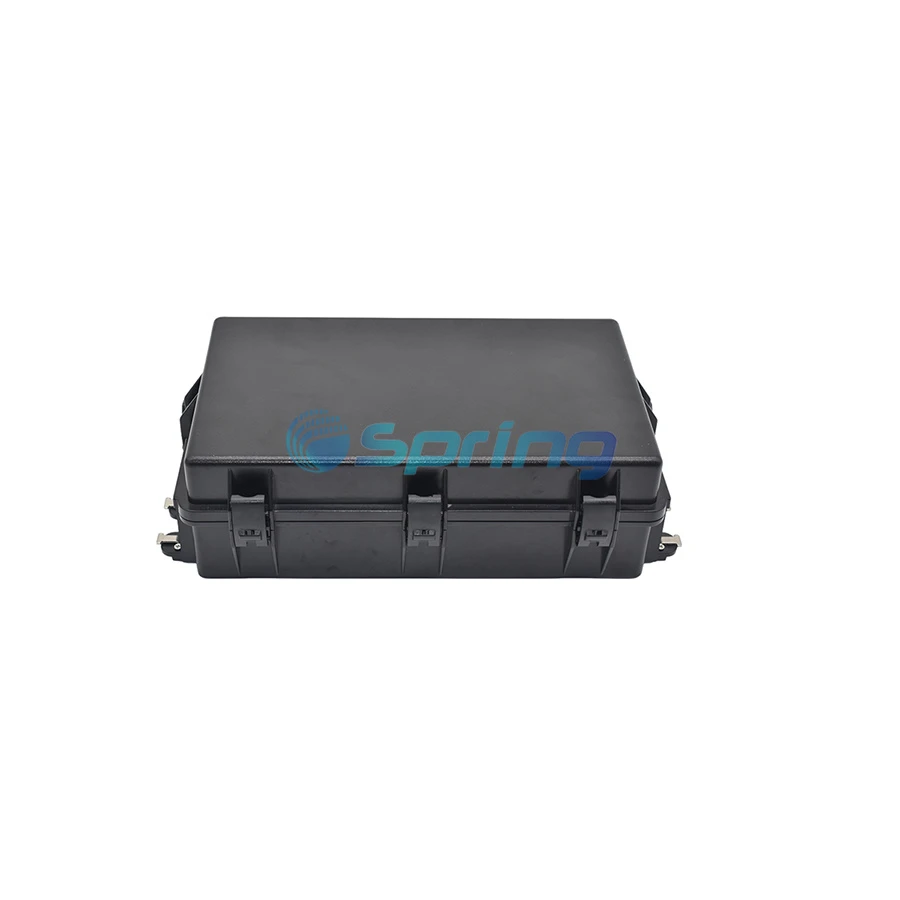

Horizontal 2 in 2 out 1×16 Fiber Optic Splice Closure
Product Model
SP-GJS(06)A
Product Description
Optical Distribution Box(ODB) is high-density 2-in-2-out fiber box solution. Designing with a compact size of 340x220x100mm, the cabinet accommodates 1×2,1×4,1×8 and 1×16 etc.splitters. The 4 ports are sized for main cable from 9 to 16mm in diameter, along with 16 3mm cables.
| Model No. | SP-GJS06A |
| Color | Black |
| Ports | 2 in 2out |
| Protection rating | IP65 |
| Material | PC+ABS |
| Cable Diameter | 9 to 16mm |
| Dimension(MM) | 340*220*100 |
| Temperature range | -40 to + 80°C |
Package Information
| QTY | 48PCS |
| Carton size | 540*380*520mm |
| G.W | 15.2kg |
| N.W | 14.5kg |
Feature:
1. Water-proof design with IP65 Protection level
2. Manager fibers in a reasonable fiber radius condition
3. 1*16 micro type Splitter can be installed
5. Suitable for the fusion splice
6. Easy to maintain and extend the capacity
