What is FTTR?
FTTR (Fiber to the Room) is a new type of architecture in PON systems that can provide a real full-house fiber coverage by bringing fiber directly to every room or every apartment in an apartment building.

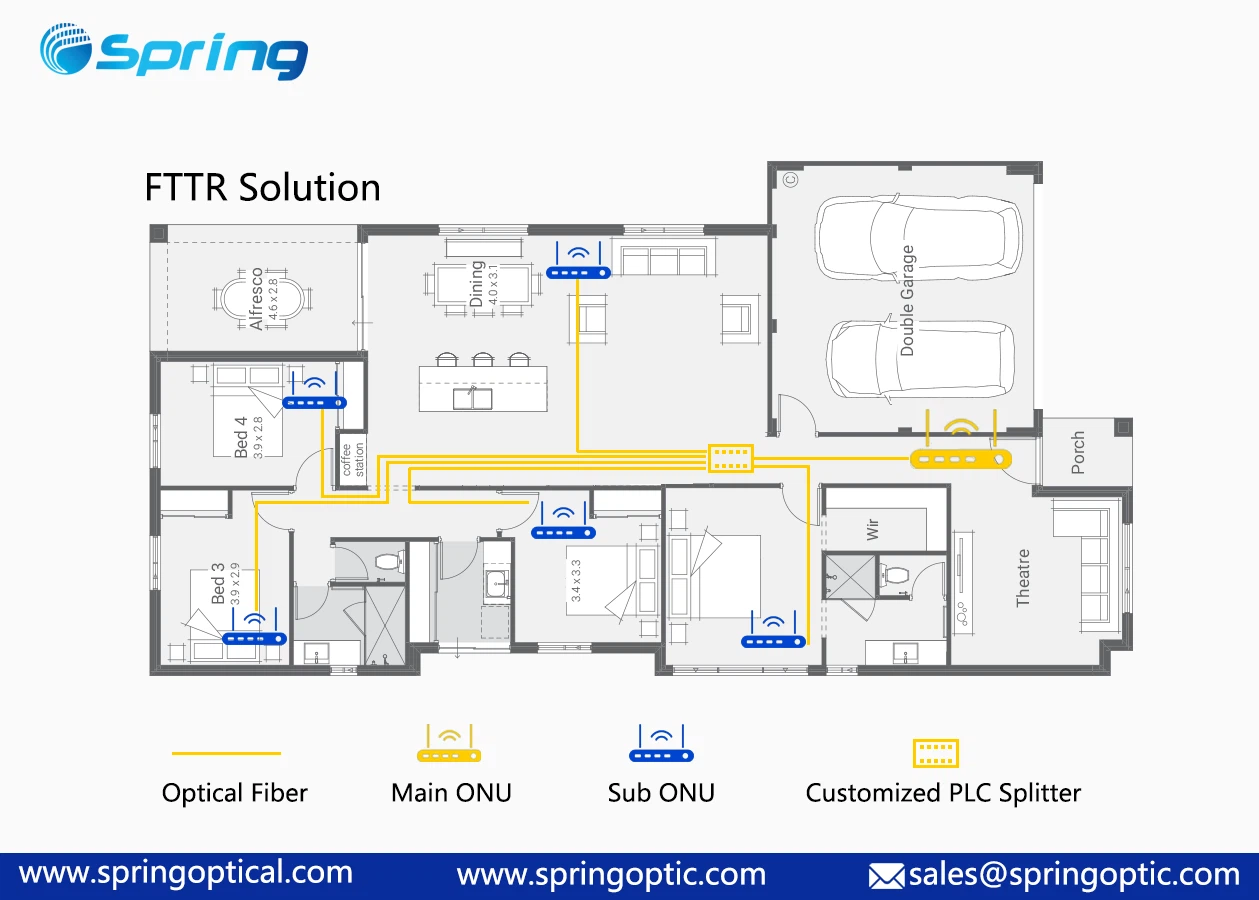

Unlike FTTH (Fiber to the Home), the traditional FTTH solution, FTTR, economically connects a master ONU (Optical Network Unit) with multiple slave ONUs (or extenders) spread across the home. Every room is served by the fiber-based network with wireless and gigabit Ethernet (GE) interfaces. This design Significantly boosts network performance and multitasking of flow-intensive applications such as CDN, VOD streaming, 4K, 8K IPTV, has intelligent flow table management, so it can also bring about a perfect compatibility with today's demanding applications like HD video conferencing, VFIP, cloud desktop, VoIP, projection, smart home system. FTTR is increasingly favoured in premium residences and larger properties.
Why FTTR Is Needed
As 4K/8K streaming, cloud computing, AR/VR, and smart home products continue to see more use, traditional Wi-Fi suffers from a poor wireless signal that cannot maintain the average user's need for speed. FTTR connects fiber to each room, and automatically forms an indoor Mesh network, so as to fully abandon dead angle, wall interference, and signal degradation, to reach the real whole-house gigabit seamless coverage.
According to IDATE's forecast, global FTTR users are expected to reach 22 million households by the end of 2025. As the demand for high-speed, low-latency, full-house coverage networks continues to surge, FTTR is rapidly emerging as the mainstream solution for next-generation home and commercial broadband networks.
Components for the Deployment of FTTR
Core Devices
Master ONU: It is placed in a weak current box or living room and connects with external fiber networks.
Slave ONU (Slave NUN): Released in each room, used for Wi-Fi 6/7, and also offering GE interfaces.
Fiber Transmission Products
Pre-terminated Indoor Optical Fiber: Tailored length, speedy link for ONU and ATB.
Invisible INDOOR Fiber Cable: for exposed installation, ultra-thin and almost invisible.
Hybrid Optical-Electric Cable: Power and fiber combined for simultaneous installation.
Conduit Accessories
Microducts: Guarding indoor or outdoor fiber installs.
Microduct Connecting Couplers: Used to connect microducts.
Microduct Reducer Connectors: Connect 2 microducts of different sizes.
Microduct Sealing Plugs: Avoids dust and moisture in unused microducts.
Fiber Distribution Components
Mini PLC Spliters (1x4/1x8/1x16): Used to distribute optical signals to multiple locations for processing.
Access Terminal Box (ATB): Mounted on the wall of the room for slave ONU access.
Connector Accessories
Mini SC Connectors / Field Installable Connectors: Enables rapid fibre termination in the field.
SC-SC or LC-SC Patch Cords Pre-Terminated: From ONUS to ATBS.
Installation Accessories
Double-sided Tape for Invisible Fiber: This part fixes overmatured exposed fiber cable securely.
Fish Tape: A device used in pulling wires through conduits.
Mini Fiber Distribution Box: Indoor fiber branch management and distribution.
Key Advantages of FTTR
More Area Coverage, No Blind Spot: Distributed slave ONUs with Wi-Fi function increase Wi-Fi coverage by 30% and reduce latency over 30%, so that you have a strong signal in every corner.
Ultra-High-Speed Performance: It can accommodate a bandwidth of up to 10 Gbps and is compatible with Wi-Fi 6/7, capable of delivering hassle-free up to 4K/8K streaming, cloud gaming, and high-res file transfers.
All-fiber Indoor 1+1 Protection and Low Power Consumption: The full-fiber architecture of indoor and low trans-through loss, strong anti-interference, and low power consumption makes indoor networks more efficient and safer for the environment.
Smart Home Ready: This 1x4 Comcast Xfinity cable modem supports smart lighting, security systems, thermostats, garage door openers, door locks, voice assistants, IFTTT, and other IoT devices.
Ultra-low Latency: Direct fiber connection with less than 1ms latency relentlessly redefines the latency for online education, remote work, VR/AR.
Scalable Flexibility: The number of slave ONUs or smart terminals increased is feasible as required for the future IoT and smart devices expand.
Typical Applications of FTTR
Villas, Large Homes: Support up to 7-10 Wi-Fi-enabled devices, so no more fingers crossing for homes with multiple users, kill multiple dead-bonds right away.
Hotels and Condominiums: Provide superior wireless performance without sacrificing the aesthetics of the interior.
Modern Office and Customer Premises Service: Provide high-density access, HD video conferencing, and quick data transmission to dramatically improve business efficiency.
Choose SPRING Optic - Build the Future of Home Networking
As a leading provider of fiber optic communication solutions, SPRING Optic offers a full range of FTTR products and solutions, including pre-terminated fiber cables, invisible fiber cables, PLC splitters, and Access Terminal Boxes. Whether for new installations or upgrades to existing homes, we help you quickly deploy a full-fiber network throughout your property.
