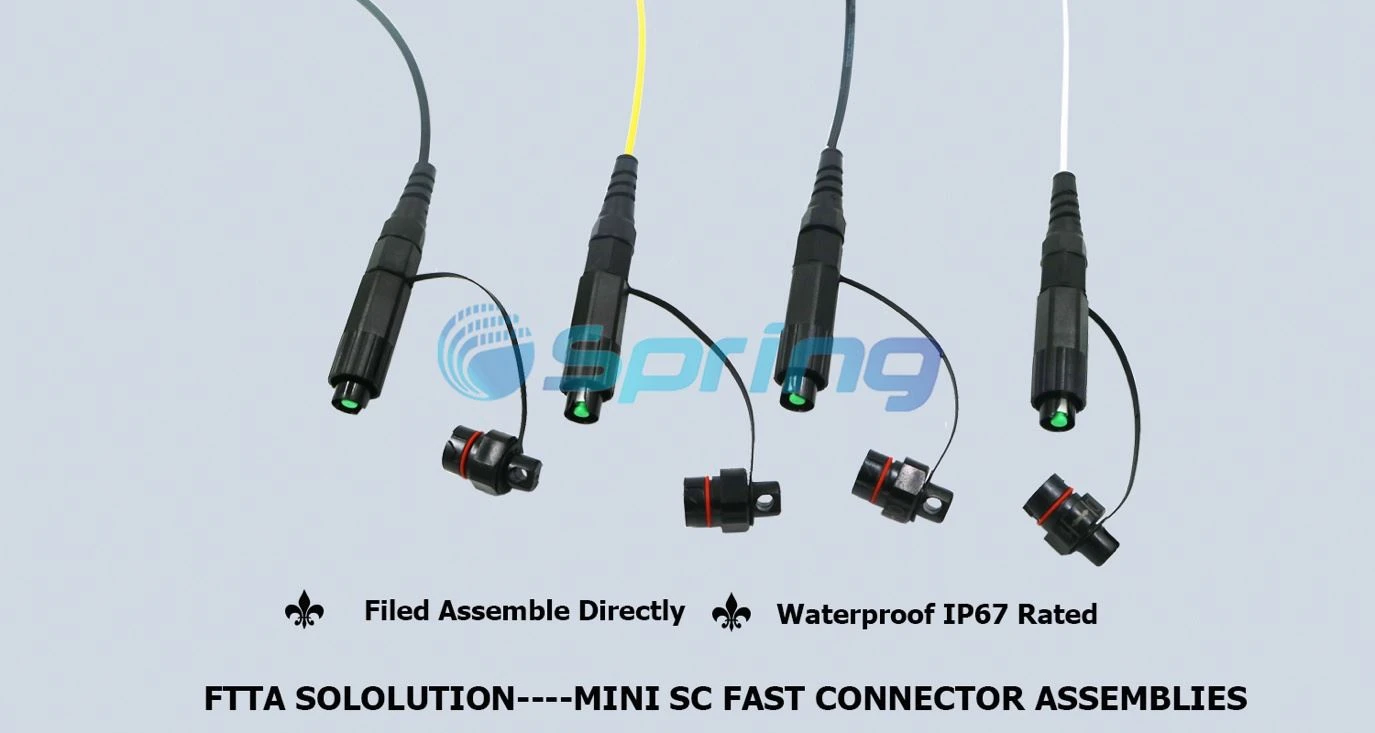

IP67 Mini SC Reinforced Fast Connector Mini SC/APC Quick Connector Filed Assembly Fast Connectors.
Description:
MINI SC Fast Connector is a type of waterproof reinforced connector which can used with 2*3.0mm, 2*5.0mm flat drop cable, round 3.0mm cable, round 5.0mm drop cable. Mini SC Fast Connector is an excellent solution to compatible with Huawei device and do not need terminated the connector in laboratory, it can be filed assembled very easily when the MINI SC connector defected.
Features:
Waterproof IP67 rated.
Suitable for different types cables.
Fast Connect type for filed assembly.
Eliminate need for transmission in Indoor ONT.
Industry standard for existing FTTx Installation.
Rapid connection to external flush-mounted bulkhead adapter to closure or terminals.
Smaller profile and reduced bend-radius.
Robust design keeps connector intact during installation.
Applications:
FTTA Area
Compatible with Huawei Device.
All IP67 waterproof applications
Specifications:
Item | Parameter |
Cable Scope | 2*3.0mm, 2*5.0mm flat drop cable, round 3.0mm cable, round 2.0mm drop cable |
Fiber Diameter | 125μm ( 652 & 657 ) |
Coating Diameter | 250μm |
Mode | SM |
Operation Time | about 30s（exclude fiber presetting) |
Insertion Loss | ≤ 0.3dB（1310nm & 1550nm) |
Return Loss | ≥ 50dB for UPC, ≥ 55dB for APC |
Success Rate | >98% |
Reusable Times | >10 times |
Temperature | -40 ~ +85 C |
On-line Tensile Strength Test (20 N) | IL ≤ 0.3dB |
Mechanical Durability（500 times) | IL ≤ 0.3dB |
Drop Test（4m concrete floor, once each direction, three times total) | IL ≤ 0.3dB |
