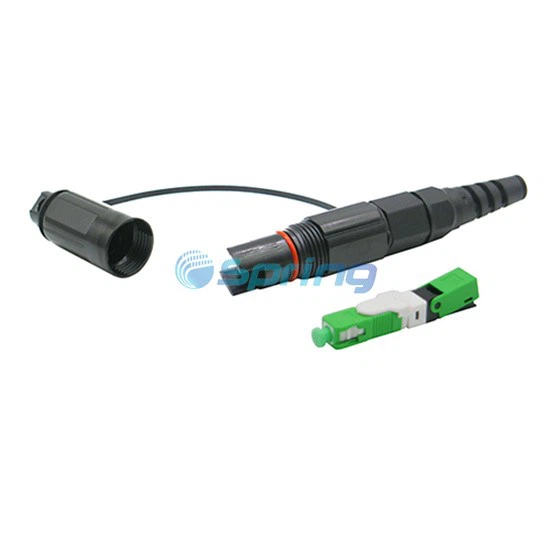

Field Assembly Optical Connector Fast Connectors for round and flat drop cables, Compatible with ESC250D/APC, Sumitomo, Fujikura, and Furukawa fast connectors.
Description of Field Assembly Optical Connector Fast Connectors
Field Assembly Optical Connector Fast Connectors is a type of waterproof reinforced connector.
With a 925T fast connector, it can be used with 2×3.0mm, 2×5.0mm flat drop cable, round 3.0mm cable, and round 5.0mm drop cable.
With 608 fast connectors, it can be used with 2.0×3.0 mm and 2.0×5.0mm flat drop cables.
The Fast Connector is an excellent solution compatible with the Hardened Connector and does not need to be terminated in the laboratory. It can be easily field-assembled when the original connector is defective.
Features of Field Assembly Optical Connector Fast Connectors
Compact size, easy to operate, and durable.
Easy connection to Hardened adapters on terminals or closures.
Reduce welding, and connect directly to achieve interconnection.
Spiral clamping mechanism ensures a long-term, reliable connection.
The guide mechanism allows blind mating with one hand - simple, quick, and secure.
Accepts 2.0x3.0mm, 3.0mm, and 5.0mm cable diameters. Factory or field installation allows flexibility for pre-terminated or field-installed assemblies.
Applications of Field Assembly Optical Connector Fast Connectors
1. Fiber optic communications in harsh outdoor environments.
2. Outdoor communications equipment connection.
3. Waterproof fiber equipment SC port.
4. Remote wireless base station.
5. FTTX wiring projects.
IP67 Hardened Reinforced Fiber Fast Connectors (608) connected with FTTH Flat Drop Cables.
IP67 Reinforced Fiber Fast Connectors (925T) Connected with Outdoor 5.0mm Cable.
More related Products:
Hot Tags: field assembly optical connector, fast connectors
Specifications of Field Assembly Optical Connector Fast Connectors
|
Item |
Parameter |
|
925T Fast Connector suits for Cable Scope |
2*3.0mm, 2*5.0mm flat drop cable, round 3.0mm cable, round 2.0mm drop cable |
|
608 fast Connector suit for Cable Scope |
2.0*3.0mm, 2.0*5.0mm flat drop cable |
|
Fiber Diameter |
125μm ( 652 & 657 ) |
|
Coating Diameter |
250μm |
|
Mode |
SM |
|
Operation Time |
about 30s(exclude fiber presetting) |
|
Insertion Loss |
≤ 0.3dB(1310nm & 1550nm) |
|
Return Loss |
≥ 50dB for UPC, ≥ 55dB for APC |
|
Success Rate |
>98% |
|
Reusable Times |
>10 times |
|
Temperature |
-40 ~ +85 C |
|
Online Tensile Strength Test (20 N) |
IL ≤ 0.3dB |
|
Mechanical Durability(500 times) |
IL ≤ 0.3dB |
|
Drop Test(4m concrete floor, once each direction, three times total) |
IL ≤ 0.3dB |
