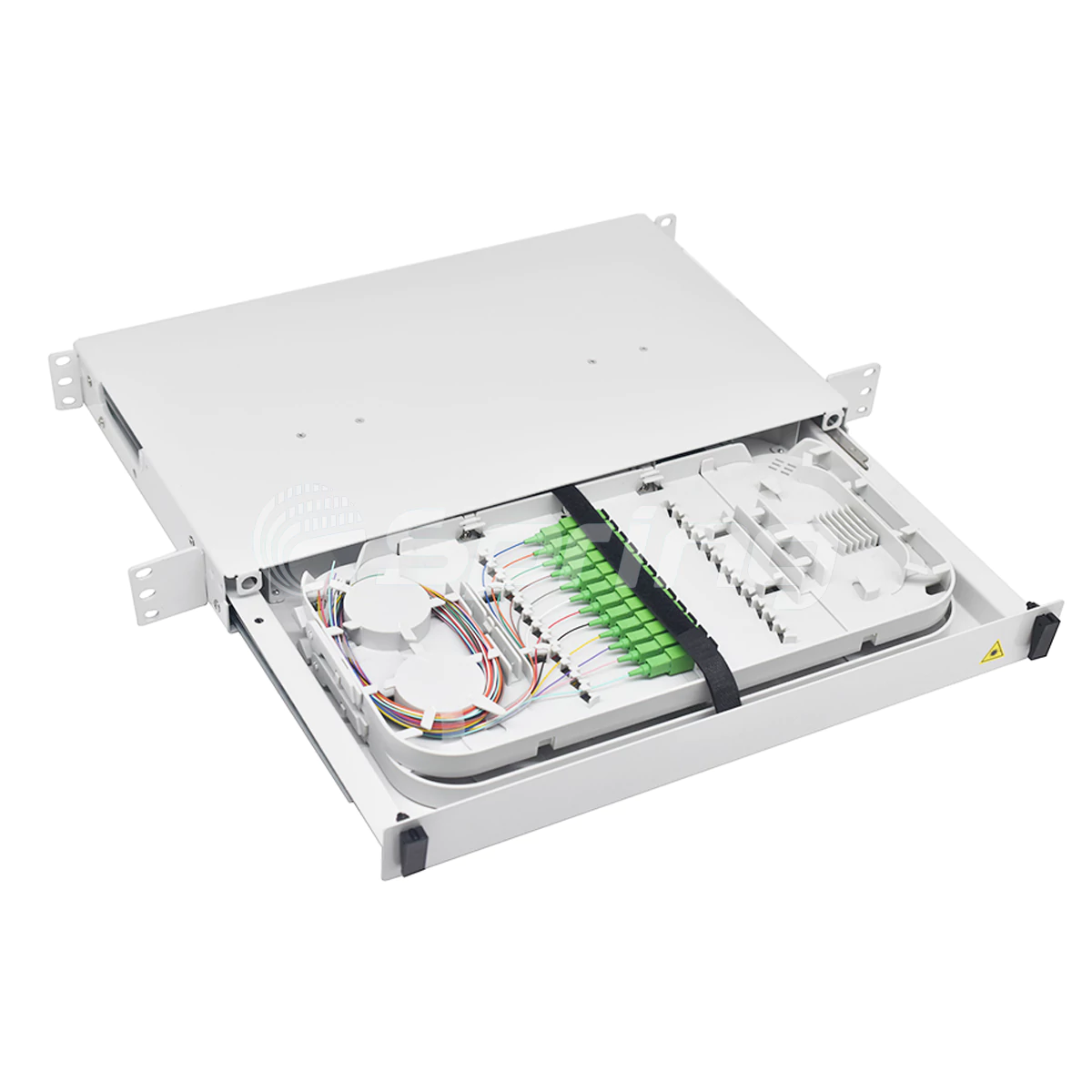

Product Description – Sliding Fiber Optic Patch Panel
The Spring Optical Sliding Fiber Optic Patch Panel (SP-ODF-RS Series) is a modularized high plus fiber management solution for fiber termination, splicing and patching in telecommunication, FTTH and data center applications.
Available in 1U, 2U, 3U or 4U size, various models of this sliding fiber optic patch panel accommodate up to 96 fibers units. All units are metal manufactured from cold-rolled steel or other alloys of aluminum treated with an electrostatic applied powder coatings, providing long range durability, corrosion resistance and thermal stability under demanding conditions.
Represents in total the required engineered plus easy to manage interface for the optical distribution plus cross connections which are to used all are full extent in compliance with the required IEC plus Telcordia international design standards.
Requisite & Important Design Features for Sliding Fiber Optic Patch Panel
Precision Metal Structure: Produced exclusively with premium cold-rolled steel and electrostatically powder coated for the anti-corrosive and long lasting service life to be achieved.
Hinged Front Access Door: A flip-type door with an elastic latch enables rapid and safe front side maintenance.
Smooth Sliding Tray System: The sliding pull-out type tray unit has side locks of stainless steel plus rear restraint belt to avoid structural over extension during movement and operation while in use.
Modular Fiber Management Components: Which includes splice tray plastic units, fiber directing modules and adapter panels easily removable and interchangeable are included.
Stackable Splice Tray Bracket: The trays are retained plus mounted on stepped bracket structure stacked by U-height providing the versatile plus flexible unit scalability required.
Improved Fiber Protection: The horn-shaped cable exits on either side reduce the flexural stress, and serve to protect the patch cords and pigtails potentially involved.
Universal Compatibility to Racks: Fit both 19" – and 21" ETSI/EIA racks, making it ideally suited for the telecommunications ODF cabinets, Data Centers and FTTH hubs.
Applications of the Sliding Patch Panel
This sliding patch panel has applications in respect of several network environments requiring efficient and high density optical connectivity, such as:
FTTH/FTTx distribution cabinets and local subscriber access networks
Central offices and Telecommunications switching centres
Data centres and server rooms with structured optical cabling
CATV installations and broadband access networks
Optical cross-connect points and terminations to active devices
The demands placed on these applications are for reliable fibre organization, uncomplicated maintainability, and mechanical protection - all these are provided in the SP-ODF-RS series.
Technical Specifications - Sliding Patch Panel
|
Model |
Length (mm) |
Depth (mm) |
Height (U) |
Splice Trays |
Fibre Capacity (cores) |
Ports Adaptor |
|
SP-ODF-RS-0124 |
440 |
277 |
1U |
2 |
24 |
24 |
|
SP-ODF-RS-0248 |
440 |
277 |
2U |
4 |
48 |
48 |
|
SP-ODF-RS-0372 |
440 |
277 |
3U |
6 |
72 |
72 |
|
SP-ODF-RS-0496 |
440 |
277 |
4U |
8 |
96 |
96 |
Material: Cold rolled steel/ aluminum alloy
Treatment of Surface: Coated with electrostatically applied powder coat
Type of Mounting: 19"/21" rack mount
Operation Temperature: −40 °C ~ +70 °C
Humidity: less than/equal to 95% (non-condensing)
Optical and Mechanical Performance Parameters
|
Parameter |
Typical Value |
Standard Reference |
|
Insertion Loss |
≤ 0.3 dB (SC/APC) |
IEC 61300 / GR-326 |
|
Return Loss |
≥ 60 dB (APC) |
GR-326 |
|
Durability |
≥ 500 mating cycles |
IEC 61753-1 |
|
Cable Retention |
≥ 100 N |
GR-20 |
|
Protection Class |
IP20 (standard) / Optionally IP65 |
IEC 60529 |
Each Sliding Fiber Optic Patch Panel is manufactured to meet the optical stability and environmental reliability requirements specified in the Telcordia GR-326 and IEC 61753 performance criteria.
Internal Routing Options
Break-out Cable IN → Patch Cord OUT
PLC Splitter IN → Patch Cord OUT
Patch Cord IN → Patch Cord OUT
Each of the routing options ensures a ≥ 30 mm fibre bend radius and clean organisation of trunks to enable low loss and long term optical stability.
Product Configuration and Components
Metal pull out tray with sliding rails
Front hinged metal cover with elastic latch
Plastic splice tray and cable management module
Adapter panel (12 × FC simplex / 12 × SC simplex / LC duplex)
Stainless steel limit buckles and back restrain strap
Velcro cable ties, plastic supports and 19"/21" mounting ears
Packaging and Accessories
|
Model |
Carton Size (mm) |
Gross Weight (kg) |
|
SP-ODF-RS-0124 |
475 × 320 × 65 |
5.0 |
|
SP-ODF-RS-0248 |
585 × 325 × 130 |
8.0 |
|
SP-ODF-RS-0372 |
585 × 325 × 175 |
9.5 |
|
SP-ODF-RS-0496 |
585 × 325 × 220 |
11.0 |
Accessories Provided: Splice trays, heat-shrink sleeves, clamps, screws, Velcro ties and installation manual.
Certification and Compliance
IEC 61753 / IEC 61300 - Optical interconnect performance and reliability
Telcordia GR-326 / GR-20 - Connector and cable mechanical standards
TIA/EIA-568 / ISO/IEC 11801 - Structured cabling compliance
RoHS / REACH - Environmental and safety compliance
Advantages of Spring Optical Sliding Fiber Optic Patch Panel
Low optical loss and excellent mechanical protection
Quick to install and easy to maintain with sliding tray access
Customisable configurations for SC/LC/FC/ST or MPO systems
Compact and durable in design for high density environments
Globally certificated performance for North America, Europe, South America and Africa
