Springoptic's Slidable fiber patch panel can applied in branch connection of optical cable termination;19"standard structure,sliding design,rack mounted;Suitable for FC,SC,ST,LC Adapters.GPZ/SP-CLC type Patch Panel is one of most popular design for customer ,it is hot sell in Europe Market .

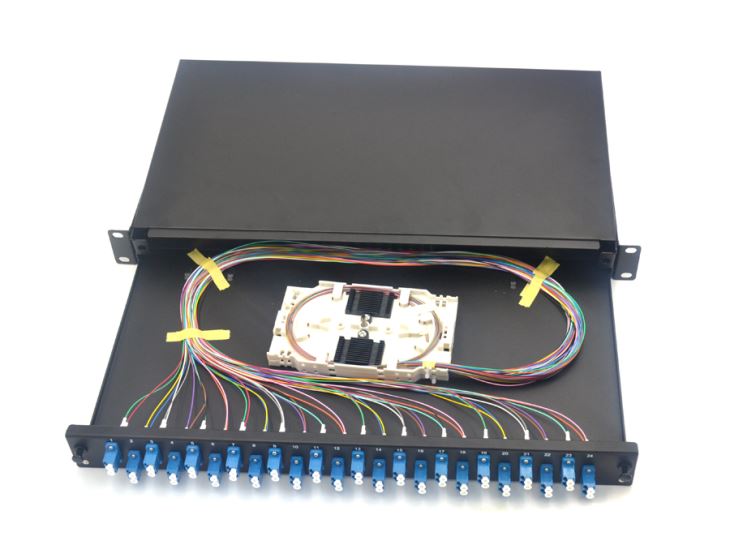

More details for GPZ/SP-CLC 24Core Patch Panel with LC Duplex Adapter and pigtails:
19" ODF for max. 24 x LCd adaptors
size: 19" x 1U x 245mm depth
Material: Aluminum
Color: RAL 9005 BLACK
Assembled with:
24 x LCd-LCd adaptors SM plastic BLUE (screwed)
48 x Pigtails LC/UPC 9µm 2m length (4x 12 diff. colors)
02 x Splice-cassette
04 x Crimp-Splice holders
01 x Cover for Splice cassette
Size for GPZ/SP-CLC with 24core LC Duplex Adapter Port:
Features:
A. The box is of unique structure, reasonable layout, and has adequate room for operation
B. Adjustable clamp seal ring and reinforce configuration, which could adjust different sizes of cables flexibly to make sure the cables are clamp tightly
C. Can be installed with LC adapter
D. Up to 12 cores splice capacity
E. Sliding design
F. Aluminummaterials more light weight,can save freight for customers
G. Can install the pigtails and adapters more easily.
Type | Size(mm) | Max Capacity | Outer carton dimension | Outer carton weight |
GPZ/SP-CL-1U | 430*300*1U | 48 | 485*420*350/5pcs | 27.5/5pcs |
GPZ/SP-CL-2U | 430*300*2U | 96 | 500*355*550/4pcs | 26.3/4pcs |
GPZ/SP-CL-4U | 430*300*4U | 192 | 500*350*540/1pcs | 18.9/1pc |
GPZ/SP-CLA-1U | 430*250*1U | 48 | 485*305*425/4pcs | 20/4pcs |
GPZ/SP-CLB | 450*320*445 | 96 | 485*420*350/4pcs | 20/4pcs |
GPZ/SP-CLC | 440*245*4.4 | 48 | 500*350*400 | 12.8/5PCS |
Here are some type sliding patch panel for you choose:
