Spring Optical Communication is one of the largest and best fiber optic pedestal sp-pd-141446 manufacturers and suppliers with rich experience. Welcome to buy our high quality products or wholesale our customized fiber optic pedestal sp-pd-141446 in stock with our factory. Also, free sample is also available if necessary.
Product Overview
The SP-PD-141446 Fiber Optic Pedestal from Spring Optical is a high-capacity outdoor enclosure designed for FTTH and FTTx fiber distribution networks.
It provides secure protection, splicing, and termination of optical fibers in outside plant (OSP) environments. Built with UV-resistant HDPE and compliant with ROHS standards, it ensures long-term durability and environmental safety.
The pedestal supports flexible configurations including field splicing, MST integration, and fiber drop distribution systems, making it suitable for telecom operators, ISPs, and broadband infrastructure deployments.
Key Features
Environmental Protection
UV-resistant HDPE housing (1000h UV resistance)
IP54-rated protection against dust and water ingress
Resistant to impact, corrosion, and outdoor environmental stress
High Fiber Capacity
Supports up to 144 fibers
Maximum 6 splice trays
Optimized internal fiber routing and separation design
Modular Internal Structure
Independent fiber splicing area
Dedicated routing and adapter zones
Mechanical sealing structure for field reliability
Network Compatibility
Compatible with:
Fiber splice closures
MST terminals
Fiber drop closures
PLC splitters
FTTH distribution components
Maintenance-Friendly Design
Upper and lower split structure
Hex lock security system
Dual-side operation after opening
Product Variants

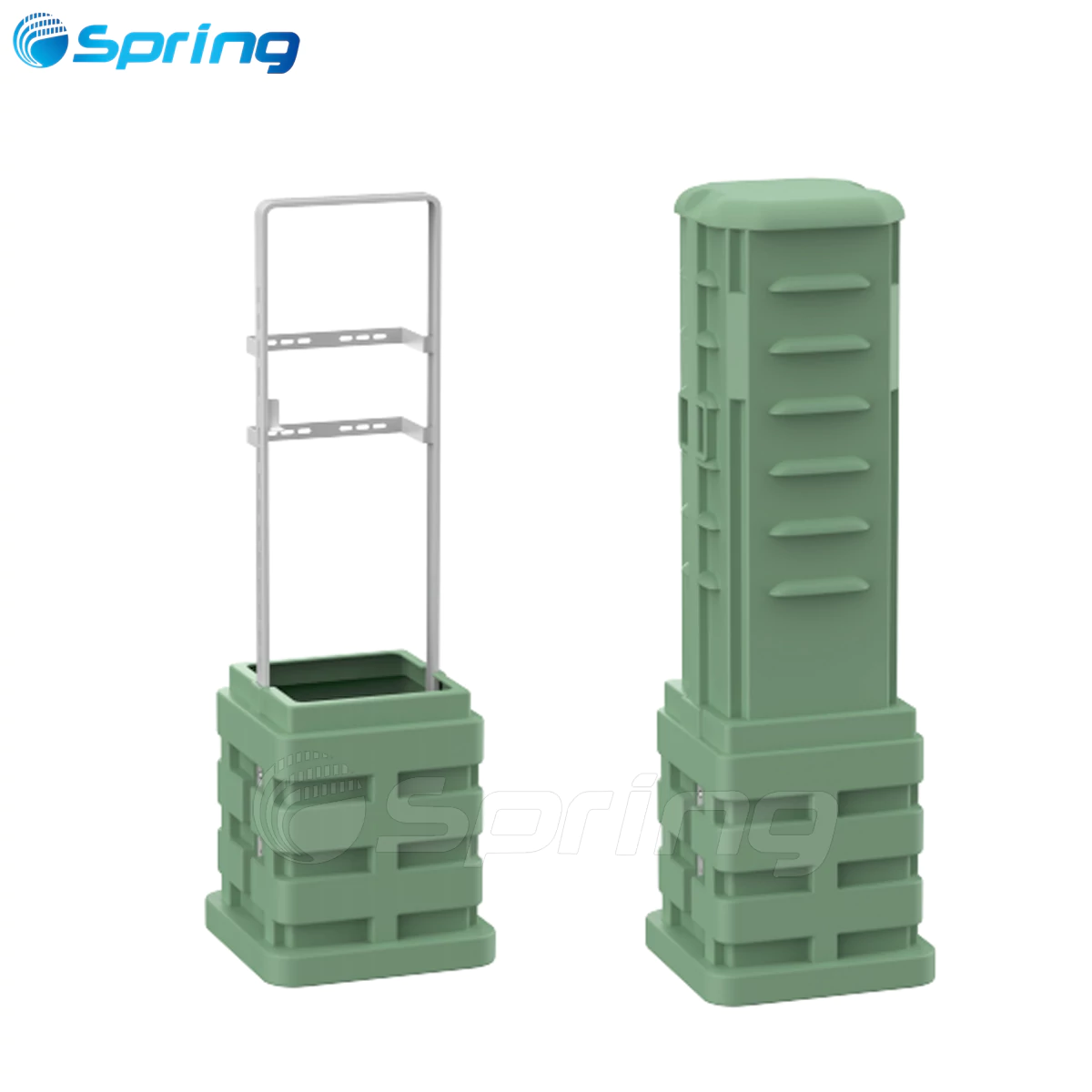

SP-PD-141446 (Generic Model)
Equipped with two adjustable mounting bars for flexible installation of fiber equipment.
SP-PD-141446-A (Model A – Field Splicing Version)
Designed for field fiber splicing applications.
Supports up to 6 splice trays
Up to 144 fiber capacity
Integrated strength member support
Reduced installation labor requirements

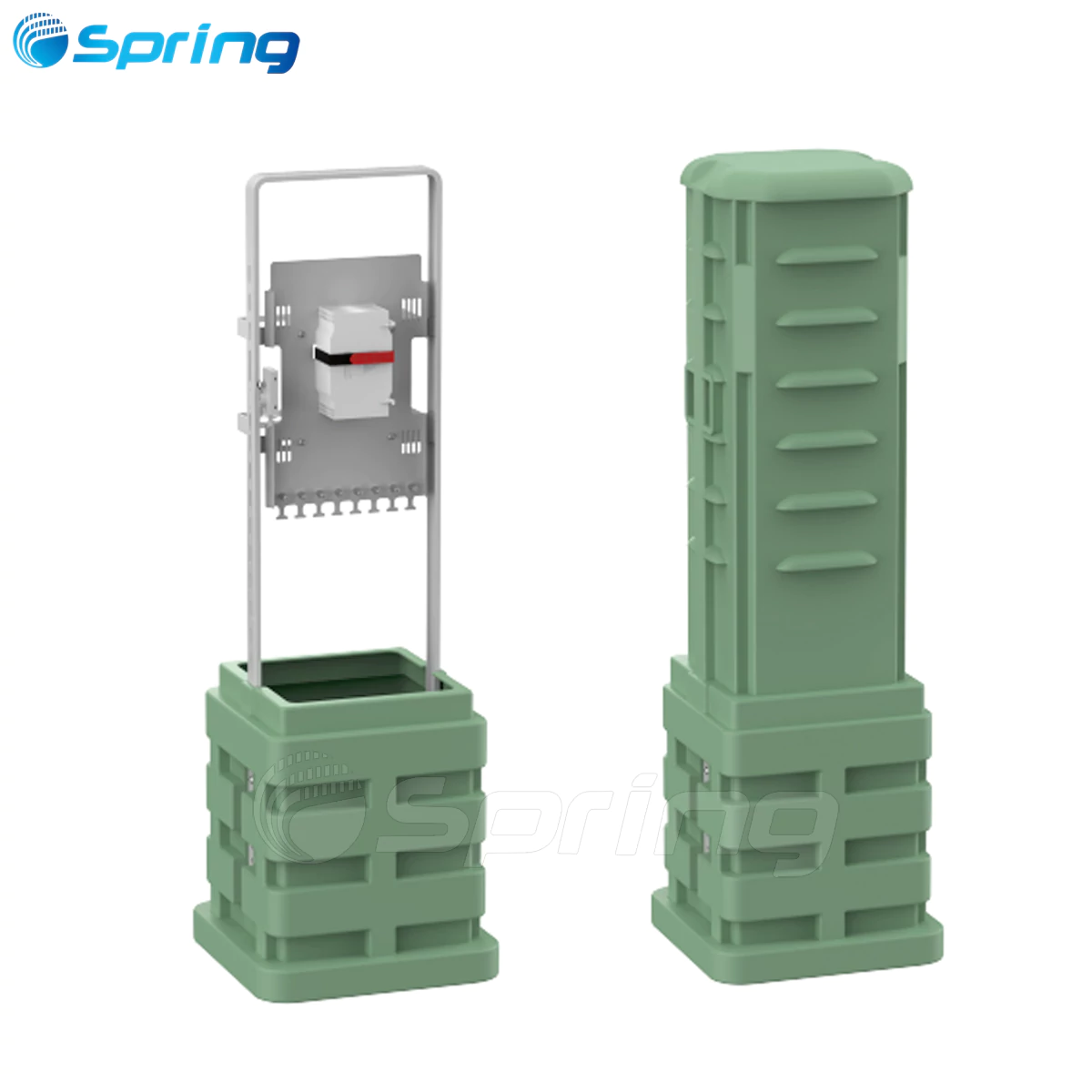

SP-PD-141446-B (Model B – MST Integrated)
Pre-installed Multiport Service Terminal (MST) for FTTH networks.
Compatible with MINI IP SC adapters
Designed for FTTH access deployment
Factory-integrated for fast installation
SP-PD-141446-C (Model C – Drop Closure Version)
Integrated fiber drop closure for last-mile FTTH connections.
16 drop ports for subscriber connections
Branch and pass-through cable support
Ideal for distribution network deployment
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | SP-PD-141446 |
| Material | UV-resistant HDPE |
| Protection Rating | IP54 |
| Fiber Capacity | Up to 144 fibers |
| Splice Tray Capacity | Max 6 trays |
| Installation Type | Ground-mounted |
| External Dimensions | 370 × 370 × 1190 mm |
| Operating Temperature | -40°C to +65°C |
| Storage Temperature | -40°C to +70°C |
| Humidity | ≤93% (+40°C) |
| Standard | ROHS compliant |
Operating Environment
Working temperature: -40°C to +65°C
Storage temperature: -40°C to +70°C
Relative humidity: ≤93% (+40°C)
Atmospheric pressure: 70–106 KPa
Installation: Outdoor ground-mounted
Application Scenarios
FTTH (Fiber to the Home) networks
FTTx access networks
Telecom outside plant (OSP) infrastructure
Broadband ISP networks
Data communication systems
Campus fiber networks
Smart city infrastructure
Utility communication networks
Key Benefits
High-density fiber management up to 144 fibers
Strong environmental protection for outdoor deployment
Modular design for multiple FTTH architectures
Reduced installation and maintenance cost
Flexible integration with MST and drop systems
Long service life for telecom infrastructure
Installation & Packaging
Installation Features
Ground-mounted installation
Mechanical sealing system
Hex lock secure access
Independent fiber routing zones
Packaging Information
Weight: 5.6–6.0 kg
Carton size: 390 × 390 × 1220 mm
Pallet size: 1200 × 800 × 1200 mm (6 units)
Export-grade protective packaging
Ordering Information
| Part Number | Description |
|---|---|
| SP-PD-141446 | Fiber Optic Pedestal standard model |
| SP-PD-141446-A | Field splicing version |
| SP-PD-141446-B | MST pre-installed version |
| SP-PD-141446-C | Fiber drop closure integrated version |
FAQ
What is a Fiber Optic Pedestal used for?
A Fiber Optic Pedestal is used to protect and distribute fiber optic cables in FTTH and FTTx networks.
How many fibers does SP-PD-141446 support?
It supports up to 144 fibers with 6 splice trays.
What protection rating does it have?
It has an IP54 protection rating for outdoor environments.
What material is used?
It is made of UV-resistant HDPE for long-term durability.
What are the available models?
Model A is for field splicing, Model B includes MST, and Model C includes fiber drop closure integration.
Is it suitable for FTTH networks?
Yes, it is designed for FTTH and FTTx access networks.
What is the installation type?
It is designed for ground-mounted outdoor installation.
