Product Overview
The SP-PD-131126 Outdoor Fiber Optic Pedestal from Spring Optical is a high-reliability enclosure designed for FTTH and FTTx outdoor fiber distribution networks.
It provides secure protection, splicing, and termination of fiber optic cables in outside plant (OSP) environments. Built with UV-resistant HDPE material and designed to meet GR-13 standards, it ensures long-term durability under harsh environmental conditions.
The pedestal supports flexible configurations including field splicing, MST integration, and FSC-based last-mile distribution, making it suitable for telecom operators, ISPs, and broadband infrastructure deployments.
Key Features
Outdoor Protection Design
UV-resistant HDPE housing (1000h UV resistance)
IP54-rated protection against dust and water ingress
Resistant to impact, insects, fire exposure, and moisture
High Fiber Capacity
Supports up to 144 fibers
Maximum 6 splice trays
Optimized internal fiber routing structure
Modular FTTH Architecture
Compatible with:
Fiber splice closures
MST terminals
FSC drop systems
PLC splitters
Hardened connectors
Efficient Installation Design
Separate fiber splicing and cable routing zones
Integrated strain relief system
Mechanical sealing structure for fast deployment
Flexible Mounting
Above-ground vault or pad installation
Optional grounding lug
Optional 300mm anchor stake
Product Variants

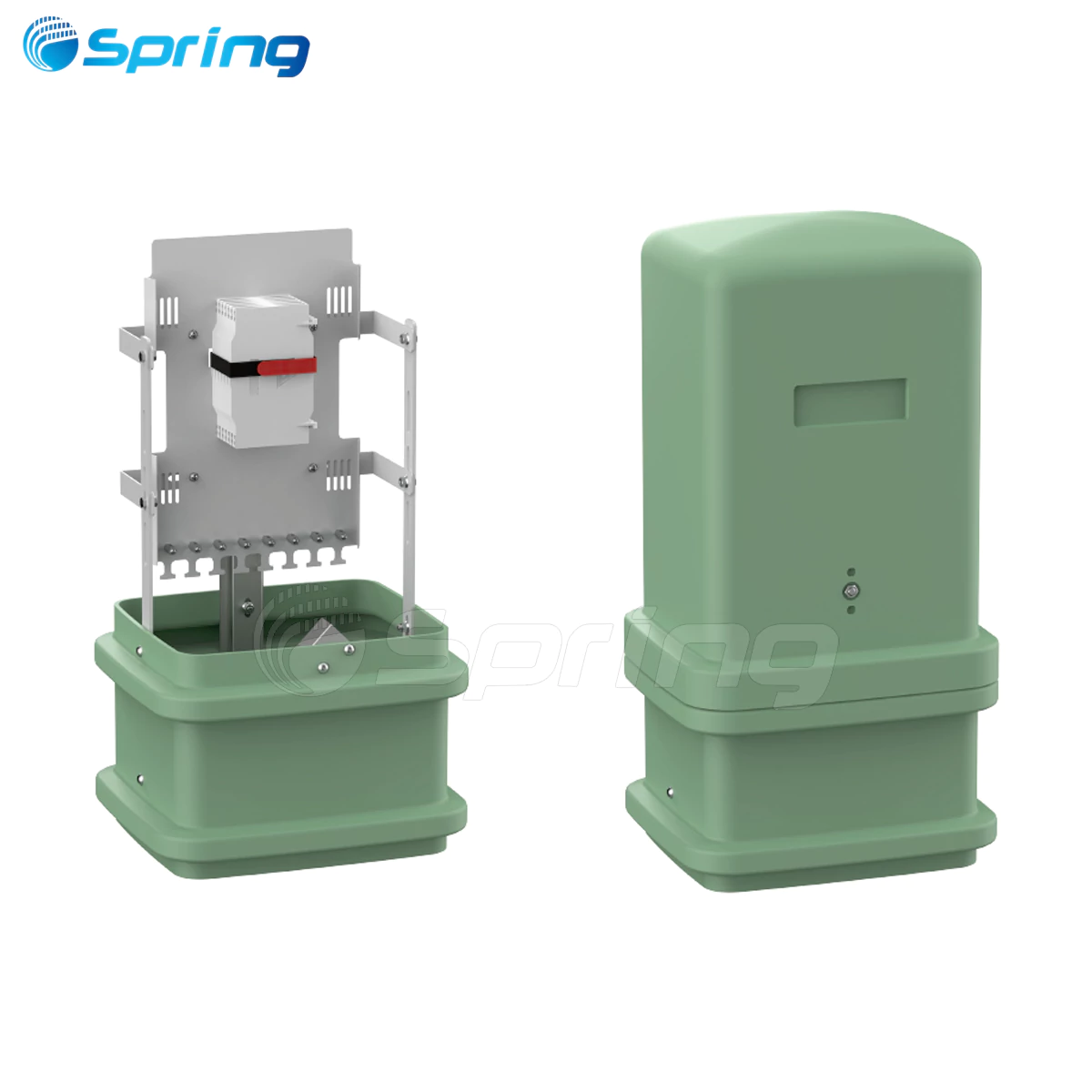

SP-PD-131126 (Standard Model)
Outdoor fiber optic pedestal with metal mounting frame and hex lock. Designed for general FTTH and FTTx distribution networks.

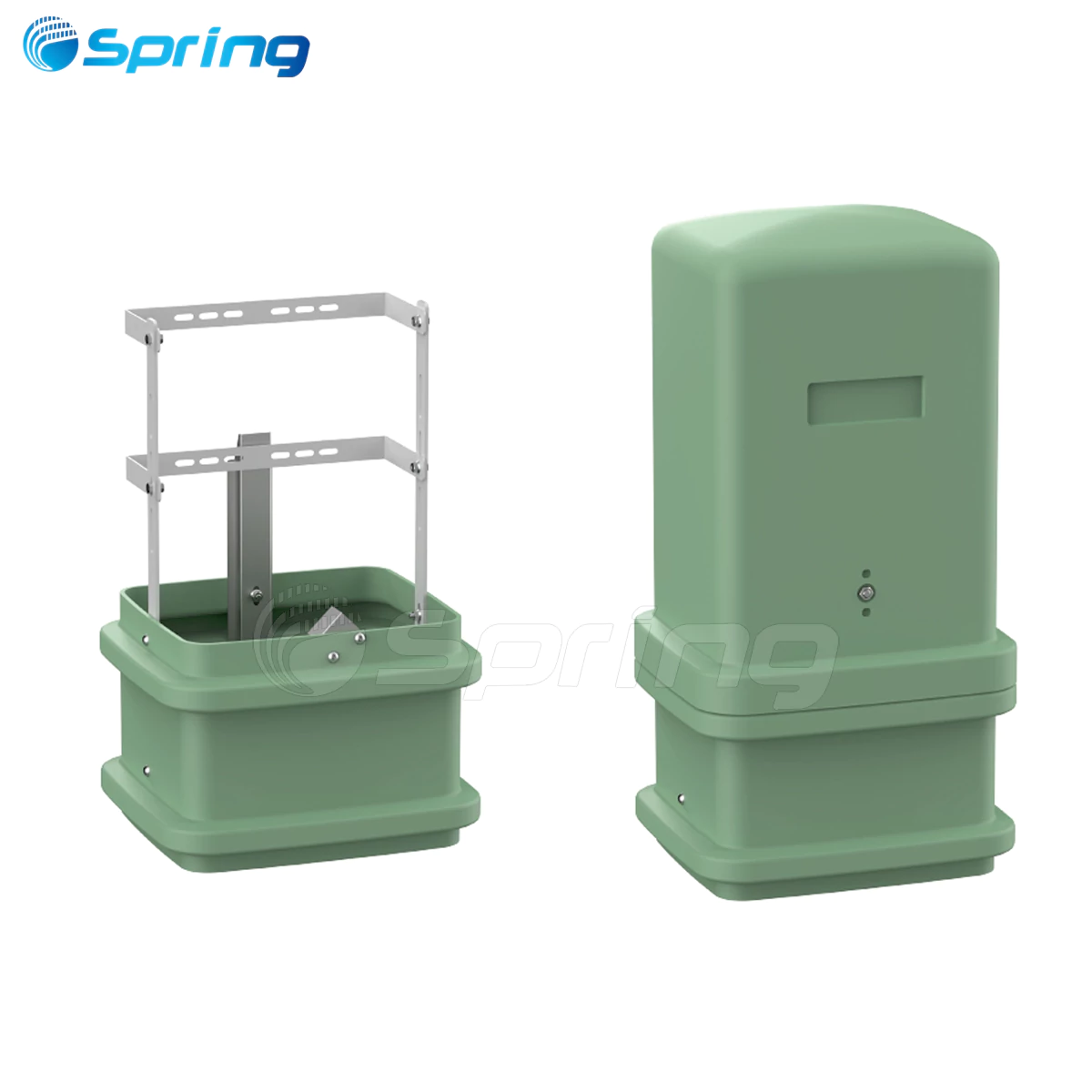

SP-PD-131126-A (Empty Version)
Empty enclosure with internal mounting bracket only. Used for customized field installation.
SP-PD-131126-B (MST Pre-installed Version)
Integrated Multiport Service Terminal (MST) for FTTH last-mile connectivity.
Up to 10 hardened adapters
IP68 sealed structure
Operating temperature: -45°C to +85°C
Factory pre-terminated for reduced field labor
SP-PD-131126-C (FSC Pre-installed Version)
Integrated Fiber Splice Closure (FSC) for fiber drop distribution.
16 drop ports
96-fiber splice capacity
Supports up to 4 × 1x8 PLC splitters
IP68 protection rating
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | SP-PD-131126 |
| Material | UV-resistant HDPE |
| Protection Rating | IP54 |
| Fiber Capacity | Up to 144 fibers |
| Splice Tray Capacity | 6 trays (max) |
| Color | Green |
| Installation Type | Above-ground (vault/pad) |
| Operating Temperature | -40°C to +65°C |
| Storage Temperature | -40°C to +70°C |
| Standard | GR-13 compliant |
Applications
FTTH (Fiber to the Home)
FTTx access networks
Telecom outside plant (OSP)
Broadband ISP networks
Residential fiber distribution
Campus networks
Smart city infrastructure
Utility communication systems
Key Benefits
- Fast FTTH deployment with pre-terminated options
- Reduced installation labor cost
- High-density fiber management up to 144 fibers
- Reliable outdoor environmental protection
- Flexible architecture (splicing / MST / FSC)
- Long service life for OSP networks
- Lower maintenance cost
Installation Accessories
- 300mm anchor stake (ground mounting option)
- Optional grounding kit
- Customizable lock systems
Ordering Information
| Part Number | Description |
|---|---|
| SP-PD-131126 | Outdoor fiber optic pedestal with metal mounting frame |
| SP-PD-131126-A | Empty pedestal with mounting bracket only |
| SP-PD-131126-B | MST pre-installed FTTH pedestal |
| SP-PD-131126-C | FSC pre-installed fiber distribution pedestal |
FAQ
What is an outdoor fiber optic pedestal?
An outdoor fiber optic pedestal is an enclosure used to protect and distribute fiber optic cables in FTTH and FTTx networks.
What is SP-PD-131126 used for?
It is used for outdoor fiber splicing, termination, and distribution in FTTH access networks.
How many fibers does it support?
It supports up to 144 fibers with 6 splice trays.
What protection rating does it have?
It has an IP54 protection rating for outdoor environments.
What material is used?
It is made of UV-resistant HDPE for long-term outdoor durability.
What are Model A, B, and C?
Model A is for field splicing, Model B includes MST terminal for FTTH, and Model C includes FSC for fiber drop distribution.
Is it suitable for FTTH networks?
Yes, it is designed for FTTH and FTTx access networks.
What is the operating temperature range?
It operates from -40°C to +65°C.
