What is a Pre-connectorized ODN?
A Pre-connectorized Optical Distribution Network (ODN) is a next-generation fiber optic deployment model designed to eliminate on-site fiber splicing by leveraging factory-assembled, ready-to-use fiber cables and distribution boxes. The entire system supports plug-and-play architecture, allowing rapid deployment of fiber infrastructure from the central office all the way to the subscriber's premise.
Pre-connectorized ODNs are especially suited for FTTH (Fiber to the Home) projects, enabling: Shorter installation time, Fewer skilled technicians, Lower labor and maintenance costs , Minimal field failures due to factory-tested terminations
Challenges in Traditional ODN Deployments
Despite widespread use, traditional ODN systems present multiple limitations:
High Failure Rate in Field Connections
Manual splicing and frequent exposure of connectors during installation or maintenance can lead to contamination, misalignment, and UV/moisture-induced degradation, increasing signal loss and downtime.
Low Deployment Efficiency
Conventional field splicing involves multiple fusion joints per fiber drop, making the process labor-intensive, slow, and error-prone. Parallel deployment is difficult.
High Technical Requirements
Fusion splicing demands expensive equipment and certified personnel. This adds training costs, complicates workforce management, and slows down large-scale rollouts.
Key Technologies in Pre-connectorized ODN
Factory Pre-terminated Fiber Cables
All drop and feeder cables are pre-assembled with SC/APC connectors in a controlled environment. This guarantees insertion loss ≤0.3dB and return loss ≥60dB. Common outer jackets are LSZH or HDPE, and connector ends include:
Waterproof Mini-SC (IP68)
Hardened SC/APC
MPO/MTP (up to 12 fibers)
Cable diameter options: 2.0mm, 2.0×3.0mm, 2.0×5.0mm, 4.0×7.0mm, flat drop, or round OSP cables. OEM customization is supported.

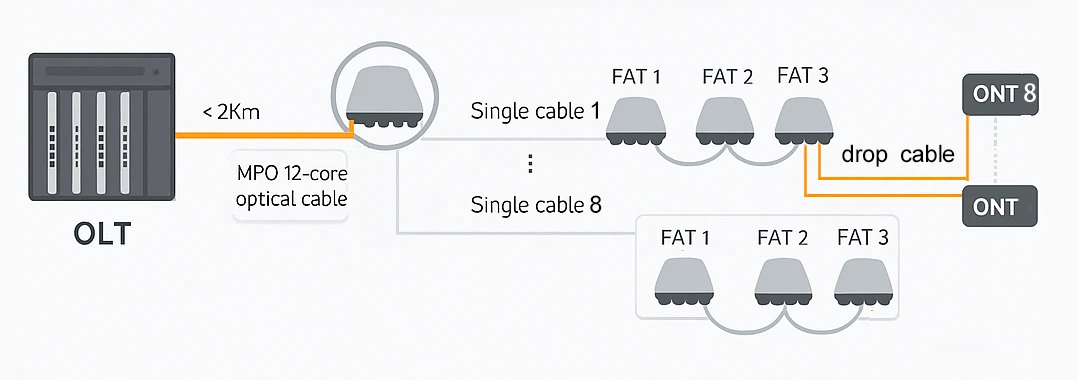

Unequal Ratio Splitters
Asymmetrical 1x2 splitters (e.g., 70/30) enable cascaded or tree-style topologies, simplifying the use of single-fiber links instead of bundles. These help extend ODN reach and minimize cabling bulk.
Fully Sealed Protection
All connectorized products meet IP67/IP68 standards, ensuring resistance against UV, dust, water, acid/alkali, and extreme temperatures. Durable housings and sealing rings ensure reliable operation in outdoor environments.
Core Products from SPRING Optical for Pre-connectorized ODN
SPRING offers a comprehensive range of Huawei-compatible pre-connectorized ODN components that support fast FTTH network construction:
Mini SC Pre-connectorized Patchcords
Product Names:
Mini SC Fastconnect 2.0×5.0mm
Bayonet-Type SC/APC Patch Cable
Gray/Black IP67 Mini SC Patch Cord
FTTA Drop Cable with Blue Strip Line
Key Features:
IP67/IP68 waterproof Mini SC design
Built-in SC/APC core, compact and robust
Outer jacket: LSZH or HDPE, flat or round
OEM lengths (50–500m), low insertion loss ≤0.3dB
Ideal for ONT termination or quick patching

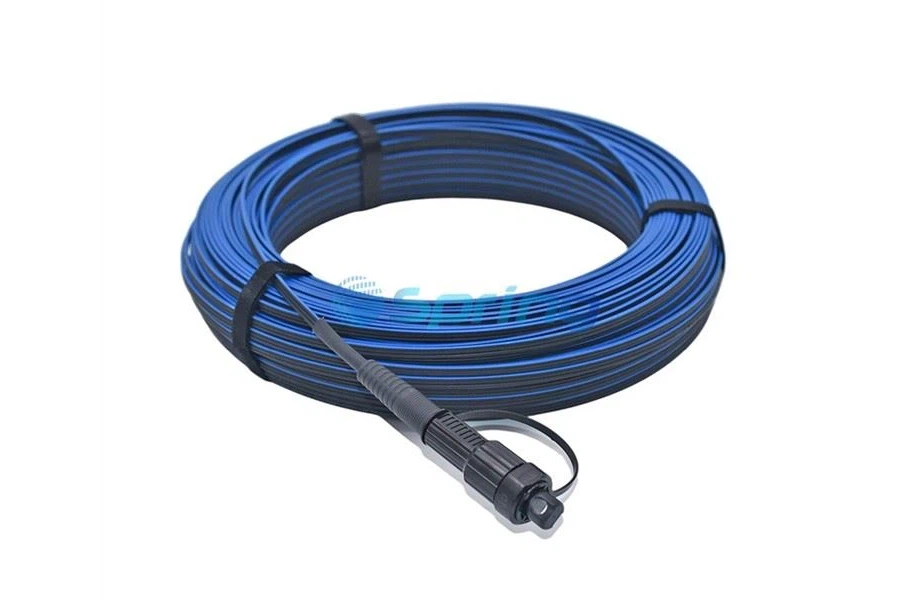

Hardened Connector Drop Cables
Products Include:
Reel-in-a-box Precon Drop Cable
MINI SC Hardened SST Flat Dielectric Cable
IP67 Drop Cable with Blue Strip Line
Applications:
Direct outdoor burial, aerial, conduit
Plug-and-play with Precon FAT or CTO box
Compatible with Huawei ODN systems
MPO/MTP Fastconnect Distribution Cables
Types Available:
Outdoor Precon Patch Cable with MINI MPO/MTP
Fastconnect MPO Breakout Assemblies
Configurations:
1x12 MPO Female → MPO Bullet Head / 12xLC / 12xSC
With pulling-eye design for quick duct deployment
Supports trunk-to-terminal cabling
Pre-connectorized Terminal Box With HUAWEI Hardened adapter

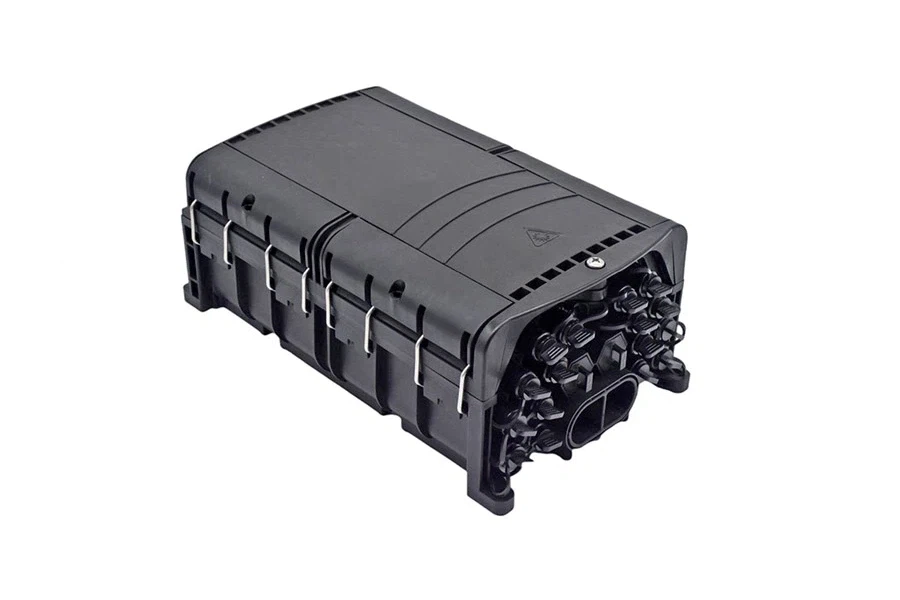

16 Core Fiber Optic Distribution Box
used as a hub box node in an unequal ratio fully pre-connected solution, converting traditional optical cables into single core pre-connected SC/APC output ports.
18 Port Fiber Access Terminal
used as a termination point for the feeder cable to connect with drop cable

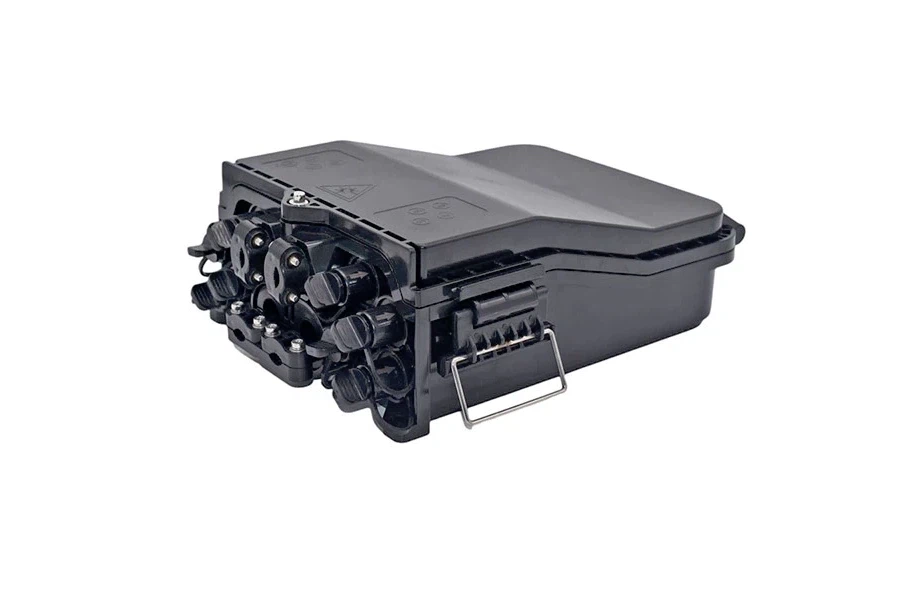

8 core Fiber Optic Distribution Box
used as a termination point for the feeder cable to connect with drop cable

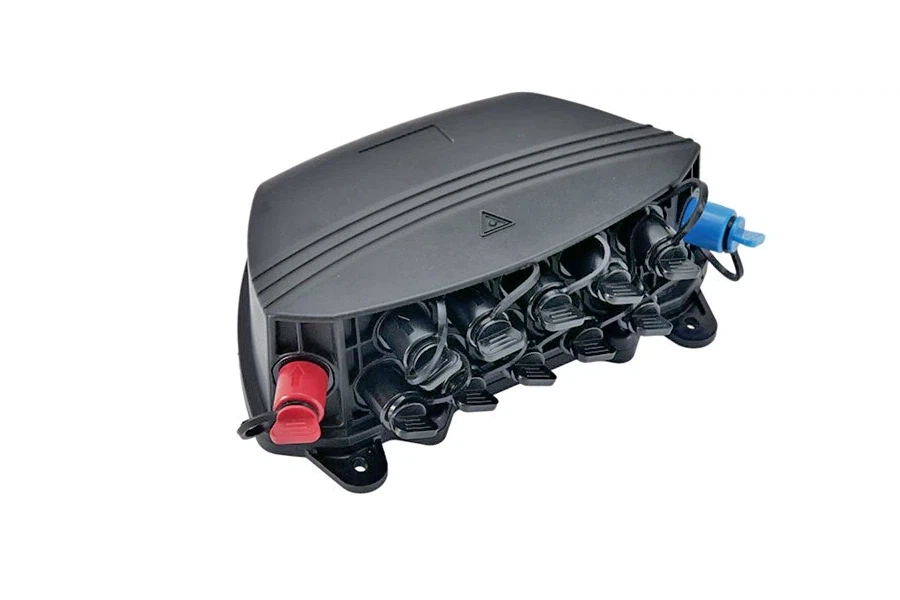

12 Port Fiber Access Terminal
used as a Sub-box terminal in an unequal ratio fully pre-connected solution

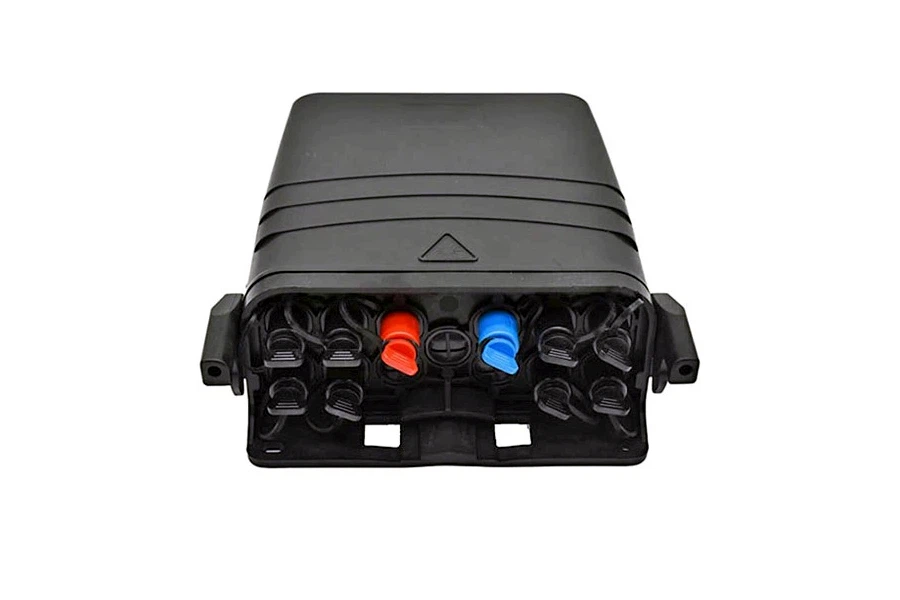

10 Port Fiber Access Terminal
used as a termination point for the feeder cable to connect with drop cable
10 Port Splitter Box
In the spring of 2323,we developed a series of new kitchen appliances, including quantitative oil spray pots and seasoning bottles
Why Choose Pre-connectorized ODN from SPRING Optical?
Full compatibility with Huawei FastConnect standards
Complete product ecosystem: connectors, cables, boxes
Proven waterproof, dustproof, UV-resistant performance
Factory-tested for insertion loss and return loss
Plug-and-play installation saves >60% deployment time
Ideal for telecom operators, ISPs, smart cities, MDU and suburban FTTH
