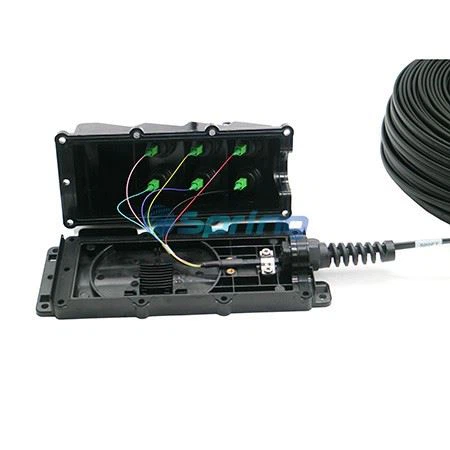

6 Fiber MST Fiber Optic Multiport Service Terminal Enclosure Box with SuperTap SST drop cables
Features:
-
High compatibility: can be assembled ODVA, H connector, Mini SC, ODC, PTLC, PTMPO or power adapter.
-
Factory-sealed or field assembly.
-
IP68 water and dust protection
-
Strong enough: working under 1200N pulling force long term.
-
From 2 to 12 ports for single or multifiber harsh connectors.
-
IP68 waterproof rating.
-
Wall-mounting, aerial installation or holding pole installation.
-
Decreased angle surface and height make sure no connector interfering when operating.
-
Meet IEC 61753-1 standard.
-
Cost effective: save 40% operating time.
-
Available with PLC or splice sleeve for fiber divide.
Specifications:
|
Dimensions(LxWxH) |
210x105x93mm(4Core) 283x105x95mm(8Core) |
|
Ingress Protection |
IP68 |
|
Working Temperature |
-40~85℃ |
|
Cable Strength Member |
Armoured or Non-armoured |
|
Cable Type |
Hybrid or non-hybrid |
|
Round Cable OD |
5.0mm to 14.0mm |
|
Flat Cable Dimension |
4.6x8.9mm |
|
Cable Jacket Material |
LSZH,PE or TPU |
|
Bending Radius |
20D |
|
Cable Crush Resistance |
200N/cm long term |
|
Tensile Strength |
1200N long term |
|
UV Resistance |
ISO 4892-3 |
|
Fire Protection Rating |
UL94-V0 |
|
Number of PLC |
1~2pcs |
|
Number of Fusion Protection Sleeves |
1~24pcs |
Applications:
-
FTTH Projects
-
FTTA Projects
-
Truck cable connectings
-
Prospecting or military communication
