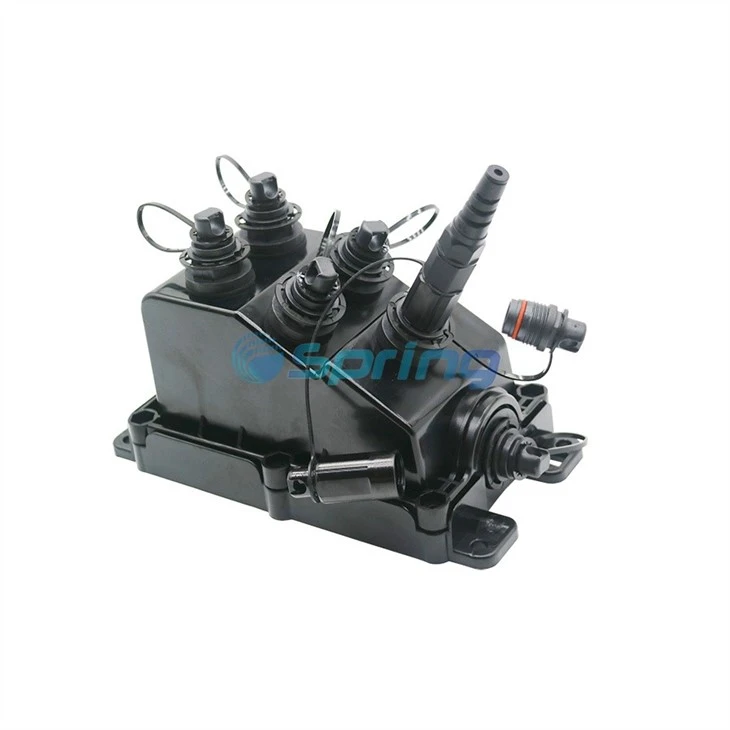

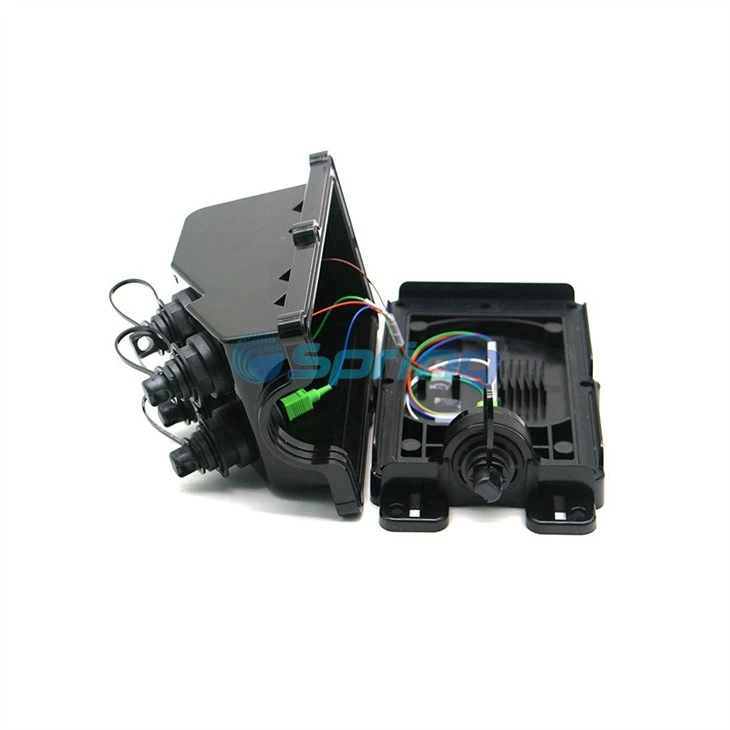

4cores Fiber Optical Multiport Service Terminal FTTx Enclosure Distribution Box

4cores Fiber Optical Multiport Service Terminal FTTx Enclosure Distribution Box
Details:
8 port Multiport Service Terminal (MST) and Hardened Drop Cables, fiber access terminals for FTTx Solutions.The Multiport Service Terminal (MST) incorporates hardened connector technology that is designed to withstand the rugged outside plant environment.These uniquely designed hardened connectors are factory-terminated and environmentally sealed for use in optical drop cable deployments. The industry-standard Multiport Service Terminal (MST) series, with its huge assortment of housing styles, connectors, adapters and mounting, meets the needs of almost any network. Environmentally sealed and factory-terminated with hardened plug-and-play connector ports, the MST series grapples with outside conditions, and ensures fast deployment and lower installation costs by eliminating time-consuming splicing.
Send Inquiry
Description
Send Inquiry

4 port Optical Multiport Service Terminals Series (MST) Fiber FTTX Enclosures Distribution Box



The Multiport Service Terminal (MST) incorporates hardened connector technology that is designed to withstand the rugged outside plant environment. These uniquely designed hardened connectors are factory-terminated and environmentally sealed for use in optical drop cable deployments.





FTTX Enclosure is a new economic fiber distributed solution for outdoor use. compare traditional products, FTTX Enclosure is easy to operate and has high compatibility. It can be used for wall-mounting, aerial installation or holding pole installation, based on different situation.FTTX enclosure not only used in FTTH field, but also used in FTTA or other harsh environment.



Features:

  • High compatibility: can be assembled ODVA, H connector(OptiTap compatible), Mini SC, ODC, PTLC, PTMPO or power adapter

  • Factory-sealed or field assembly

  • IP68 water and dust protection

  • Strong enough: working under 1200N pulling force long term

  • From 2 to 12 ports for single or multifiber harsh connectors

  • IP68 waterproof rating

  • Wall-mounting, aerial installation or holding pole installation

  • Decreased angle surface and height make sure no connector interfering when operating

  • Meet IEC 61753-1 standard

  • Cost effective: save 40% operating time

  • Available with PLC or splice sleeve for fiber divide



Specifications:



Dimensions(LxWxH)

210x105x93mm(4Core) 283x105x95mm(8Core)

Ingress Protection

IP68

Working Temperature

-40~85℃

Cable Strength Member

Armoured or Non-armoured

Cable Type

Hybrid or non-hybrid

Round Cable OD

5.0mm to 14.0mm

Flat Cable Dimension

4.6x8.9mm

Cable Jacket Material

LSZH,PE or TPU

Bending Radius

20D

Cable Crush Resistance

200N/cm long term

Tensile Strength

1200N long term

UV Resistance

ISO 4892-3

Fire Protection Rating

UL94-V0

Number of PLC

1~2pcs

Number of Fusion Protection Sleeves

1~24pcs



Applications:

  • FTTH Field

  • FTTA Field

  • Truck Cable Connecting

  • Prospecting or military communication
