12 Port FAT Fiber Access Terminal Box with MINI SC hardened Adapters
SP-FAT-12P is a terminal box which can achieve the outdoor fast connection without fusion.
The product can support one piece of 1:8 mini splitter or 1x4 splitter+1x8 splitter,or customized non-uniform mini splitter,for meeting the requirements of the different width of the broadband.
Features:
-
The box adopts the hot plate welding sealing,It can achieve IP68/65
-
It uses the outdoor adapters to fast connection for the fiber cable,which saving the installation time.
Specifications:
|

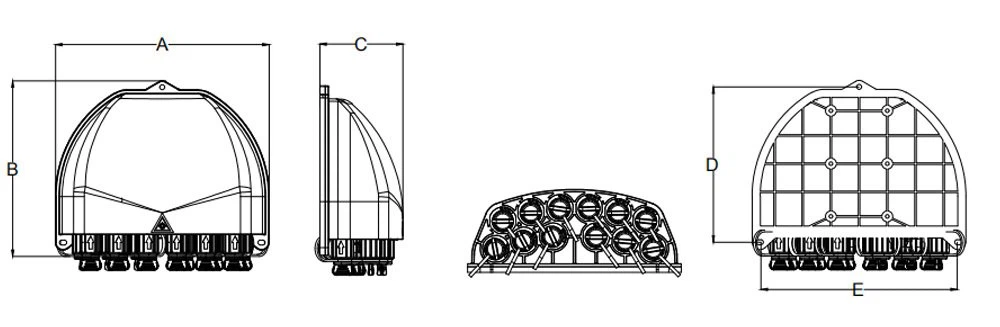

Dimension |
197(L)×162(W)×77mm(H) |
Color |
Black |
|
Material |
PC+ABS or PP |
Protection level |
IP68 |
|
No of entry cable |
12*SC pre-connectorized ports |
Max Capacity |
12cores |
|
Splitter |
1x4 splitter+1x8 splitter or 1x8 splitter |
Installation mode |
Wall/Pole/Aerial mounted |
