Fiber optics patch panel is also known by the initials of ODF or Optical Distribution Framework, and provides a structured termination and management solution for Optical Communications networks. Fiber Patch Panels combine Fiber Splicing, Termination, Routing, Fiber Connector/Adapters, and Fiber Cable Management in one unit, which serves as a protective enclosure for the mechanical protection of the optical fiber, as well as simplifying the management of optical cable, and enabling flexible deployment of the Optical Network.
The Optical Network will include FTTH (Fiber To The Home), LAN / WAN, Data Centres, CATV (Cable Television), and Telecom Access Networks.
A 24-Port Fiber Patch Panel provides the interconnectivity between a fibre optic cable into the respective equipment port. Inside the Fibre Optic Cable, the individual fibre cores will be terminated and managed at the 24 Port Patch Panel, and fibre optic jumpers will connect these cores to both the Optical Switch and/or OLTs (Optical Line Terminal). Therefore, the 24-Port Fibre Patch Panel provides an essential part of a fibre optic network for stability and scalability.
About the 1U 19-Inch Rack Mount Fiber Optic Patch Panel 24 Port
Detail of 1U 19-Inch Rack Mount Fiber Optic Patch Panel 24 Port
1. Detachable Mounting Ears
2.Cold-Rolled Steel
3.Adapter Flange
4.Telecom-Grade Pigtails
5. Fiber Splice Tray
6.Fixing Mechanism
7.Cable Entry and Exit Ports

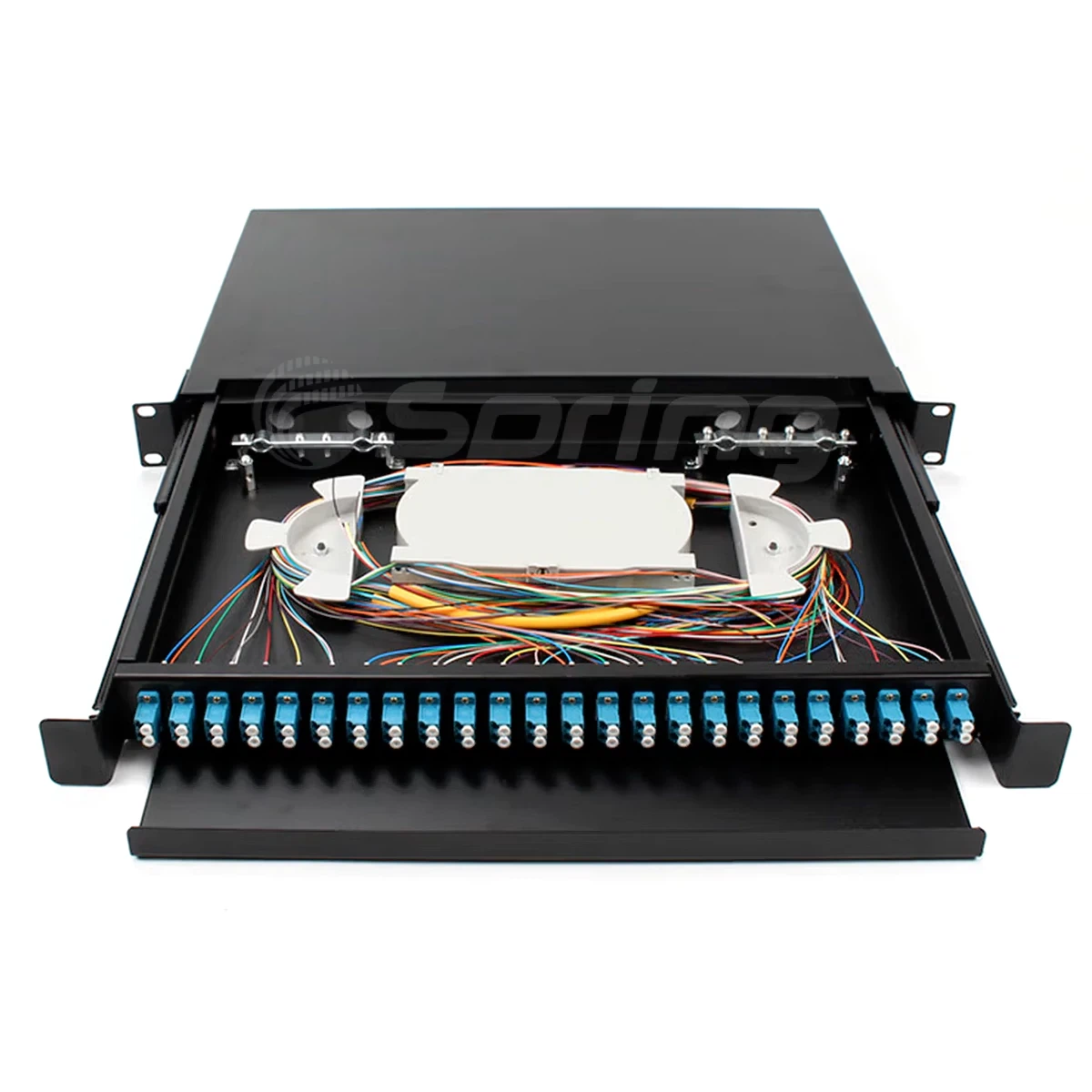

The 1U 19-Inch Rack Mount Fiber Patch Panel 24 Port with Splice Tray is designed to terminate and maintain high-density cables in a 19-inch rack system. The sliding rail assembly provides complete access to the internal fibres for splicing and rearranging without the need to remove the entire panel from the rack.
The 24-Port Rack Mount Fiber Patch Panel is constructed of high-strength cold-rolled steel, using an integrated-forming process for maximum strength and durability with excellent rigidity and resistance to deformation. The exterior of the panel has a baked powder-coat finish, which provides maximum resistance to wear, moisture, corrosion, and oxidation, giving you a long service life even in highly demanding installation environments.
The drawer's internal fiber routing utilizes an organized and scientific tray system which minimizes signal degradation and improves transmission stability.
You can terminate both ribbon and single fibers using this unit, so it accommodates a variety of fiber optic patch panel applications. This unit also allows you to install your choice of LC, SC, FC or ST connectors, as well as LC-tail ends; hence, it can serve as a turn-key fibre-optic patch panel that is ready for use as soon as it arrives at your location.
This cylindrical, rack-mounting fibre-optic patch panel is offered in four sizes: 12-core (12C), 24-core (24C), 36-core (36C), and 48-core (48C) with customization options: logo, colour, pre-termination, and fully assembled.
Key Features of the Fiber Optic Patch Panel 24 Ports
Standardized 19" Rack-Mount
Fits all 19" racks or server racks
Space-efficient 1U design
Works with all ODF applications
High-Strength Cold-Rolled Steel
One-piece design
High rigidity and anti-deformation
Long service life
Powder-Coated Anti-Corrosion Finish
Waterproof, wear-resistant, rust-proof
Durable and environmentally friendly
Sliding Drawer with Silent Rails
Smooth pull-out mechanism
Tight-tolerance silent guide rails
Minimal wobble or misalignment
Organized Fiber Routing – Low Attenuation
Reduced signal loss
Stable optical transmission
Flexible Cable Entry and Expansion
Four cable entry ports
Supports front/back cable routing
Easy future expansion
Enhanced Connector Durability
Connector lifetime > 1000 cycles
Optimized internal routing for protection
Multiple Capacity Options
24C, 36C, 48C, 96C, 144C
Supports pigtails or adaptersOEM/ODM customizable
Applications of the Fiber Optic Patch Panel 24 Port
Telephone Subscriber Loops
FTTH Distribution Networks
LAN/WAN Backbone
CATV & Broadband Networks
Data Centre Management
Termination/Splicing & Distribution
In-Building Fiber Management
An LC Patch Panel is ideal for high-density applications with minimal connection loss and easy maintenance access.
FAQ of 1U 24 Port LC Rack Mount Fiber Optic Patch Panel
Q: What is the maximum fiber capacity of a 1U 48C sliding patch panel?
A: A 1U 19-inch sliding fiber patch panel fitted with two 24-core splice trays can accommodate up to 48 fusion-spliced fibers. This layout offers a compact yet efficient solution for high-density fiber termination.
Q: Is it possible to install different types of adapters on this patch panel?
A: Absolutely. The enclosure is designed to support multiple adapter formats, including LC, SC, FC, and ST. This adaptability allows users to configure the panel according to the connector types required by their network design.
Q: How do I properly mount the 1U 19-inch sliding rack-mount patch panel?
A: The unit follows the standard 19-inch rack specification and is equipped with dual stainless-steel slide rails. During installation, simply align the rails with the rack's mounting holes, secure the panel using the appropriate screws, and proceed with integrating the fiber cables, adapter plates, and pigtails as planned for your deployment.
Q: Is the metal housing of the patch panel robust enough for long-term use?
A: Yes. The patch panel is constructed from high-quality steel with a durable powder-coated surface, providing excellent protection against abrasion, rust, and impact. This ensures dependable performance even in challenging operational environments.
Q: Can the fiber patch panel be customized with my company's logo?
A: Yes. You may request custom logo printing on the panel. This option allows the product to align with your branding and helps maintain a unified, professional appearance across your network equipment.
Q: Is it possible to order this patch panel with pre-terminated fiber assemblies?
A: Yes. Fully pre-terminated configurations are available upon request. Please contact us directly for tailored solutions and detailed customization options.
Hot Tags: 1u rack mount fiber optic patch panel 24 port, fiber optic patch panel 24 port, LC fiber optic patch panel, fiber optic patch panel manufacturer
Technical Specifications
| Item | Description |
|---|---|
| Product Name | 24 Port 1U Rack Mount Sliding Patch Panel |
| Construction | Cold-Rolled Steel (Anti-Rust) |
| Size (mm) | 482.6 × 358 × 44.45 mm(Big) 482.6 × 293 × 44.45 mm(compact) |
| Fiber Capacity | 12, 24, 36, or 48 Fibers |
| Adapter Compatibility | LC, SC, FC, ST |
| Pigtail Compatibility | LC, SC, FC, ST |
