Product Overview
The SP-H0016 Outdoor Fiber Distribution Box is designed for FTTX communication networks as a terminal distribution and management point. It enables reliable connection between feeder optical cables and drop (butterfly) cables through optical splitters, supporting high-bandwidth fiber access services.
This enclosure integrates fiber splicing, splitting, storage, and distribution functions in a single unit, while providing robust mechanical protection and organized cable management for outdoor FTTX network deployment.
Key Features
Fully enclosed outdoor enclosure with clean and professional appearance
Glass-fiber reinforced PP material, waterproof, dust-proof, anti-aging, protection level up to IP65
Integrated functions for feeder cable fixation, fiber splicing, storage, and distribution

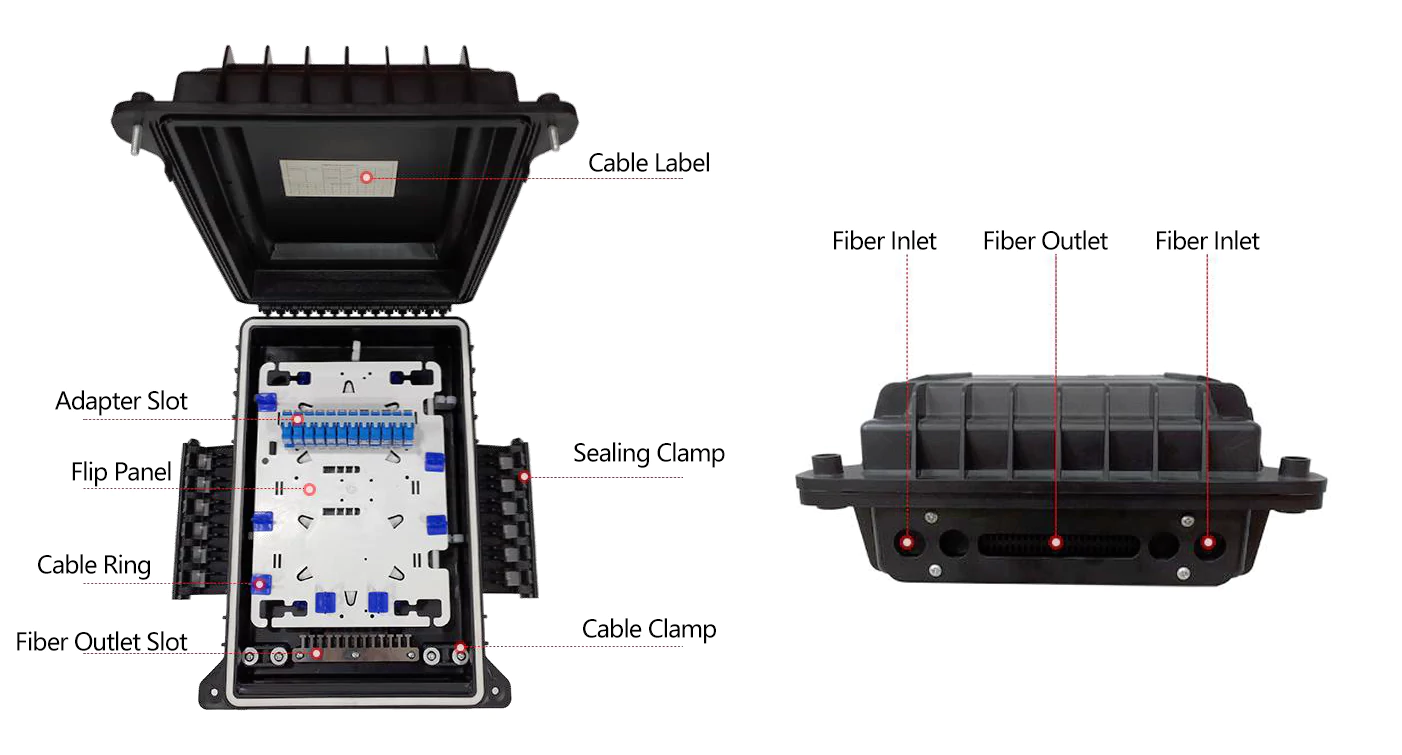

Independent routing paths for cables, pigtails, and connectors, preventing interference
Supports cassette-type SC adapters and PLC splitter installation for easy maintenance
Flip-type internal panel design allows feeder cables to be placed in a cup-shaped fixing area, improving installation efficiency
Door opening angle ≥ 180°, providing convenient access during installation and maintenance
Configuration Options
Environmental & Electrical Performance
Environmental Requirements
Operating Temperature: −40°C to +85°C
Relative Humidity: ≤ 85% (+30°C)
Atmospheric Pressure: 70 kPa – 106 kPa
Grounding & Lightning Protection
Insulation resistance between grounding device and metal parts:
≥ 2 × 10⁴ MΩ / 500V (DC)Withstand voltage between grounding device and metal parts:
≥ 3000V (DC) for 1 minute, no breakdown or flashover
Typical Applications
FTTH / FTTX access networks
Outdoor fiber termination and distribution
Residential and commercial broadband infrastructure
Telecom operator and ISP network deployment
Hot Tags: outdoor fiber distribution box, 16 core outdoor fiber distribution box, 24 core outdoor fiber distribution box, 32 core outdoor fiber distribution box, 48 core outdoor fiber distribution box, outdoor fiber distribution box manufacturer
Technical Specifications
| Item | Specification |
|---|---|
| Model | SP-H0016 |
| Application | Outdoor FTTX / FTTH Networks |
| Capacity | 16 / 24 / 32 / 48 Core |
| Dimensions (H × W × D) | 420 × 305 × 130 mm |
| Material | Enhanced PP (Glass Fiber Reinforced) |
| Color | Black |
| Protection Level | IP65 |
| Operating Temperature | −40°C to +85°C |
| Packaging | Inner carton + outer carton |
| Package Size | 64 × 44 × 32 cm |
Optical Performance
| Parameter | Value |
|---|---|
| Insertion Loss | ≤ 0.15 dB |
| UPC Return Loss | ≥ 50 dB |
| APC Return Loss | ≥ 60 dB |
Standard Packing List
| Component | Unit | Quantity |
|---|---|---|
| Box Bottom | PCS | 1 |
| Box Lid | PCS | 1 |
| Fiber Fixing Accessories | SET | 1 |
| Mounting Back Plate | SET | 1 |
| Fusion Tray Holder | PCS | 1 |
| Cable Management Rings | PCS | 15 |
| Cable Entry Sealer | PCS | 1 |
| Press Fasteners | PCS | 2 |
| Waterproof Seal | PCS | 1 |
| Splice Tray | PCS | 1 |
