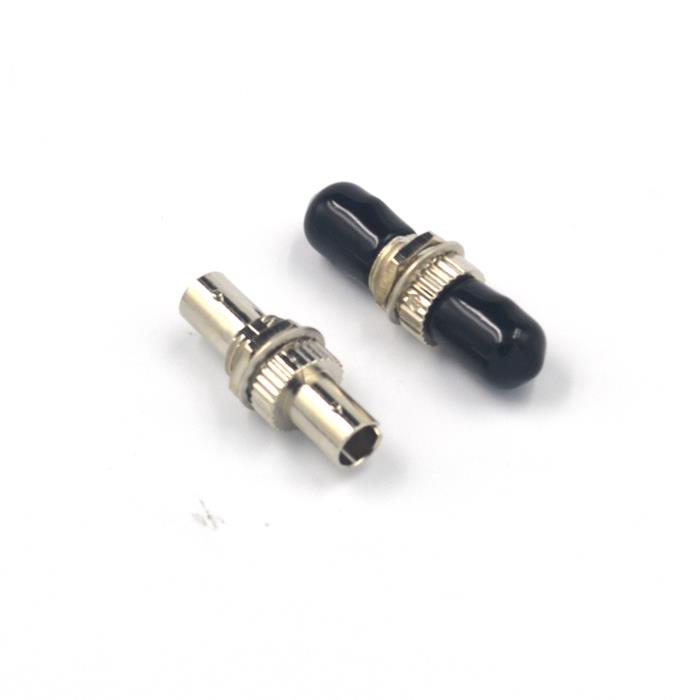

ST Multimode Simplex Fiber Optical Adapters
Brief Introduction
ST optical adaptor implements connection of st fiber optic connectors in the fiber optic lines.It only produce a little loss for implementing optical path smooth. ST optical adaptor makes two end face precision docking, which can make light energy from transmitter optical fiber coupled to receiver optical fiber efficiently and will reduce impact to a minimum because of intervention optical link of system.ST Adapters also include SC,LC,FC adapters can always be seen on base stations of fiber optic communication system,optical distribution frames(ODF) in computer rooms,communication devices and kinds of test instruments.Our ST Simplex adapter fit standard ST cutout for patch panels,cassttes,adapter plates ,wall mount and more.
All ST adapters work with both simglemode and multimode applications,adapters ship with standard rubber dust caps . Metal materials and plastic simplex(duplex ) adapters are available too to meet customer's request.
For ST Multimode fiber optic adapter dust cap usually black or red color .we can do metal and plastic materials . There is also exsit "D"type and square type.
Advantage of the fiber optic adapter:
Our range of fiber optic cable adapter can consistent good quality as is proven by repeated tests.it is interchangeable with similar devices built to the same standards.
Low Insertion Loss means there is little reduction in light intensity along the transmission router
High Reliability
Compaliant with the IEC and ROSH standards
Application:
Testing instruments
Connection between devices
Connection between fiber optic patch cords
CATV,MANS,WANS
FTTX
Structure of ST adapter:
Specification of fiber optic adapter:
Parameter | Specifications | |
Mating Connector Type | SC,LC,FC,ST,MU,D4,DIN,E2000,SMA | |
Fiber Type of Connector | Single Mode | Multimode |
Adapter Color | Blue,green,metallic | Begie,Metallic |
Testing Wavelength | 1310nm,1550nm | 850nm,1300nm |
Insert Loss | Typecal≤0.15dB,max≤0.2dB | Typecal≤0.15dB,max≤0.2dB |
Repeatability | ≤0.10dB | |
Exchangeability | ≤0.20dB | |
Durability | 1000Mating ,max≤0.20dB | |
Housing Material | Plastic or metal | |
Operating Temperature | -20°C～+70°C | |
Storage Temperature | -40°C～+85°C | |
Alignment Sleeve | Ceramic (ZrO2) or customized | |
Channel Number | Simplex,duplex,quad . | |
ST Fiber Optical Adapter:
ST Simplex Fiber Optical Adapter with flange
ST "D"Type Fiber Optical Adapter
Spring Optical Communication is one of the largest and best st multimode fiber optical adapters manufacturers and suppliers with rich experience. Welcome to buy our high quality products or wholesale our customized st multimode fiber optical adapters in stock with our factory. Also, free sample is also available if necessary.
