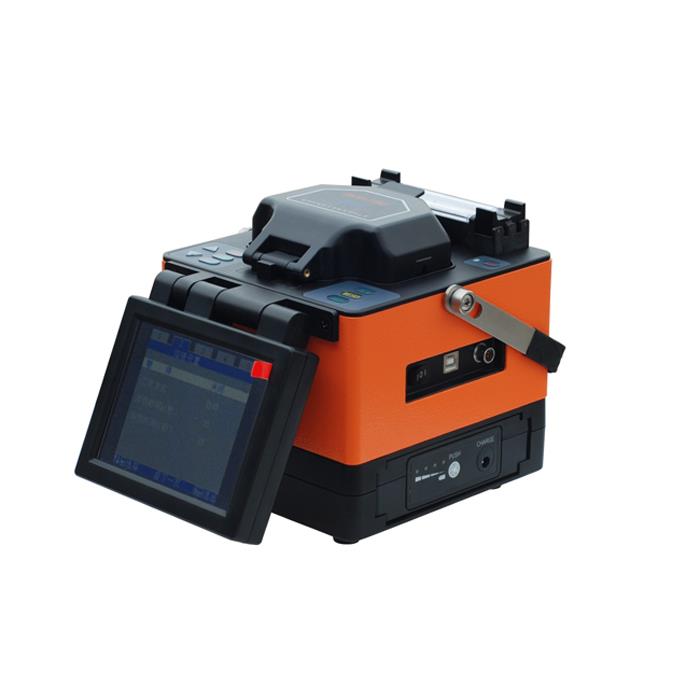

DVP-750 Fiber Optical Fusion Splicer
Feature:
High resolution LCD display
Double heaters，30 Sec. tube-heat time
3 magnification modes, max. 360 magnification
Four display modes, fiber core visible
8 Sec. splice time
5000m altitude ensure splice quality
Store 8000 groups of splice results
USB interface
Specifications:
| Applicable fibers | SM, MM, DS, NZ-DS(G655), EDF |
Fiber cleaved length | 8-22mm |
Average splice loss | 0.02dB(SM)、0.01dB(MM)、0.04dB(DS)、0.04dB(NZDS) |
Return loss | ≥60dB |
Tension test | 2.0N(200gf)(Standard) |
Protection sleeve length | 20mm, 40mm, 60mm |
Splice Program | 80 groups of manual setting |
Language | English, Chinese, Russian |
Environment conditions | -25～＋50℃ (operation temperature), 0～95%RH (humidity), 0～5000m (altitude) |
Storage environment | -40～ +80℃ (temperature) , 0～95％RH (humidity) |
Power supply | AC adaptor: 85～260V input voltage |
Dimensions/Weight | 140（D）×150（W）×160（H）mm/2.8kg |
STANDARD PACKAGE
Fusion Splicer, Fiber Cleaver, Fiber Stripper, Spare Electrodes, Internal Battery, Charger, AC Adaptor, AC Power Cord, Cooling Tray, Manual Instruction, Carry Belt, Carry Case.
