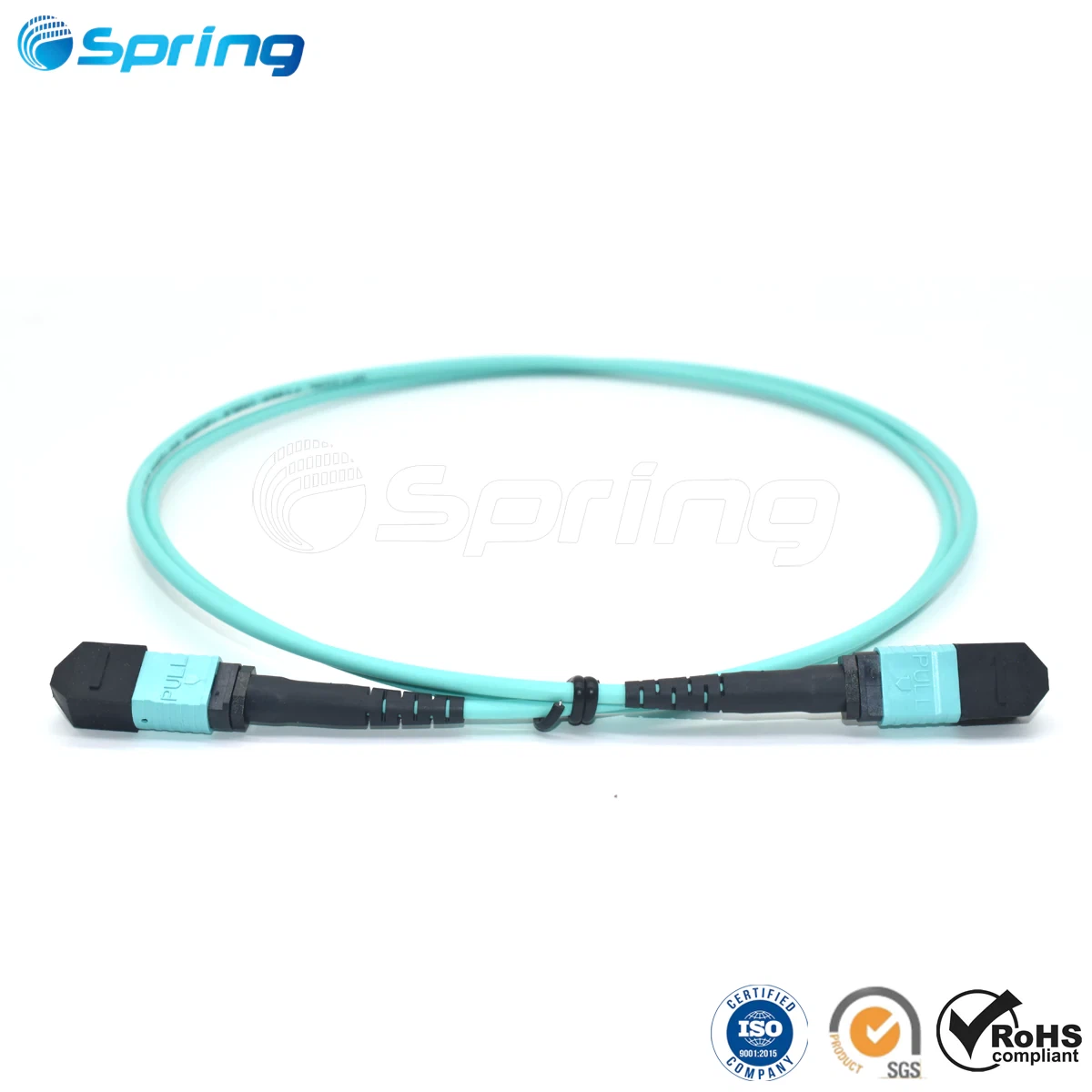

12F MPO-MPO patch cord is a factory-terminated MPO fiber trunk cable designed for high-density optical backbone connections between MPO modules, patch panels, and active equipment in data centers and telecom networks.
Product Overview

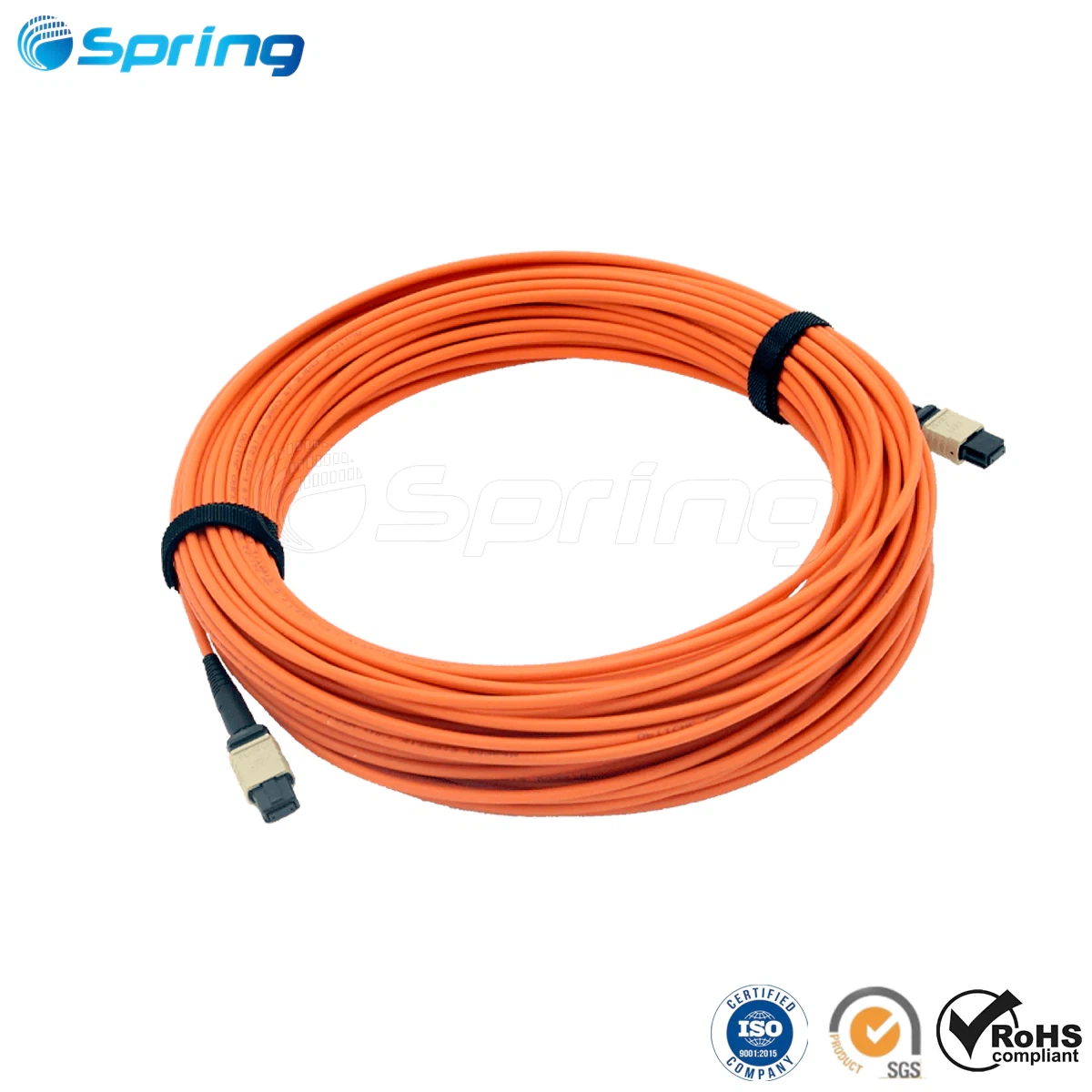

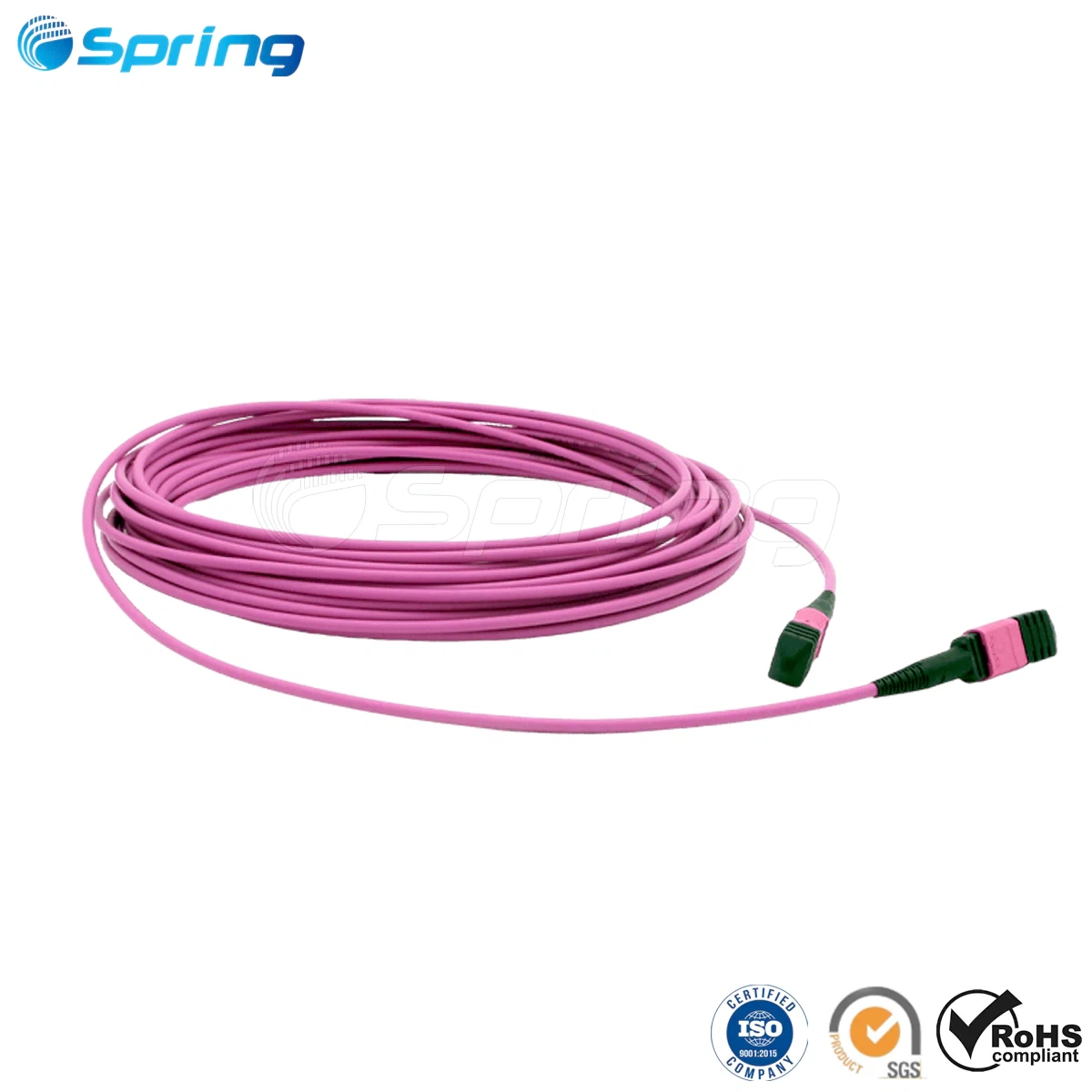

The 12F MPO-MPO patch cord from Spring Optical is a high-density MPO patch cable / MPO trunk cable engineered for structured fiber optic cabling systems that require compact installation, low insertion loss, and scalable network expansion.
The cable is terminated with precision MPO connectors on both ends and uses a 3.0 mm LSZH jacket, making it suitable for indoor installations where fire safety and cable management are important.
It supports:
10G Ethernet
40G Ethernet
100G Ethernet
Typical applications include:
MPO cassette interconnection
Patch panel backbone links
Ruggedized MPO fan-out systems
Data center spine networks
Telecom optical distribution systems
With modular MPO architecture, the backbone cable remains in place while only the cassette module needs replacement when connector styles change, reducing downtime and upgrade cost.
Key Features
Low insertion loss and high return loss
MT-based multi-fiber connector technology
Supports 4, 8, 12 and 24 fiber terminations
Standard loss and super low loss options
Round, oval and ribbon cable structures available
Color-coded housings for easy identification
Excellent repeatability and interchangeability
Plug-and-play high-density deployment
Optical Performance Specifications
| Spec Items | Single Mode (APC 8° Polished) | Multimode (PC Flat Polish) |
|---|---|---|
| Insertion Loss (MPO) IEC 61300-3-34 | Standard: ≤0.75dB max / ≤0.50dB typ Super Low: ≤0.35dB max / ≤0.20dB typ | Standard: ≤0.60dB max / ≤0.50dB typ Super Low: ≤0.35dB max / ≤0.20dB typ |
| Return Loss | ≥60dB | ≥25dB |
| Durability | <0.3dB change after 200 matings | <0.3dB change after 200 matings |
| Interchangeability | ≤0.2dB | ≤0.2dB |
| Tensile Strength | >70N | >70N |
| Operating Temperature | -40°C to +85°C | -40°C to +85°C |
Product Materials
| Connector | Reference | Housing Details |
|---|---|---|
| MPO Singlemode | IEC 61754-7 | SM APC Green + black boot (Standard Loss) |
| MPO Singlemode | IEC 61754-7 | SM APC Yellow + black boot (Super Low Loss) |
| MPO Multimode | IEC 61754-7 | OM1/OM2 Beige + black boot |
| MPO Multimode | IEC 61754-7 | OM3/OM4 Aqua + black boot |
| MPO Multimode | IEC 61754-7 | OM4 Violet + black boot |
Standards Compliance
IEC 61754-7
IEC 61755
Telcordia GR-1435-CORE
JIS C5982
TIA-604-5 (FOCIS5)
TIA-568-C
10G Fiber Channel
IEEE 802.3 40G / 100G
Mechanical Specifications
| Fiber Count | OD (mm) | Tensile Strength | Crush Load | Minimum Bending Radius |
|---|---|---|---|---|
| 12 | 3.0 ±0.15 | Short-term 180N / Long-term 90N | Short-term 500N / Long-term 150N | Static 10D / Dynamic 20D |
MPO End-Face 3D Interference Index
| Item (IEC-61300-3-30) | Minimum | Maximum |
|---|---|---|
| ROC-X (ABS) | 2000 | - |
| ROC-Y (ABS) | 50mm | - |
| Angle-X | -0.2° | 0.2° |
| Angle-Y APC | 7.85° | 8.15° |
| Angle-Y PC | -0.2° | 0.2° |
| Fiber Height | 1000nm | 3500nm |
| Max DH All Fiber | -300nm | 300nm |
| DH Adj | -300nm | 300nm |
| DH Ave Fiber | -300nm | 300nm |
| Core Dip SM | N/A | N/A |
| Core Dip MM | -200nm | 300nm |
Cable Length Tolerance
| Overall Length (m) | Tolerance |
|---|---|
| 0 < L < 1 | +5cm / -0 |
| 1 < L < 10 | +10cm / -0 |
| 10 < L < 40 | +15cm / -0 |
| 40 < L | +0.5% × L / -0 |

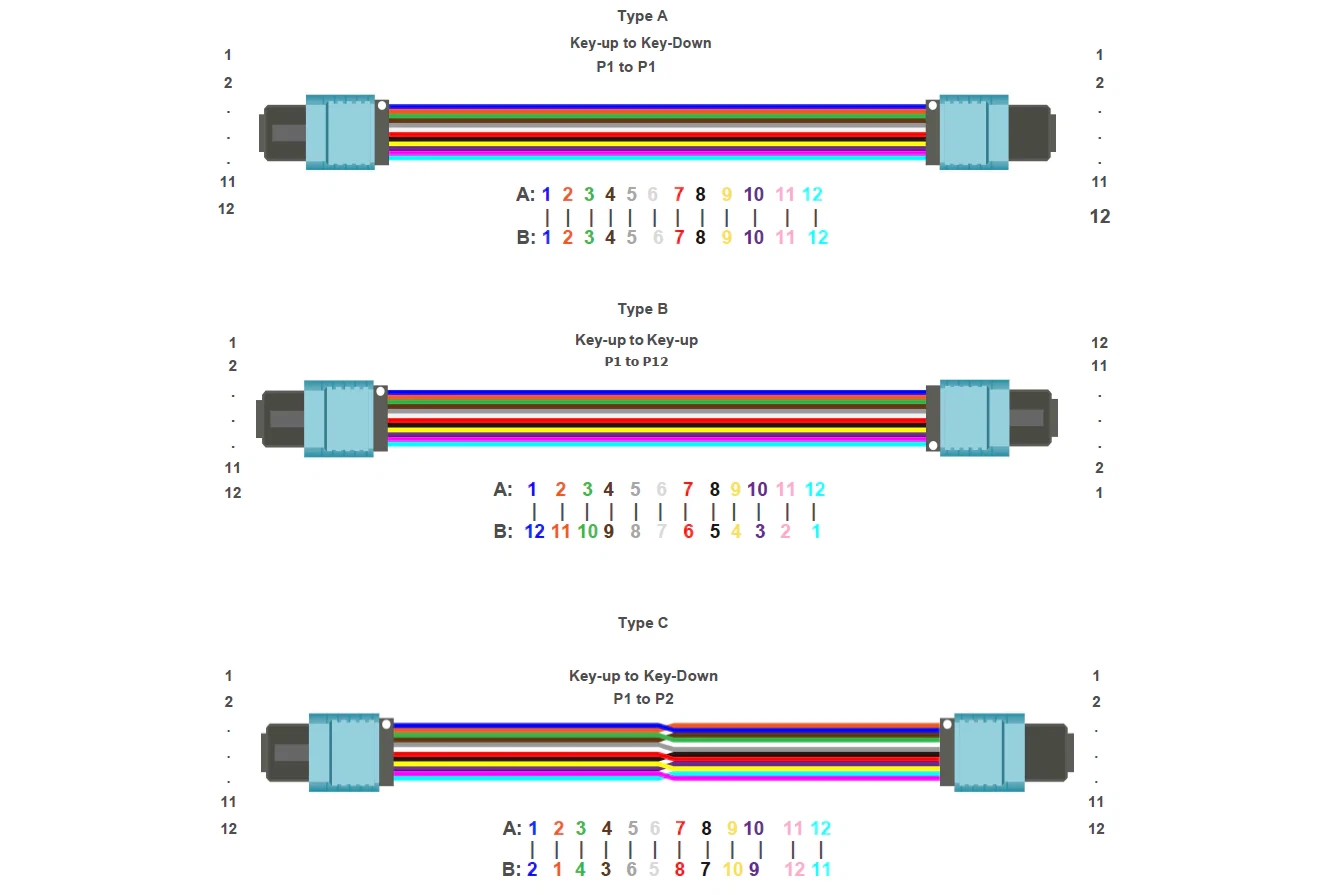

MPO Polarity Options
Polarity A
Key up to key down
Position 1 → Position 1
Used with A-B and A-A duplex patch cords
Polarity B
Key up to key up
Position 1 → Position 12
Used with A-B duplex patch cords on both ends
Polarity C
Key up to key down
Adjacent fiber crossing
Position 1 → Position 2
These polarity methods help maintain proper Tx/Rx alignment in parallel optics systems.
Availability
Ribbon cable available
Bundle cable available
Patch cord assemblies available
Pigtail assemblies available
MT-MT ribbon patch cord available
MPO loopback cable available
Applications
The 12F MPO-MPO patch cord is widely used in:
High-density data centers
FTTH and FTTB systems
Telecom central offices
Optical equipment internal links
Cloud computing infrastructure
Product Advantages
Factory tested quality
Reduced cable volume
Better airflow in cabinets
Faster installation
Lower labor cost
Easy future upgrades
Long-term reliability
FAQ – 12F MPO-MPO Patch Cord
What is a 12F MPO-MPO patch cord?
A 12F MPO-MPO patch cord is a factory-terminated fiber optic trunk cable with MPO connectors on both ends, used for high-density backbone connections in data centers and telecom networks.
What is the difference between MPO patch cable and MPO trunk cable?
An MPO patch cable is generally used for short-distance equipment interconnection, while an MPO trunk cable is a permanent backbone link between MPO modules, patch panels, or distribution frames.
What applications use the 12F MPO-MPO patch cord?
It is widely used in:
Data centers
FTTH and FTTB networks
Telecom central offices
High-density backbone cabling
Cloud and enterprise networks
What data rates does the MPO-MPO patch cord support?
The cable supports:
10G Ethernet
40G Ethernet
100G Ethernet
It is compatible with QSFP+ and QSFP28 optical transceivers.
What fiber types are available?
The 12F MPO-MPO patch cord supports:
G652D singlemode
G657A1 / G657A2 / G657B3 bend-insensitive fiber
OM1, OM2, OM3, OM4, OM5 multimode fiber
What is the insertion loss of MPO connectors?
Typical insertion loss values are:
Standard loss: ≤0.75 dB max
Super low loss: ≤0.35 dB max
Typical value: ≤0.20–0.50 dB depending on grade
What is the return loss of MPO connectors?
Return loss performance:
Singlemode: ≥60 dB
Multimode: ≥25 dB
Can the cable length be customized?
Yes. Cable length can be customized from 1 meter to long-distance backbone applications, with defined tolerance based on length range.
What polarity options are available?
The cable supports three polarity types:
Type A (straight-through)
Type B (cross polarity)
Type C (pairwise crossover inside cable)
What is the minimum bending radius?
Minimum bending radius:
Static: 10D
Dynamic: 20D
This ensures safe installation in high-density environments.
Is OEM or custom configuration available?
Yes. Spring Optical provides OEM/ODM services including:
Connector type selection
Fiber count customization
Jacket color and material
Polarity configuration
Private labeling and packaging
What standards does the product comply with?
The product complies with:
IEC 61754-7
IEC 61755
TIA-604-5 (FOCIS5)
Telcordia GR-1435-CORE
IEEE 802.3 40G/100G
TIA-568-C structured cabling
Why use MPO cables instead of duplex fiber cables?
MPO cables reduce cable volume, simplify installation, improve airflow, and support high-density parallel optics for 40G and 100G networks.
What is the mating cycle life of MPO connectors?
MPO connectors are tested for up to 200 mating cycles with less than 0.3 dB performance variation.
Who manufactures the connectors?
Spring Optical uses high-quality MPO connectors from:
Senko
Nissin
Sumitomo
to ensure consistent optical performance.
OEM Service
Spring Optical supports:
Cable jacket color
Custom printing
Connector color
Private labels
Packaging design
Shipping marks
Multiple quality grades
Packaging
Standard packaging includes:
Self-seal PE bag, Bubble protection, Paper carton,Fumigation-free pallet
Carton sizes:
34 × 22 × 15 cm, 44 × 34 × 24 cm, 54 × 39 × 34 cm
Custom packaging is available.
Ordering Information
| Connector Type | Fiber Structure | Fiber Type | Quality Grade | Pin Type | Jacket | Color | Polarity | Length |
|---|---|---|---|---|---|---|---|---|
| M1 = Senko MPO without tab | 1 = 8F round | 1 = G652D | 1 = Standard | 1 = F-F | H = LSZH | A = Blue | A = Type A | 1 = 1m |
| M2 = MTP without tab | 2 = 12F round | 2 = G657A1 | 2 = Super Low | 2 = F-M | C = PVC | B = Orange | B = Type B | 1.5 = 1.5m |
| M3 = China MPO | 3 = 16F round | 3 = G657A2/B2 | 3 = M-M | F = OFNR | C = Green | C = Type C | 2 = 2m | |
| M4 = Senko MPO with tab | 4 = 20F round | 4 = G657B3 | P = OFNP | D = Brown | Custom | |||
| M5 = MTP with tab | 5 = 24F round | 5 = OM1 | U = PU | E = Grey | ||||
| 6 = 8F ribbon | 6 = OM2 | F = White | ||||||
| 7 = 12F ribbon | 7 = OM3 | G = Red | ||||||
| 8 = 8F bare ribbon | 8 = OM4 | H = Black | ||||||
| 9 = 12F bare ribbon | 9 = OM5 | I = Yellow | ||||||
| J = Purple | ||||||||
| K = Pink | ||||||||
| L = Aqua | ||||||||
| M = Magenta |
Example Order Code
M1-2-7-2-1-H-L-B-2
Meaning:
M1 = Senko MPO without tab
2 = 12F round cable
7 = OM3 fiber
2 = Super low loss
1 = Female to Female
H = LSZH jacket
L = Aqua
B = Type B polarity
2 = 2 meter
Manufacturer Introduction
Spring Optical supplies fiber optic connectivity solutions for:
telecom operators
ISPs
data centers
distributors
Manufacturing capabilities include:
MPO production line
Fiber cable workshop
3D interferometer testing
ISO quality control
OEM / ODM service
Connector sources include:
Senko
Nissin
Sumitomo
for consistent carrier-grade performance.
Contact Spring Optical for technical consultation, custom MPO cable assemblies, or project-based fiber optic solutions.
