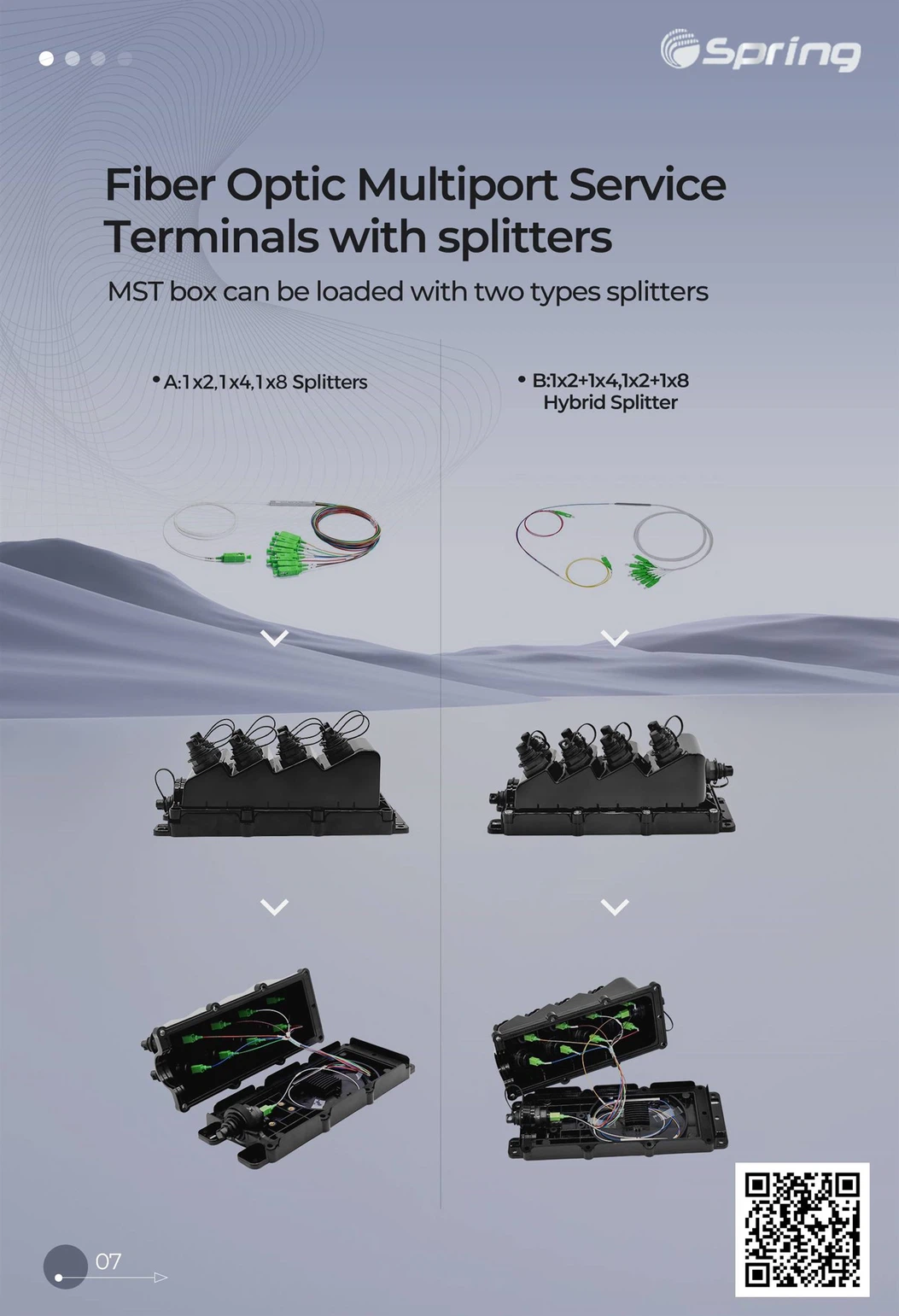

Fiber Multiport Terminal Enclosures with Hybrid Splitters
Fiberhub Multiport splitter service terminals incorporate hardened adapters and enable rapid tower and indoor/outdoor fiber to the home (FTTH) deployments. Terminals are available in different configurations similar to an RF tap. Spring Optical's MSTs are available in terminated or unterminated, point-to-point or using MPO connections for indexing (add/drop-style) configurations. These terminals are IP68 rated to withstand the rigors of outdoor deployment in all environments. Terminals can be mounted in a vault, pedestal, pole, or on a strand. Each terminal comes with a mounting kit allowing aerial mounting. For other types of mounting kits, please contact our factory.
Features of Fiber Multiport Terminal Enclosures with Hybrid Splitters
- Available in a variety of options (terminated, unterminated, point to point or MPO Indexing)
- Hardened connectors are factory-terminated and environmentally sealed for use in optical drop cable deployments
- Plug-and-play adapter ports ensure rapid cable installation
- Incorporated hardened connector technology that is designed to withstand the rugged outside plant (OSP) environment
- IP68-rated, high-quality, high-performance connectors
- Flexible choice of ports: 2,4,6,8,12,16
- Mounting Configurations: Aerial, wall mount, or buried.
- Compatible with industry-standard drop cables and connectors
- Option of factory spliced feed cable in MST or a female connector on MST for feed cable.
Applications of Fiber Multiport Terminal Enclosures with Hybrid Splitters
-
FTTH Field
-
FTTA Field
-
Truck Cable Connecting
-
Prospecting or military communication

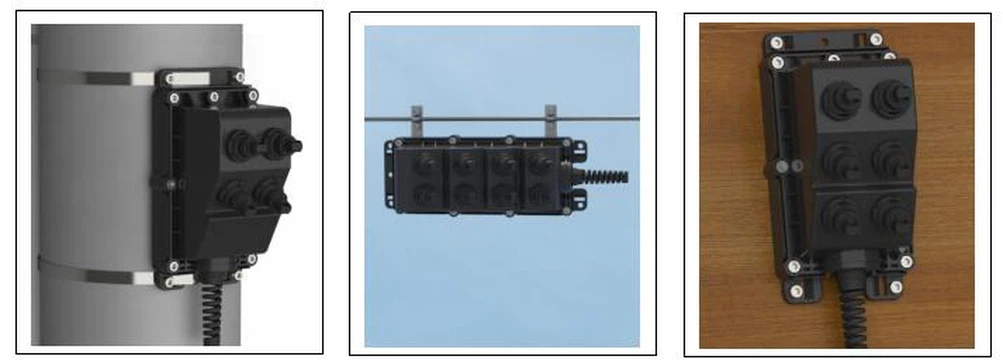

Installations of Fiber Multiport Terminal Enclosures with Hybrid Splitters

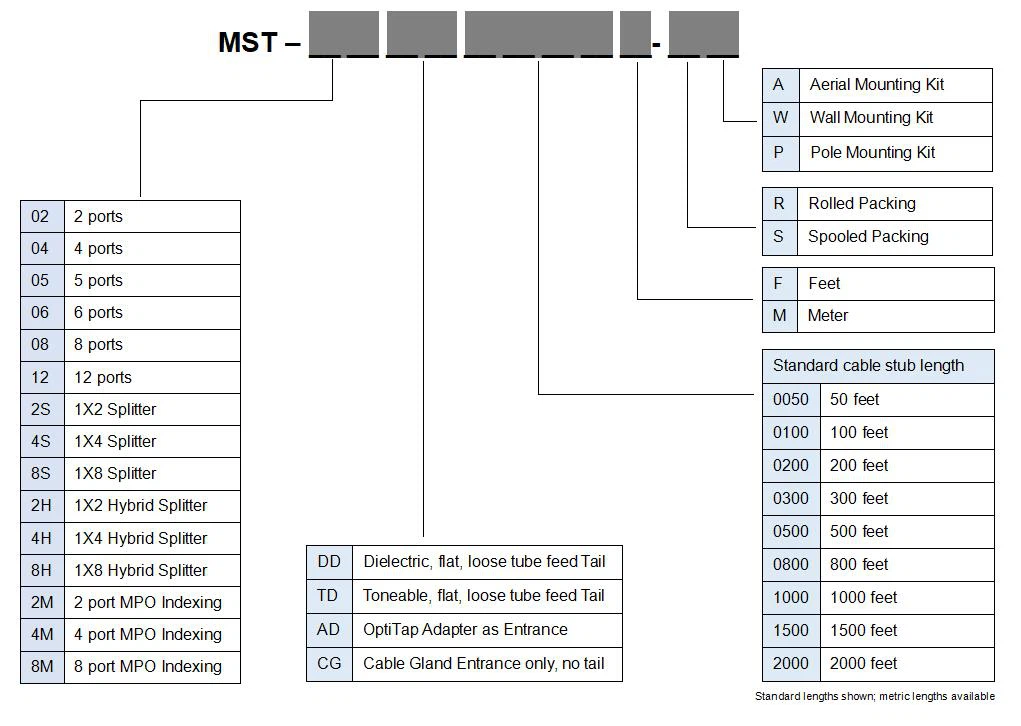

Ordering Information:
0–500 ft lengths of cable are automatically coiled (option C); for greater than 500 ft cable lengths, choose the C or S option.
Test Reports of Fiber Multiport Terminal Enclosures with Hybrid Splitters
Our Multi-service Terminal boxes have passed the IP68 testing, and all other harsh environment testing, see below testing report.
Hot Tags: multiport terminal, fiber multiport terminal with hybrid splitters, multiport terminal manufacturer
Specifications of Fiber Multiport Terminal Enclosures with Hybrid Splitters
| Parameters | Specifications |
| Ports | 2,4,6,8,12,16 |
| Material | ML6411 Reinforced polycarbonate+ABS+Stainless steel 304 |
| RoHS Compliant | Yes |
| Connectors | Hardened SC/APC connectors or MPO Connectors |
| Entrance | Hardened Adapters |
| Feed Cable | 1core, 2core, 4core, 6core, 8core and 12cores |
| Feed Cable Length | Customizable, also available without a feed cable connected |
| 1x2 FBT 70/30 Coupler | 70%=2.5 dB IL(max.); 30%=6.5 dB IL(max.) |
| 1x2 PLC Splitter | 4.1 dB IL(max.) |
| 1x4 PLC Splitter | 7.4 dB IL(max.) |
| 1x8 PLC Splitter | 10.5 dB IL(max.) |
| 1x16 PLC Splitter | 14.5 dB IL(max.) |
| 1X2 FBT 70/30 Coupler+1x2 PLC Splitter | 70% Output=2.5dB IL(max.) 30% drop+1x2 PLC Splitter Output=10.6dB IL(max.) |
| 1X2 FBT 70/30 Coupler+1x4 PLC Splitter | 70% Output=2.5dB IL(max.) 30% drop+1x4 PLC Splitter Output=13.9dB IL(max.) |
| 1X2 FBT 70/30 Coupler+1x8 PLC Splitter | 70% Output=2.5dB IL(max.) 30% drop+1x8 PLC Splitter Output=17.0dB IL(max.) |
| 1X2 FBT 70/30 Coupler+1x16 PLC Splitter | 70% Output=2.5dB IL(max.) 30% drop+1x16 PLC Splitter Output=21.0dB IL(max.) |
| Mounting Method | Strand, pole, wall, handhole or pedestal |
| IP Rating | IP68 |
