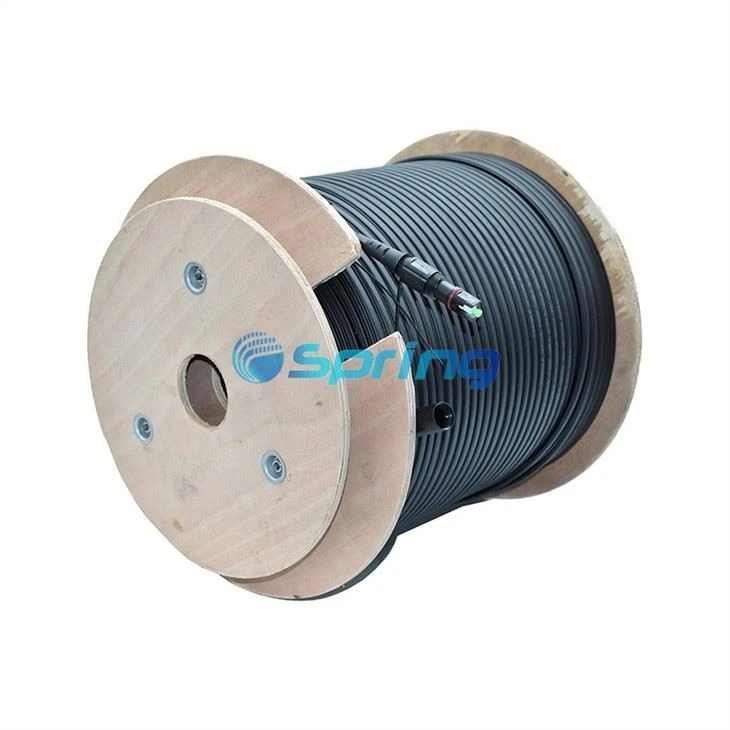

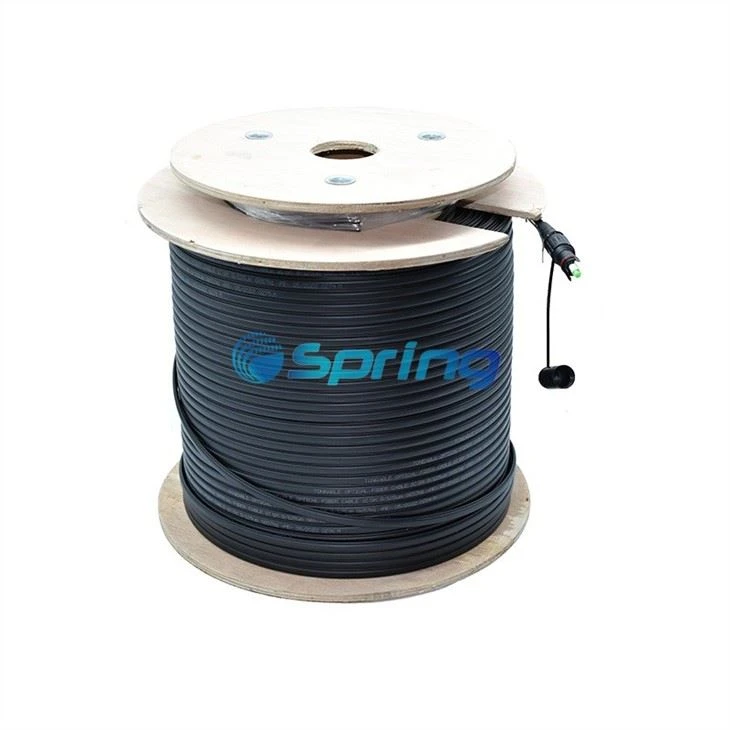

Pre-connected compatible SST Tonable Drop Patch Cables Acometida exterior 1 fibra with 4.5*9.8mm Flat Drop Cables and locate wire, Pre-connectorized Hardened SC/APC SST Tonable Drop Cables with Locate Wire
Features:
-
Compatible with hardened connector
-
Cable length 100ft, 200ft, 300ft, 500ft, 1000ft or customized
-
Factory terminated for high performance
-
Available with one or both ends connectorized
-
Hybrid (one end with an OptiTap Connector, one end with standard SC connector) available with or without pulling grip
-
Available in dielectric or toneable
-
Designed for aerial, direct-buried or duct installation
-
IP-68 water and dust protection
-
-40℃~85℃ operating temperature
Specifications:
|
Product Name |
SST Tonable drop cable with locate wire |
|
Cable Type |
Tonable cable flat wire tracer wire |
|
Cable Diameter |
4.5*9.8mm drop FTTH |
|
Applications |
Aerial,Direct Buried,Duct |
|
Termination |
Both end terminated or one end terminated |
|
Specifications - Connector A |
|
|
Reflectance, Typical |
-65 dB |
|
Insertion Loss, Typical |
≤ 0.15 dB |
|
Connector Type |
SC/APC hardened connector |
|
Specifications - Connector B |
|
|
Reflectance, Typical |
-65 dB |
|
Insertion Loss, Typical |
≤ 0.15 dB |
|
Connector Type |
SC/APC hardened connector |
|
Optical Characteristics |
|
|
Fiber Type |
Single-mode |
|
Fiber count |
1F |
|
Fiber Category |
G652D or G657A |
|
Wavelengths |
1310 nm / 1550 nm |
|
Maximum Attenuation |
0.35 dB/km / 0.25 dB/km |
Applications:
-
FTTH;
-
Outdoor Areas
-
Harsh Environment
