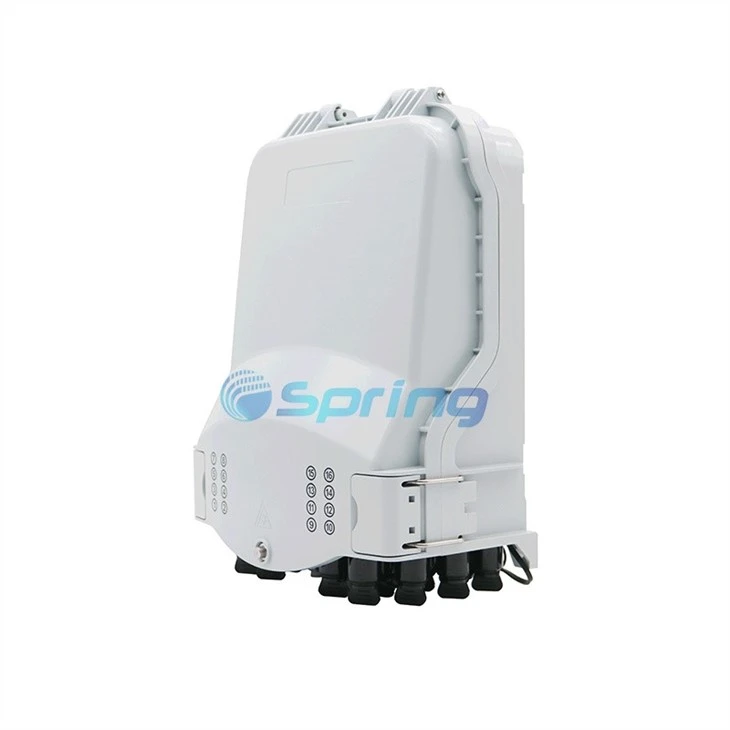

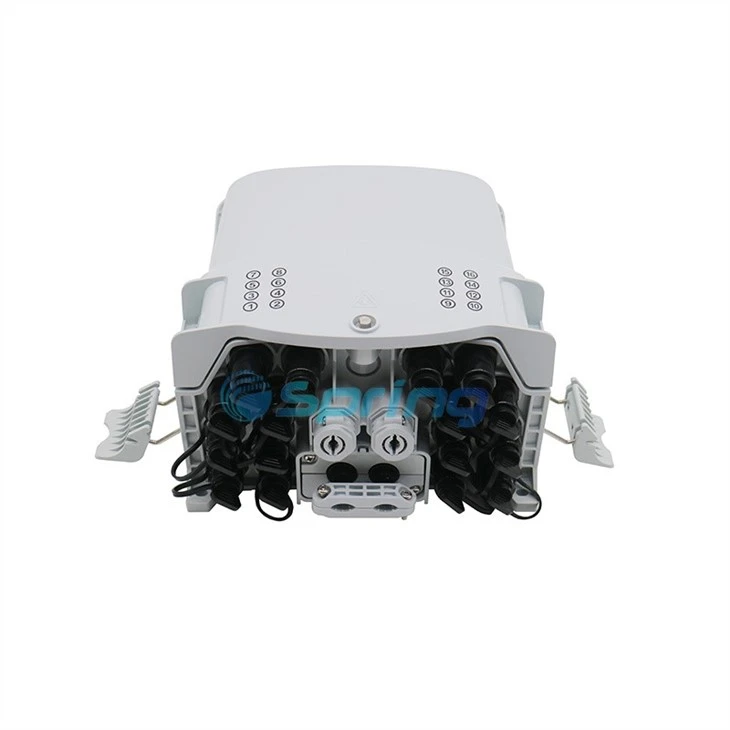

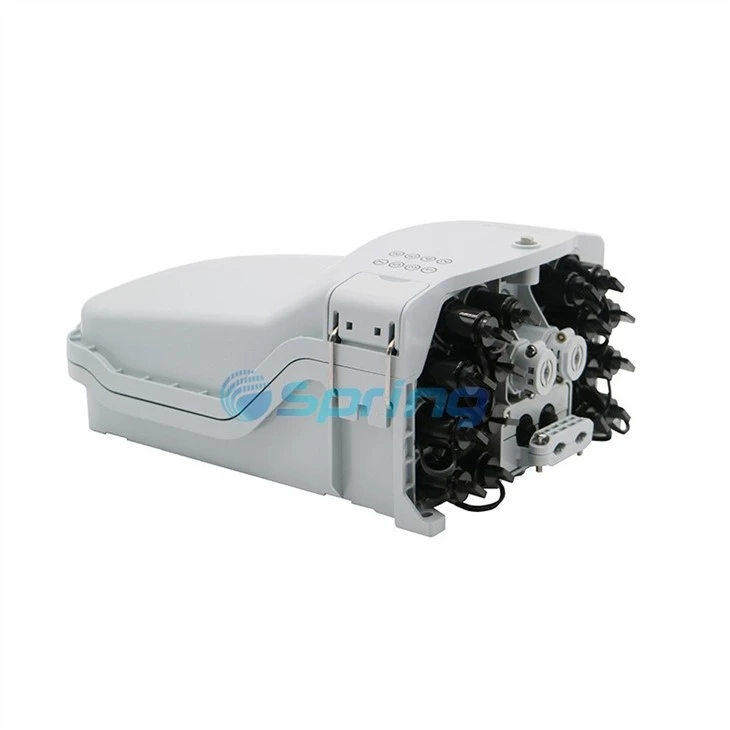

SP-1604-16S FTTH CTO Box Fibra Optica Caja Box Fiber Optical 16 core NAP Box with Blockless Splitters
Features:
-
Total enclosed structure.
-
Material: PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65.
-
Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution all in one.
-
Cable, pigtails, and patch cords are running through their own paths without disturbing each other, micro type PLC splitter installation, easy maintenance.
-

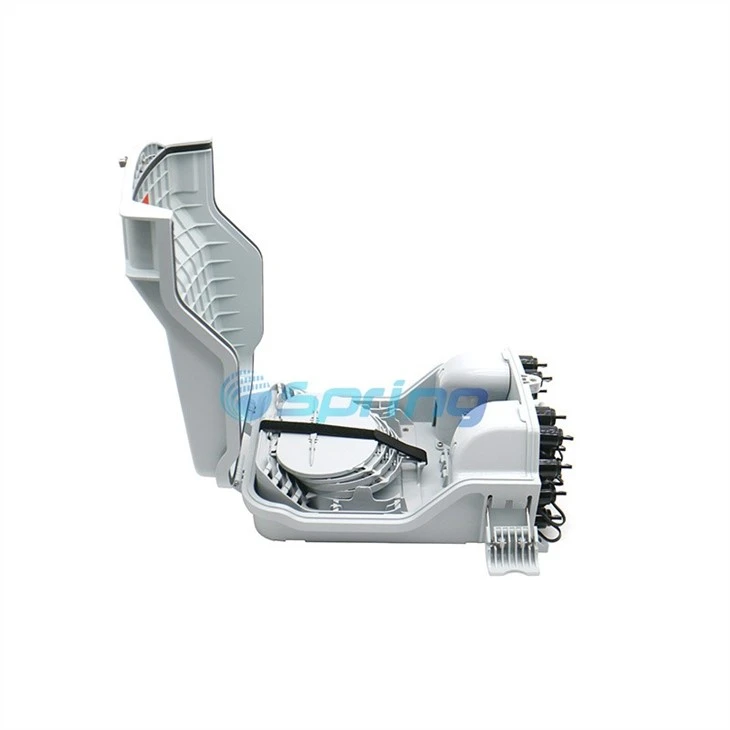

Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
-
Box can be installed by the way of wall-mounted, poled-mounted, Aerial Mounted, suitable for both indoor and outdoor use.
Specifications:
|
Material |
PC+ABS |
|
|
Dimension (Pic 1) A*B*C(mm) |
319*214*133mm |
|
|
Max Capacity |
48fibers |
|
|
Splice Tray |
4pcs (12fiber/tray) |
|
|
Input cable diameter(mm) |
Uncut 8-14mm |
|
|
Branch hole cable diameter(mm) |
16mm |
|
|
Color |
Grey |
|
|
Splitter |
2piece 1x8 Mini Splitter |
|
|
Waterproof Adapter |
16pcs |
|
|
Working temperature |
-40℃～+85℃ |
|
|
IP Rated |
IP65 |
|
|
Relative humidity |
≤85%(+30℃) |
|
|
Atmospheric pressure |
70KPa～106Kpa |
|
|
Installation Size(Pic 2) (mm) |
D*E*F |
52*166*166 |
Box Sizes:
Product Cable Way:
Install Method:
1.Wall-mounted installation
Drill 3 holes into the wall based on the installation size,place the expansion bolt Φ7.5*40,place the box to match up the holes and use bolt to fasten.
2.Pole-mounted installation
Fix 1 set of the pole ring to the telecom pole
3. Aerial Mounting:
Tie the two installed on the chassis of the overhead hung on the wire, and then bolted, prevent the case fall off.
