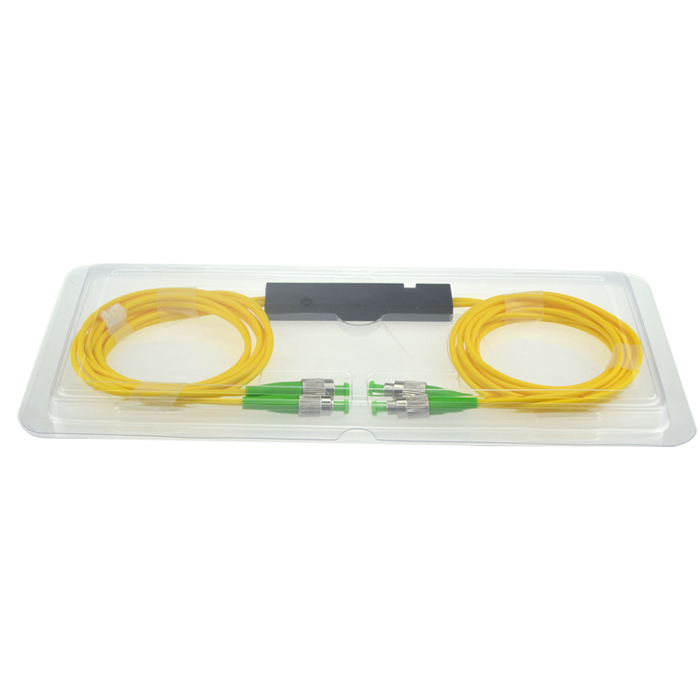

2x2 Singlemode Dual window FBT Coupler with FC/APC Connector ABS Box type
Brief Introduction
Fiber optic coupler, is a device applicated in optical fiber systems with one or more input fibers and one or several output fibers.For the fused optical splitter,It can be divided into different ratios.such as 50/50 if the split is even, or 80/20 if 80% of the signal goes to one side and only 20% to the other.As a result of its great funciton,Optical splitter is a very important part in passive opitc networks (PON).FTB Fused fiber splitter (coupler) can do Singlemode (1310/1550nm) and Multimode (850nm).Cable diameter can be 0.9mm,2.0mm,3.0mm ,Single window,dual window and three window all we can supply .

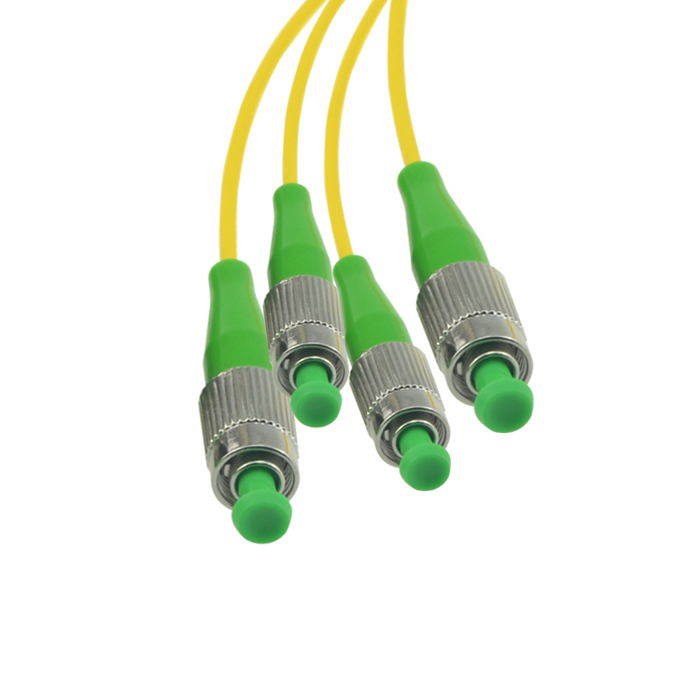

Singlemode Dual Window Couplers are Single Mode Splitters with a defined split ratio from one or two input fibers to 2 output fibers. Available split counts are 1x2 and 2x2 in split ratios of: 50/50, 40/60, 30/70, 20/80, 10/90, 5/95, 1/99, 60/40, 70/30, 80/20, 90/10, 95/5, and 99/1. Dual Window Couplers are availble with 0.9mmloose tube singlemode fiber or 250umbare fiber and terminated or unterminated as per your needs. UnconnectorizedDWC's come with no connectors for easy splicing or connectorization. Connectorized DWC's are available with your choice of Fiber Optic Connectors: LC/UPC, LC/APC, SC/UPC, SC/APC, FC/UPC, FC/APC, and ST/UPC.
Characteristics:
Low insertion loss and excess loss
Low polarization dependence
High optical return loss
Better uniformity
Environmental Stability and Reliability
Small package size
Application:
FTTH, LAN, PON and Optical CATV
Local ring net
Optical fiber communication system
Optical fiber test equipment
Optical fiber sensor
Coupling Ratio/Insertion Loss Conversion Chart
| Coupling Ratio | Insertion Loss | |
Premium | A Grade | |
40/60 | 4.7/2.7 | 5.0/2.9 |
30/70 | 6.0/1.9 | 6.4/2.1 |
20/80 | 7.9/1.2 | 8.4/1.4 |
10/90 | 11.3/0.5 | 12.7/0.8 |
5/95 | 15.2/0.4 | 18.5/0.5 |
1/99 | 22.5/0.3 | 23.0/0.4 |
PACKAGE DIMENSIONS & PIGTAIL STYLE
| Package Dimensions: | |
Package A: |
|
Package B: |
|
Package C: | |
Pigtail Style: | |
Package A: | 250um bare fiber |
Package B: | 250um bare fiber or 900um loose tube |
Package C: | 3mm/2mmcable or 900um loose tube |
Ordering Information:
1.Different split ratios of the optical power can be selected: 50/50, 40/60, 30/70, 20/80, 10/90, 5/95, 4/96, 3/97, 2/98, 1/99...
2.Single window,dual window ,three window.
3. 1310nm, 1490nm and 1550nm operating wavelength are all available
4.1x2, 1x3, 1x4, 1x5, 1x6, 1x8, 1x12, 1x16, 1x18, 1x20, 1x24 configurations of splitters are available.
5. 250um bare fiber, 0.9 loose tube, 2. 0mm or 3.0mm LSZH fiber cables can be selected.
6. The length of input or output fibers can be also customized; 1m length as default
Welcome to contact ussales@springoptic.comfor customized solutions.
