Introduction – High-Density Fiber Optic Bundle Cable for Indoor Backbone
The 9.0mm fiber optic bundle cables provide medium- to high-density indoor fiber solutions. These fiber optic bundle cables support 48–144 fibers in a compact design, ideal for data center floors, commercial buildings, or horizontal and vertical indoor runs. Flexible structure ensures organized routing without sacrificing manageability.
Fiber Optic Bundle Cable Design for Medium-Scale Indoor Networks
Designed for mid-scale indoor deployments where high-density fiber optic bundle cables and space efficiency are critical.
Key Advantages of 9.0mm Fiber Optic Bundle Cable
Medium-diameter design supports higher fiber counts.
Flexible and manageable fiber optic bundle cable structure.
Supports OM3/OM4 multimode and single-mode fibers.
PVC/LSZH jacket ensures indoor fire safety.
Easy routing in conduits, trays, or risers.
Applications of Fiber Optic Bundle Cable
Data center floor backbone distribution with fiber optic bundle cables.
Commercial building horizontal and vertical cabling.
Office risers requiring higher fiber counts using fiber optic bundle cables.
Installation Guidelines for Fiber Optic Bundle Cable
Maintain bending radius ≥ 15× cable diameter.
Avoid exceeding tensile limits.
Use trays or conduits for neat backbone routing.
Protect fiber ends from dust and moisture.
Fiber Optic Bundle Cable FAQ
Why choose 9.0mm fiber optic bundle cables?
High fiber density for mid-scale indoor networks.
Are these cables suitable for 100G networks?
Yes, OM4 and single-mode fibers support high-speed links.
Can these bundle cables be routed in standard trays?
Yes, flexible structure allows neat installation.
Hot Tags: fiber optic bundle cable, 9.0mm indoor cable, high-density fiber cable, OM3, OM4, single-mode cable

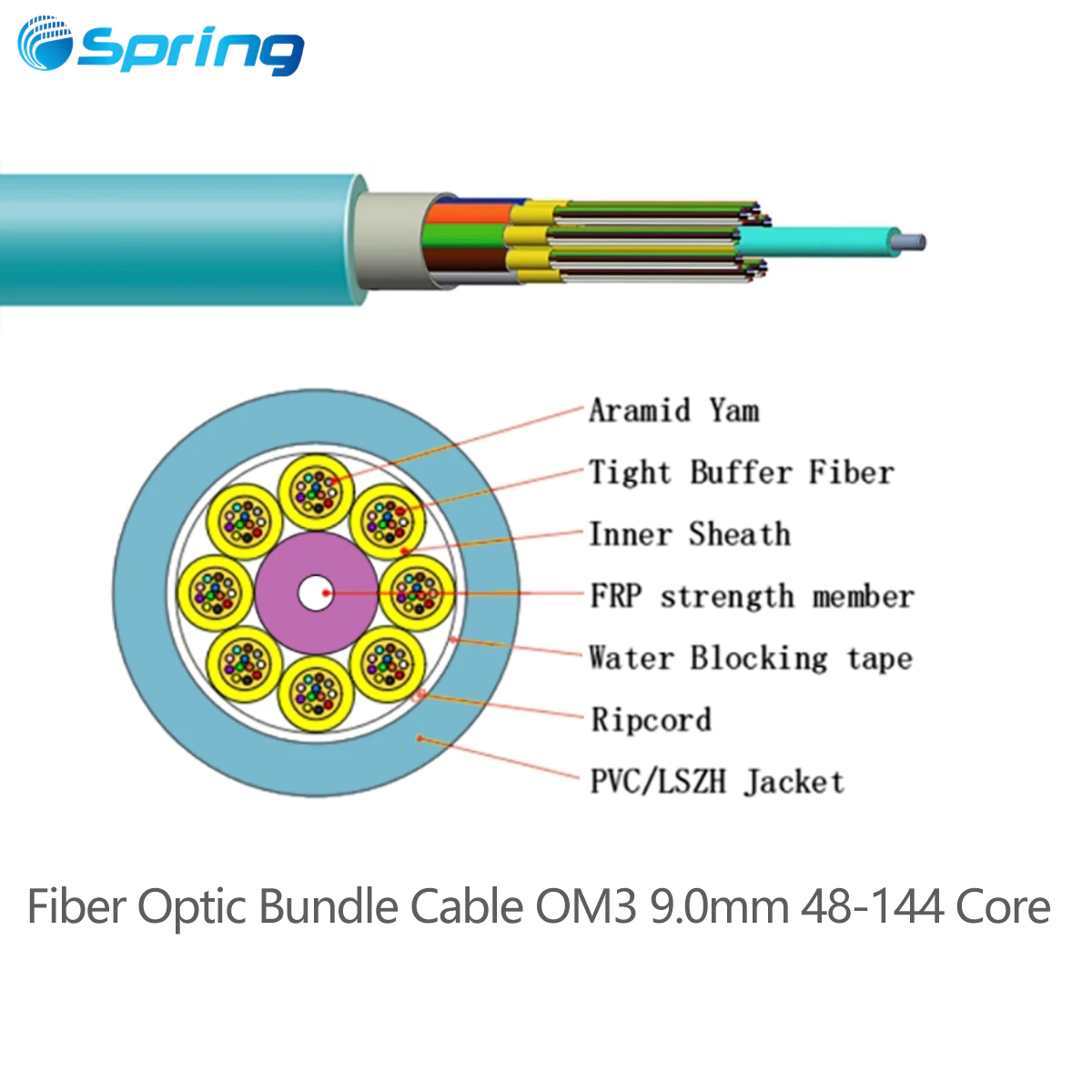

Technical Specifications of 9.0mm Fiber Optic Bundle Cable
| Parameter | Value |
|---|---|
| Fiber Type | OM3 / OM4 / Single-mode |
| Core Count | 48 / 72 / 96 / 144 |
| Outer Diameter | 9.0 ± 1.7 mm |
| Outer Jacket | PVC / LSZH |
| Filling Material | None |
| Long-term Tensile Force | 400 N |
| Short-term Tensile Force | 1300 N |
| Working Temperature | -30℃ to +80℃ |
| Storage Temperature | -40℃ to +80℃ |
| Net Weight | 79–285 KG/KM |
