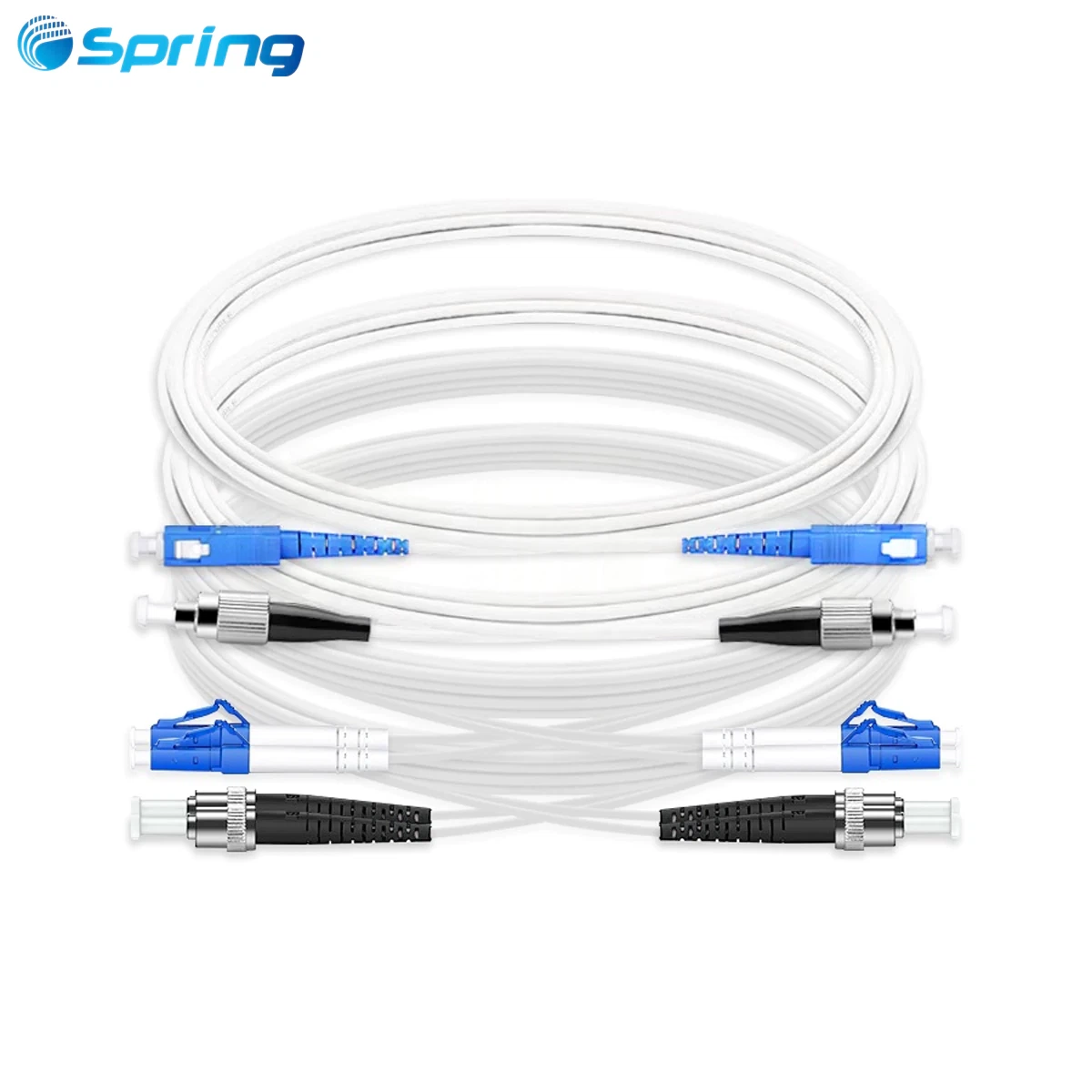

Single-Mode Fiber Patch Cord – Reliable Indoor Connectivity Solution

Spring Optical Communication is one of the largest and best single-mode fiber patch cord – reliable indoor connectivity solution manufacturers and suppliers with rich experience. Welcome to buy our high quality products or wholesale our customized single-mode fiber patch cord – reliable indoor connectivity solution in stock with our factory. Also, free sample is also available if necessary.

Overview of Single-Mode Fiber Patch Cord

Single-Mode Fiber Patch Cord is engineered for high-performance indoor optical signal transmission, enabling stable and low-loss connections between active and passive network devices. Manufactured with precision PC, UPC, or APC polishing, each single-mode fiber patch cord delivers low insertion loss, high return loss, and long-term transmission reliability.

Available in single-core (SX) and dual-core (DX) configurations, Single-Mode Fiber Patch Cord supports G652D, G657A1, G657A2, G657B3, and G655 fibers, making it ideal for long-distance data transmission, telecom backbone networks, and high-precision optical systems.

Applications of Single-Mode Fiber Patch Cord in Indoor Networks

Single-Mode Fiber Patch Cord is widely deployed in scenarios requiring long-distance transmission and strict signal quality control:

Long-distance data transmission systems

Telecom networks and central offices

Indoor backbone cabling for FTTH and FTTx networks

High-precision optical testing equipment

Broadband access networks and LAN infrastructure

Optical fiber CATV distribution systems

Key Features of Single-Mode Fiber Patch Cord

PC, UPC, and APC polishing options for high return loss

Low insertion loss ≤ 0.2 dB for reliable signal transmission

400× microscope inspection of fiber end-face geometry

Excellent repeatability and interchangeability

Optimized single-mode fiber performance for long-haul links

Core configurations: SX (single-core) and DX (dual-core)

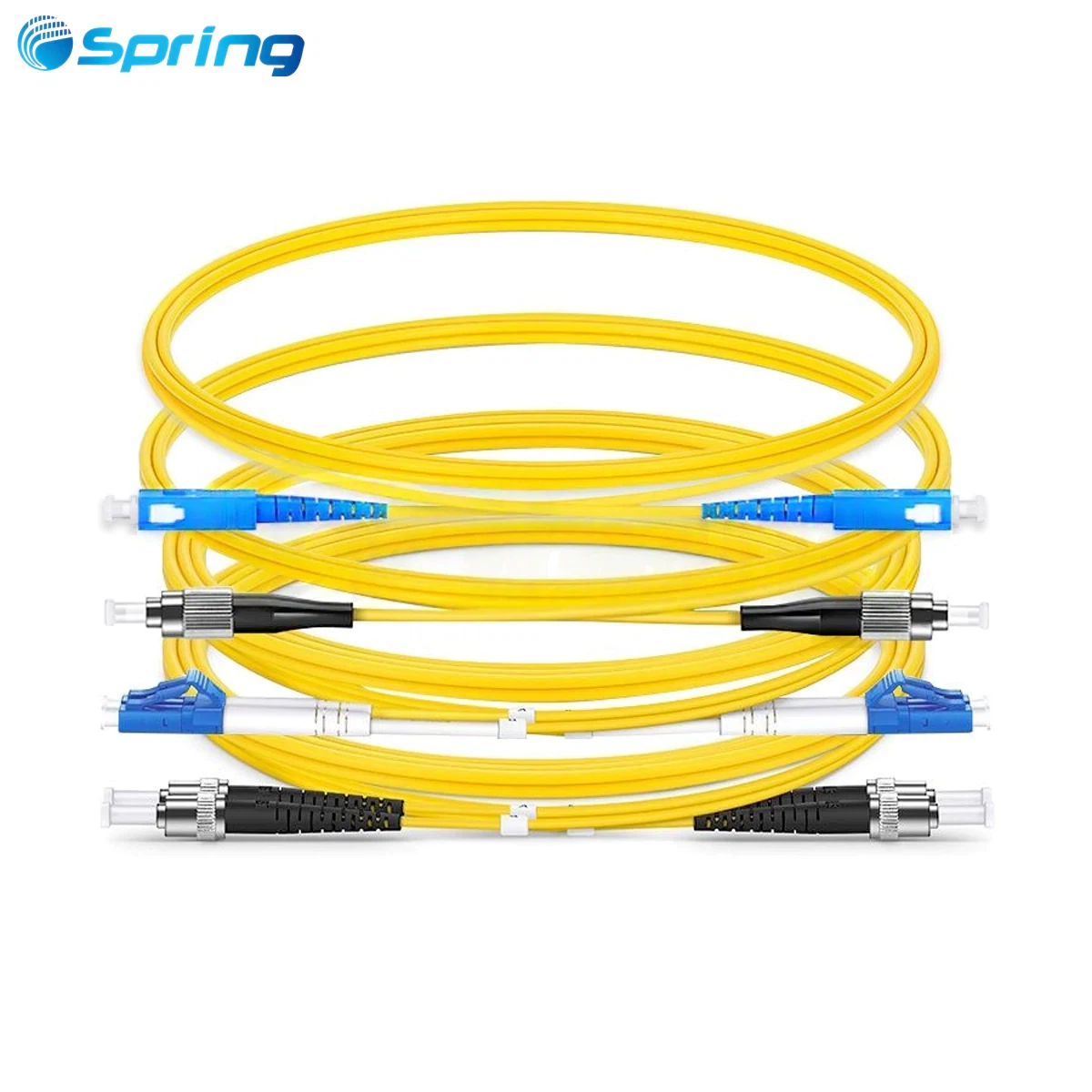

Single-Mode Fiber Patch Cord Connector Types

Single-Mode Fiber Patch Cord is available with a wide range of connector combinations at both ends:

Standard connectors: SC, LC, FC, ST

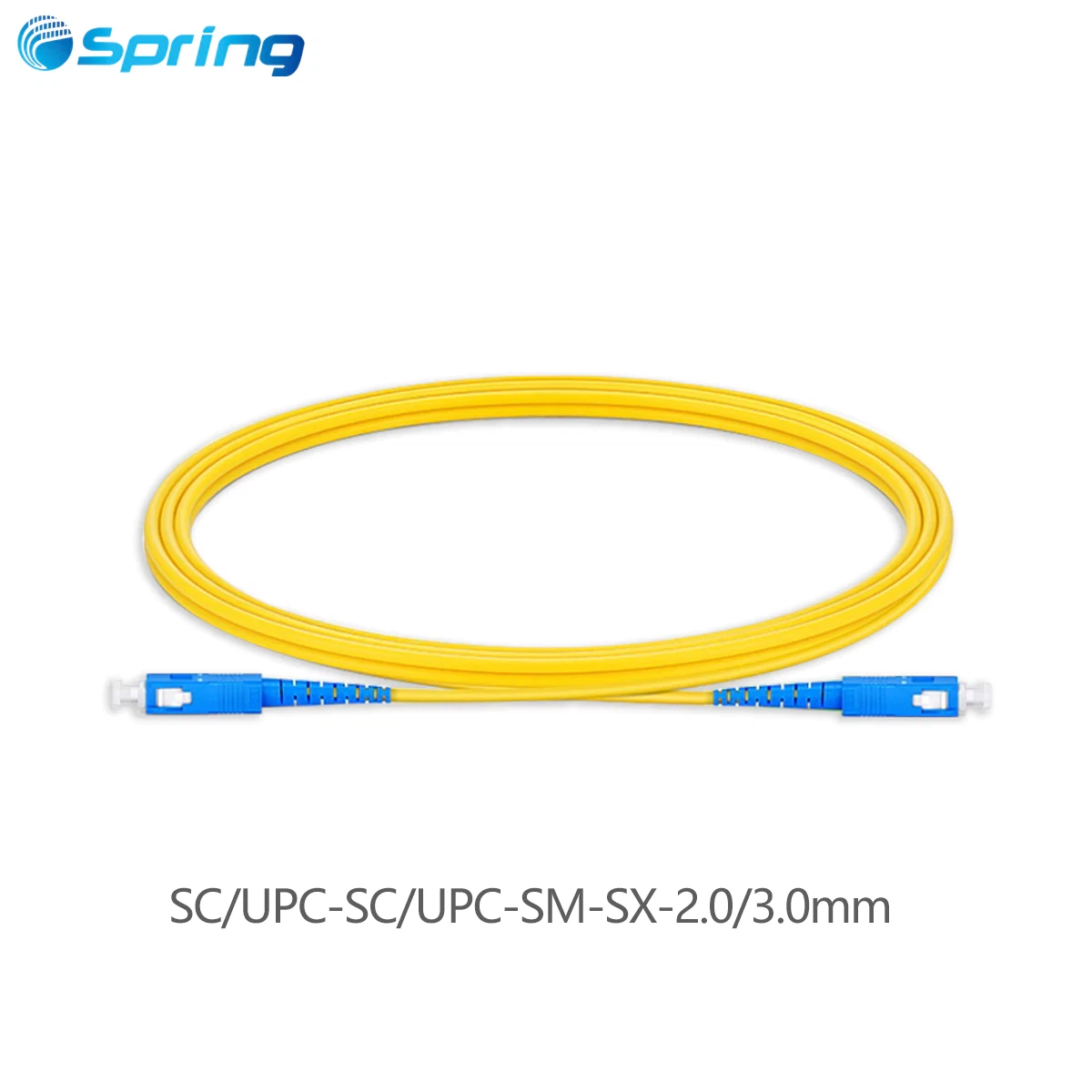

Single-Mode SC to SC

Indoor Fiber Patch Cord

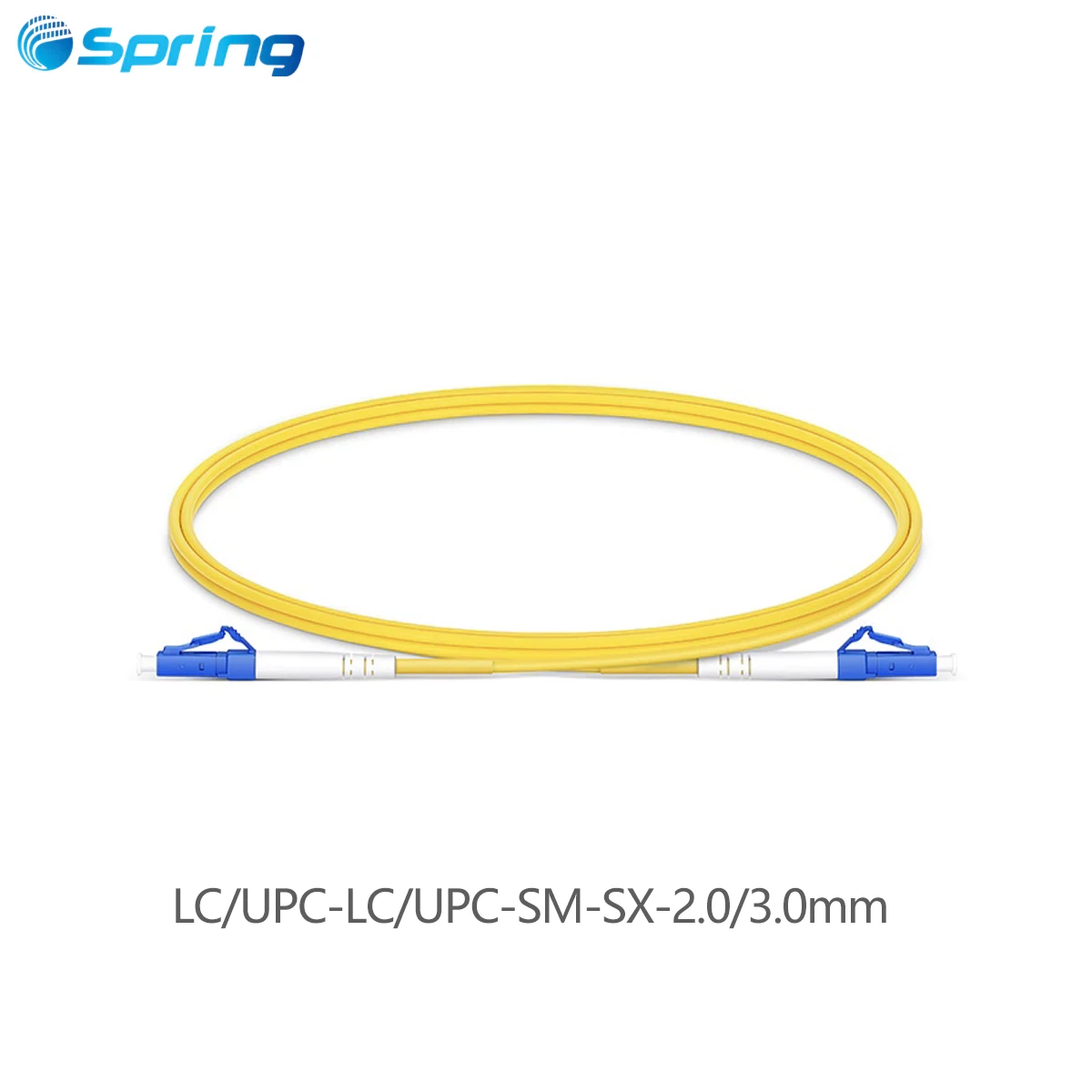

Single-Mode LC to LC

Indoor Fiber Patch Cord

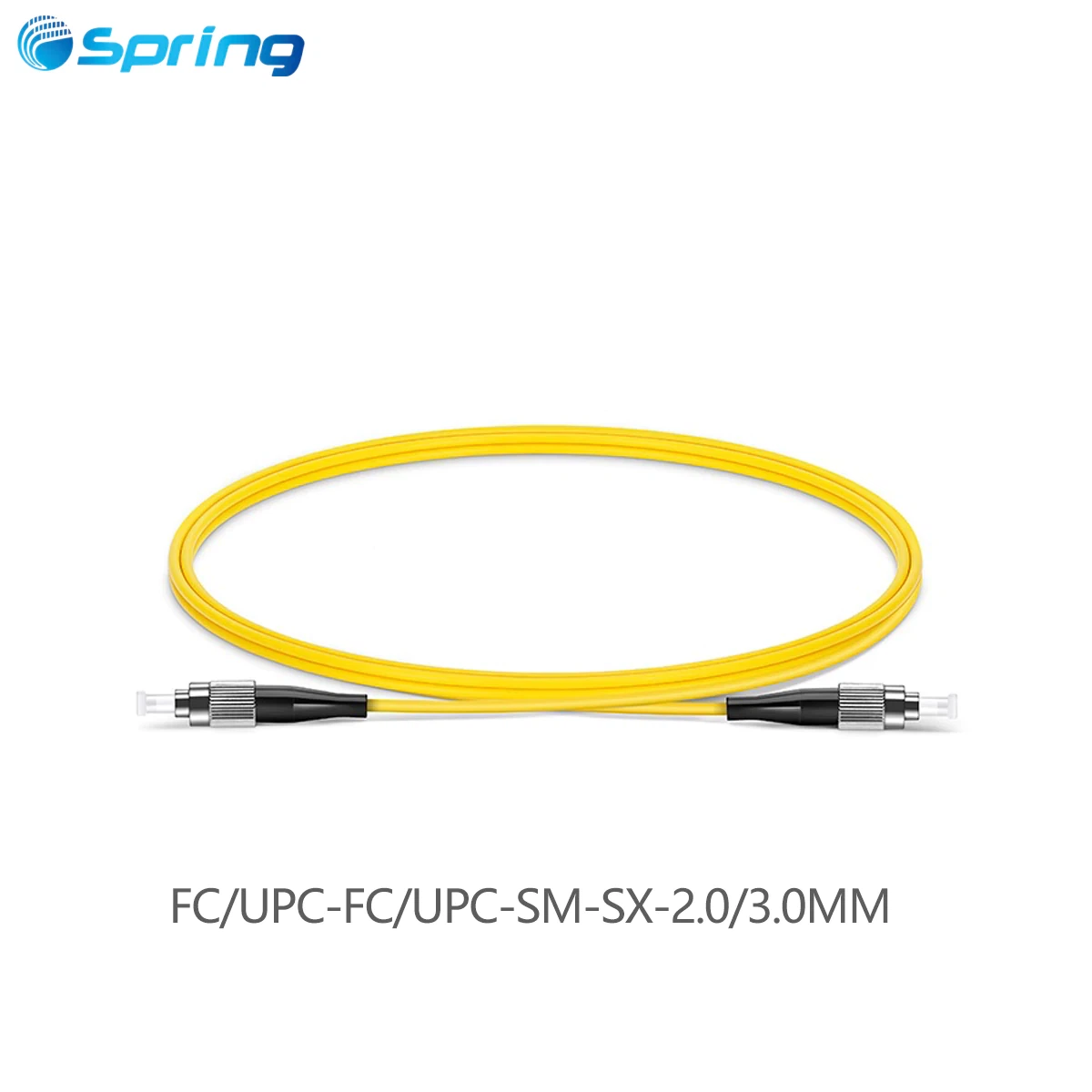

Single-Mode FC to FC

Indoor Fiber Patch Cord

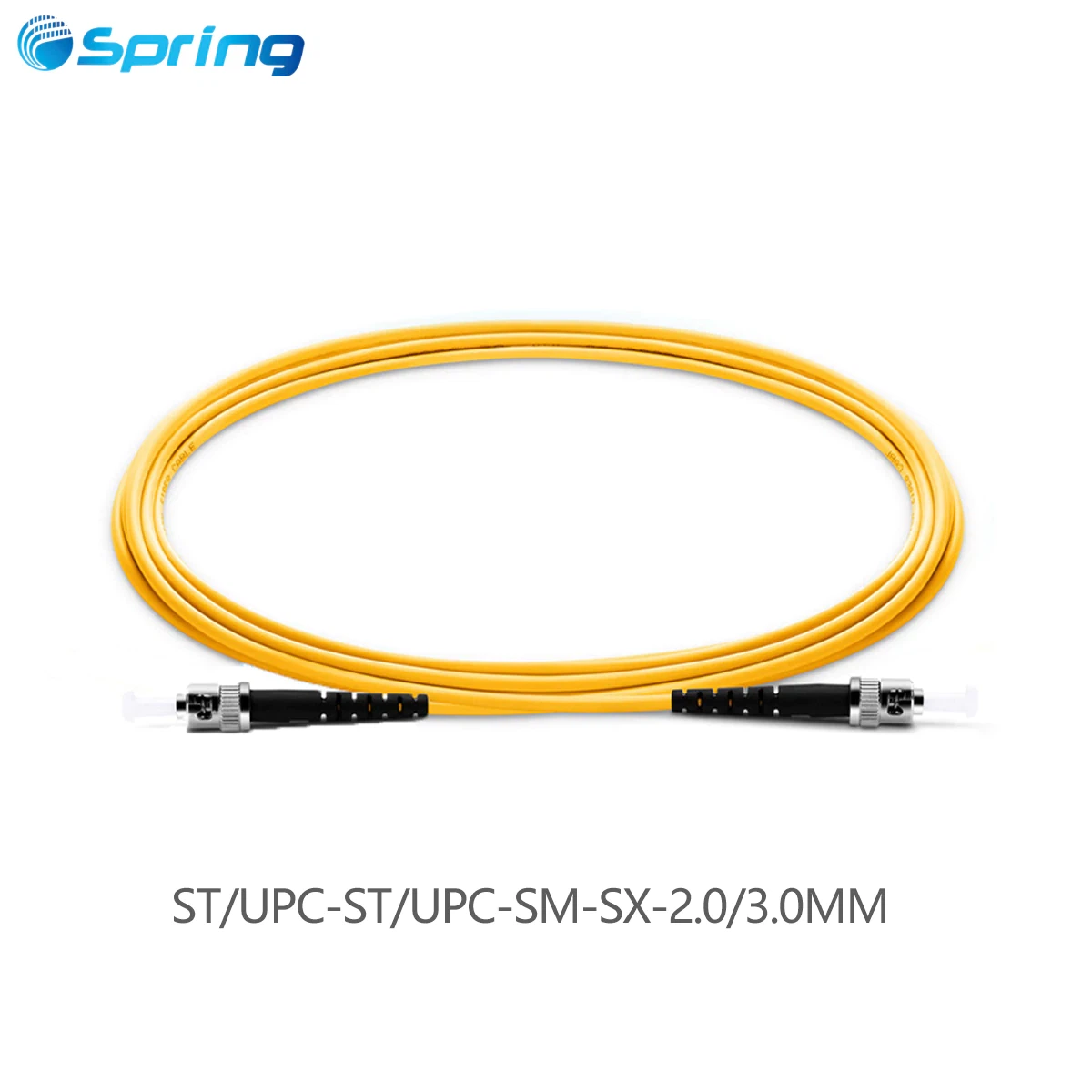

Single-Mode ST to ST

Indoor Fiber Patch Cord

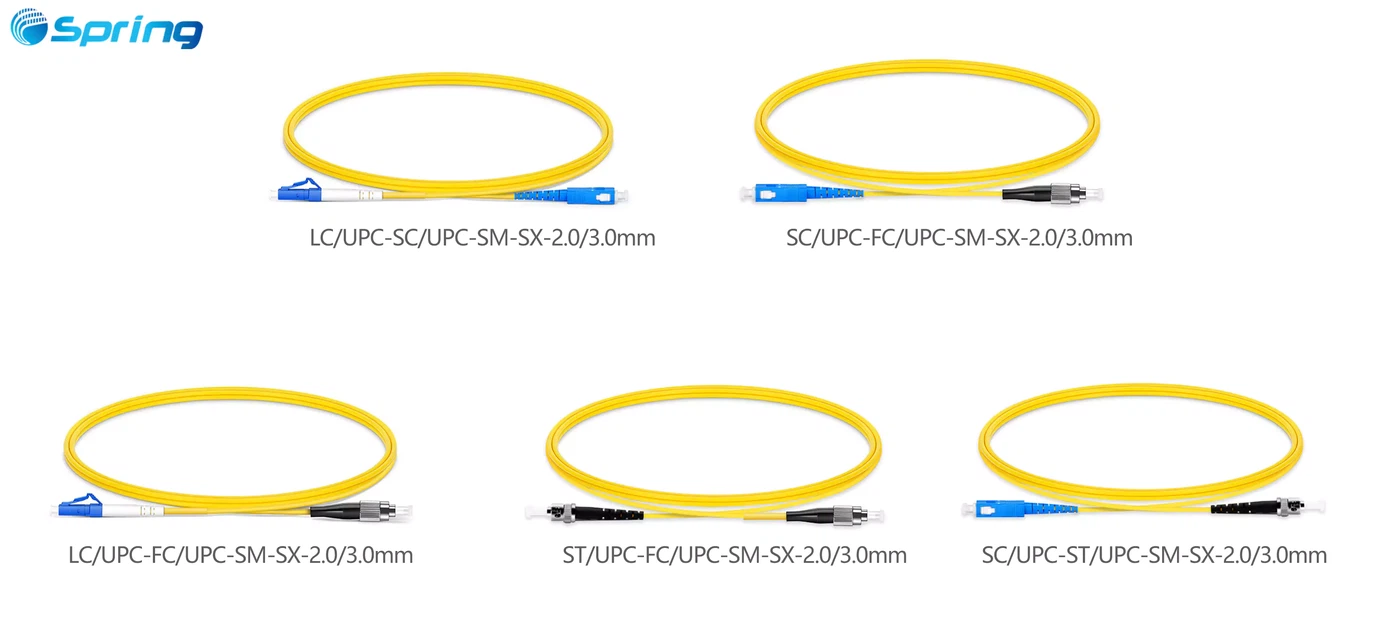

Hybrid connectors: SC–FC, LC–FC, SC–LC, etc.

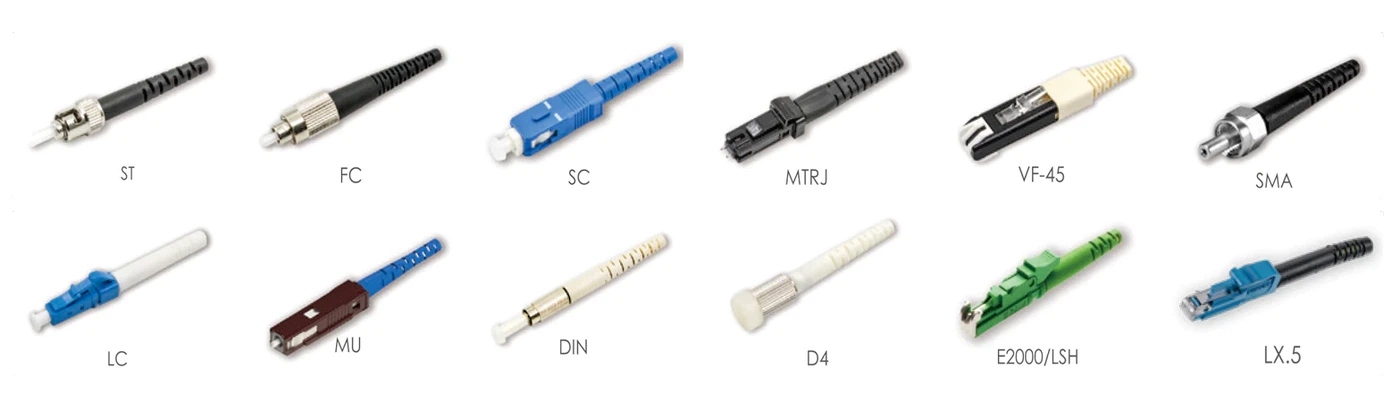

Optional connectors: MU, DIN, D4, E2000, MTRJ, SMA, LX.5

Supported Single-Mode Fiber Types (G652D / G657 Series)

Single-Mode Fiber Patch Cord supports the following ITU-T compliant fiber types:

G652D – Standard single-mode fiber for backbone networks

G657A1 / G657A2 – Bend-insensitive fibers for indoor routing

G657B3 – Ultra-bend-insensitive fiber for tight installation paths

G655 – Optimized for long-distance and DWDM transmission

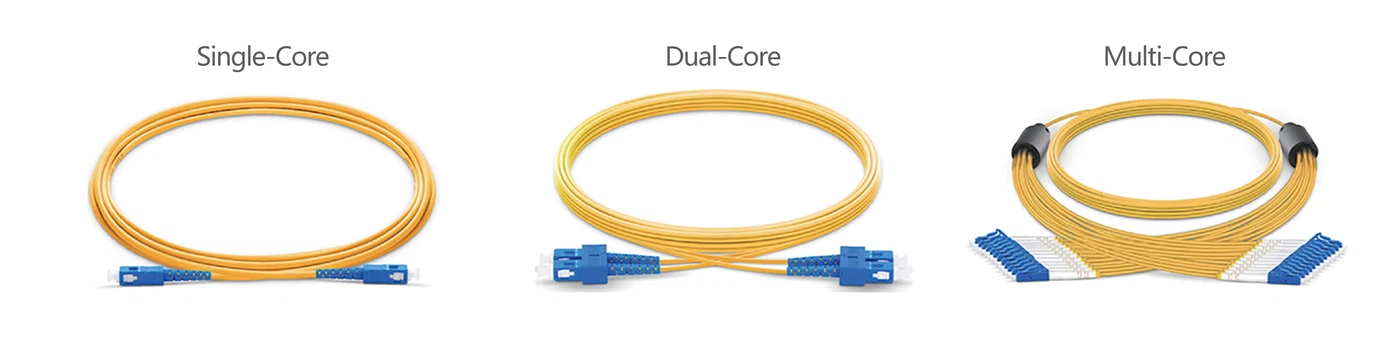

Core Configuration of Single-Mode Fiber Patch Cord (SX / DX)

SX (Single-Core): Ideal for equipment-to-equipment connections

DX (Dual-Core): Commonly used for bidirectional transmission

Jacket and Strength Member Options for Single-Mode Fiber Patch Cord

Outer jacket materials: PVC, LSZH, OFNP, OFNR, PE, TPU

Strength members: Domestic aramid yarn, Dupont Kevlar yarn

Cable diameters: Φ0.9 mm, Φ2.0 mm, Φ3.0 mm

Single-Mode Fiber Patch Cord Selection Examples

SC/UPC–SC/UPC, SM G652D, Φ3.0 mm, LSZH jacket, Dupont Kevlar, DX, 10 m

LC/UPC–FC/UPC, SM G657B3, Φ2.0 mm, PVC jacket, SX, 5 m

Length Selection Guidelines for Single-Mode Fiber Patch Cord

Select the appropriate Single-Mode Fiber Patch Cord length based on the actual distance between devices to minimize excess fiber and ensure optimal signal performance.

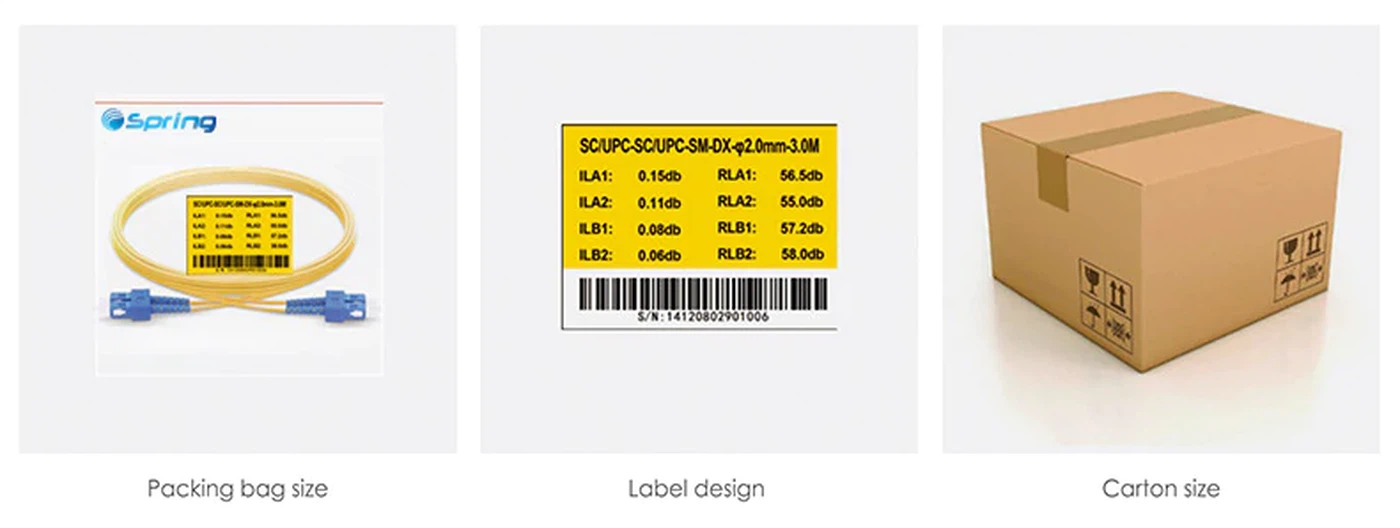

Packaging and Customization for Single-Mode Fiber Patch Cord

Customized packaging solutions are available, including cable printing, label design, individual packing bags, and export-grade carton specifications.

Hot Tags: single-mode fiber patch cord, indoor fiber patch cord, sm fiber patch cable, g652d fiber patch cord, g657 fiber patch cord, fiber optic patch cord manufacturer

Single-Mode Fiber Patch Cord Ordering Information
