LC Duplex Fiber Wall Plate is an indoor FTTH termination box designed to connect drop cables with optical devices via LC duplex adapters. It provides secure fiber splicing, dust protection, and stable signal transmission for residential and telecom fiber access networks.
Product Overview

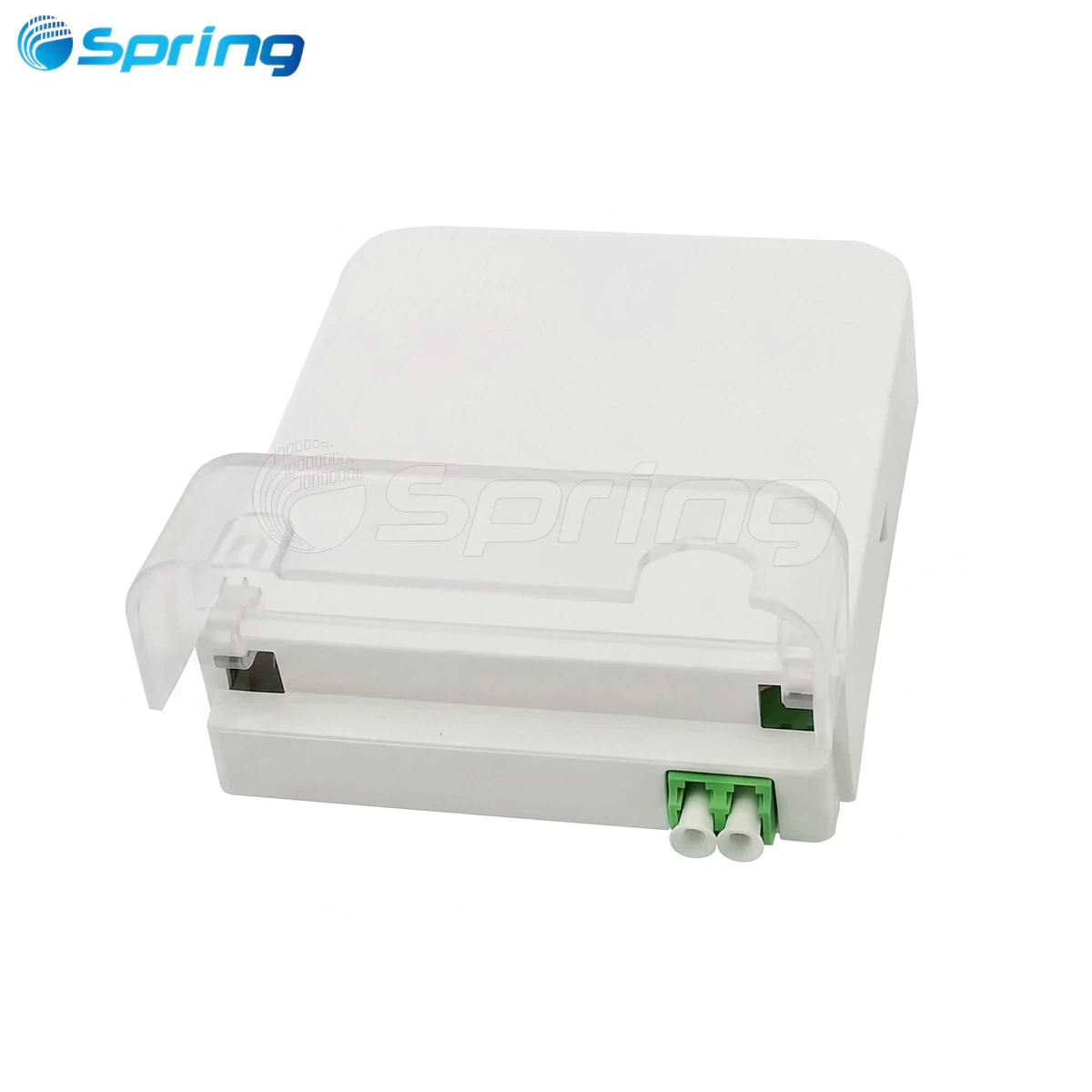

The LC Duplex Fiber Wall Plate (Model: FTB56E) is a compact FTTH indoor termination solution designed for last-mile fiber access in residential and enterprise networks. It serves as a secure interface between incoming fiber drop cables and optical devices such as ONTs, routers, and fiber modems.
This fiber optic wall outlet supports single-mode and multimode fiber, enabling flexible deployment in different telecom environments. With a maximum capacity of 1–4 fibers, it supports fusion splicing, mechanical splicing, and FMC connections.
Manufactured using high-quality ABS+PC flame-retardant materials, the unit ensures excellent impact resistance, durability, and compliance with international safety standards. The IP54 dustproof design protects fiber connectors from environmental contamination, ensuring stable signal performance.
The LC duplex adapter structure (SC footprint, no flange) provides high-density fiber connectivity while maintaining easy installation and maintenance. Its wall-mounted design makes it ideal for FTTH indoor deployments, especially in residential buildings, MDUs, and telecom operator access networks.
This product is widely used as the final termination point in FTTH architecture, ensuring stable optical signal delivery from distribution networks to end-user equipment.
Key Features
LC Duplex Fiber Wall Plate designed for FTTH indoor termination
Supports fusion splicing, mechanical splicing, and FMC
High-quality ABS+PC flame-retardant housing for safety
IP54 dustproof protection for stable optical performance
Supports 1–4 fiber capacity for flexible deployment
Wall-mounted design for fast FTTH installation
Compatible with single-mode and multimode fiber systems
Optimized for low-loss, high-stability fiber connections
Technical Specifications
| Item | Specification |
|---|---|
| Model | FTB56E |
| Fiber Capacity | 1 / 2 / 4 cores |
| Adapter Type | LC Duplex (SC footprint, no flange) |
| Fiber Mode | Single Mode / Multimode |
| Material | ABS + PC (Flame-retardant) |
| Color | White |
| Installation | Wall Mounted |
| Protection Level | IP54 Dustproof |
| Working Temperature | -25°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Humidity | ≤93% (+30°C) |
| Air Pressure | 70–106 KPa |
| Size | 116 × 86 × 23 mm |
| Drop Cable Compatibility | Flat & round fiber cable |
Product Variants
Fiber Capacity: 1 / 2 / 4 fibers
Adapter Options: LC Duplex / SC compatible footprint
Fiber Types: G652D, G657A, OM1, OM2, OM3, OM4
Connector Types: SC/LC/FP/SP/SA/LP
Configuration: Termination only / with adaptor / with pigtail
Fiber Length Options: 0.5m / 1m
Applications (LC Duplex Fiber Wall Plate)
FTTH residential broadband networks
ISP last-mile fiber access systems
Multi-Dwelling Units (MDU)
Telecom operator FTTH rollout projects
Indoor fiber distribution and termination points
Typical Network Architecture
OLT → Optical Splitter → Distribution Fiber → Network Interface (NID) →LC Duplex Fiber Wall Plate (FTB56E) → Patch Cord → ONT / Router
👉 This wall plate acts as the final indoor fiber termination point, ensuring clean signal delivery and stable connectivity for end users.
Product Advantages
Stable FTTH indoor fiber termination performance
Fast wall-mounted installation reduces deployment time
Low insertion loss and high signal reliability
Compact design for residential and MDU environments
Supports multiple fiber types and connector configurations
OEM/ODM customization for telecom operators
Long-term durability for 10+ year deployment lifecycle
Comparison Table
| Feature | LC Duplex Fiber Wall Plate | Traditional Junction Box |
|---|---|---|
| Installation | Wall-mounted compact | Large enclosure |
| Fiber Density | 1–4 cores | 4–48+ cores |
| Application | FTTH indoor endpoint | Distribution network |
| Maintenance | Easy access | Complex |
| Deployment Speed | Fast | Medium |
Related Products
Network Interface Device (NID)
FAQ
What is an LC Duplex Fiber Wall Plate used for?
It is used for indoor FTTH fiber termination between drop cable and ONT device.
Is it the same as a fiber termination box?
No, wall plates are for indoor endpoints while termination boxes handle distribution.
Can it support SC/APC and LC connectors?
Yes, depending on adapter configuration, both SC and LC interfaces are supported.
Does it affect internet speed?
Only if poor installation or contamination increases signal loss.
Can it be installed outdoors?
No, it is designed for indoor FTTH environments (IP54 protection).
Can I install it myself?
Pre-terminated versions can be installed, but splicing requires professional tools.
Manufacturer
Spring Optical is a professional fiber optic connectivity manufacturer specializing in FTTH, FTTA, and telecom-grade passive components.
Production capabilities include:
Fiber optic cable assembly workshops
FTTH wall outlet production lines
Connector polishing and assembly systems
Optical testing and quality control lab
ISO-compliant manufacturing processes
We provide:
OEM / ODM customization
Telecom operator project support
Bulk supply for global FTTH rollout
Strict quality inspection for low-loss performance
Packing & Shipping
Standard packaging: 92 pcs per carton
Packaging type: anti-static + foam protection
Operating temperature safe transport: -40°C to +70°C
Shipping methods: air / sea / express delivery
Handling: keep dry, avoid mechanical impact
