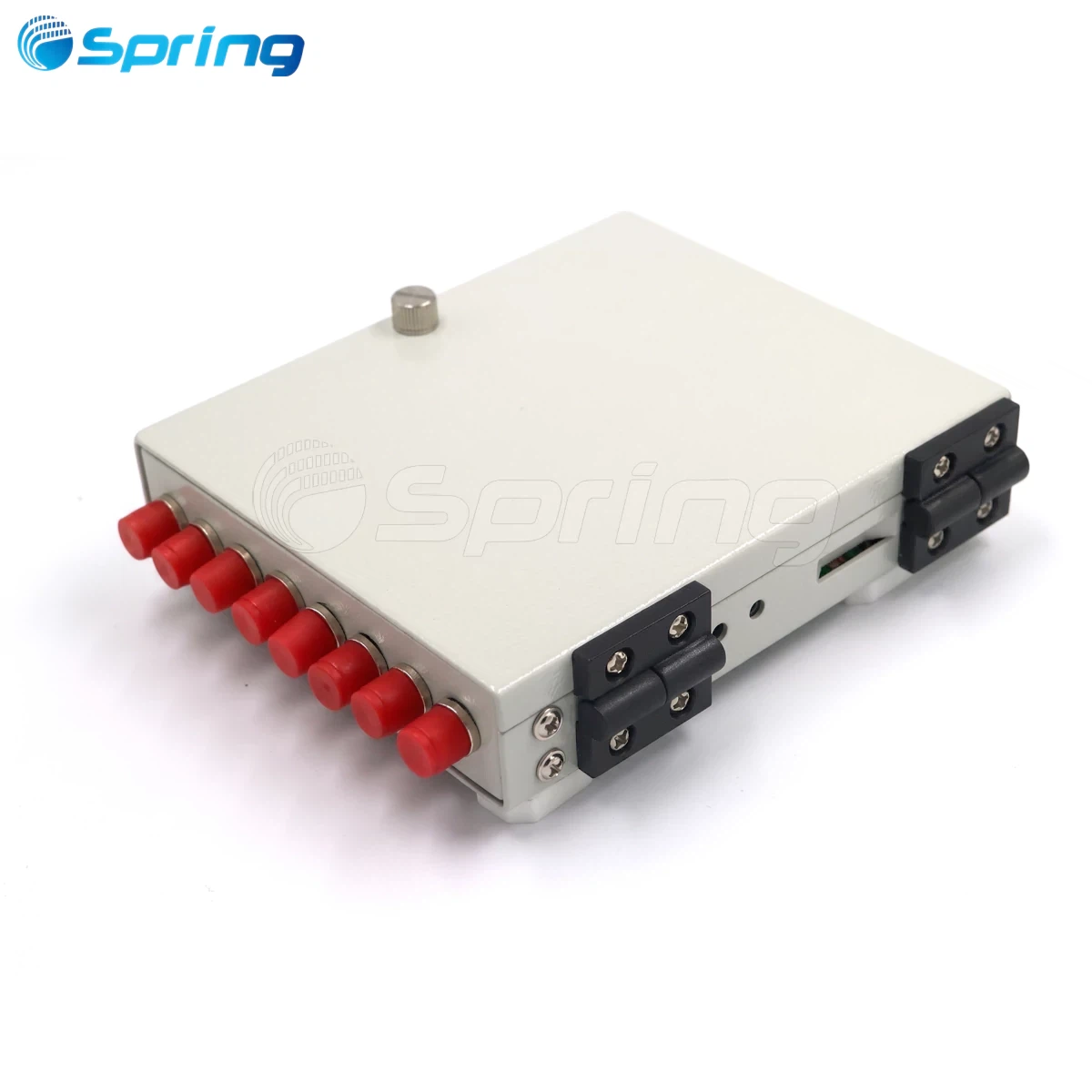

The 8 fibers wall mounted metal fiber terminal box is designed for FTTH indoor termination, supporting fiber splicing and pigtail management. With a durable metal housing, it supports SC, LC, FC, and ST adapters and ensures enhanced mechanical protection.
Product Overview
The FTB Series 8 fibers wall mounted metal fiber terminal box is designed for FTTH (Fiber to the Home) network access points, especially in residential buildings, villas, and small commercial installations.
It provides a compact and reliable solution for fiber termination, splicing, and pigtail management, ensuring stable fiber connections at the subscriber end.
Compared to standard plastic boxes, this model features a high-strength metal housing, offering enhanced durability and mechanical protection for long-term indoor use.
This terminal box supports multiple adapter types, making it highly flexible for different network requirements.
Key Features
· Compact & Space-Saving Design
Small size with optimized internal structure
Easy wall-mounted installation
Ideal for indoor FTTH applications
· Durable Metal Housing
High-strength metal construction
Improved impact resistance and structural stability
Better protection than standard plastic enclosures
· Flexible Adapter Compatibility
Supports up to 8 fibers
Compatible with SC, LC, FC, ST adapters
Available in SM, MM, or APC configurations
· Integrated Pigtail Management
Designed for 0.9mm pigtail installation
Organized fiber routing for clean layout
Reduced installation complexity
· Easy Installation & Maintenance
Hinged cover design
Press-pull lock system for quick access
Convenient fiber operation and maintenance
Applications
The 8 fibers wall mounted metal terminal box is widely used in:
FTTH access networks
Residential buildings and villas
Telecommunication networks
CATV systems
Data communication networks
Local area networks (LAN)
It is an ideal solution for last-mile fiber termination in indoor access environments requiring higher mechanical strength.
Technical Specifications
| Item | Specification |
|---|---|
| Fiber Capacity | 8 cores |
| Adapter Type | SC / LC / FC / ST (optional) |
| Installation Type | Wall mounted |
| Material | Metal housing |
| Pigtail Support | 0.9mm fiber pigtail |
| Environment | Indoor FTTH applications |
Dimensions
| Item | Size |
|---|---|
| 8 Core Fiber Terminal Box | 117.8mm (W) × 137.4mm (H) × 30mm (D) |
Packaging Information
| Model | Net Weight | Carton Size | Gross Weight | Packing Quantity |
|---|---|---|---|---|
| 8 Core Fiber Terminal Box | 0.5 kg/pcs | 750 × 340 × 295 mm | 27 kg/ctn | 50 pcs/ctn |
Why Choose Our Metal Fiber Terminal Box?
· Enhanced Mechanical Strength
Metal housing provides better protection against impact and deformation.
· Reliable FTTH Performance
Stable fiber termination for indoor access networks.
· Flexible Compatibility
Supports multiple adapter types and fiber modes.
· Easy Deployment
Quick installation reduces labor cost and time.
· Cost-Effective for Projects
Ideal for bulk FTTH rollout and telecom projects.
How to Choose a Fiber Terminal Box?
When selecting a fiber terminal box, consider:
Fiber capacity (8 cores for small FTTH nodes)
Adapter type (SC / LC / FC / ST)
Installation environment (indoor use)
Material requirement (metal vs plastic for durability)
Pigtail compatibility (0.9mm standard)
FAQ
What is an 8 fibers wall mounted metal fiber terminal box used for?
It is used for fiber termination, splicing, and pigtail management in FTTH indoor access networks.
What connectors does this fiber terminal box support?
It supports SC, LC, FC, and ST adapters depending on network requirements.
What is the advantage of a metal fiber terminal box?
A metal fiber terminal box offers higher mechanical strength, better impact resistance, and improved durability compared to plastic enclosures.
Does it support fiber splicing and pigtails?
Yes, it supports 0.9mm pigtails and fiber splicing for FTTH termination.
Is this fiber terminal box suitable for outdoor use?
No, this model is designed for indoor FTTH applications.
What is the capacity of this fiber terminal box?
It supports up to 8 fiber cores.
