8 Port Fiber Optics Termination Box For Outdoor FTTH Networks

Spring Optical Communication is one of the largest and best 8 port fiber optics termination box for outdoor ftth networks manufacturers and suppliers with rich experience. Welcome to buy our high quality products or wholesale our customized 8 port fiber optics termination box for outdoor ftth networks in stock with our factory. Also, free sample is also available if necessary.

Product Overview of the Fiber Optics Termination Box

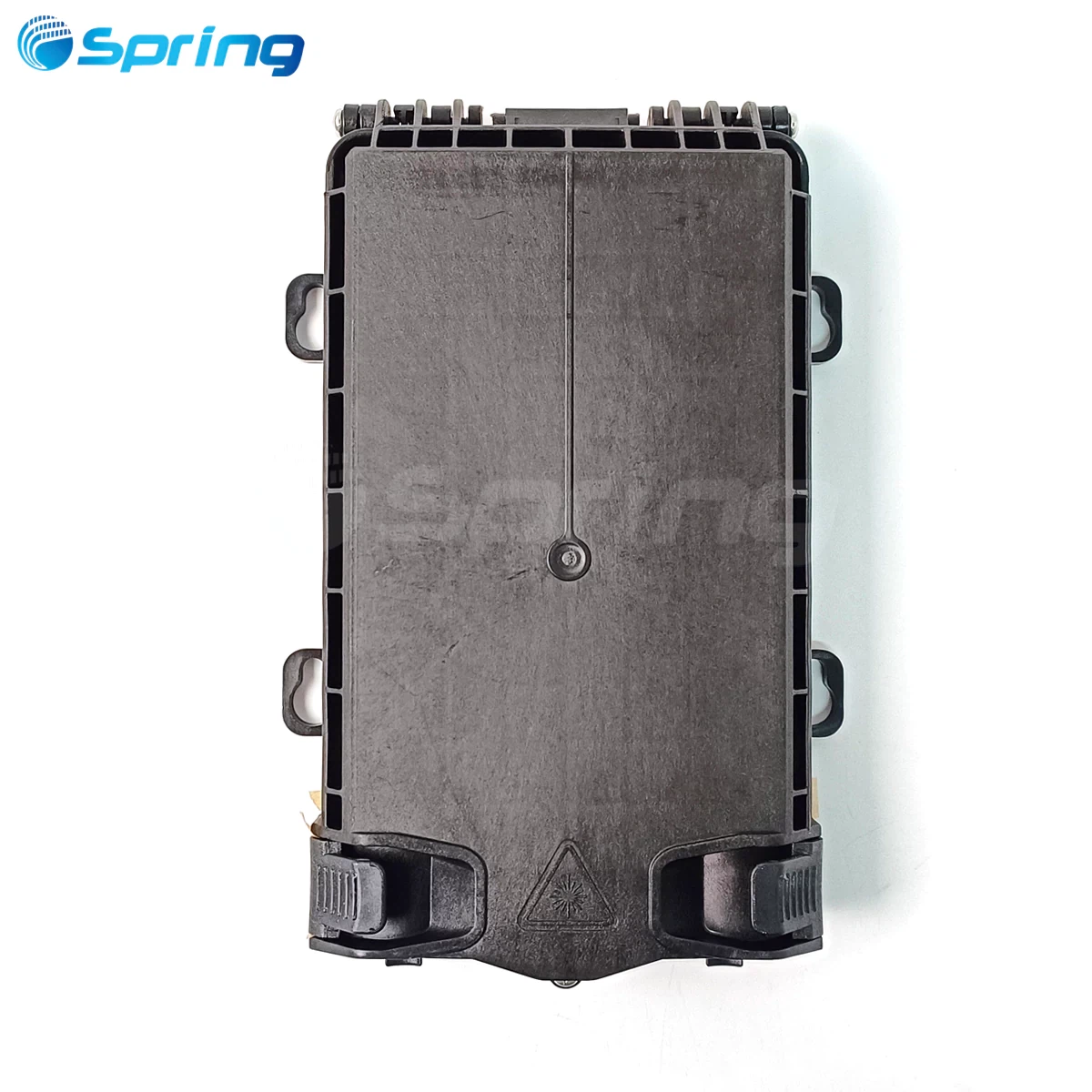

The fiber optics termination box(Model: SP-FTTH-H08A) is an essential component in FTTH and FTTx optical distribution networks. The 8 port waterproof fiber optic distribution box from Spring Optical is designed to provide reliable fiber termination, splicing, and distribution at the subscriber access point of an Optical Distribution Network (ODN).

This fiber optics termination box acts as the interface between feeder cables and drop cables, ensuring organized fiber management and long-term protection for optical connections. The enclosure integrates multiple functions including fiber splicing, optical signal splitting, cable termination, and fiber storage within a compact structure.

With an IP67 waterproof fiber enclosure, the box offers strong environmental protection against dust, moisture, and harsh outdoor conditions. The enclosure is constructed from high-strength PP engineering plastic, providing excellent durability, flame retardancy, and mechanical resistance.

The fiber optics termination box supports up to 8 SC/APC adapters, allowing flexible fiber distribution to subscriber drop cables. It can accommodate up to 12 fusion splices or 8 mechanical splices, and supports installation of up to two PLC splitters for efficient optical signal distribution.

Designed for wall-mounted or pole-mounted installation, this outdoor fiber optic distribution box is widely used in residential broadband networks, FTTH access nodes, and building fiber termination points. Its compact structure, organized fiber routing system, and high environmental protection make it an ideal solution for modern fiber access deployments.

Key Features of the Fiber Optics Termination Box

·8 port waterproof fiber optic distribution box supporting 8 SC/APC adapters for FTTH subscriber connections

·Integrated gel sealing system forming a reliable IP67 waterproof fiber enclosure

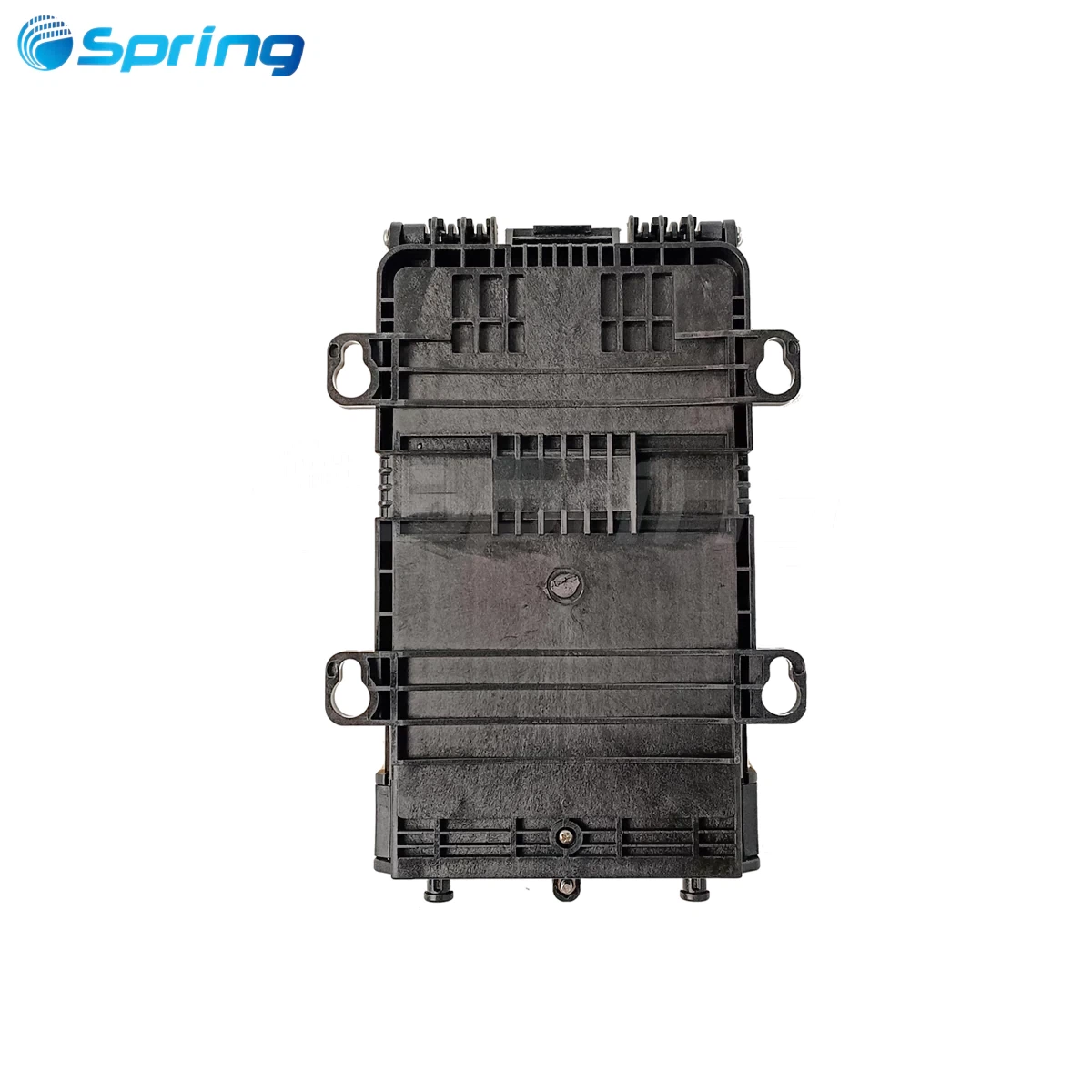

·2 feeder cable inlet ports and 8 drop cable ports for efficient fiber routing and distribution

·High-strength PP engineering plastic housing ensuring durability and flame resistance

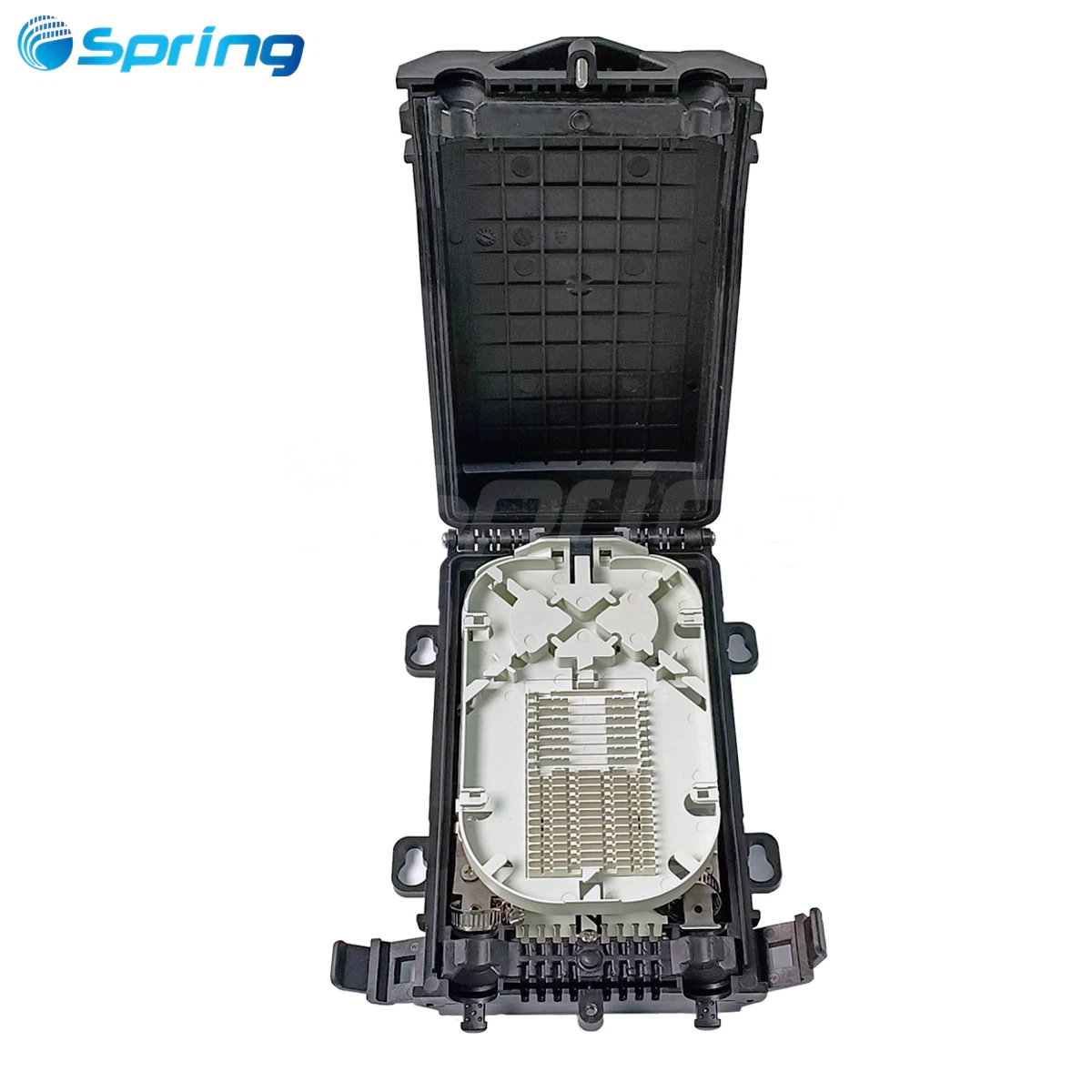

·Built-in stacked splice tray allowing easy fiber management and maintenance

·Supports installation of up to two PLC splitters for flexible optical distribution

·Compatible with fiber optic wall-mounted box or pole installation for outdoor deployment

Applications of the Fiber Optics Termination Box in FTTH Networks

The fiber optics termination box is widely used in optical access networks where reliable fiber distribution and termination are required.

Typical applications include:

·FTTH subscriber access nodes

·Residential broadband network distribution

·Outdoor fiber optic distribution points

·Building fiber termination points

·Telecom pole fiber access terminals

·Fiber-to-the-building (FTTB) network nodes

In these scenarios, the 8 port waterproof fiber optic distribution box ensures stable fiber termination while maintaining protection for connectors and splices.

Typical Network Architecture Using the Fiber Optics Termination Box

In an FTTH optical distribution network, the fiber optics termination box functions as the distribution node between feeder cables and subscriber drop cables.

Fiber Routing Process

1. Feeder Cable Entry

Optical feeder cables from the distribution cabinet or central office enter the IP67 fiber enclosure through the main cable ports.

2. Fiber Splicing or Splitting

Inside the fiber optics termination box, fibers are either spliced in the splice tray or connected to PLC splitters.

3. Adapter Termination

The optical fibers are terminated with SC/APC adapters, providing reliable low-loss optical connections.

4. Drop Cable Distribution

Subscriber drop cables exit the outdoor fiber optic distribution box through the drop ports and connect to end-user premises equipment.

This structured architecture ensures efficient fiber routing and organized management within the fiber optics termination box.

Product Advantages of the Fiber Optics Termination Box

Integrated Fiber Management

The fiber optics termination box integrates splicing, termination, storage, and distribution in one compact enclosure, simplifying installation and network management.

IP67 Environmental Protection

The waterproof fiber enclosure protects fiber connections from moisture, dust, and environmental stress, ensuring long-term network stability.

Flexible Installation Options

The fiber optic wall-mounted box design supports both wall mounting and pole mounting, allowing flexible deployment across urban and rural FTTH networks.

Scalable Fiber Distribution

With support for PLC splitters, the fiber optics termination box enables efficient optical signal distribution for multiple subscribers.

Durable Outdoor Design

The enclosure is made from high-strength engineering plastic, ensuring resistance to UV radiation, mechanical impact, and temperature fluctuations.

FAQ – Fiber Optics Termination Box

What is a fiber optics termination box used for?

A fiber optics termination box is used to terminate feeder cables and distribute fiber connections to subscriber drop cables in FTTH networks.

How many fibers can this fiber optics termination box support?

The enclosure supports 8 SC adapters and up to 12 fusion splices, suitable for small access distribution nodes.

Is the fiber optics termination box suitable for outdoor installation?

Yes. With its IP67 waterproof fiber enclosure, the box is designed for long-term outdoor operation.

Can PLC splitters be installed inside the box?

Yes. The enclosure supports installation of up to two PLC splitters for optical signal distribution.

What mounting options are available?

The fiber optics termination box supports wall-mounted and pole-mounted installation, enabling flexible network deployment.

Manufacturer Introduction – Spring Optical

Spring Optical is a professional manufacturer of fiber optic connectivity solutions for global telecom networks. The company specializes in FTTH infrastructure products including fiber distribution boxes, fiber optics termination boxes, fiber splice closures, PLC splitters, and optical cables.

With advanced production lines covering connector manufacturing, cable assembly, and passive optical components, Spring Optical provides reliable products for telecom operators, ISPs, and network integrators worldwide.

Packing and Transportation

Packing

The fiber optics termination box is packed in standard export cartons to ensure safe transportation.

Storage Conditions

Storage temperature: −20°C ~ +65°C

Storage humidity: ≤95% (30°C)

Storage environment must be free from corrosive gases.

Transportation

The product can be transported by truck, train, ship, or aircraft. During transportation, the enclosure must be protected from:

Collision and mechanical damage

Falling impacts

Direct rain or snow exposure

Long-term sunlight exposure

Proper transportation ensures the 8 port waterproof fiber optic distribution box arrives in perfect condition for installation.

Contact now

For technical specifications, OEM customization, or project deployment consultation, contact Spring Optical. Our engineering team can help you select the most suitable fiber optics termination box for your FTTH network infrastructure.

Hot Tags: 8 port fiber optics termination box

 Technical Specifications of the Fiber Optics Termination Box

Optical Performance

Lightning and Electrical Protection
